The J2 Perturbation: How Earth's Oblateness Causes Orbital Precession

In the spring of 1958, radar operators tracking the Vanguard 1 satellite from ground stations across the Americas noticed a persistent drift in the spacecraft's trajectory. The satellite was not returning to the exact coordinates predicted by pure Keplerian mechanics. Instead, its orbital plane was slowly rotating around the Earth. This drift was not an error in the tracking equipment, but the first precise orbital measurement of the J2 perturbation—the gravitational consequence of Earth being wider at the equator than at the poles.[4]

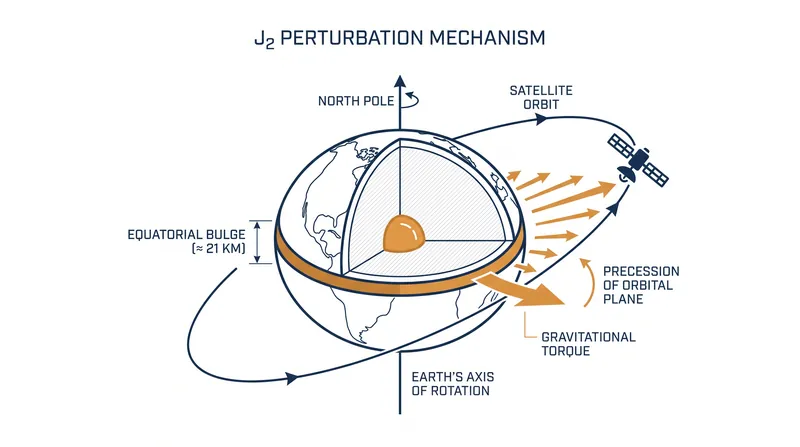

The mechanism driving this shift is rooted in planetary rotation. Earth's spin causes an equatorial bulge, making the equatorial radius approximately 21 kilometers larger than the polar radius. This uneven mass distribution creates a non-spherical gravitational field, meaning a satellite does not experience a perfectly uniform pull as it travels along its orbit.[4]

In astrodynamics, this deviation is quantified by spherical harmonics, with the second zonal harmonic, known as J2, being the dominant term. The dimensionless J2 coefficient for Earth is approximately 0.00108263. While this number appears small, its cumulative effect over thousands of orbits dictates the architecture of modern spaceflight.[4]

The J2 perturbation exerts a continuous torque on any satellite whose orbit is inclined relative to the equator. This torque causes two primary secular, or long-term, effects: nodal regression and apsidal precession. Both phenomena alter the orientation of the orbit without changing its size or shape.[4]

Nodal regression is the gradual rotation of the orbit's ascending node—the exact point where the satellite crosses the equator traveling from south to north. For a prograde orbit, where the inclination is less than 90 degrees, the node drifts westward. For a retrograde orbit, it drifts eastward.[4]

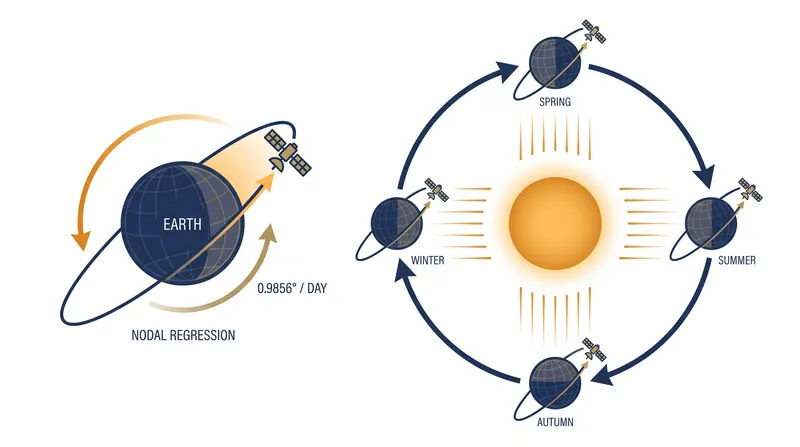

Aerospace engineers actively harness this westward drift to create Sun-synchronous orbits (SSO). By carefully selecting an altitude, typically between 600 and 800 kilometers, and pairing it with a retrograde inclination of around 97.8 degrees, the J2-induced nodal regression exactly matches Earth's orbit around the Sun—a rate of roughly 0.9856 degrees per day.[1][4]

This synchronization ensures the satellite passes over a given latitude at the exact same local solar time every day. It provides consistent lighting conditions and shadow angles, which is a mandatory requirement for Earth observation, weather monitoring, and military reconnaissance satellites.[1]

The second secular effect, apsidal precession, rotates the orbit's line of apsides within the orbital plane itself. This means the perigee, the closest approach to Earth, and the apogee, the farthest point, slowly shift their positions relative to the planet's surface.[4]

To counteract this drift in highly elliptical orbits, engineers utilize the "critical inclination" of 63.4 degrees or 116.6 degrees. At these specific angles, the mathematical term governing J2-induced apsidal precession drops to zero. This is the foundational principle behind Russian Molniya orbits, which linger over high northern latitudes for communications without the perigee drifting into the southern hemisphere.[4]

This mathematical reality presents a strict physical trade-off for constellation operators. Because a Sun-synchronous orbit requires an inclination of roughly 97.8 degrees to achieve the necessary 0.9856 degrees per day of nodal regression, it cannot simultaneously sit at the 63.4-degree critical inclination required to stop apsidal precession. Consequently, a satellite cannot passively maintain both a constant lighting angle and a fixed perigee using only the J2 perturbation; operators must prioritize one stability metric over the other based on the mission profile.[1][4][6]

While J2 is highly useful for single satellites, it presents a complex control challenge for modern satellite constellations and formation flying. When multiple satellites operate in close proximity, even slight differences in their orbital elements cause differential J2 perturbations, meaning the Earth pulls on each spacecraft slightly differently.[3][5]

Over time, these differential forces cause the formation to drift apart, requiring active station-keeping. Research on minimizing secular J2 effects demonstrates that matching the mean orbital elements—specifically the semi-major axis, eccentricity, and inclination—can effectively nullify the relative drift between spacecraft, allowing them to fly in formation with minimal fuel usage.[5]

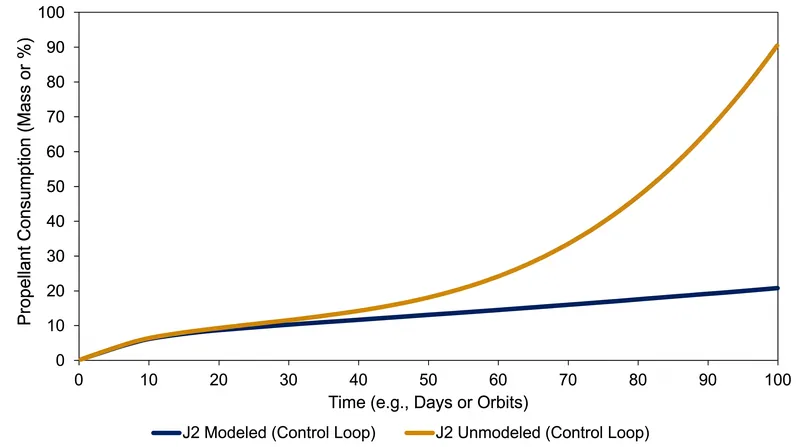

For drag-free control systems, which use micro-thrusters to counteract atmospheric drag and solar radiation pressure, the J2 perturbation must be precisely modeled in the onboard control loop. NASA analysis indicates that failing to account for J2 variations can lead to excessive propellant consumption as the automated systems fight a gravitational force they misinterpret as drag.[2]

Conversely, advanced constellation designs now seek to use J2 as a propellant-free propulsion system. By intentionally altering a satellite's altitude or inclination, operators can let the J2 perturbation naturally drift the spacecraft into a new orbital plane over several months before returning it to its nominal altitude.[1]

This "J2-propelled" maneuvering is significantly more fuel-efficient than executing a plane change using onboard thrusters, which requires massive delta-v. It is now a standard technique for phasing satellites into their correct orbital slots during the deployment of massive broadband constellations.[1]

Because the foundational literature on orbital mechanics relies entirely on mathematical proofs and control algorithms rather than spoken statements, the cited technical papers contain no direct quotations from researchers. Instead, the consensus is written in the language of differential equations, where the J2 term remains the inescapable baseline for every low Earth orbit mission.[6]
