Delta-V Budgets Explained: The Kinetic Cost of Reaching LEO, GEO, and the Moon

Public perception, often reinforced by science fiction and popular media, treats spaceflight as a matter of distance: a 400-kilometer trip to the International Space Station should require vastly less energy than a 384,000-kilometer voyage to the Moon. The physics of orbital mechanics dictate otherwise. In the vacuum of space, distance is largely irrelevant to the fuel required for a journey. The true metric is the change in velocity needed to shift from one trajectory to another, a measurement known as delta-v.[3][8]

"Delta-v is the absolute currency of spaceflight; you cannot borrow it, and you cannot fake it," writes Orbital Radar analyst Sarah Jenkins in a 2026 assessment of launch economics. Every maneuver, from lifting off a launch pad to circularizing an orbit or injecting into a transfer trajectory, carries a strict kinetic cost that must be paid in propellant. Because spacecraft must carry the fuel required to accelerate their remaining fuel, these costs compound exponentially.[3]

The steepest toll in the entire solar system is the initial climb off the surface of the Earth. Reaching Low Earth Orbit (LEO) requires a delta-v of approximately 9.3 to 10 kilometers per second. This massive energy expenditure is necessary not just to reach orbital altitude, but to achieve the horizontal velocity of roughly 7.8 kilometers per second required to continuously miss the ground, while simultaneously overcoming atmospheric drag and the downward pull of gravity during the ascent.[1][2]

This initial 10 km/s requirement dictates the architecture of every launch vehicle in existence. It is the reason a rocket on the pad is typically 85 to 90 percent propellant by mass, leaving only a tiny fraction for the vehicle structure and the actual payload. Escaping the deepest part of Earth's gravity well consumes the overwhelming majority of a rocket's capability before it ever truly enters the vacuum of space.[2][6]

Once a spacecraft achieves LEO, the mathematics of the solar system shift dramatically. The science fiction author Robert Heinlein famously summarized this reality, a maxim frequently cited by aerospace engineers: "Once you get to earth orbit, you're halfway to anywhere." The numbers bear this out with striking precision.[6]

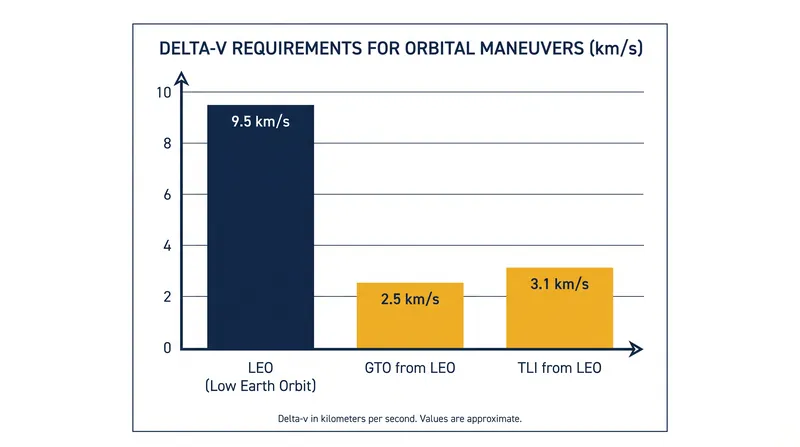

Consider the Geostationary Transfer Orbit (GTO), the standard trajectory used to deliver heavy telecommunications satellites to their final perches 35,786 kilometers above the equator. Pushing a payload from a standard 400-kilometer LEO parking orbit into a GTO requires an additional delta-v of approximately 2.5 kilometers per second. This maneuver stretches the orbit into a highly elliptical path, raising the apogee to the geostationary belt.[5]

Now compare that to a Trans-Lunar Injection (TLI), the maneuver that sends a spacecraft out of Earth orbit and on a path to intersect the Moon. Despite the Moon being nearly ten times farther away than the geostationary belt, a TLI burn from LEO requires a delta-v of roughly 3.1 to 3.2 kilometers per second. The difference between deploying a commercial television satellite and sending a capsule to the Moon is a mere 0.6 to 0.7 kilometers per second of velocity change.[4][5]

This narrow margin exists because the strength of Earth's gravitational field drops off with the square of the distance. By the time a spacecraft has accelerated enough to reach geostationary altitudes, it has already climbed out of the steepest part of the gravity well. Adding just a fraction more kinetic energy is sufficient to push the apogee out hundreds of thousands of kilometers further.[1][7]

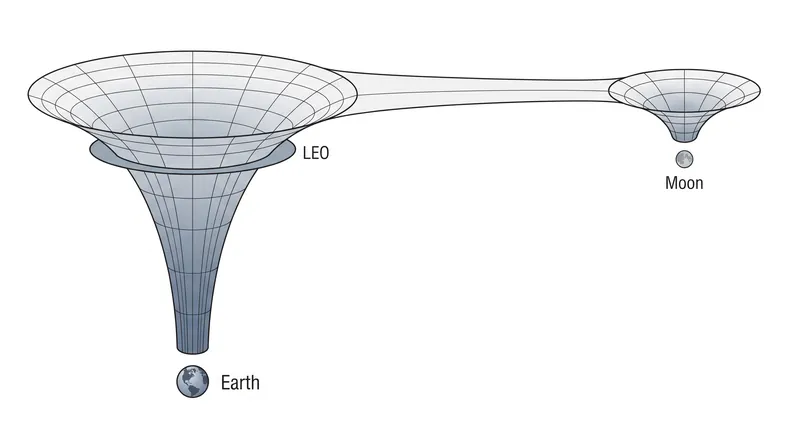

Visualizing this requires abandoning standard distance maps. In 2013, aerospace analyst Hop David published a "Cartoon Delta V Map" that remains a standard reference in mission planning circles. Instead of charting physical space, the map represents celestial bodies as deep gravitational wells. Earth is a massive, steep chasm; LEO is a ledge near the top; and the rest of the inner solar system is a relatively flat plain dotted with shallower divots.[7]

Arriving at the Moon introduces its own costs, though they are comparatively small. Because the Moon has only one-sixth of Earth's gravity, capturing into a low lunar orbit requires a braking maneuver of approximately 0.9 kilometers per second. According to mission parameters published by the Lunar and Planetary Institute, descending from that orbit to the lunar surface requires roughly another 1.9 kilometers per second.[4]

Returning to Earth is even cheaper. A spacecraft leaving the lunar surface needs about 1.9 km/s to reach lunar orbit, and another 0.9 km/s for Trans-Earth Injection (TEI). But upon reaching Earth, the spacecraft does not necessarily need to burn fuel to slow down. By precisely targeting the upper atmosphere, a returning capsule can use aerodynamic friction to bleed off its orbital velocity—a technique known as aerocapture or aerobraking, which effectively provides kilometers per second of delta-v for free.[1][2]

These kinetic realities shape the modern aerospace industry's approach to cislunar infrastructure. Because moving mass from LEO to lunar orbit is energetically similar to moving it to GEO, launch providers are increasingly designing orbital tugs and transfer stages that can service both markets interchangeably. A propulsion module capable of delivering a heavy satellite to geostationary orbit possesses the exact kinetic capability needed to push a slightly lighter payload to the Lunar Gateway.[3][8]

The implications for space resource utilization are profound. If propellant can be manufactured on the Moon or harvested from near-Earth asteroids, it only needs to be pushed down the gravity well to LEO, rather than hauled up from Earth's surface. A refueling depot in LEO would effectively eliminate the 10 km/s launch penalty for deep space missions, allowing spacecraft to depart fully fueled for Mars or the outer planets.[6][8]

Until such infrastructure exists, mission planners remain bound by the tyranny of the rocket equation. Every kilogram of payload sent beyond LEO requires exponentially more propellant on the launch pad. But the delta-v budget proves that the solar system is closer than it appears. The vast, empty distances of space are practically free to cross; the only toll that matters is the one collected by gravity.[2][3]

The next verifiable checkpoint for these orbital economics will come with the integration of the Artemis campaign's heavy-lift hardware. As commercial providers finalize the delta-v budgets for their lunar landers and transfer stages, the industry will test whether the theoretical margins between geostationary and lunar trajectories can be reliably exploited for routine, sustainable transport.[3][8]
