How Vehicle-to-Grid Inverters Synchronize Automotive Batteries With the AC Power Grid

Under the ISO 15118-20 communication standard rolling out across North American and European charging networks in 2026, a parked electric vehicle is no longer just a consumer of electricity. It is a grid-scale battery. A typical EV holds between 60 and 100 kilowatt-hours of direct current (DC) energy—roughly six times the capacity of a dedicated home storage unit like the Tesla Powerwall.

For years, that massive chemical reservoir sat idle in garages. Now, through vehicle-to-grid (V2G) bidirectional charging, utilities are tapping into those parked cars to stabilize the alternating current (AC) power grid during peak demand hours.[1][4]

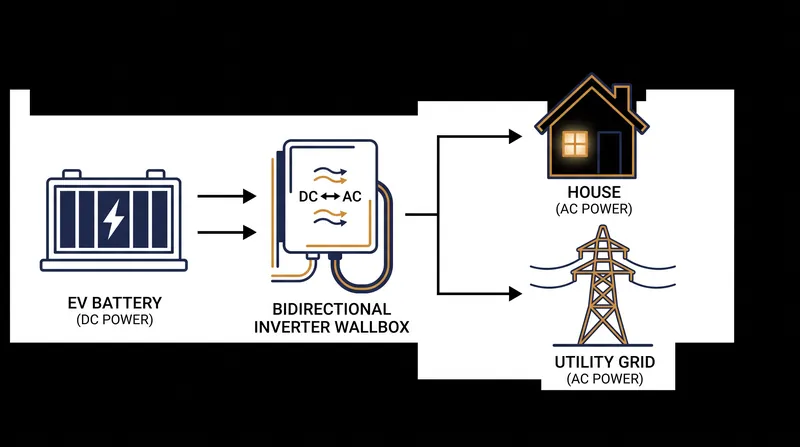

The physics of pushing power backward requires precise synchronization. The public grid operates on AC power at a strict frequency of 60 hertz in North America and 50 hertz in Europe. Because EV batteries store energy as DC, the electricity must be converted and perfectly phase-matched before it can cross the meter.

This conversion happens either via an onboard inverter inside the vehicle or, increasingly, through a specialized DC-coupled bidirectional wallbox installed at the home. If the frequencies drift even slightly out of phase, the resulting harmonic distortion can damage both the vehicle and local transformers.[6]

"ISO 15118-20 extends the communication framework to cover bidirectional power flow — where the vehicle battery discharges energy back into the grid, building, or home," notes technical documentation from Joint Charging. The standard dictates how the vehicle and the Electric Vehicle Supply Equipment (EVSE) negotiate discharge setpoints, export limits, and real-time energy pricing.

By January 2027, the European Union's Alternative Fuels Infrastructure Regulation mandates that all new public chargers capable of V2G must implement this protocol. In the United States, the standard is being integrated into the universal SAE J3400 connector.[1]

The distinction between vehicle-to-home (V2H) and vehicle-to-grid (V2G) lies at the utility meter. V2H isolates the house from the grid during an outage, using the car to power domestic appliances directly. V2G crosses that boundary, exporting surplus energy into the broader distribution network. That export requires a utility interconnection agreement, specialized metering, and software that allows the grid operator to call upon the vehicle's battery when regional demand spikes.[6]

Rather than building standalone V2G programs, regulators are folding bidirectional vehicles into Virtual Power Plants (VPPs). A VPP aggregates thousands of distributed energy resources—rooftop solar, smart thermostats, and now EVs—into a single, dispatchable network that behaves like a traditional fossil-fuel peaker plant. The U.S. Department of Energy explicitly includes EV chargers in its VPP framework, recognizing that a fleet of 10,000 plugged-in cars can instantly inject 50 to 100 megawatts of capacity into a strained grid without burning a cubic foot of natural gas.[2]

Maryland became a primary testing ground for this architecture following the passage of the 2024 Distributed Renewable Integration and Vehicle Electrification (DRIVE) Act. The legislation forced the Maryland Public Service Commission to establish the nation's first standardized interconnection procedures for bidirectional chargers, which were finalized in mid-2025. In July 2026, the Commission approved utility pilot programs targeting 185.7 megawatts of peak load reduction across providers like Baltimore Gas and Electric and Delmarva Power, with full implementation slated for the 2027 summer season.[3]

Other regions are scaling similar networks. In New England, utilities Eversource and National Grid recently integrated V2G capabilities into their ConnectedSolutions VPP program. Operating across five states, the program already orchestrates more than 280,000 distributed devices to provide over 800 megawatts of flexible capacity. By adding bidirectional EVs to that pool, grid operators gain access to significantly larger individual energy reserves than smart thermostats or water heaters can provide.[5]

For the vehicle owner, the incentive is strictly financial. Participants in active V2G pilot programs report earning between $500 and $2,000 annually, depending on local utility tariffs, battery size, and how often the grid calls for power. The vehicle's battery management system allows owners to set strict discharge limits—ensuring, for example, that the battery never drops below a 70 percent state of charge, guaranteeing the car always has enough range for the morning commute.[4]

The transition away from proprietary hardware is accelerating this adoption. Early V2G deployments relied almost exclusively on the CHAdeMO charging standard, favored by the Nissan Leaf, because it natively supported bidirectional flow. The finalization of ISO 15118-20 brings that same capability to the Combined Charging System (CCS) and NACS architectures that dominate the modern EV market, opening the grid-services market to millions of newer vehicles.[4]

As bidirectional hardware becomes standard equipment rather than an expensive aftermarket add-on, the relationship between transportation and infrastructure fundamentally changes. A commuter vehicle is transformed from a passive drain on the electrical grid into an active, revenue-generating node that actively suppresses wholesale electricity prices during the most critical hours of the day.[7]
