Square-Cut Caliper Seals Deflect Under Fluid Pressure to Retract Brake Pistons Without Return Springs

When a driver presses the brake pedal of a modern vehicle, hydraulic fluid rushes from the master cylinder into the wheel hubs at pressures exceeding 500 psi. This fluid forces steel or aluminum pistons outward, clamping the abrasive brake pads against a spinning cast-iron rotor.[5]

Yet, when the driver releases the pedal, the heavy pads instantly back away from the rotor, allowing the wheel to spin freely. Unlike older drum brakes, which rely on heavy coiled steel springs to pull the brake shoes back to their resting position, modern disc brake calipers—which became standard on passenger cars in the 1970s—contain no mechanical return springs at all.[1]

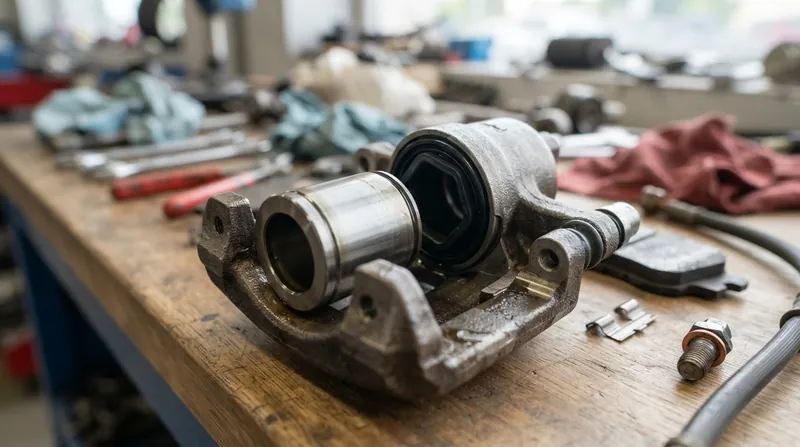

Instead, the entire mechanical release of a multi-ton vehicle relies on a single rubber ring hidden inside the caliper bore. Known as a square-cut seal, this component performs a microscopic elastic deflection that dictates the safety and efficiency of the entire braking system.[6]

"The square cut seal is what allows the caliper piston to retract back into its housing," according to Factlen's engineering analysis. "Just because you can manually push the piston in, doesn't mean the square cut seal is working."[6]

How Hydraulic Deflection Works

The mechanism relies on a precise geometric relationship between the piston, the caliper housing, and the seal itself. The seal is typically manufactured from ethylene propylene diene monomer (EPDM), a synthetic rubber chosen for its resistance to extreme heat and caustic brake fluid.[3]

Unlike a standard O-ring, which features a round cross-section, the caliper seal is cut into a perfect square or rectangle. It sits inside a specially machined groove within the inner wall of the caliper cylinder, gripping the smooth outer surface of the metal piston.[1]

When the brake pedal is pulled, hydraulic pressure pushes the pistons outward. As the pistons move, the seals deform slightly in their grooves, maintaining a watertight barrier while allowing the metal cylinder to slide forward.[2]

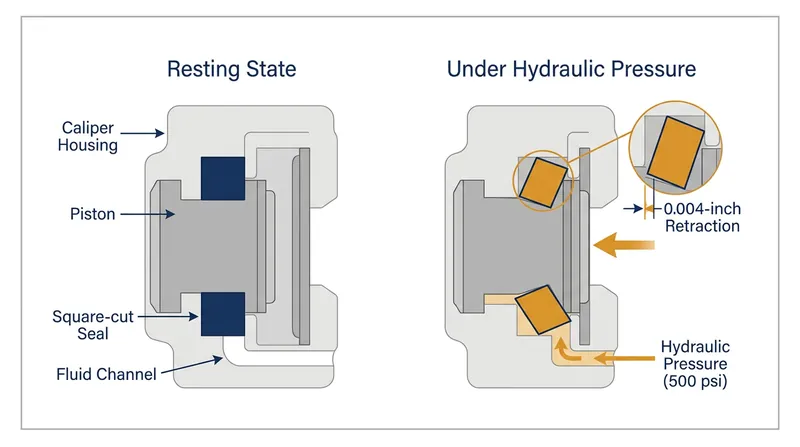

Because the outer edge of the seal is trapped in the stationary groove, the inner edge gripping the moving piston is dragged forward. The square cross-section distorts into a parallelogram, storing kinetic energy like a stretched rubber band while simultaneously preventing the pressurized fluid from leaking.[6]

When the driver lifts their foot, the hydraulic pressure inside the brake lines instantly drops. The distorted EPDM rubber naturally seeks to return to its original square shape, and as it snaps back, it pulls the heavy metal piston with it.[6]

The Margins of Running Clearance

This elastic rebound is incredibly small, but it is the only force separating the brake pads from the rotor during normal driving. Automotive engineers refer to this microscopic gap as the "running clearance," and it is essential for preventing catastrophic friction.[1]

According to 2025 dial-indicator measurements from automotive testing facilities, a properly functioning square-cut seal will pull the piston back by exactly 0.004 to 0.006 inches. That distance—roughly the thickness of a sheet of standard printer paper—is all that keeps the pads from dragging against the spinning iron discs.[6]

If the clearance is set too low, the pads maintain contact with the rotor, generating immense heat that can boil the brake fluid and warp the metal. When clearance is set too high, it results in poor brake performance due to the pad not completely meeting the disc.[4]

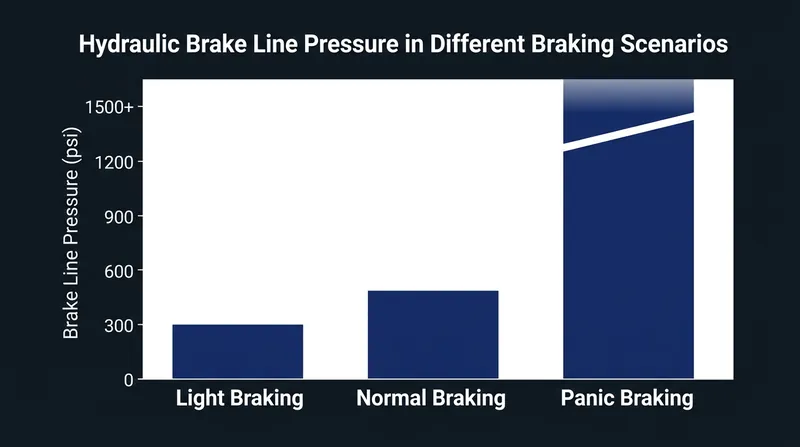

The hydraulic forces involved in creating this deflection are massive. During a routine stop, the fluid pressure inside the caliper ranges from 300 to 500 psi, forcing the seal to hold back hundreds of pounds of force.[6]

In an emergency, those numbers spike dramatically. If a full panic stop is taking place, the proportioning valve will limit the rear brake pressure to about 800 psi while the front brakes will climb to between 1,500 psi and 2,000 psi.[6]

Wear, Heat, and Seal Failure

Because the square-cut seal absorbs these extreme pressures while sitting millimeters away from friction-heated rotors, it eventually degrades. Heavy braking, long mountain descents, and the added weight of modern electric vehicles all subject the EPDM rubber to severe thermal cycling.[6]

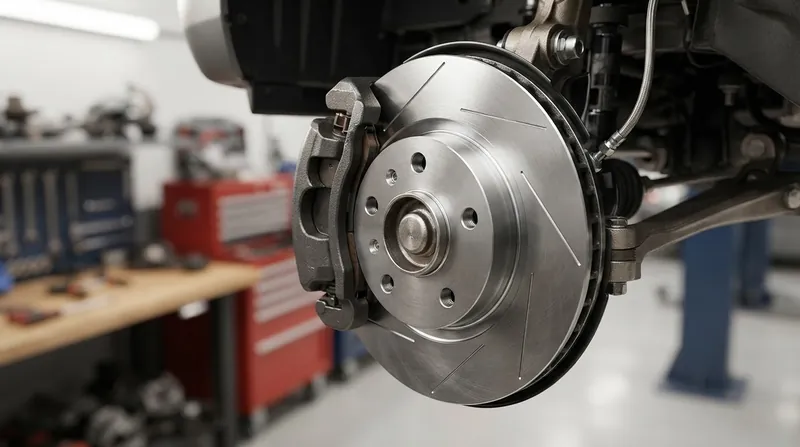

Over years of use, this heat bakes the elasticity out of the rubber, causing the seal to harden and lose its ability to distort into a parallelogram. When a hardened seal fails to pull the piston back, the brake pads drag continuously, accelerating wear and ruining fuel economy.[4]

The caliper piston is pushed outward by hydraulic pressure when you brake, and it should retract slightly when pressure is released. Over time, corrosion, dirt, or dried brake fluid can cause the piston to stick in its bore, overriding the seal's retraction force.[3]

Mechanics diagnosing a dragging brake often mistakenly blame a seized metal piston, when the actual culprit is a hardened rubber seal that has lost its microscopic spring rate. Replacing the seal restores the elastic retraction and brings the running clearance back to factory specifications.[6]

Adjusting for Pad Wear Automatically

The square-cut seal also serves a secondary, equally vital function: it acts as an automatic adjuster for brake pad wear. As the abrasive friction material on the brake pads slowly grinds away over thousands of miles, the piston must travel further outward to clamp the rotor.[4]

When the piston's outward travel exceeds the seal's maximum deflection limit—usually around that 0.006-inch threshold—the piston simply slips forward through the center of the rubber ring. The seal then establishes a new grip slightly further down the piston's shaft.[6]

This ingenious slipping mechanism ensures that the running clearance remains perfectly constant, whether the brake pads are brand new or worn down to their backing plates. The driver never feels a difference in the brake pedal, because the retraction distance never changes.[6]

In a 2024 engineering review, analysts noted that the pressure does not split unevenly between the four corners of a brake system, meaning the seals at each wheel experience the same hydraulic baseline. This makes a pressure gauge an effective tool at measuring effective clamping force and diagnosing blockages.[5]

By combining fluid dynamics with the material science of synthetic rubber, automotive engineers eliminated the need for complex mechanical linkages. The square-cut seal remains one of the most elegant and critical components in modern transportation, silently deflecting millions of times over the life of a vehicle.[6]
