Why Diesel Particulate Filters Clog When Urban Exhaust Fails to Reach 550 Degrees Celsius

For a modern diesel engine to clean its own exhaust, the gas flowing through its particulate filter must reach a continuous 550 degrees Celsius. In stop-and-go city driving, that temperature rarely clears 300 degrees Celsius. This thermal shortfall breaks the engine's primary emissions control mechanism.

The condition is a binding constraint of chemistry. Carbon soot, the byproduct of burning diesel fuel, requires massive heat to oxidize into harmless carbon dioxide. When the exhaust stream cannot provide that heat, the soot simply accumulates inside the filter matrix.

This mismatch between urban driving patterns and thermal requirements represents the most common failure point in modern diesel vehicles. The system is designed to be self-cleaning, but it relies on highway speeds to generate the necessary friction and load. Without that load, the filter chokes.

"If your journeys are mostly short, stop-start urban driving, the exhaust temperature won't reach the required level," notes the UK Automobile Association in its technical advisory on filter maintenance. The resulting blockages force vehicles into limp mode and require expensive manual interventions.[4]

The Mechanics of Particulate Capture

A diesel particulate filter, or DPF, is a ceramic honeycomb structure spliced into the exhaust pipe. Its internal channels are alternately blocked at each end, forcing the exhaust gases to pass through the porous ceramic walls. This physical barrier traps microscopic solid particles.

The filtration efficiency is remarkably high. Since the Euro 5 emissions standard mandated their widespread use in 2009, a functioning DPF captures between 85 and 95 percent of particulate matter down to 2.5 micrometers, according to the US Environmental Protection Agency.

However, a filter is only a temporary storage device. A standard passenger car DPF can hold roughly 15 to 20 grams of soot before the accumulated mass begins to restrict the flow of exhaust gases. Once full, the filter must be emptied through a process called regeneration.

Regeneration is not a physical emptying, but a chemical burn. The trapped carbon must be oxidized into carbon dioxide gas, which can then pass freely through the ceramic walls and out the tailpipe. This is where the thermal constraint dictates the system's success or failure.

The 550-Degree Oxidation Threshold

Carbon does not spontaneously react with oxygen at room temperature. The activation energy required to ignite diesel soot demands an ambient environment of at least 550 degrees Celsius. DieselNet, an engineering reference for emissions standards, defines this as the baseline for passive regeneration.[2]

During sustained highway driving, the engine operates under a continuous, heavy load. The exhaust gases leaving the combustion chamber easily exceed 600 degrees Celsius, carrying enough thermal energy down the pipe to heat the ceramic filter matrix to the ignition point.

Under these conditions, the filter cleans itself invisibly. The soot burns away as quickly as it arrives, maintaining a clear path for the exhaust. The driver never notices the process, and the engine maintains optimal backpressure and fuel efficiency.

Urban driving dismantles this equilibrium. Oak Ridge National Laboratory emissions data shows that during standard city drive cycles, exhaust temperatures fluctuate between 250 and 300 degrees Celsius. The engine simply does not work hard enough to generate the required waste heat.[5]

The Active Regeneration Intervention

To prevent the filter from clogging entirely during city use, automotive engineers designed a software intervention known as active regeneration. When pressure sensors detect a restricted filter, the engine control unit artificially raises the exhaust temperature. It achieves this by altering the fuel injection timing.

The engine injects a small pulse of raw diesel fuel into the cylinder just after the main combustion event. This unburned fuel travels down the exhaust pipe and ignites inside the diesel oxidation catalyst, located just upstream of the particulate filter.

This secondary fire acts as a blowtorch, pushing the filter temperature past the 550-degree threshold regardless of the vehicle's speed. However, this forced regeneration takes time. SAE International standards indicate the process requires 15 to 20 minutes of continuous driving to complete.[3]

This duration is the fatal flaw for urban commuters. A typical trip to a grocery store or a school drop-off lasts less than 15 minutes. The driver turns off the ignition halfway through the active regeneration cycle, halting the burn and leaving the soot partially intact.

Downstream Consequences of Interruption

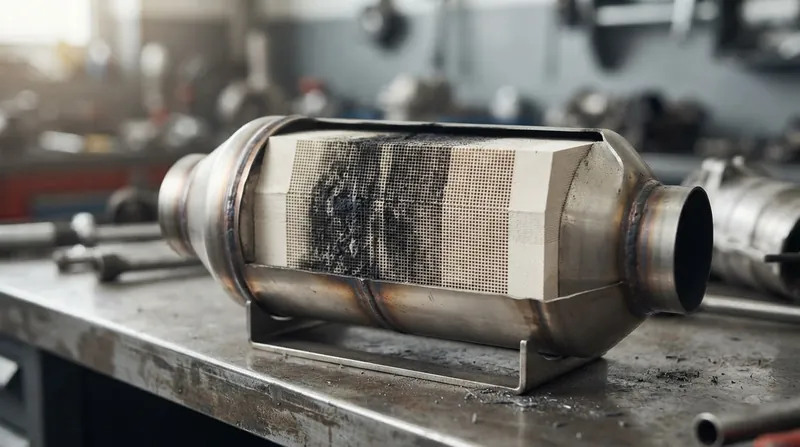

Repeatedly interrupting an active regeneration cycle causes the soot load to compound. The engine control unit will attempt to restart the burn on the next trip, but if that journey is also short, the filter eventually reaches a critical saturation point.

Once the soot mass exceeds roughly 40 grams, the engine control unit locks out the active regeneration feature entirely. It does this as a safety mechanism; burning that much accumulated carbon at once could generate enough heat to melt the ceramic monolith or ignite the vehicle.

At this stage, the vehicle enters a restricted performance state known as limp mode. The dashboard displays a warning light, and the engine cuts power to minimize further soot production. The driver must take the vehicle to a workshop for a forced, stationary regeneration.

If the blockage is too severe, even a workshop cannot save the component. A replacement diesel particulate filter costs between $1,500 and $3,000, depending on the manufacturer. This makes the thermal deficit of short trips one of the most expensive maintenance issues in modern motoring.

Chemical Workarounds and Future Standards

Manufacturers have attempted to lower the activation energy required for soot oxidation. Many modern filters are coated with precious metals like platinum and palladium. These catalytic coatings can drop the passive regeneration threshold down to roughly 450 degrees Celsius, though this still exceeds typical urban exhaust temperatures.

Some French manufacturers utilize a fuel-borne catalyst system, injecting a cerium-based fluid into the fuel tank. This additive binds with the soot during combustion, lowering its ignition point to around 300 degrees Celsius. While effective for city driving, the system requires periodic fluid refills.

Ultimately, the physics of diesel combustion dictate that the fuel is best suited for heavy loads and long distances. As emissions regulations tighten globally, the engineering required to keep a diesel engine clean at 20 miles per hour is becoming increasingly complex and difficult to justify.

The fundamental takeaway for consumers is a matter of matching the tool to the task. Buying a diesel vehicle for short urban commutes guarantees thermal starvation and eventual component failure, regardless of the manufacturer's engineering efforts.
