The Three Chemical Reactions That Convert CO, NOx, and Hydrocarbons in a Catalytic Converter

The common assumption among drivers and even some entry-level technicians is that a catalytic converter acts as a high-temperature filter, trapping dirty exhaust gas and letting clean air pass through. The physical evidence contradicts this entirely. A three-way catalytic converter is not a filter at all, but a chemical reactor. It does not trap pollutants; it forces them to change their molecular structure through three simultaneous reactions, converting toxic byproducts into harmless atmospheric gases before they reach the tailpipe.[2][4]

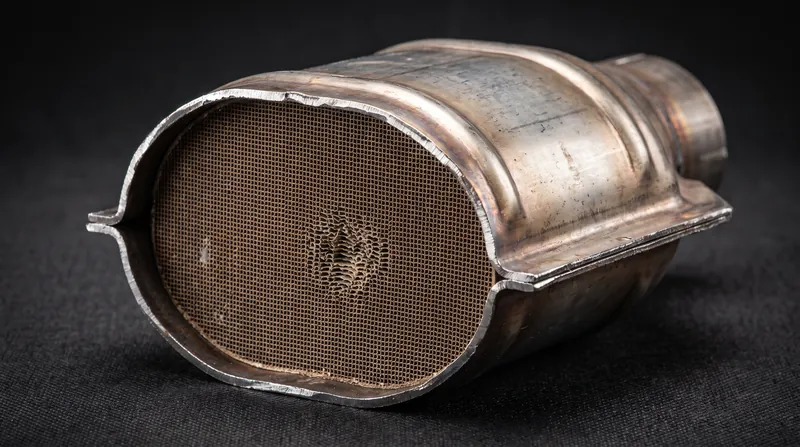

The device earns its "three-way" designation by targeting the three primary pollutants generated by a gasoline internal combustion engine: carbon monoxide (CO), unburned hydrocarbons (HC), and nitrogen oxides (NOx). Inside the steel casing, exhaust gases flow through a ceramic honeycomb substrate coated with a washcoat of precious metals, typically platinum, palladium, and rhodium. According to The Open University's chemistry curriculum, "Catalysts are substances that speed up reactions without being used up in the reaction," meaning the metals facilitate the molecular changes without degrading themselves.[1][3]

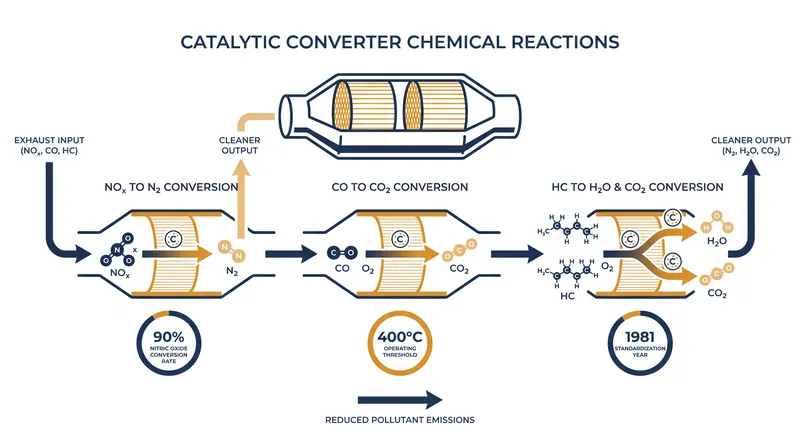

The first of the three reactions addresses nitrogen oxides, a primary contributor to smog and acid rain. When NO and NO2 molecules enter the converter, they bind to the rhodium surfaces. As The Open University notes, "the catalyst surface assists the breaking of the bond in the NO molecule, it has a lower energy barrier and is much faster." The atoms split, allowing pairs of nitrogen atoms to combine and exit the tailpipe as harmless N2 gas, while the freed oxygen is retained for the next phase of the process. In a properly functioning system, this reduction pathway converts roughly 90 percent of the nitric oxide in the exhaust stream.[3]

The second and third reactions are oxidation processes handled primarily by the platinum and palladium catalysts. Carbon monoxide, a highly toxic byproduct of incomplete combustion, is forced to bond with available oxygen to form carbon dioxide (CO2). Simultaneously, unburned hydrocarbons—essentially raw fuel vapor—are oxidized into carbon dioxide and water vapor (H2O).[2][4]

The fundamental engineering constraint of this system is that these reactions require opposite chemical conditions. The reduction of nitrogen oxides demands an oxygen-poor environment, while the oxidation of carbon monoxide and hydrocarbons requires excess oxygen. To solve this, modern engine management systems do not hold a perfectly steady air-fuel mixture. Instead, they use oxygen sensors to rapidly oscillate the mixture slightly rich and slightly lean of the stoichiometric ratio, providing the exact chemical balance the converter needs to execute all three reactions simultaneously.[1][4]

Heat is the critical variable that dictates whether these reactions occur at all. A catalytic converter is entirely inert at room temperature. It must reach its "light-off" temperature—typically around 400 degrees Celsius (752 degrees Fahrenheit)—before the precious metals become active. Below this thermal floor, the exhaust gases pass through the honeycomb structure completely untreated.[2][4]

This thermal requirement explains why the vast majority of a modern vehicle's tailpipe emissions occur during the first few minutes of operation. During a cold start, the engine runs in an open-loop configuration, dumping extra fuel into the cylinders to keep the cold engine running while the exhaust manifold and the converter itself absorb heat. Until the ceramic substrate crosses the 400-degree Celsius light-off threshold, the vehicle is effectively operating without an emissions control system.[2]

To minimize this cold-start emission window, automotive engineers have steadily moved catalytic converters closer to the exhaust manifold. While early two-way converters introduced for the 1975 model year were often mounted under the vehicle floorboards, modern three-way systems are frequently bolted directly to the engine block. This close-coupled placement subjects the converter to extreme operating temperatures—often exceeding 800 degrees Celsius—but slashes the time required to reach light-off from several minutes to mere seconds.[1][4]

The durability of the catalytic converter is directly tied to engine health. Because the device relies on a precise chemical balance, any upstream engine fault can destroy the substrate. A misfiring cylinder that dumps raw, unburned fuel into the exhaust will cause that fuel to ignite inside the converter, pushing internal temperatures past the melting point of the ceramic honeycomb. Conversely, coolant or oil leaks can coat the precious metals, physically blocking the exhaust gases from contacting the rhodium and platinum.[2]

The automotive industry adopted this specific chemistry in response to federal mandates. As the US Environmental Protection Agency enforced stricter emissions standards, Volvo first commercialized the three-way converter on its California-specification 1977 model 240 cars. When federal regulations required tight control of NOx for the 1981 model year, nearly all automakers integrated the technology into their exhaust architectures. By leveraging the specific properties of rare earth metals, this passive component quietly runs three continuous chemical reactions, neutralizing millions of tons of toxic gases without requiring a single moving part.[4][5]
