The V-Bar and R-Bar Approach: How Relative Orbital Mechanics Dictate Spacecraft Rendezvous and Docking

To dock two spacecraft traveling at 28,000 kilometers per hour, engineers must choose between approaching along the velocity vector (V-Bar) or the radial vector (R-Bar), balancing fuel efficiency against natural orbital braking. The V-Bar approach minimizes propellant use by moving along the target's orbital path, while the R-Bar approach leverages Earth's gravity gradient to naturally pull the approaching spacecraft away if thrusters fail.[2][3]

The physics of low Earth orbit dictate that a pilot cannot simply point a spacecraft at a target and fire the engines. Because orbital velocity determines orbital altitude, adding forward thrust raises the spacecraft's orbit, causing it to slow down relative to the target. This counterintuitive environment requires a specialized set of mathematical models to manage the final kilometers of a rendezvous.[3]

The foundation of these maneuvers lies in Hill's Equations, also known as the Clohessy-Wiltshire equations, developed in 1960. As detailed in the Space Systems Engineering notes by Kyle Niemeyer, these equations linearize the relative motion between two objects in orbit, assuming the target is in a circular path. "The Clohessy-Wiltshire frame provides the mathematical basis for all modern proximity operations," the engineering notes outline, establishing a rotating coordinate system centered on the target.[1][2]

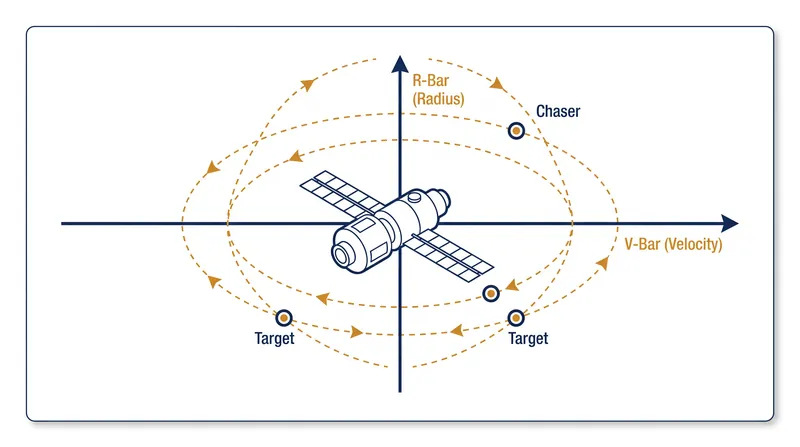

Within this coordinate system, the V-Bar represents the axis along the target's velocity vector—essentially the path the space station is traveling. Approaching along the V-Bar means the chasing spacecraft is in the same orbit, either directly ahead of or behind the target.[1][3]

The primary advantage of a V-Bar approach is propellant efficiency. Because both spacecraft share the same orbital altitude and velocity, the relative gravitational forces are near zero. The chasing vehicle only needs to expend a small amount of Delta-V—often measured in fractions of a meter per second—to close the distance, making it the preferred method for missions with tight mass constraints.[2]

However, the V-Bar approach carries a critical risk: if the approaching spacecraft's thrusters fail, its momentum will carry it directly toward the target. This lack of passive safety means that any hardware anomaly during the final tens of meters could result in a catastrophic collision at orbital velocities.[3]

To mitigate this risk, engineers developed the R-Bar approach. The R-Bar, or Radius Bar, is the axis extending from the center of the Earth through the target spacecraft. An R-Bar approach typically involves the chasing vehicle moving up from directly below the target.[2][3]

Approaching from below places the chasing spacecraft in a slightly lower, and therefore faster, orbit. To remain directly beneath the target, the chasing vehicle must continuously fire its thrusters to brake against its natural orbital velocity. While this expends more propellant, it creates a highly desirable safety profile.[2]

If a spacecraft experiences a total loss of propulsion during an R-Bar approach, orbital mechanics take over. The lower, faster spacecraft will naturally drift ahead of the target and, due to the lack of upward thrust, begin to fall back into a lower orbit. This gravity gradient effect ensures the vehicle passively drifts away from the station without requiring evasive maneuvers.[3][6]

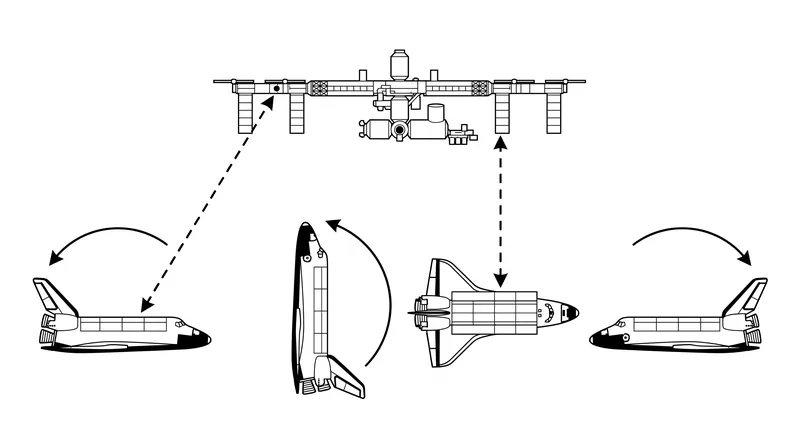

The R-Bar approach gained widespread public visibility on July 5, 2005, during the STS-114 mission. As documented by NASA, the Space Shuttle Discovery executed the first R-Bar Pitch Maneuver. Commander Eileen Collins guided the orbiter to a position 180 meters directly below the International Space Station and performed a 360-degree backflip.[5]

This maneuver allowed the station crew to photograph the Shuttle's thermal protection system, a direct response to the Columbia disaster. The R-Bar position was specifically chosen because it provided a stable, passively safe vantage point for the 10-minute inspection before the final docking sequence commenced.[5]

Today, the choice between V-Bar and R-Bar is increasingly managed by autonomous systems. According to a 2003 technical paper by Microcosm Inc. on autonomous rendezvous and docking technologies, the transition from human-piloted to computer-controlled approaches requires robust sensor fusion and real-time trajectory recalculation.[6]

Software environments like MathWorks' MATLAB and Simulink are now used to model these 6-degree-of-freedom relative motions. Their space rendezvous blocksets allow engineers to simulate sensor noise, thruster misfires, and orbital perturbations, ensuring the autonomous logic can handle the dynamic environment of the Clohessy-Wiltshire frame.[4]

As the commercial space industry scales, with multiple private space stations planned for the 2030s, the standardization of these approaches becomes critical. Vehicles from different manufacturers must agree on approach corridors, keep-out zones, and abort triggers.[7]

The R-Bar approach is increasingly becoming the default for uncrewed cargo vehicles, where the cost of extra propellant is outweighed by the absolute necessity of protecting the crewed target station. Conversely, crewed vehicles with human pilots ready to take manual control still frequently utilize V-Bar approaches to optimize their limited fuel reserves.[6][7]

The architecture of orbital logistics will continue to be defined by these two vectors. As engineers push for faster rendezvous profiles and heavier cargo deliveries, the fundamental physics of the V-Bar and R-Bar remain the non-negotiable constraints governing how humanity builds infrastructure in low Earth orbit.[2][7]
