The Torque-Splitting Flaw: Why an Open Differential Sends All Power to the Wheel With the Least Traction

A go-kart relies on a solid rear axle that forces both left and right wheels to spin at the exact same rotational speed, creating a predictable, unbroken delivery of power to the ground. An open differential differs in exactly one respect: it physically disconnects that solid link, introducing a central gearset that allows the outside wheel to spin faster than the inside wheel during a turn. Without this mechanical separation, a vehicle's tires would scrub and hop across the pavement every time the steering wheel turned, wearing down the rubber and stressing the drivetrain. The open differential solves this binding issue perfectly, which is why it remains the standard equipment on the vast majority of passenger vehicles sold today.[1][4]

The compromise built into this design reveals itself the moment a driver parks a rear-wheel-drive vehicle on a partially frozen driveway. If the left rear tire rests on dry asphalt while the right rear tire sits on a patch of smooth ice, the driver expects the tire with grip to push the vehicle forward. Instead, pressing the accelerator results in the right tire spinning wildly on the ice while the left tire remains completely stationary on the asphalt. The vehicle does not move, leaving the owner stranded despite having 50 percent of the drive axle sitting on a high-traction surface.[1]

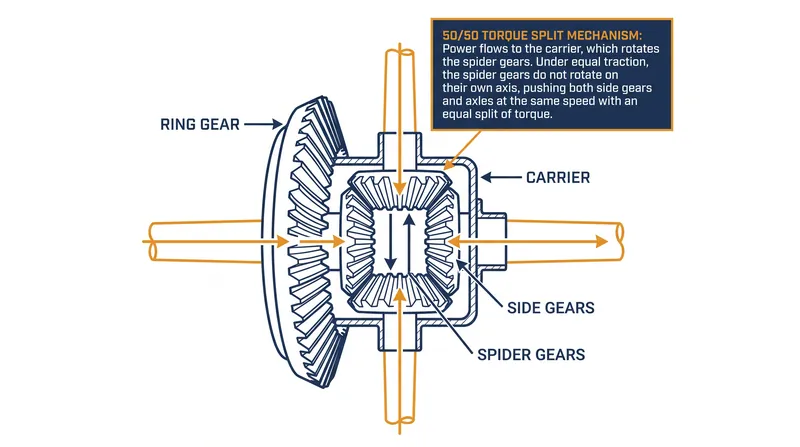

This immobility is not a malfunction; it is the exact mathematical outcome of the open differential's internal architecture. Inside the differential housing, engine torque is delivered to a ring gear, which rotates a carrier holding a set of spider gears. These spider gears mesh with the side gears connected to the left and right axles. Because the spider gears are free to rotate on their own axis while revolving with the carrier, they act as a mechanical balance beam. They physically cannot push harder on one side gear than the other.[4]

The fundamental flaw in public understanding is the belief that an open differential sends power to the wheel with the least resistance. In reality, it sends exactly equal torque to both wheels at all times, regardless of their rotational speed. In a 2023 technical analysis published by Gone Bush, engineers detailed this phenomenon as "torque leakage." The differential does not divert power away from the gripping wheel; rather, the gripping wheel is artificially capped by the slipping wheel's physical limitations.[2]

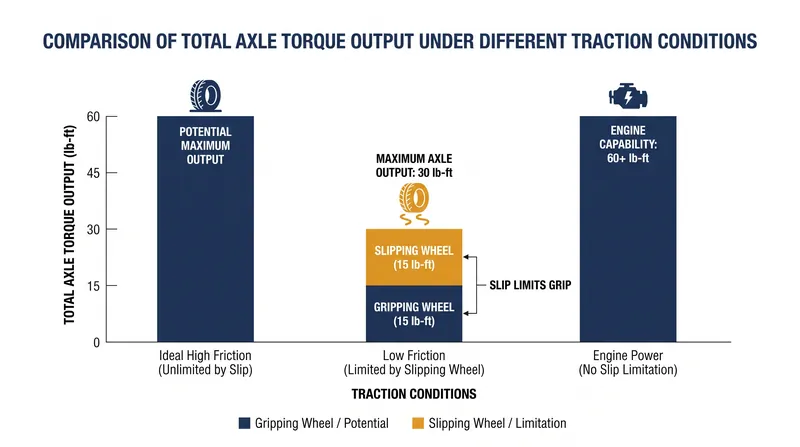

A 2012 engineering breakdown on Physics Forums quantified this exact torque split limitation. If the tire on the ice requires only 15 lb-ft of torque to break traction and spin, the spider gears can only push against the opposite tire with that same 15 lb-ft of force. Even if the engine is producing 300 lb-ft of torque, and the tire on the dry asphalt could theoretically handle 1,000 lb-ft before slipping, the differential limits the entire axle to 30 lb-ft of total forward thrust. The remaining engine power is entirely consumed by accelerating the spinning mass of the slipping wheel.[3]

As the Vehicle Physics Pro documentation states in its drivetrain modeling guidelines, "The open differential always applies the same torque to both wheels." When one wheel loses traction, the maximum torque the differential can transmit to the ground is strictly limited to twice the torque of the slipping wheel. If the slipping wheel has zero traction, two times zero is zero. The vehicle is mathematically guaranteed to remain stationary, converting all applied engine power into wheelspin on the frictionless side.[5]

For the entire history of modern automotive design, engineers have attempted to mask this physical limitation without sacrificing the open differential's cheap, reliable cornering benefits. The traditional mechanical solution is the Limited Slip Differential (LSD), which adds spring-loaded clutch packs or helical gears inside the carrier. When one wheel begins to spin significantly faster than the other, these mechanisms physically bind the two axles together, overriding the spider gears and forcing torque to the wheel with actual grip.[1][4]

A locking differential takes this concept to its absolute extreme, utilizing a pneumatic, electronic, or cable-actuated pin to completely lock the spider gears in place. This temporarily reverts the axle to a go-kart-style solid shaft. While highly effective for off-road vehicles navigating deep mud or rock crawling, a locked differential cannot be used on dry pavement without causing severe drivetrain binding and catastrophic mechanical failure. It requires the driver to actively anticipate the traction loss and engage the system manually.[1]

Modern automakers have largely abandoned mechanical locking solutions for standard passenger vehicles, replacing them with software-driven electronic traction control. By utilizing the existing wheel-speed sensors mandated for anti-lock braking systems (ABS), the vehicle's computer can detect when one wheel begins to spin faster than the other. The electronic stability program then rapidly applies the hydraulic brake caliper exclusively to the spinning wheel, artificially creating resistance where none exists naturally.[1][6]

This brake-based intervention tricks the open differential. By forcing the spinning wheel to push against the brake pad, the spider gears suddenly have resistance to push back against. If the brake caliper applies 100 lb-ft of stopping force to the slipping wheel, the differential instantly sends 100 lb-ft of driving force to the opposite wheel sitting on dry pavement. The vehicle moves forward, utilizing software to simulate the mechanical grip that the ice failed to provide.[5]

While brake-based traction control is highly effective for extracting a vehicle from a snowy driveway, it introduces severe limitations during sustained low-traction events. Because the system relies on converting engine power into friction heat at the brake rotor, navigating a long, muddy road or a deep snowdrift forces the brakes to work continuously against the engine. This rapidly overheats the brake pads and fluid, eventually forcing the vehicle's computer to disable the traction control entirely to prevent a fire or total brake failure.[1][2]

The decision for a prospective buyer comes down to the physical environment the vehicle will face. A driver navigating unplowed rural roads or steep, loose gravel requires the sustained mechanical lock of a true limited-slip or locking differential. Conversely, a suburban commuter facing occasional winter weather can safely rely on the cost-effective combination of an open differential paired with modern brake-based traction control, provided they understand the system's thermal limits.[6]
