Moving the Wheel Axle Forward Shifts the Contact Patch Closer to the Steering Axis Intercept: Why Increasing Fork Offset Reduces Motorcycle Trail

A rider buys a set of aftermarket triple clamps with five millimeters of extra offset, hoping the longer wheelbase will make their sportbike more stable at highway speeds. They bolt the new parts on, roll out of the garage, and immediately discover the opposite. The steering is suddenly twitchy, diving into corners with a nervous urgency.[2]

The reason lies in a counterintuitive piece of motorcycle geometry. Moving the front axle forward actually reduces the machine's trail. Because trail is the primary force keeping a motorcycle upright and stable, shrinking it makes the steering lighter and faster.

Trail acts exactly like the caster wheel on a shopping cart. It is the horizontal distance from where the steering axis intersects the ground to where the front tire actually touches the pavement. The longer that distance, the harder the wheel fights to stay straight.[2]

Fork offset is the physical distance the fork tubes sit forward of the steering stem. It is machined directly into the upper and lower triple clamps. Changing that offset shifts the entire front wheel assembly horizontally.[1][2]

The Geometry of the Steering Axis

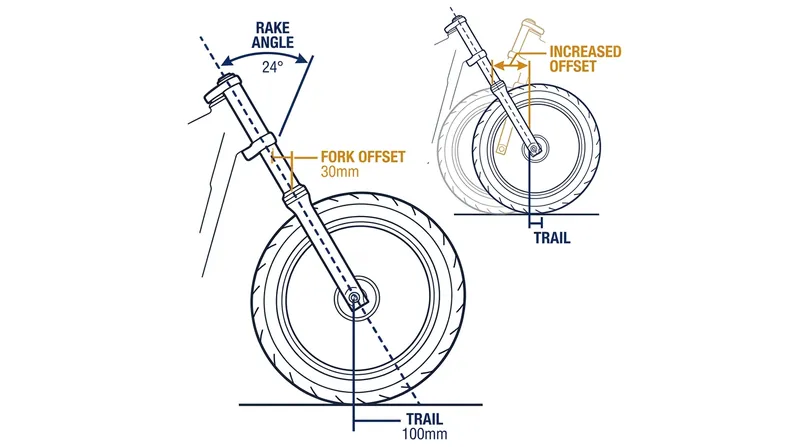

To understand why moving the wheel forward reduces trail, you have to look at the rake angle. The steering head on a motorcycle frame is never perfectly vertical. It is tilted backward, usually sitting between 23 and 25 degrees on a modern street bike.[1]

If you draw an imaginary line down through that tilted steering head, it hits the ground several inches in front of the tire's actual contact patch. That physical gap on the pavement is the trail.[2]

When a rider installs triple clamps with a larger offset, they are pushing the entire fork assembly horizontally forward. The front wheel moves further away from the engine block.[2]

Because the steering axis line remains fixed by the angle of the frame, pushing the wheel forward moves the tire's contact patch closer to that imaginary line. The gap on the ground shrinks, and the trail is reduced.

How Trail Dictates the Ride

This geometric relationship dictates how every motorcycle feels from the saddle. A large trail number creates a strong self-centering effect, requiring the rider to use significant physical force at the handlebars to initiate a turn.

"Expect to see something in the 23-25 degree range" for rake, writes Paul Thede in Race Tech's Motorcycle Suspension Bible. For the resulting trail, he notes that riders should "expect somewhere in the 90-105mm range" for a standard setup.[1]

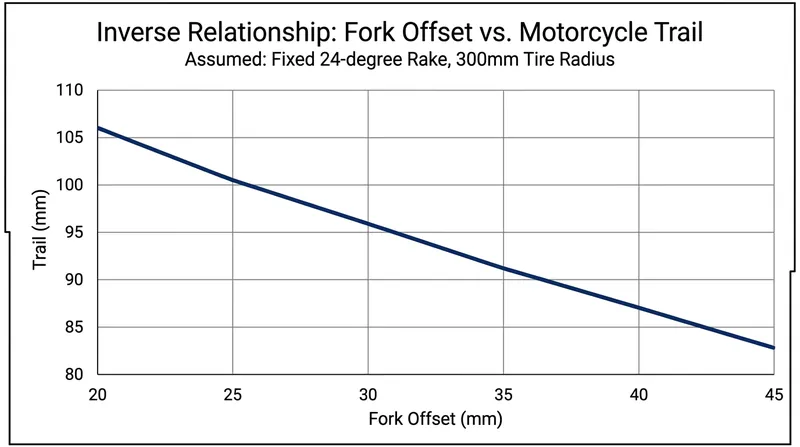

If a rider increases their fork offset by five millimeters, that trail number drops. A motorcycle that originally measured 100 millimeters of trail might suddenly drop to 95 millimeters.[2]

The result is a motorcycle that tips into corners with much less physical effort. However, it sacrifices straight-line stability to get there, requiring more rider attention to keep the bike tracking straight on the highway.[2]

The Trade-Offs in the Garage

Vittore Cossalter models this exact relationship in his textbook, Motorcycle Dynamics. His calculations demonstrate that "an increase in offset moves the contact patch forward, decreasing trail," which directly alters the roll torque required to steer the machine.

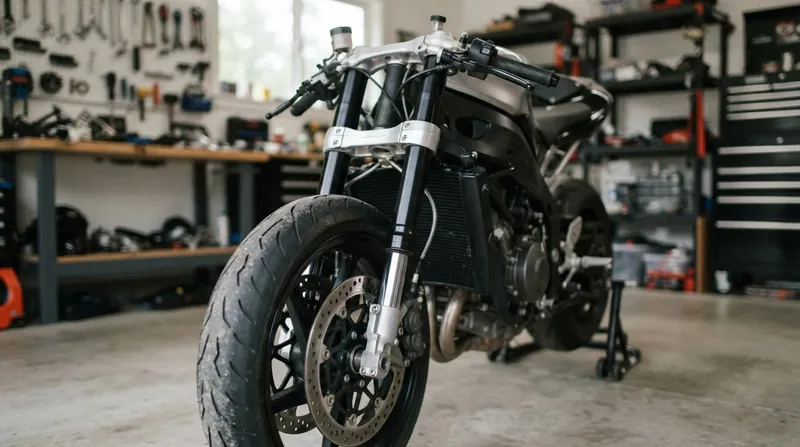

For track day riders, this is a highly effective tuning tool. They might intentionally reduce trail by adding offset to help a heavy motorcycle change direction faster through a tight chicane, trading high-speed stability for mid-corner agility.[2]

Custom chopper builders often face the exact opposite problem. Raking a frame out to 40 degrees creates massive amounts of trail, making the motorcycle impossibly heavy to steer at low speeds.[2]

To fix this heavy steering, builders use custom triple trees with extreme forward offset. Pushing the wheel far forward cuts the massive trail back down to a manageable number, restoring the rider's ability to turn the bars.[2]

Measuring Before Modifying

Tony Foale, author of Motorcycle Handling and Chassis Design, spent years building experimental chassis to prove that riders often misdiagnose handling flaws. He found that riders frequently guess at their geometry rather than measuring it.

Before spending money on machined aluminum parts, a rider needs to measure their baseline. This requires the motorcycle to be resting on its own weight, with the suspension fully settled and the tires properly inflated.[1]

A string line, a digital angle gauge, and a tape measure are enough to map the steering geometry on a garage floor. Knowing the exact starting trail is the only way to predict how an offset change will behave.[1][2]

The front end of a motorcycle remains a balanced equation. Changing one variable shifts the entire handling character of the machine, proving that sometimes moving the axle forward is the fastest way to dial the steering back.[2]
