How Two-Stroke Expansion Chambers Use Acoustic Waves to Supercharge Cylinders

In 1951, inside the MZ motorcycle factory in East Germany, engineer Walter Kaaden connected an oscilloscope to a two-stroke exhaust pipe. He was not looking at the flow of spent gases, but at the speed of sound.[1][2]

Kaaden realized that the pressure waves generated by combustion traveled much faster than the exhaust gas itself. By 1961, his acoustic designs allowed a naturally aspirated 125cc engine to produce an unprecedented 200 horsepower per liter, proving that the exhaust pipe was actually the engine's lungs.[1][2]

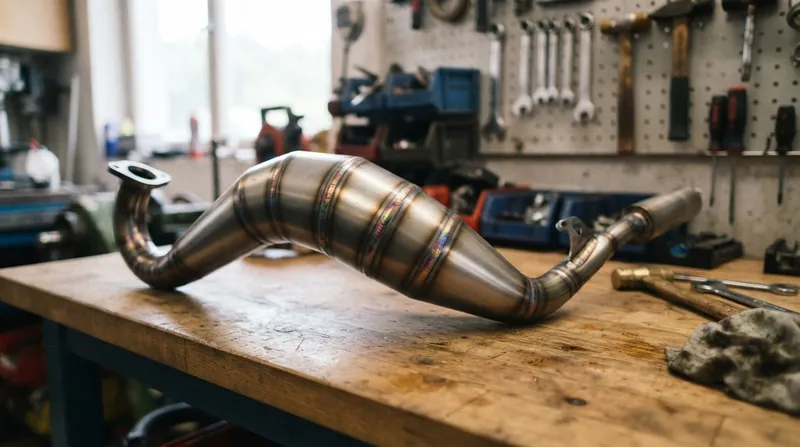

By shaping the steel tubing into a precise sequence of widening and narrowing cones, Kaaden found he could reflect those sound waves back toward the engine. This acoustic manipulation effectively supercharges the cylinder without the need for a mechanical blower or moving valves.[1][2]

"Simply put, it's because the two-stroke exhaust system, commonly referred to as an 'expansion chamber' uses pressure waves emanating from the combustion chamber to effectively supercharge your cylinder," writes Eric Murray, a technical analyst for Motorcycle.com.[2]

Today, the expansion chamber remains the defining characteristic of high-performance two-stroke engines. The bulging, welded pipes dictate exactly when and how the engine delivers its power, turning a simple mechanical design into a highly tuned acoustic instrument.[1][2]

The Scavenging Problem

To understand why an expansion chamber is necessary, a rider must first look at how a two-stroke engine breathes. Unlike a four-stroke engine, which uses mechanical valves to seal the combustion chamber, a two-stroke relies on the piston to uncover holes, or ports, in the cylinder wall.[1][2]

As the piston travels downward during the power stroke, it first uncovers the exhaust port, allowing high-pressure burnt gases to rush out. Milliseconds later, it uncovers the transfer ports, which allow a pressurized mixture of fresh air and fuel to flow up from the crankcase.[1][2]

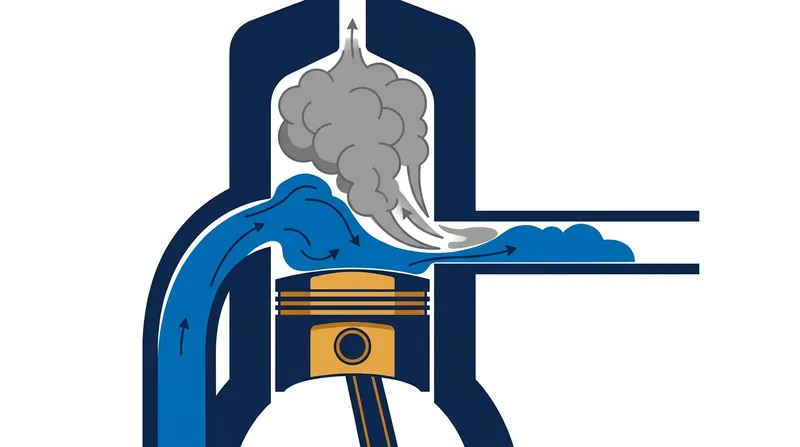

This simultaneous opening creates a critical inefficiency known as the scavenging problem. The incoming fresh charge is used to push the remaining exhaust gases out of the cylinder, but without a valve to stop it, up to 30 percent of that fresh fuel spills right out into the exhaust header.[1][2]

Losing that much unburned fuel drastically reduces the engine's potential power output and ruins its fuel economy. If the exhaust pipe is just a straight tube, that fresh charge is lost to the atmosphere, and the cylinder is left only partially filled for the next combustion cycle.[1][2]

The Diverging Cone

The expansion chamber solves this by harnessing the energy of the exhaust pulse. As the high-pressure gas exits the cylinder, it travels down a straight header pipe until it reaches the diffuser, or diverging cone.[1][2]

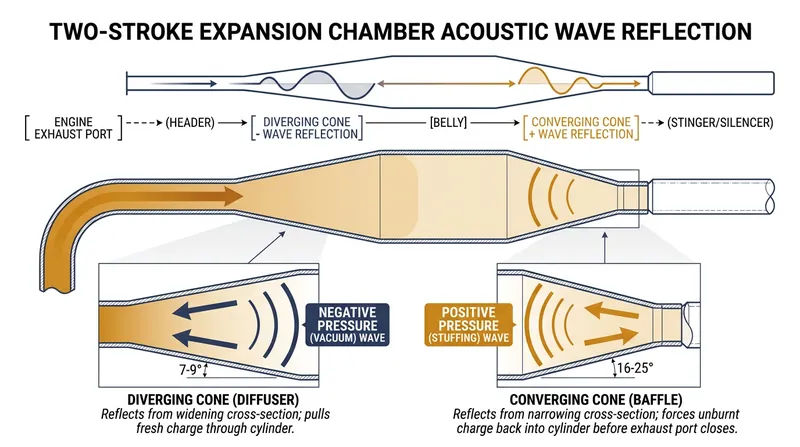

This section of the pipe gradually widens, typically at an angle of 7 to 9 degrees. When the acoustic pressure wave hits this increasing volume, physics dictates that it reflects a negative pressure wave—a vacuum—back up the pipe toward the engine.[1][2]

This vacuum wave travels at the speed of sound, arriving at the exhaust port just as the transfer ports open. The suction violently pulls the remaining burnt gases out of the cylinder, clearing the chamber far more effectively than the incoming fresh charge could on its own.[1][2]

However, this negative wave is so powerful that it over-scavenges the cylinder. It pulls the fresh air-fuel mixture right through the combustion chamber and out into the exhaust header, temporarily storing the unburned charge inside the hot pipe.[1][2]

The Converging Cone

To recover that escaped fuel, the expansion chamber relies on its rear section, known as the baffle or converging cone. After a straight middle section called the belly, the pipe sharply narrows, typically at an angle of 16 to 25 degrees.[1][2]

When the remaining acoustic energy from the initial exhaust pulse hits this restriction, it reflects a strong positive pressure wave back toward the engine. This high-pressure wave acts as an invisible acoustic plug moving backward through the pipe.[1][2]

If the pipe is dimensioned correctly, this positive wave arrives at the exhaust port at the exact millisecond the piston is rising to close it. The wave rams the escaped fresh fuel out of the header and back into the cylinder, packing it tightly before combustion.[1][2]

This acoustic stuffing effect drastically increases the engine's volumetric efficiency. Because an engine turning at 8,000 RPM generates an exhaust sound at 133 cycles per second, the acoustic wave must travel the entire length of the pipe and back in just 7.5 milliseconds.[2][3]

The Power Band

Because this supercharging effect relies entirely on the speed of sound, it is strictly bound by the laws of physics. Sound waves travel at a relatively constant speed, which means their return timing only aligns with the piston's movement at a specific engine speed.[1][2]

If the engine is running too slowly, the positive wave returns too early, hitting the piston while it is still at the bottom of its stroke and doing nothing to trap the fuel. If the engine is running too fast, the wave arrives after the piston has already closed the port.[1][2]

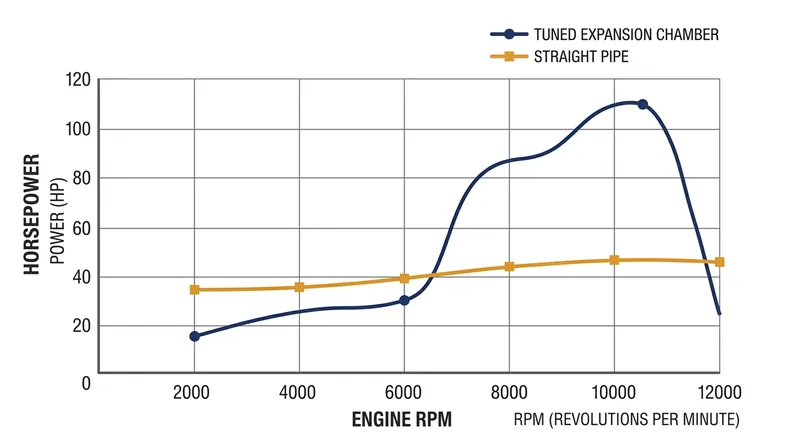

When the engine reaches the exact RPM where the wave timing perfectly matches the port timing, the cylinder is suddenly packed with fuel, and the power output violently spikes. Riders refer to this narrow window of acoustic resonance as being "on the pipe" or hitting the power band, often doubling the horsepower output within a 1,500-RPM window.[1][2]

Tuners can shift this power band by altering the physical dimensions of the pipe. Lengthening the straight belly section delays the wave's return, moving the power peak to a lower RPM, while shortening the pipe brings the wave back sooner for high-speed performance.[1][2]

Even the temperature of the exhaust gases plays a role in this delicate acoustic balance. Because sound travels faster in hotter air, wrapping an expansion chamber in insulating tape increases the internal temperature, which speeds up the waves and shifts the power band higher up the rev range.[1][2]

Controlling Backpressure

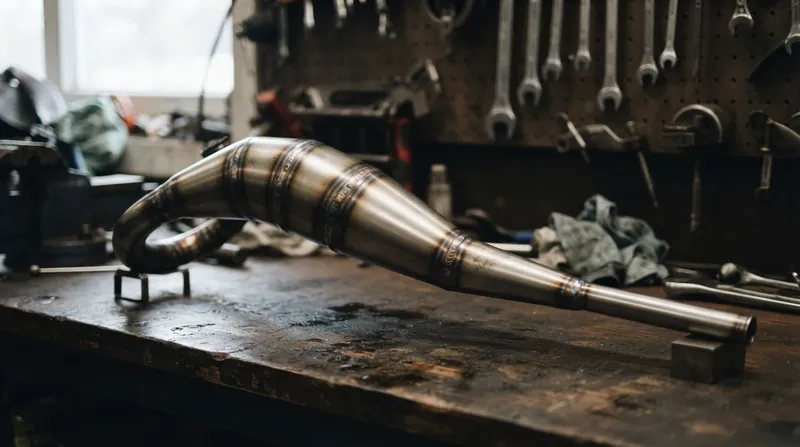

The final component of the expansion chamber is the stinger, the narrow tailpipe that exits the converging cone. While it does not reflect major acoustic waves, the stinger plays a critical role in regulating the baseline pressure and temperature inside the entire exhaust system.[1][2]

A smaller diameter stinger increases backpressure, which traps more heat inside the expansion chamber. This elevated temperature increases the speed of sound within the gases, subtly advancing the timing of the reflected waves and altering the engine's peak performance characteristics.[1][2]

However, if the stinger is too restrictive, the trapped heat will transfer back into the cylinder, causing the piston to expand and potentially seize against the cylinder wall. Engine builders must carefully balance the stinger's diameter to maximize acoustic wave speed without crossing the threshold of catastrophic engine failure.[1][2]
