The Geometry of Chain Slack: Why Non-Coaxial Swingarms Require Static Play

The moment a rider's weight settles onto a motorcycle seat, the geometry of the entire driveline fundamentally changes. The rear shock compresses, the swingarm pivots upward, and the drive chain instantly pulls tighter than it was on the kickstand.

This tightening happens because the front sprocket and the swingarm pivot do not share the same axis. Engineers call this a non-coaxial pivot, and it is the universal standard for modern street and off-road motorcycles.

Because the pivot points are offset, the rear wheel travels in an arc that pushes it further away from the engine as the suspension compresses. The chain must bridge a gap that is constantly changing length while the motorcycle is in motion.[2]

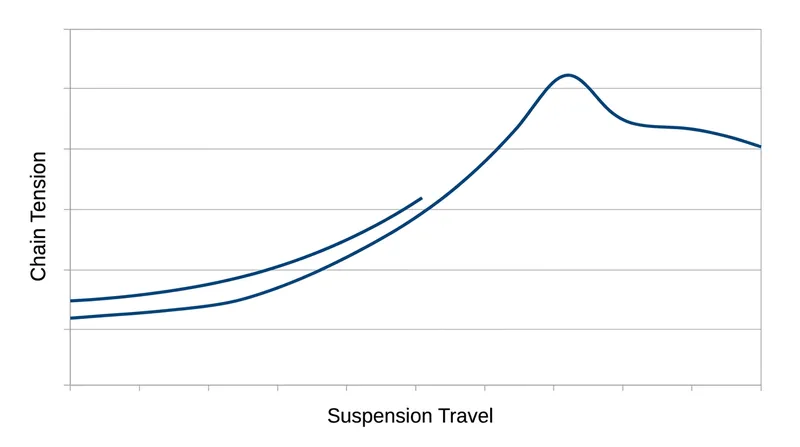

The Point of Maximum Tension

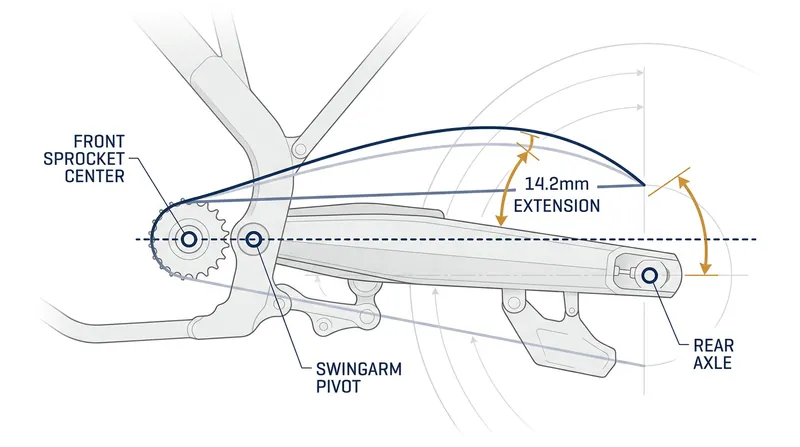

The distance between the front and rear sprockets reaches its absolute peak when three specific components align. This occurs when the center of the front sprocket, the swingarm pivot, and the rear axle form a perfectly straight line.

At this point of alignment, the rear wheel is at its furthest possible physical distance from the engine. Any further suspension compression actually brings the wheel slightly closer again, but the chain must survive this peak extension first.[2]

"If the chain lacks the slack to accommodate that straight-line alignment, the tension transfers directly into the countershaft bearing," notes chassis engineer Tony Foale in his foundational text on motorcycle handling.

This is why a chain that feels perfectly tensioned while the bike is parked will bind catastrophically over a speed bump. The static slack is not a margin for error; it is a mechanical requirement for the suspension to function.[3]

Calculating the Geometric Gap

On a typical sport motorcycle, the front sprocket sits roughly 45 millimeters ahead of the swingarm pivot. The swingarm itself measures about 580 millimeters from the pivot to the rear axle.[2]

When the suspension compresses to the point of alignment, that 45-millimeter offset forces the rear axle outward. The total chain path increases by approximately 14.2 millimeters compared to its resting position on a side stand.[3]

Honda's service manuals typically specify 25 to 35 millimeters of static chain slack for their street motorcycles. That 14.2-millimeter geometric extension consumes roughly half of that allowance the moment the suspension bottoms out.[1][3]

The Danger of Over-Tightening

For a new owner performing basic maintenance, a loose chain looks like a problem to be solved. They often adjust the rear axle backward until the chain is taut, mistakenly believing a tight driveline delivers smoother power.

When that over-tightened motorcycle hits a bump, the suspension attempts to compress but is physically locked by the steel chain. The chain acts as a rigid limit strap, preventing the shock absorber from doing its job.

The resulting force does not simply stretch the chain links. It pulls violently on the transmission output shaft, which can shatter the internal engine bearings or crack the engine case itself.

Why Not Use Coaxial Pivots?

A coaxial design places the front sprocket and the swingarm pivot on the exact same shaft. BMW has experimented with this on certain models, and it completely eliminates the changing chain tension.

However, coaxial designs require complex, heavy engineering to route the swingarm around the spinning front sprocket. They also eliminate "anti-squat," a crucial handling characteristic that uses chain tension to keep the rear suspension from collapsing under hard acceleration.

When a rider opens the throttle on a non-coaxial setup, the chain pulls the rear wheel forward and down. This mechanical force counteracts the weight transfer, keeping the motorcycle stable and maintaining steering geometry.

Setting the Perfect Slack

Because the tension changes with suspension travel, manufacturers specify chain slack measurements under very specific conditions. Most require the motorcycle to be resting on its side stand, unladen, with the transmission in neutral.[1]

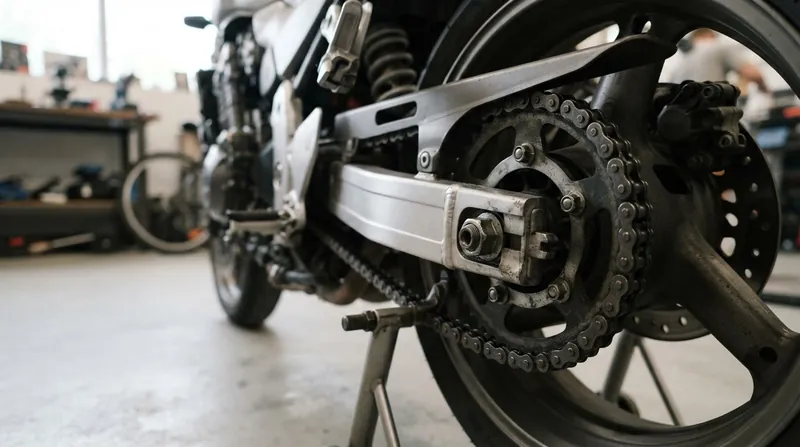

The rider pushes up on the bottom run of the chain, midway between the sprockets, and measures the total vertical deflection. A standard street bike requires about an inch and a quarter of total movement.[1]

Dirt bikes require significantly more slack, often upwards of 50 millimeters. Their long-travel suspension means the swingarm swings through a much wider arc, creating a larger discrepancy between the resting and aligned sprocket distances.

A properly adjusted chain will always look slightly neglected when the motorcycle is parked. That visible droop is the exact mechanical allowance the chassis needs to absorb the road ahead.[3]
