How Variable Valve Timing and Lift Optimize Engine Volumetric Efficiency Across the RPM Range

Variable valve timing (VVT) and lift systems optimize an engine's volumetric efficiency by physically altering the camshaft's profile or position while the engine is running, ensuring the cylinders ingest the exact volume of air needed at any given speed. Instead of forcing a rider to choose between low-end grunt for city commuting and high-end horsepower for highway passing, VVT allows a single engine to seamlessly switch between two distinct aerodynamic profiles.[7]

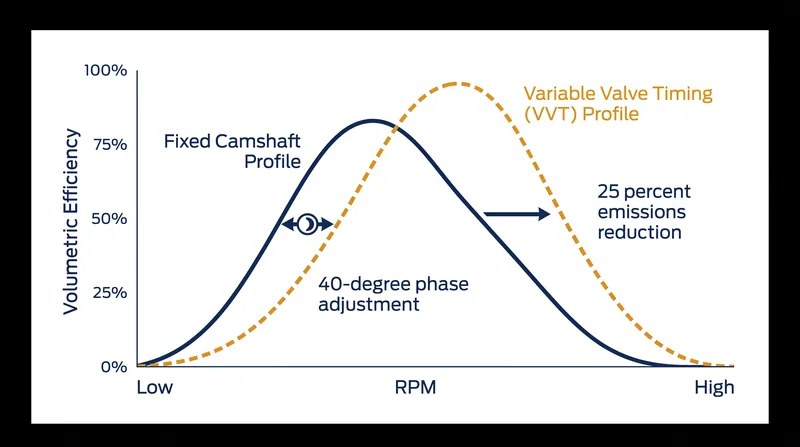

For a buyer evaluating a modern motorcycle or vehicle, this mechanical shift fundamentally changes the ownership experience. A traditional fixed-camshaft engine operates at peak volumetric efficiency—the ratio of air drawn into the cylinder versus its total physical capacity—only within a narrow 1,500-RPM window. Outside that band, the engine either chokes on too little air or wastes fuel by holding valves open too long.[7]

Engineers solve this by decoupling the valve timing from the crankshaft's fixed rotation. According to a review of actuation systems published by SAE International, variable valve actuation systems can optimize engine torque across the entire rev range by advancing or retarding the intake valve closure.[3]

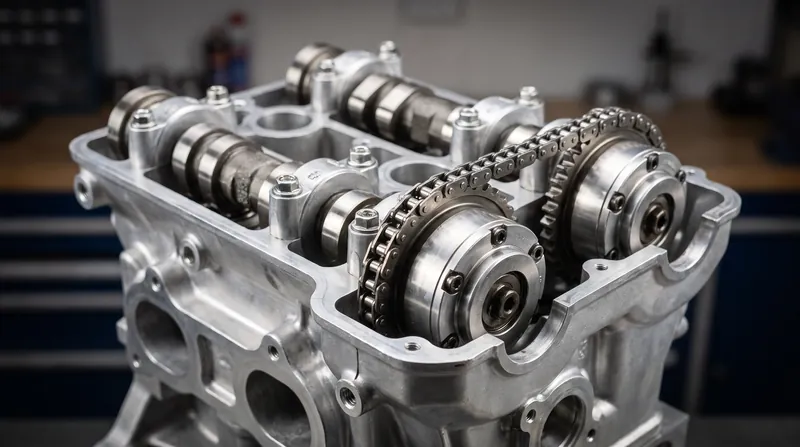

The most common approach is cam phasing. At low speeds, the system advances the intake camshaft by up to 40 degrees, closing the intake valve earlier. This prevents the air-fuel mixture from being pushed back into the intake manifold as the piston rises, preserving low-end torque and stabilizing the idle for stop-and-go traffic.[1]

As the rider twists the throttle and engine speeds climb past 6,000 RPM, the system retards the timing. The intake valves stay open longer, utilizing the momentum of the incoming air column to pack more oxygen into the cylinder even as the piston begins its compression stroke.[1][3]

This dynamic adjustment directly impacts the tailpipe. The International Journal of Scientific and Engineering Research notes that VVT reduces unburned hydrocarbon emissions by up to 25 percent at idle, simply by minimizing valve overlap—the brief period when both intake and exhaust valves are open simultaneously.[4]

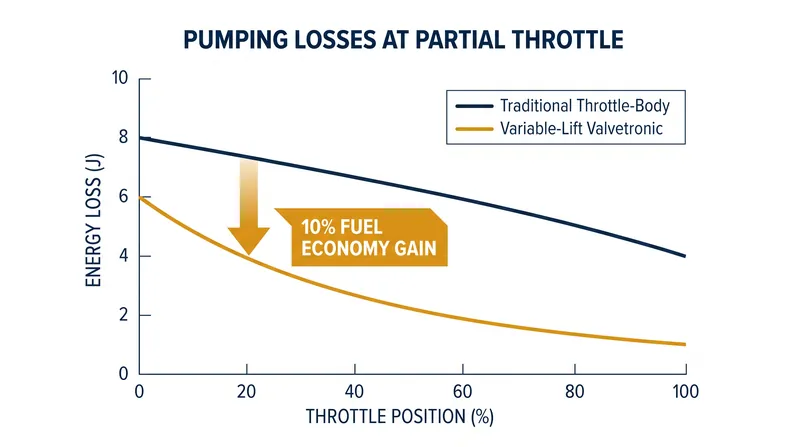

While timing dictates when the valve opens, variable lift dictates how far. BMW's Valvetronic system, detailed in MTZ Worldwide, replaces the traditional throttle butterfly valve entirely by continuously varying the intake valve lift between 0.3 millimeters and 9.7 millimeters.[2]

For the rider, eliminating the throttle plate removes a major source of pumping losses—the energy the engine wastes trying to suck air past a closed restriction. This translates to a 10 percent improvement in fuel economy during partial-throttle cruising, extending the range between gas station stops.[2][7]

The benefits extend beyond naturally aspirated gasoline engines. A 2018 study in Frontiers in Mechanical Engineering demonstrated that utilizing production-viable valve strategies at elevated speeds and loads improves volumetric efficiency via intake valve modulation, allowing engines to maintain a flat torque curve all the way to the redline.[5]

Similarly, physically based models for diesel engines show that variable intake actuation optimizes the air-to-fuel ratio under heavy loads, proving the architecture's viability across different fuel types and combustion cycles.[6]

The engineering consensus emphasizes adaptability. As the researchers in the Proceedings of the Institution of Mechanical Engineers state, "The ideal valve timing is a function of engine speed, load, and operating temperature, making continuous variability the ultimate goal for internal combustion efficiency."[1]

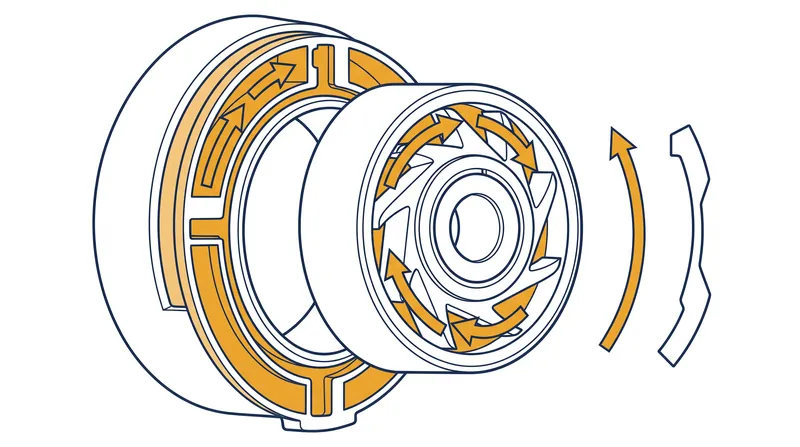

However, this flexibility introduces significant mechanical complexity. A VVT system adds hydraulic actuators, electronic solenoids, and additional oil galleries to the cylinder head. This increases manufacturing costs by roughly $300 to $500 per engine and introduces new failure points sensitive to oil pressure and viscosity.[7]

For the owner, this means strict adherence to oil change intervals is no longer optional. Sludge buildup or degraded oil can clog the fine mesh screens protecting the VVT solenoids, locking the camshaft in a default position and triggering a check engine light alongside a noticeable drop in power.[7]

In the motorcycle market, packaging constraints have historically limited VVT adoption. The cylinder heads on a 1,000cc sportbike are tightly packaged, and adding hydraulic phasers increases top-heavy weight. Yet, manufacturers like Ducati and Suzuki have engineered centrifugal and hydraulic systems that fit within these tight tolerances, allowing a 200-horsepower superbike to pass stringent Euro 5 emissions standards while remaining tractable at 30 mph.[7]

The transition to variable valve trains represents the mechanical limit of internal combustion optimization. By physically altering the engine's breathing characteristics in real-time, manufacturers extract the maximum possible kinetic energy from every drop of fuel, pushing the boundaries of what a single displacement size can achieve before electrification becomes the only remaining path for efficiency gains.[7]
