Lift, Weight, Thrust, and Drag: How the Four Forces Must Balance for Sustained Flight

A fully loaded Boeing 777 weighs roughly 660,000 pounds—the equivalent of 165 standard passenger cars. Yet, it routinely climbs to 35,000 feet and stays there for 14 hours at a time. The basis for this everyday miracle is not brute force, but a strict, continuous mathematical equilibrium. For an aircraft to maintain sustained, unaccelerated flight, four fundamental physical forces must balance perfectly: lift, weight, thrust, and drag.

When a passenger buys a ticket, they are essentially purchasing the outcome of this balance. The Federal Aviation Administration defines these four forces as the core of all aerodynamics in its 2016 Pilot's Handbook of Aeronautical Knowledge. Lift pushes the aircraft upward, opposing the downward pull of weight. Thrust drives the aircraft forward, opposing the backward pull of drag.

"If thrust decreases and airspeed decreases, lift will become less than weight and the aircraft will start to descend," the FAA manual states. To maintain level flight in that scenario, a pilot must increase the angle of attack to generate a lift force that once again equals the weight of the aircraft. This interplay means no single force exists in isolation.

Weight is the most intuitive of the four. It is the combined mass of the aircraft, its fuel, its cargo, and its passengers, multiplied by the gravitational acceleration of 9.81 meters per second squared. As the NASA Glenn Research Center explains, weight is a force directed toward the center of the earth. During a flight, weight constantly decreases as the engines burn fuel, meaning the required lift also gradually decreases over a long journey.[1]

Lift is the aerodynamic response to weight. It is generated primarily by the wings as they move through the air. According to the Pilot Institute's 2022 analysis of flight principles, lift is created by a combination of Bernoulli's principle—where faster-moving air over the curved top of the wing creates lower pressure—and Newton's third law, as the wing deflects air downward.[3]

Thrust is the forward force produced by the aircraft's powerplant, whether that is a piston engine turning a propeller or a turbofan jet engine expelling high-velocity exhaust. Thrust must overcome drag to initiate movement and must equal drag to maintain a constant airspeed. The Aircraft Owners and Pilots Association noted in a 2014 technical review that managing thrust is the primary way a pilot controls the energy state of the aircraft.[2]

Drag is the aerodynamic resistance to motion through the air. It comes in two primary forms: parasite drag and induced drag. Parasite drag includes form drag from the shape of the aircraft, skin friction from the smoothness of the surfaces, and interference drag where different parts of the aircraft meet. Induced drag is the unavoidable byproduct of creating lift, caused by the pressure differential at the wingtips creating swirling vortices.

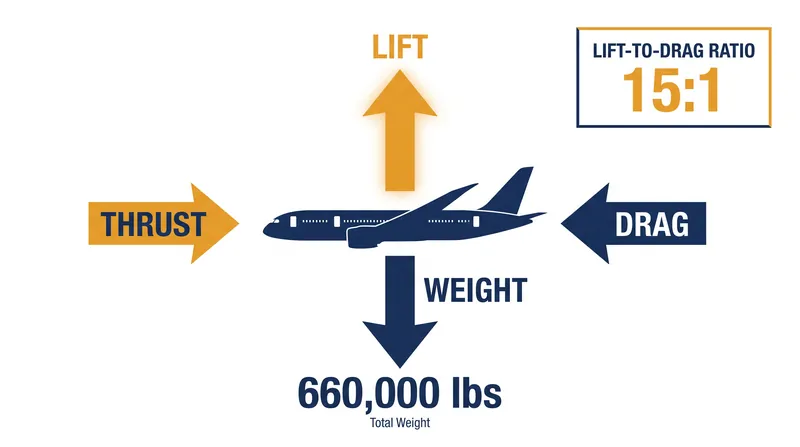

The NASA Glenn Research Center's aerodynamic models demonstrate that in a steady cruise—unaccelerated, level flight—the opposing forces are in perfect equilibrium. Lift exactly equals weight, and thrust exactly equals drag. If lift exceeds weight, the aircraft climbs; if weight exceeds lift, it descends. If thrust exceeds drag, the aircraft accelerates; if drag exceeds thrust, it slows down.[4]

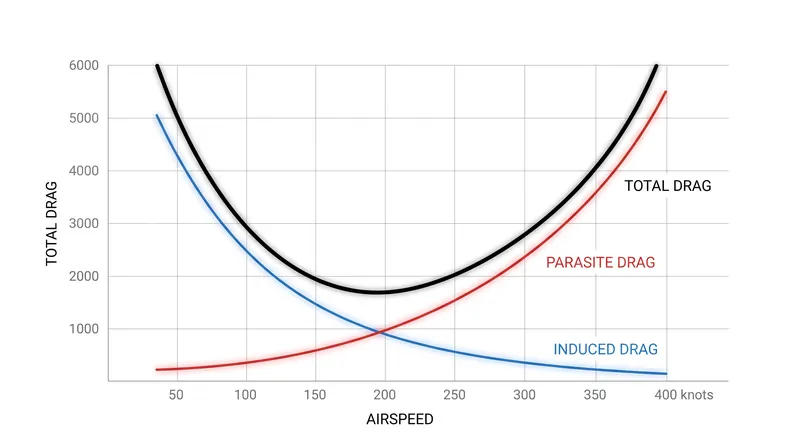

This balance is highly dynamic. When an aircraft accelerates, parasite drag increases with the square of the velocity. To maintain the same altitude at a higher speed, the pilot must lower the angle of attack, which reduces induced drag. The total drag curve forms a distinct shape, and the lowest point on that curve represents the maximum lift-to-drag ratio.

For a modern commercial airliner, the lift-to-drag ratio is typically around 15 to 1, meaning it generates 15 pounds of lift for every 1 pound of drag. High-performance sailplanes can achieve glide ratios of 40 to 1 or higher. This ratio dictates how efficiently an aircraft can fly and how far it can glide if it loses engine power.

Skybrary, an aviation safety reference, highlights that understanding this balance is critical for aircraft designers. Engineers constantly seek to maximize lift while minimizing drag, a pursuit that has led to innovations like winglets. Winglets reduce the strength of wingtip vortices, thereby reducing induced drag and improving the overall lift-to-drag ratio without extending the wingspan.[5]

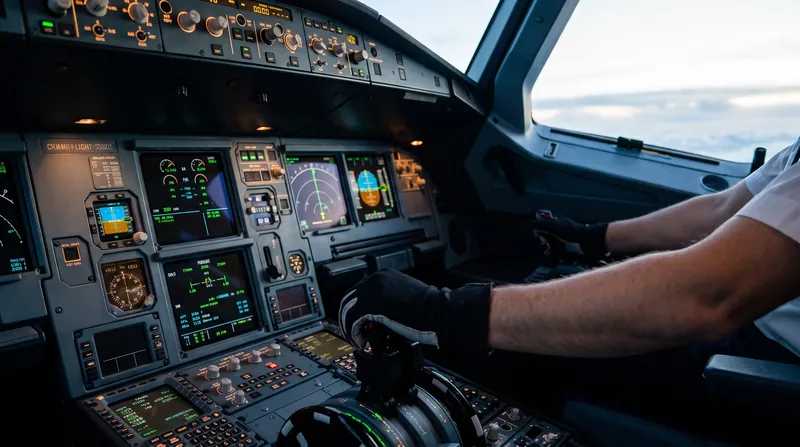

For the pilot in the cockpit, managing the four forces is a continuous process of energy management. Pitching the nose up increases the angle of attack and temporarily increases lift, but it also increases induced drag, which will cause airspeed to decay unless thrust is added. Every control input affects the equilibrium.[2]

The center of gravity and the center of pressure also play crucial roles in this balance. Weight acts through the center of gravity, while lift acts through the center of pressure. Because the center of pressure is typically located behind the center of gravity, the aircraft naturally wants to pitch its nose down. The horizontal stabilizer at the tail generates a downward aerodynamic force to counteract this pitching moment, adding to the total weight the main wings must lift.

AI

This tail-down force is a necessary inefficiency for stability. If the aircraft hits turbulence and pitches up, the increased angle of attack increases lift on the main wing, but the tail's downward force also changes, naturally pitching the nose back down to restore equilibrium without pilot intervention.

These four forces dictate the absolute limits of an aircraft's performance envelope. The maximum altitude is determined by the point where the air becomes too thin for the engines to produce enough thrust to overcome drag, or for the wings to produce enough lift to overcome weight at the aircraft's maximum speed. This boundary is known as the absolute ceiling.

The Factlen Editorial Team's synthesis of these aerodynamic models reveals that sustained flight is not about overpowering nature, but negotiating with it. The equilibrium of lift, weight, thrust, and drag is a continuous, self-correcting system that allows thousands of tons of metal to cross oceans safely every single day, relying entirely on the strict enforcement of physical laws.[6]
