How the Bypass Ratio of a Turbofan Engine Dictates Fuel Efficiency and Thrust

On a test stand in Derby, United Kingdom, in late 2023, engineers at Rolls-Royce pushed the UltraFan demonstrator to maximum power, measuring the thrust generated by a fan 140 inches across. The engine was not just burning fuel; it was moving an unprecedented volume of air around its core at a ratio of 15 to 1. That single metric—the bypass ratio—dictates the economics of modern commercial aviation. It determines how much an airline pays to operate a route, how far a widebody jet can fly on a single tank, and ultimately, what a passenger pays for a ticket. As the aviation industry faces mounting pressure to decarbonize, the physical geometry of the turbofan engine has become the primary battleground for efficiency.[6]

A turbofan engine generates thrust through two distinct pathways: by burning jet fuel to blast hot exhaust out the back of the core, and by using a massive front fan to push cold air around that combustion core. The bypass ratio is the mathematical relationship between the mass of air bypassing the core and the mass of air passing directly through it. In a modern high-bypass engine like the GE Aerospace GE9X, which powers the Boeing 777X, ten units of air flow around the core for every one unit that enters the combustion chamber. This 10:1 ratio represents a massive leap from the 5:1 ratios common in the 1970s and 1980s.[5]

Thrust depends on moving a mass of air at a specific velocity. According to aerodynamic principles detailed by the NASA Glenn Research Center, accelerating a massive amount of air by a small amount is fundamentally more energy-efficient than accelerating a small amount of air by a massive amount. The cold bypass air requires no fuel to ignite and no compression stages to pressurize. It simply relies on the mechanical energy extracted by the low-pressure turbine to spin the front fan. As NASA explains, "Because the fuel flow rate for the core is changed only a small amount by the addition of the fan, a turbofan generates more thrust for nearly the same amount of fuel used by the core."[1][2]

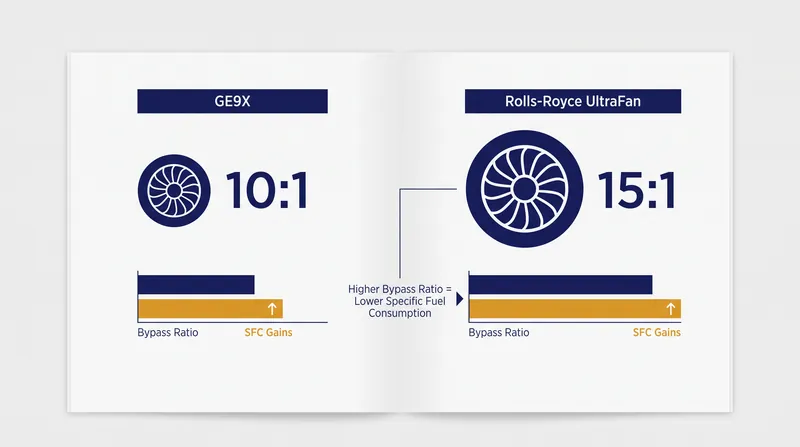

This architectural shift translates directly to the balance sheet. Studies from the NASA Technical Reports Server indicate that pushing the bypass ratio into the ultra-high territory—above 15:1—can drop specific fuel consumption by 14 to 16 percent compared to conventional designs. For an airline operating a transpacific route, that reduction means thousands of gallons of fuel saved per flight. The International Journal of Development Research notes that a careful selection of engine mass flow and overall pressure ratio determines the desirable bypass ratio, ultimately dropping aircraft direct operating costs by nearly 6 percent—savings that dictate whether a route remains financially viable for passengers.[3][4]

The GE Aerospace GE9X currently serves as the operational benchmark for high-bypass architecture. Certified by the Federal Aviation Administration in 2020, the engine features a 134-inch front fan—a diameter wider than the entire fuselage of a Boeing 737. To achieve its 10:1 bypass ratio, the GE9X utilizes just 16 carbon-fiber composite fan blades, down from the 22 blades used in its predecessor, the GE90. This reduction in blade count maximizes airflow and minimizes aerodynamic drag, contributing to a 10 percent improvement in specific fuel consumption over previous generations.[5]

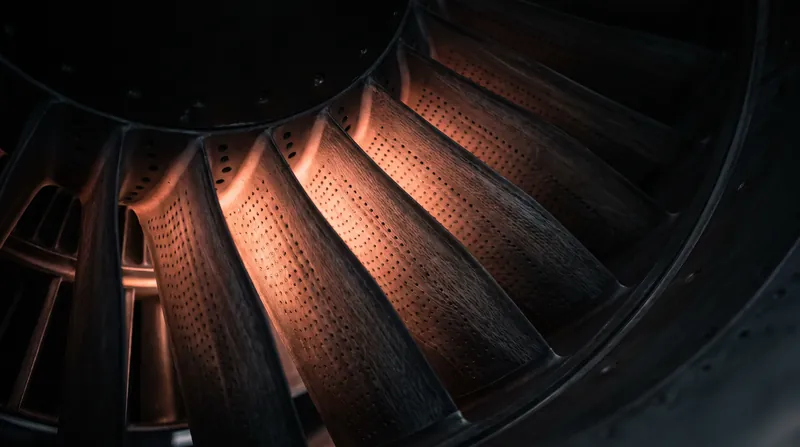

But scaling the fan diameter introduces severe physical constraints. A larger fan requires a larger nacelle, which increases aerodynamic drag and adds thousands of pounds of weight to the airframe. Furthermore, the sheer size of the engine dictates the height of the aircraft's landing gear. To keep the weight manageable, manufacturers have replaced traditional hollow titanium blades with advanced materials. The GE9X and the Rolls-Royce UltraFan both rely heavily on ceramic matrix composites (CMCs) in their hot sections, which withstand higher temperatures while shedding critical mass.[5][6]

A high bypass ratio cannot operate in isolation; it requires a core capable of extracting immense energy from a tiny volume of air. The Rolls-Royce UltraFan pairs its 15:1 bypass ratio with an overall pressure ratio of 70:1, squeezing the core air to extreme densities before ignition. Similarly, the GE9X operates at a 60:1 pressure ratio, utilizing 11 compressor stages to boost the high-pressure core. This extreme compression ensures the turbine generates enough shaft power to drive the massive front fan without starving the core of oxygen.[5][6]

As the fan diameter grows, the tips of the blades approach the speed of sound, which would create shockwaves and destroy aerodynamic efficiency. To solve this, engineers decouple the fan from the turbine. The Rolls-Royce UltraFan utilizes a power gearbox capable of handling 50 megawatts of power. This geared architecture allows the turbine to spin at a blistering, highly efficient speed while the massive front fan rotates at a slower, quieter pace. It is the mechanical linchpin that makes a 15:1 bypass ratio physically possible without shattering the fan blades.[6]

Beyond fuel efficiency, the high bypass ratio fundamentally alters the acoustic footprint of commercial aircraft. The roar of an older turbojet engine was caused by high-velocity exhaust shearing against the stationary ambient air. In a high-bypass turbofan, the slower-moving cold bypass air envelops the fast-moving hot exhaust, creating a buffer that smooths the velocity gradient and drastically reduces shear noise. NASA studies confirm that ultra-high bypass designs can reduce sound at the source by up to 7 decibels, allowing airlines to comply with increasingly stringent airport noise curfews.[4]

While alternative architectures like open-rotor concepts and hydrogen combustion dominate speculative discussions, the ducted turbofan remains the immediate future of commercial flight. By pushing the bypass ratio to its absolute geometric limits, engineers are wringing the final double-digit efficiency gains out of fossil-fuel propulsion. The next generation of single-aisle and widebody aircraft will rely on these massive, slow-spinning fans to meet global emissions targets while keeping the cost of transit within reach.
