The Aerodynamics of Winglets: How Wingtip Devices Slash Fuel Consumption and Extend Aircraft Range

Sit in a window seat over the wing of almost any modern commercial airliner, and you will likely see it: the wingtip, instead of ending in a clean, flat point, bends sharply upward into a vertical fin. To the casual observer, it looks like a stylistic flourish or a convenient billboard for the airline's logo. In reality, it is one of the most consequential aerodynamic innovations in aviation history.

The core problem of heavier-than-air flight is pressure. A wing generates lift by creating a pressure differential as it moves through the atmosphere. The shape of the airfoil forces air to move faster over the top surface, creating an area of lower pressure, while the slower-moving air beneath the wing maintains a higher pressure. This differential pushes the aircraft upward.

However, nature abhors a pressure differential just as much as it abhors a vacuum. The high-pressure air beneath the wing constantly seeks a path of least resistance to equalize with the low-pressure zone above it.

Across the main span of the wing, the solid structure prevents this equalization. But at the wingtip, the escaping air finally finds a clear path. It spills outward and upward around the edge of the wing, curling into the low-pressure zone and creating a swirling, horizontal tornado of air known as a wingtip vortex.[5]

These vortices are not just harmless turbulence left in the aircraft's wake; they represent a massive, continuous drain on the airplane's energy. The swirling air alters the relative wind over the outer portion of the wing, physically pushing the airflow downward in a phenomenon known as downwash.[5]

This localized downwash fundamentally changes how the wing generates lift. Because lift is always generated perpendicular to the relative wind, the downward-angled airflow tilts the wing's lift vector slightly backward. Instead of pointing straight up to counteract gravity, a fraction of the lift is now actively pulling the aircraft backward.[3]

Aerodynamicists refer to this backward pull as lift-induced drag. During takeoff, initial climb, and high-altitude cruise—phases of flight where the aircraft operates at a high angle of attack to generate maximum lift—induced drag can account for up to half of the airplane's total aerodynamic drag.[3]

The traditional, brute-force solution to induced drag is simply to build a longer wing. Increasing the wingspan—specifically, increasing the wing's aspect ratio—moves the tip vortices further apart and reduces their proportional influence on the rest of the lifting surface.[4]

However, infinite wingspans are physically and economically impossible. Longer wings require exponentially heavier internal structural reinforcement to prevent them from snapping under aerodynamic loads, and commercial airport gates are built to strict width limits that cap how wide an airliner can be.[4]

Enter Richard T. Whitcomb, a legendary aerodynamicist at NASA's Langley Research Center. In the 1970s, amidst a global oil crisis that sent aviation fuel prices soaring and threatened the economics of air travel, Whitcomb sought a way to reduce induced drag without physically extending the wingspan.[2]

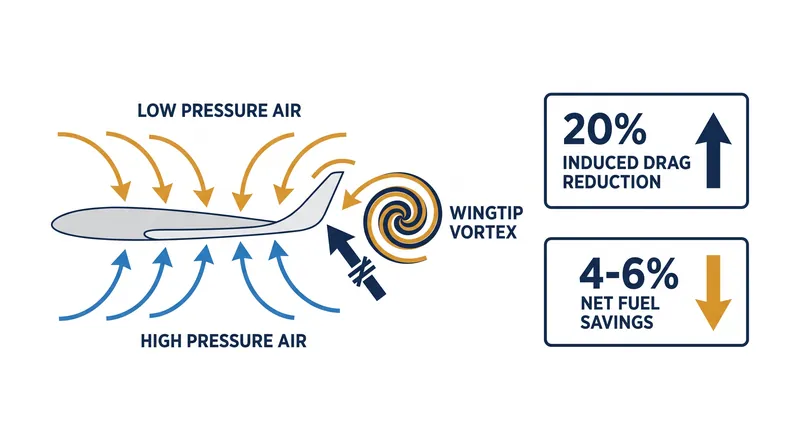

Whitcomb theorized that a vertical fin placed precisely at the wingtip could act as a physical barrier, blocking the high-pressure air from spilling over to the top of the wing and thereby choking off the vortex at its source.[1][2]

The concept of a vertical endplate was not entirely new, but previous attempts had failed in practice. Adding any physical structure to an airframe increases parasitic drag—the friction of the air moving over the surface. In early tests by other engineers, the parasitic drag penalty of the endplate outweighed the induced drag benefit, resulting in a net loss of efficiency.[1]

Whitcomb's genius lay in the precise shaping of the device. He designed the winglet as a highly refined airfoil in its own right. By angling it carefully relative to the swirling vortex air, the winglet could actually generate a small amount of forward thrust, much like a sailboat tacking into the wind, offsetting its own parasitic drag.[1][2]

In 1979, NASA partnered with the U.S. Air Force to test Whitcomb's design in the real world, fitting a modified set of winglets to a KC-135 Stratotanker. The flight tests at Dryden Flight Research Center proved that the winglets reduced fuel consumption by an astonishing 6.5 percent at cruise speeds.[2]

Despite the successful tests, widespread commercial adoption was slow. Early winglets featured sharp, angular junctions where they met the main wing, creating localized interference drag in the corner that ate into the overall fuel savings and complicated the structural mounting.[1]

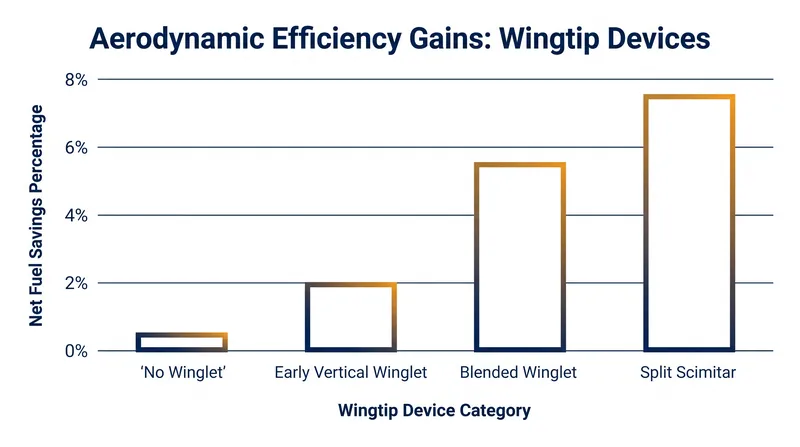

The breakthrough that brought winglets to the masses came with the development of the blended winglet in the 1990s. By incorporating a smooth, sweeping curve between the horizontal wing and the vertical fin, engineers eliminated the sharp junction, minimizing interference drag and maximizing the net aerodynamic benefit.[1]

Blended winglets quickly became the industry standard, heavily retrofitted onto thousands of existing Boeing 737s and 757s. They routinely deliver net fuel savings of 4 to 6 percent, translating to hundreds of thousands of gallons saved per aircraft over its operational lifespan.[1]

The evolution of wingtip devices did not stop there. Airbus introduced its own highly optimized blended design, dubbed the sharklet, for the A320 family, achieving similar efficiency gains and extending the narrowbody aircraft's viable transcontinental range.[1]

For larger widebody aircraft like the Boeing 777 and 787, engineers took a different approach: the raked wingtip. Instead of a vertical fin, the wingtip is swept backward at a sharp angle relative to the main wing sweep.[1]

Raked wingtips achieve the exact same aerodynamic goal—disrupting the tip vortex and increasing the effective aspect ratio—but with less structural weight penalty for massive, long-haul wings that are already pushing the limits of material science.[1]

More recently, the split scimitar winglet has pushed the boundaries of vortex manipulation even further. By adding a smaller, downward-pointing aerodynamic fin to the standard blended winglet, engineers can capture even more of the vortex energy, squeezing out an additional 1.5 to 2 percent in fuel savings.[1]

The operational economics of winglets are heavily dictated by an aircraft's specific flight profile. Because induced drag is highest when the aircraft is heavy and flying at high altitudes, winglets deliver their greatest financial returns on long-haul intercontinental flights.[6]

Conversely, for short-haul regional flights, the added physical weight of the winglets can sometimes offset the aerodynamic benefits. This is why some regional jets and short-hop variants omit them entirely, prioritizing a lighter empty weight for rapid, low-altitude cycles.[1][6]

Ultimately, the modern winglet represents a triumph of applied fluid dynamics. It is a passive, motionless piece of composite material that fundamentally alters the invisible, chaotic airflow around an aircraft in real time.[6]

By taming the energy of the wingtip vortex, winglets have saved the global aviation industry billions of gallons of fuel and prevented millions of tons of carbon dioxide from entering the atmosphere, proving that sometimes the most profound engineering solutions are found at the very edges of the design.[6]
