The Pitch Change Mechanism: How a Constant Speed Propeller Maintains Engine RPM Across Varying Airspeeds

By decoupling engine RPM from airspeed, the constant-speed propeller acts as an aerodynamic continuously variable transmission. An engine-driven governor automatically adjusts blade pitch to maintain peak efficiency during takeoff, climb, and cruise.

By Valeria Dominguez

Aerodynamic Efficiency Advocates 50%Flight Training Professionals 50%
Aerodynamic Efficiency Advocates
Focus on the performance gains and fuel savings achieved by decoupling RPM from airspeed.
Flight Training Professionals
Emphasize the workload reduction and engine management benefits for transitioning pilots.

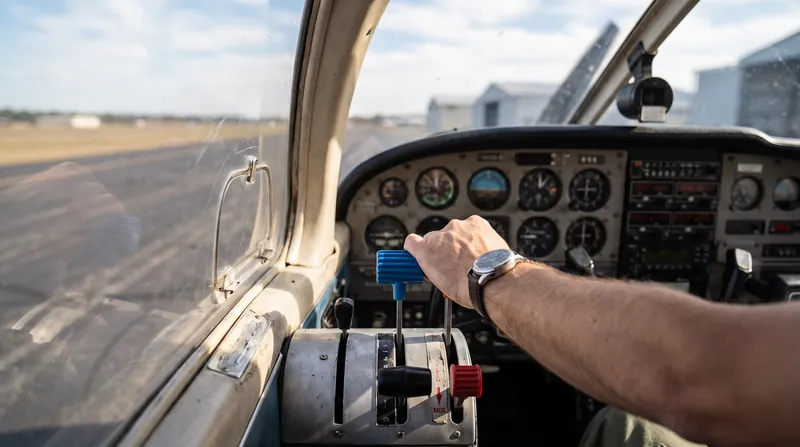

The pilot sitting at the hold-short line pushes the blue propeller control lever full forward. In that moment, they are not directly setting the pitch of the propeller blades; they are setting a target engine speed. When the throttle is advanced for takeoff, the engine will spool up to its maximum rated speed—typically 2,700 RPM for most general aviation piston engines—and stay there, regardless of how fast the aircraft accelerates down the runway. This is the fundamental promise of the constant-speed propeller: it decouples the engine's rotational speed from the aircraft's forward velocity, allowing the pilot to command the exact performance profile required for the immediate phase of flight.[3]

Since the widespread adoption of the hydromatic constant-speed propeller in the 1940s, this capability has fundamentally changed flight management and decision-making in the cockpit. As the Federal Aviation Administration (FAA) notes in its aviation maintenance technician handbook, "A constant-speed propeller, however, keeps the blade angle adjusted for maximum efficiency for most conditions encountered in flight." With a traditional fixed-pitch propeller, a pilot is stuck with a permanent aerodynamic compromise. A blade angle that is fine enough to provide strong acceleration off the runway will inevitably force the engine to over-rev at cruise speeds, limiting the aircraft's top speed. Conversely, a coarse blade angle designed for efficient cruising will feel sluggish during takeoff, often sacrificing up to 20 percent of available climb performance. A constant-speed propeller eliminates that compromise entirely by acting as an aerodynamic continuously variable transmission, adapting to the relative wind in real time.[1][3]

The mechanism that makes this real-time adaptation possible is the propeller governor, a precision hydraulic control unit mounted directly to the engine's accessory case. The governor's sole responsibility is to continuously monitor the engine's rotational speed and automatically adjust the propeller's blade angle to maintain the exact RPM the pilot selected with the blue lever. It operates as a closed-loop feedback system, constantly sensing aerodynamic loads and making micro-adjustments to the blade pitch—sometimes by as little as 0.5 degrees—without any further input required from the aviator.[2]

Inside the governor housing, three primary mechanical components work in concert to achieve this balance: a set of L-shaped flyweights, a speeder spring, and a hydraulic pilot valve. The flyweights are geared directly to the engine's rotational assembly and spin at a speed proportional to the engine RPM. As the engine speeds up toward 2,700 RPM, the centrifugal force acting on these flyweights increases exponentially, driving them outward against the housing. This centrifugal force is the system's primary method of sensing the engine's current operational state.[2]

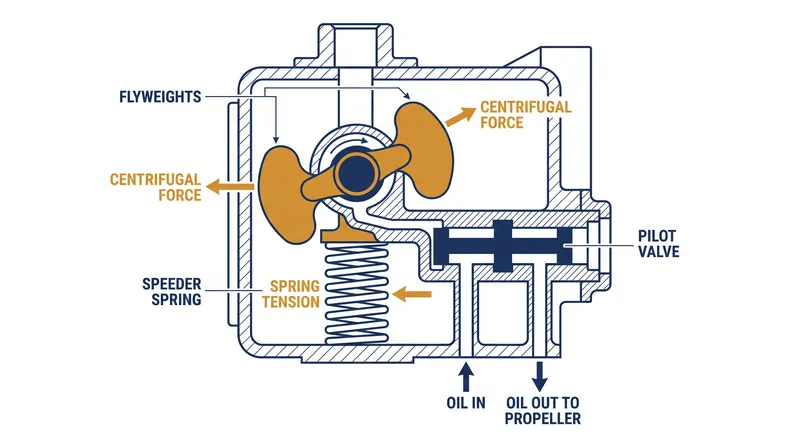

Inside the governor, flyweights and a speeder spring work together to sense engine RPM and meter oil pressure to the propeller hub.

Pushing back against the outward force of the flyweights is the speeder spring. When the pilot moves the blue propeller lever in the cockpit, they are not moving hydraulic fluid; they are physically compressing or releasing this speeder spring. Pushing the lever forward increases the spring's tension, meaning it will take more centrifugal force—and therefore a higher engine RPM—for the flyweights to overcome it. Pulling the lever back decreases the tension, setting a lower target RPM, typically around 2,300 to 2,400 RPM for cruise flight.[1][2]

Pushing back against the outward force of the flyweights is the speeder spring.

When the target RPM is perfectly achieved, the outward centrifugal force of the flyweights exactly balances the inward tension of the speeder spring. In aviation mechanics, this equilibrium is known as an "on-speed" condition. In this balanced state, the pilot valve—which is mechanically linked to the flyweights—moves to a neutral position, sealing off the oil lines leading to the propeller hub. This hydraulic lock holds the propeller blades rigidly at their current pitch angle, maintaining a constant aerodynamic load on the engine.[1][2]

The system's true value to the pilot emerges the moment the aircraft's aerodynamic state changes. If the pilot pitches the nose down to begin a 500-foot-per-minute descent, the aircraft accelerates, and the relative wind striking the propeller changes direction. The aerodynamic load on the propeller blades decreases rapidly. Left unchecked, the engine would immediately overspeed, potentially causing catastrophic internal damage. However, as the RPM begins to rise, the flyweights spin faster, generating more centrifugal force and overcoming the tension of the speeder spring.[1][3]

This "overspeed" condition forces the flyweights outward, which lifts the pilot valve and opens a hydraulic channel. High-pressure engine oil, boosted by a gear pump inside the governor to roughly 200 to 300 PSI, flows directly into the propeller hub. The oil pressure pushes against a large piston in the hub, which is mechanically linked to the blade roots. As the piston moves, it physically twists the propeller blades to a higher angle, or a "coarser" pitch. Taking a larger bite of air increases the aerodynamic drag on the blades, forcing the engine to slow back down to the pilot's selected target RPM.[1][3]

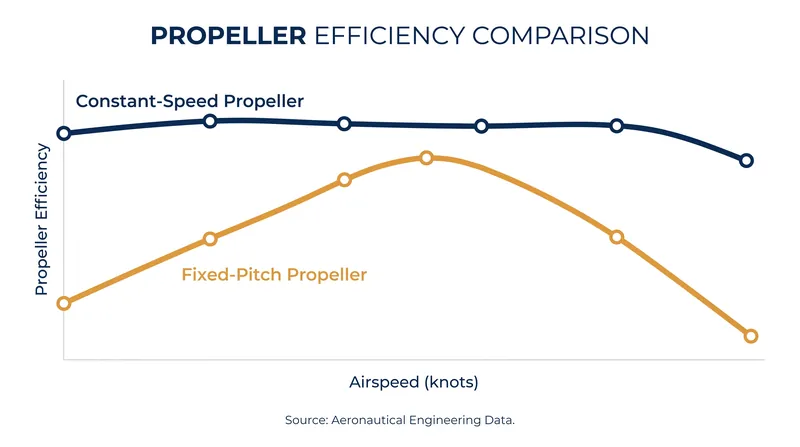

A constant-speed propeller maintains peak aerodynamic efficiency across a much wider range of airspeeds than a fixed-pitch design.

The reverse process occurs when the pilot pitches the nose up into a climb. As the aircraft slows down, the relative wind changes again, and the aerodynamic load on the propeller increases. The engine begins to bog down under the increased resistance, creating an "underspeed" condition. The flyweights lose centrifugal force and fall inward, pushed by the dominant tension of the speeder spring. This mechanical shift drops the pilot valve, opening a drain channel that allows oil to flow out of the propeller hub and back into the engine sump.[1][2]

As the oil pressure in the hub drops, a heavy return spring—or in some designs, the natural aerodynamic twisting force of the blades themselves—forces the piston in the opposite direction. This twists the propeller blades to a lower angle, or a "finer" pitch. With a smaller bite of air, the engine faces less aerodynamic resistance and is free to speed back up to the target RPM. This entire cycle happens in under 2 seconds, completely transparent to the pilot flying the aircraft.[1][3]

This constant, automatic adjustment allows the pilot to keep the engine operating in its optimal power band throughout the entire flight profile. During the takeoff roll, a fine pitch allows the engine to easily reach its maximum rated speed, developing 100 percent of its brake horsepower when it is needed most. Once established at a cruising altitude, the pilot can pull the propeller lever back, commanding a coarser pitch that allows the engine to run at a lower, significantly more fuel-efficient RPM, often reducing fuel consumption by 10 to 15 percent while still maintaining a high true airspeed.[1][3]

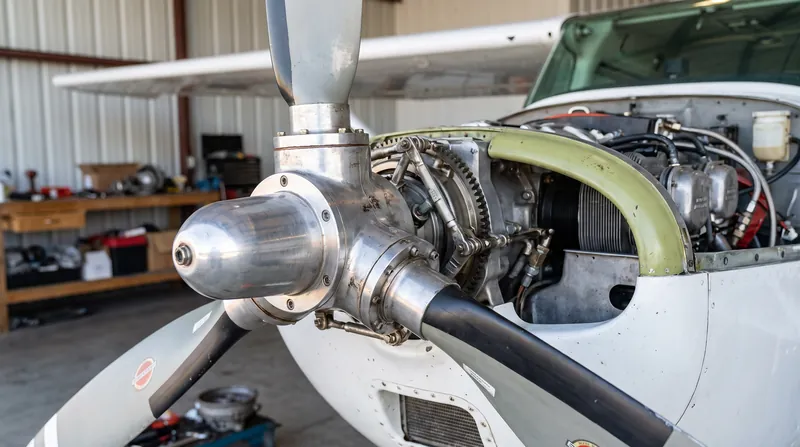

High-pressure engine oil is routed into the propeller hub to physically twist the blades against the aerodynamic load.

Because the governor operates entirely on engine oil pressure, its reliability is inextricably linked to the overall health of the engine's lubrication system. Contaminated oil, sludge buildup, or worn internal seals with operating tolerances as tight as 0.001 inches can cause the pilot valve to stick, leading the governor to hunt for the correct RPM and resulting in a surging engine. For the pilot, understanding this mechanism is not just an academic exercise; it is the foundation of managing engine health, maximizing fuel efficiency, and reducing cockpit workload during the most critical phases of flight.[2][3]

Analysis by camp

Flight Training Instructors

Focus on the workload reduction and engine management benefits for transitioning pilots.

For flight instructors, the constant-speed propeller represents a critical transition point in a pilot's training. Instructors emphasize that the system fundamentally changes how a pilot manages energy and engine health. Instead of constantly monitoring the tachometer to prevent an overspeed during a descent, the pilot relies on the governor to manage the RPM. This allows the pilot to focus on aircraft attitude and airspeed, significantly reducing cockpit workload during critical phases of flight like instrument approaches. The teaching challenge lies in breaking the habit of using the throttle as the sole power control, introducing the concept of manifold pressure as the primary indicator of engine power output.

Aviation Maintenance Technicians

Prioritize the mechanical complexity and maintenance requirements of the hydraulic system.

From a maintenance perspective, the constant-speed mechanism introduces a layer of hydraulic complexity that requires strict adherence to service intervals. Technicians point out that the governor relies entirely on the engine's oil supply, making clean oil critical to the system's survival. Sludge or metal shavings can easily jam the precision-machined pilot valve, leading to RPM surging or a complete loss of governing authority. Maintenance professionals advocate for rigorous inspections of the hub seals and governor gaskets, noting that even minor oil leaks can degrade the pressure required to hold the blades at a coarse pitch, potentially leading to an uncommanded overspeed.

Limits of the evidence

  • How the transition to fully electronic engine controls (FADEC) will alter the mechanical reliability profile of traditional hydraulic governors.
  • The exact parasitic drag penalty introduced by the larger, heavier propeller hub required to house the pitch-change mechanism on light sport aircraft.

Significance

Understanding the pitch-change mechanism is essential for pilots transitioning to high-performance aircraft, as it dictates how they manage engine power, fuel efficiency, and cockpit workload. Mismanaging the relationship between manifold pressure and RPM can lead to severe engine damage, making a deep mechanical understanding a prerequisite for safe operation.
