How Exhaust Gas Recirculation Cuts Engine NOx Without Increasing Heat

A common piece of conventional wisdom in aftermarket automotive tuning circles holds that feeding hot, dirty exhaust gas back into a pristine engine will naturally make it run hotter and less efficiently. This belief drives thousands of vehicle owners to physically remove or bypass their emissions equipment every year.

The reality of combustion chemistry dictates the exact opposite. Exhaust gas recirculation does not heat the engine up; it acts as a critical thermal buffer that cools the combustion flame from the inside out.[1][2]

Understanding this counterintuitive mechanism requires looking past the temperature of the gas in the intake manifold. The true effect happens microseconds after the spark plug fires or the diesel injector opens, deep within the cylinder.[4]

By displacing a fraction of the highly reactive atmospheric oxygen with inert byproducts, the engine fundamentally alters how heat is absorbed during the power stroke. This process, known as inert cylinder dilution, is the primary defense against one of the most stubborn pollutants in modern transportation.[1][2]

The 1700 K threshold for nitrogen oxides

To understand why an engine needs to cool its own combustion flame, it is necessary to examine how nitrogen oxides are formed. Atmospheric air consists of roughly 78 percent nitrogen and 21 percent oxygen, which enter the engine together.

Under normal atmospheric conditions, nitrogen is a highly stable, inert gas that ignores oxygen completely. However, the extreme environment inside a firing cylinder changes the physics of that relationship.

The Zeldovich mechanism, first described in 1946, dictates that when peak combustion temperatures cross a critical threshold—approximately 1700 Kelvin, or 1427 degrees Celsius—the intense thermal energy begins to break the strong triple bonds holding molecular nitrogen together.

Once those bonds shatter, the freed nitrogen atoms immediately bond with available oxygen to form nitric oxide and nitrogen dioxide. As the temperature climbs higher above that 1700 K floor, the rate of nitrogen oxide formation accelerates exponentially.

"The contribution to NOx emissions is almost insignificant at temperatures below 1700 K, but is strongly accelerated as temperature increases above 2000 K," notes DieselNet's technical review of emission formation. Preventing that temperature spike is the entire purpose of the recirculation system.

Thermal sponges and specific heat capacity

The mechanical solution to this chemical problem relies on the concept of specific heat capacity. This metric defines how much thermal energy a given substance can absorb before its own temperature rises by one degree.[2]

Fresh atmospheric air, dominated by oxygen and nitrogen, has a relatively low specific heat capacity. When fuel burns in a cylinder filled only with fresh air, the resulting heat immediately drives the flame temperature past the Zeldovich threshold.[2]

Recirculated exhaust gas, however, is heavily composed of carbon dioxide and water vapor. Both of these inert combustion byproducts possess a significantly higher specific heat capacity than the oxygen they displace in the intake charge.[1][2]

When a modern 2026 engine routes 5 to 15 percent of its exhaust back into the intake, it is effectively packing the cylinder with microscopic thermal sponges. As the fuel ignites, the carbon dioxide and water vapor absorb a massive share of the released energy.[1]

Because these inert gases require more energy to heat up, the overall peak temperature of the combustion flame drops. The engine still extracts the necessary expansive force to push the piston down, but the localized temperature never reaches the 1700 K trigger point.[2]

The mechanical cost of removing the buffer

This fundamental misunderstanding of the cooling effect leads directly to the popular aftermarket practice of the exhaust gas recirculation delete. Truck owners frequently remove the valve and cooler assembly, assuming that feeding the engine pure, cold atmospheric air will improve longevity and save them from expensive dealership repairs.

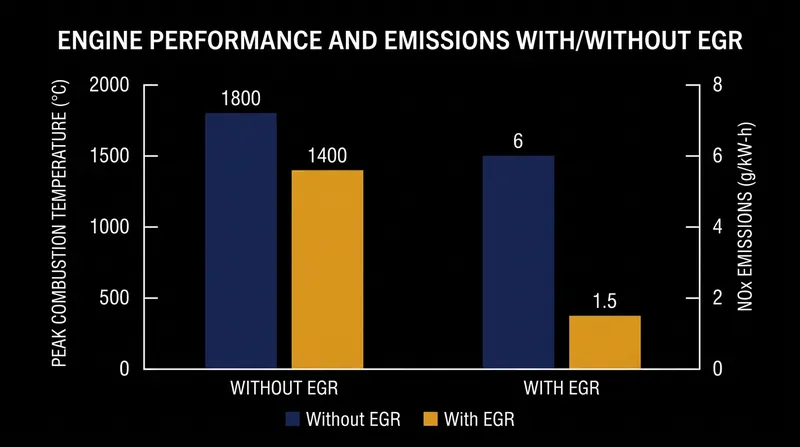

Removing the inert gas buffer immediately changes the thermodynamics of the power stroke. Without the high-capacity carbon dioxide and water vapor to absorb the combustion energy, the flame temperature spikes violently, instantly triggering massive nitrogen oxide formation.

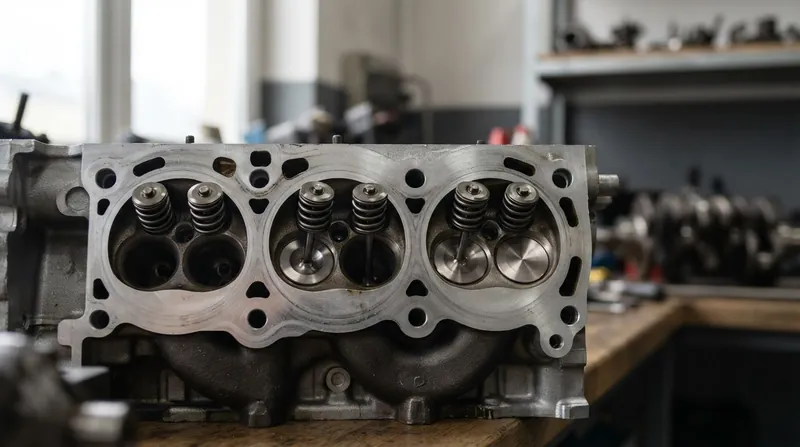

The environmental cost is immediate, but the mechanical penalty hits the owner's wallet shortly after. The engine's internal components, particularly the exhaust valves and piston crowns, are forced to absorb the unbuffered thermal shock that the factory emissions system was designed to mitigate.

This sustained exposure to elevated combustion temperatures frequently leads to pre-ignition, warped cylinder heads, and burnt exhaust valves. What begins as a driver's attempt to protect their engine from hot exhaust ultimately destroys it with unmanaged combustion heat.

Cooling the exhaust before recirculation

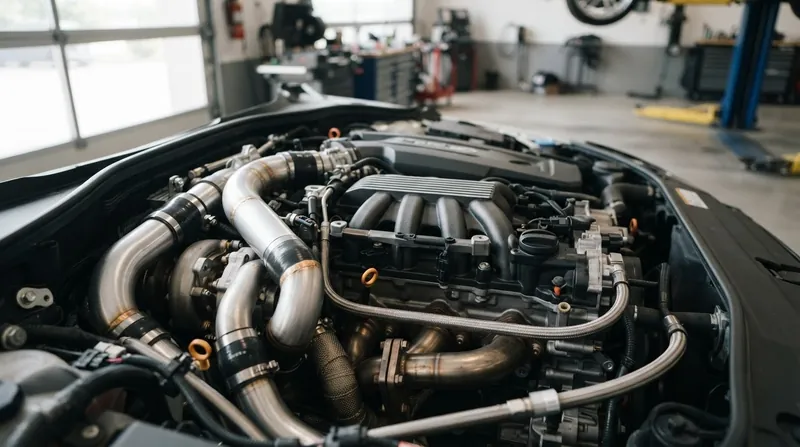

To maximize the density of the thermal buffer, modern automotive and aviation engines do not simply pipe raw exhaust directly back into the intake. The gas is first routed through a dedicated heat exchanger.[3]

This cooler uses the engine's liquid cooling system to strip the initial heat out of the exhaust gas before it reaches the intake manifold. Cooling the inert gas increases its density, allowing the engine management system to pack more carbon dioxide and water vapor into the cylinder.[3]

"By recirculating exhaust gases into the engine's cylinder, a percentage of the air is replaced with CO2," explains Perkins Engines in their technical documentation. "This process lowers the combustion temperature due to the reduced amount of oxygen."[3]

The delicate balance of inert cylinder dilution represents a triumph of applied chemistry. By turning the engine's own waste products into a thermal shield, engineers have successfully broken the link between powerful combustion and harmful atmospheric pollution.[4]
