How Water Scavengers and Aerodynamic Heating Keep Jet Fuel Liquid at Minus 47 Celsius

Passengers crossing the polar routes at 36,000 feet sit comfortably while the ambient air outside plummets to minus 70 Celsius. At these extremes, the kerosene stored in the aircraft's wings is constantly fighting a phase change that could choke the engines. The engineering that keeps this liquid flowing relies on a precise blend of chemical scavengers and aerodynamic friction.

Aviation turbine fuel is essentially a highly refined kerosene, composed of a complex mixture of hydrocarbon chains. Unlike pure water, which freezes at a single specific temperature, this hydrocarbon soup transitions into a solid gradually. As the temperature drops, the heaviest paraffin molecules crystallize first, forming a waxy matrix that thickens the fluid.

If left unchecked, these suspended crystals eventually merge into a sponge-like structure that traps the remaining liquid. This semi-solid slush resists flowing through the aircraft's intricate network of pumps and filters. To prevent engine starvation, international aviation authorities enforce strict thermal limits on fuel composition.[3]

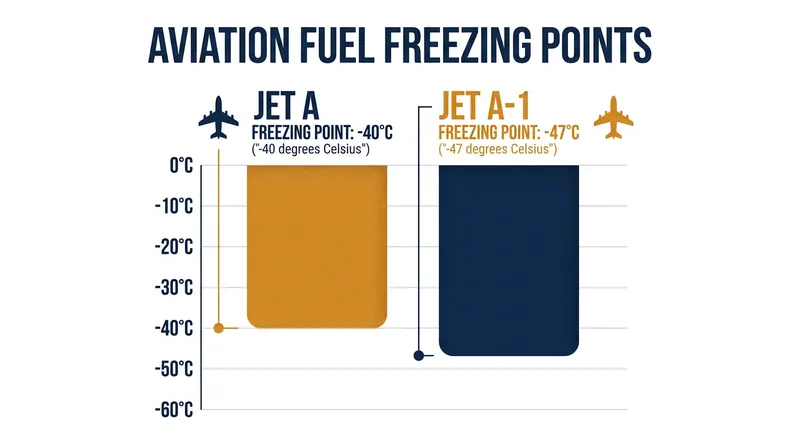

The most common commercial aviation fuel in the United States, Jet A, is certified to remain fully liquid down to minus 40 Celsius. However, international flights traversing colder regions require Jet A-1, which pushes this freezing threshold lower to minus 47 Celsius. This seven-degree difference dictates how airlines route their fleets across the globe.[1][2]

The Aerodynamic Heating Buffer

The atmosphere cools at a predictable lapse rate of roughly two degrees Celsius per thousand feet of altitude. By the time an aircraft reaches the tropopause, the static air temperature frequently drops to minus 56 Celsius, and can reach minus 72 Celsius over the poles. This ambient environment is significantly colder than the freezing point of any commercial jet fuel.[3]

The fuel does not freeze mid-flight because the aircraft is moving at roughly Mach 0.84, generating immense aerodynamic friction. As the plane slices through the thin atmosphere, the kinetic energy of the air compressing against the leading edges of the wings generates heat. This phenomenon warms the aluminum skin, which in turn warms the fuel tanks inside.[3]

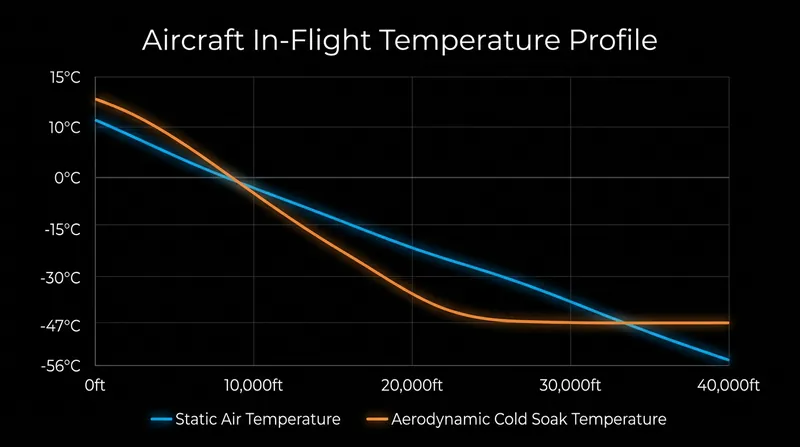

This kinetic heating provides a critical thermal buffer, raising the fuel's cold soak temperature by approximately 25 degrees Celsius above the static ambient air. Consequently, the fuel temperature rarely drops below minus 47 Celsius, perfectly aligning with the certified limit of Jet A-1. The chemical specification is a direct reflection of aerodynamic physics.[1][3]

When flights are unusually long or the polar air is exceptionally cold, pilots monitor the fuel temperature gauges closely. If the tanks approach the minus 47 Celsius limit, the crew must take action to preserve flowability. They will typically descend to a lower, warmer altitude or increase their Mach number to generate more friction.[3]

The Threat of Dissolved Water

While the hydrocarbons in jet fuel are engineered to withstand extreme cold, the fluid inevitably absorbs trace amounts of atmospheric moisture. Jet fuel acts like a chemical sponge, holding dissolved water molecules within its structure. As the aircraft climbs and the fuel cools, its capacity to retain this dissolved water sharply diminishes.

When the fuel reaches its saturation limit, the excess water separates out into microscopic droplets suspended in the kerosene. Because pure water freezes at zero Celsius, these free droplets turn into ice crystals long before the hydrocarbons begin to wax. These ice particles pose an immediate threat to the engine's fine mesh filters.

A blocked fuel filter can trigger a bypass mechanism, or worse, starve the turbine of combustible material entirely. To mitigate this risk, refineries and fuel handlers introduce specialized chemical additives into the supply chain. The most critical of these is the Fuel System Icing Inhibitor, commonly known as FSII or DiEGME.

Diethylene glycol monomethyl ether, or DiEGME, is injected into military and some commercial fuels at a precise concentration of 0.10 to 0.15 percent by volume. This chemical acts as a targeted water scavenger, seeking out the microscopic droplets as they precipitate out of the cooling kerosene. Its molecular structure is uniquely suited for this task.[4]

Chemical Scavenging and Freezing Point Depression

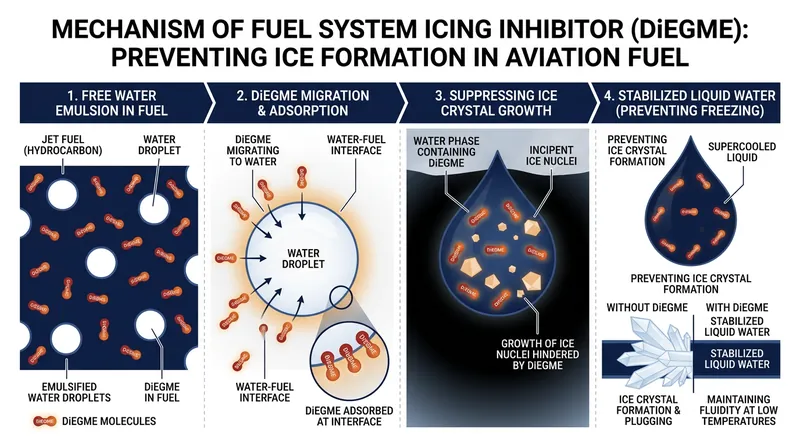

DiEGME is highly hydrophilic, meaning it possesses a strong chemical affinity for water. When free water forms in the fuel tank, the additive rapidly partitions itself out of the hydrocarbons and dissolves directly into the water droplets. This migration fundamentally alters the physical properties of the suspended moisture.[4]

By mixing with the water, DiEGME creates a eutectic solution that depresses the freezing point of the droplets far below zero Celsius. The additive physically interferes with the water molecules, preventing them from organizing into a rigid crystalline lattice. This keeps the moisture in a liquid state even at stratospheric temperatures.[4]

The effectiveness of this chemical intervention relies on strict concentration management during the refueling process. If the DiEGME levels fall below 0.07 percent, the fuel loses its protective margin against icing. Conversely, excessive concentrations can lead to the formation of a viscous sludge known in the industry as apple jelly.[4]

This gelatinous byproduct occurs when high concentrations of DiEGME interact with water and other fuel system contaminants over time. The resulting sludge is denser than the fuel and can settle at the bottom of the tanks, eventually clogging the very filters the additive was designed to protect. Precision is non-negotiable.[4]

The Role of Dissolved Gases

Beyond liquid water, aviation fuel also absorbs significant quantities of atmospheric gases, primarily nitrogen and oxygen. At sea level, a standard tank of Jet A-1 can contain up to 10 percent dissolved air by volume. These gases play a subtle but measurable role in the fluid's low-temperature behavior.[4]

As the aircraft climbs into the lower pressure of the upper atmosphere, these dissolved gases begin to come out of solution. The microscopic bubbles alter the fluid dynamics within the tank, slightly disrupting the formation of the heavy paraffin wax matrices. This continuous outgassing provides a minor mechanical agitation effect.[4]

While this agitation is not a primary anti-icing mechanism, it demonstrates the complex, multi-phase nature of jet fuel at altitude. The fluid is never truly static; it is a dynamic mixture of hydrocarbons, water scavengers, and escaping gases. Every component interacts to maintain the critical flowability required for combustion.[4]

Modern commercial airliners also employ dedicated heat exchangers to further manage fuel temperatures before the fluid reaches the engine core. These systems route hot engine oil past the incoming fuel lines, simultaneously cooling the lubricant and warming the kerosene. This thermal exchange ensures the fuel atomizes perfectly upon injection.[4]

The Future of Cold-Weather Aviation

As the aviation industry transitions toward sustainable aviation fuels, engineers are rigorously testing how these new synthetic blends behave at minus 47 Celsius. Sustainable fuels lack the aromatic compounds found in crude oil, which naturally help depress the freezing point. Refiners must artificially replicate these properties to meet international safety standards.[4]

Researchers are currently evaluating binary and ternary blends of synthetic hydrocarbons to map their crystallization curves. Molecules with identical chemical compositions but different structural shapes exhibit starkly different freezing behaviors. Understanding these structural nuances is the key to certifying the next generation of polar-capable jet fuels.[4]

The margin between safe flight and fuel starvation remains remarkably thin, governed by just a few degrees of aerodynamic heating and a fraction of a percent of chemical additives. The fact that thousands of aircraft navigate the frozen tropopause daily is a testament to this invisible chemical balancing act.

Ultimately, the liquid state of jet fuel at 36,000 feet is not a natural given, but an engineered condition. It requires the continuous interplay of kinetic friction, molecular scavenging, and precise refining. Without these overlapping systems, the modern global route network would simply freeze in place.
