MacPherson Strut vs. Double Wishbone: The Trade-Offs in Cost, Packaging, and Dynamic Camber Control

Automakers frequently market the MacPherson strut as a space-saving suspension architecture that delivers uncompromised handling for everyday drivers. The mechanical reality of camber gain contradicts that claim. When a vehicle enters a highway on-ramp, the chassis rolls outward, shifting weight onto the exterior tires. A double wishbone suspension mechanically forces that loaded tire flatter against the pavement, increasing grip when it is needed most.

A MacPherson strut, by contrast, eventually pulls the top of the tire away from the road under heavy compression, reducing the contact patch. For a buyer cross-shopping a premium sedan against a mass-market crossover, that structural difference dictates whether the vehicle pushes wide in an emergency maneuver or tracks predictably through it.[4]

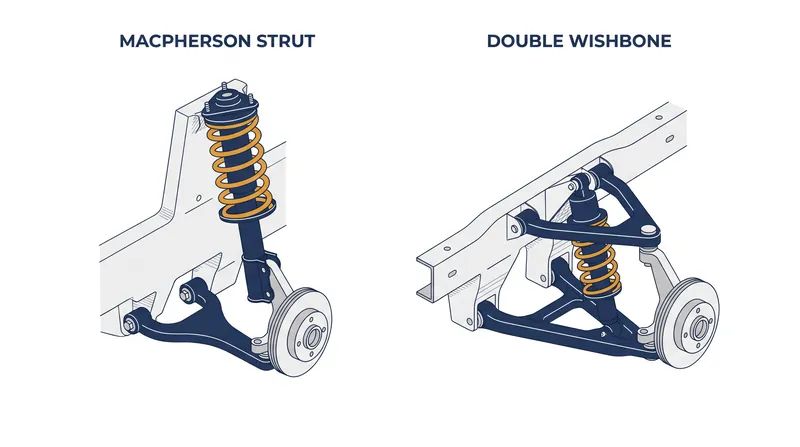

The MacPherson strut dominates modern vehicle production because it solves a packaging problem, not a dynamic one. Developed by Earle S. MacPherson in 1945 for the Chevrolet Cadet project and officially patented in 1949, the design combines the shock absorber, coil spring, and upper steering pivot into a single structural unit.

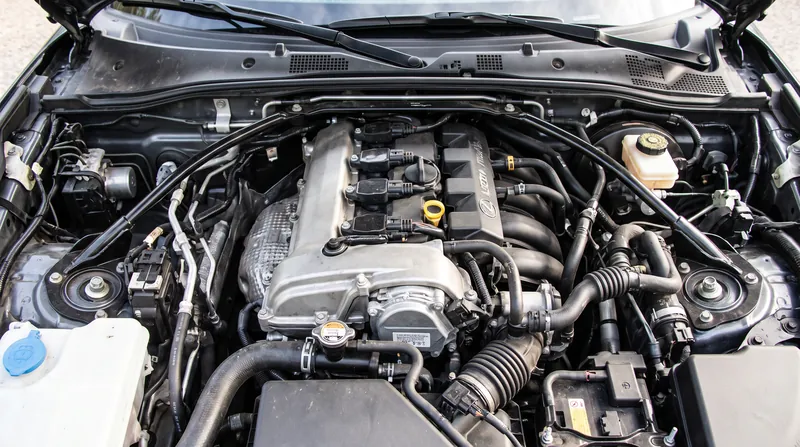

By eliminating the upper control arm entirely, the strut frees up significant lateral space in the engine bay. According to EngineerMD, "MacPherson struts save space in the engine bay—critical for small cars and FWD layouts." This architecture allows manufacturers to mount engines transversely and maximize passenger cabin volume, which is why it became the default front suspension for economy cars globally.[1]

A double wishbone suspension takes the opposite approach, prioritizing wheel control over engine bay space. The system uses two A-shaped control arms—one upper and one lower—mounted between the chassis and the wheel knuckle. The shock absorber and spring are mounted separately to the lower arm, rather than acting as a structural pivot.

Because the upper arm is typically shorter than the lower arm, the design is often called a short-long arm (SLA) suspension. This geometry allows engineers to precisely dictate how the wheel moves through its vertical travel, controlling the wheel's six degrees of freedom independently.[2][3]

The dynamic divide between the two systems centers on camber—the vertical tilt of the tire relative to the road. When a car drives straight, the tires sit relatively flat. But during a hard corner, the vehicle's body rolls toward the outside of the turn.

"A beam axle forces the wheels to maintain a constant camber, which keeps them upright going over bumps, but forces the wheels to lose camber as the body leans, reducing the tires' cornering power," notes automotive historian Aaron Severson at Ate Up With Motor. Independent suspensions were designed to solve this, but they do so with varying degrees of success.[1]

In a double wishbone setup, the unequal arm lengths create a mechanical advantage called negative camber gain. As the chassis rolls and the outside suspension compresses, the shorter upper arm pulls the top of the wheel inward faster than the lower arm pushes the bottom outward.

This action tilts the top of the tire toward the center of the car by several degrees, counteracting the body roll and keeping the tread perfectly flat against the pavement. Wikipedia's engineering editors note that "Double wishbones have traditionally been considered to have superior dynamic characteristics as well as load-handling capabilities and are therefore commonly found on sports cars and racing cars throughout automotive history."[3]

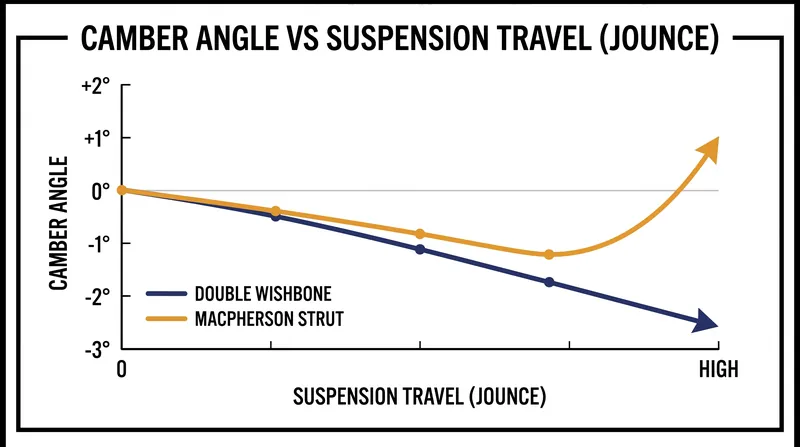

The MacPherson strut cannot replicate this consistent camber gain. Because the strut itself acts as the upper pivot, its geometry is constrained by the single lower mounting point. During the initial phase of suspension compression, a MacPherson strut does provide a slight degree of negative camber.

However, as the suspension travels further into deep compression during a hard corner, the arc of the lower control arm forces the geometry to reverse. The strut begins to push the top of the tire outward, creating positive camber. This lifts the inner edge of the tire off the road, shrinking the contact patch and reducing lateral grip exactly when the driver is relying on it.[1][4]

To compensate for this inherent flaw, engineers tuning MacPherson struts for performance applications must dial in aggressive static negative camber—tilting the wheels inward permanently by 1.5 to 2.5 degrees while the car is parked. This ensures the tire remains flat during cornering, but it severely accelerates inner tire wear during straight-line highway driving.

A double wishbone system requires no such compromise; the tire sits flat on the highway and dynamically tilts only when cornering forces demand it. This is why vehicles ranging from the lightweight Mazda MX-5 to the heavy Aston Martin DB7 rely on double wishbones to achieve their handling benchmarks without destroying tires.[3][4]

Despite the dynamic superiority of the double wishbone, the automotive industry continues to shift toward the MacPherson strut for reasons of cost and complexity. A double wishbone setup requires at least four bushings and two ball joints per wheel, plus heavier mounting points on the chassis to handle the isolated loads.

AutoZone's technical guides point out that MacPherson struts are simpler, cheaper to manufacture, and easier to assemble on a production line. For a buyer looking at a $35,000 commuter vehicle, the reduced manufacturing complexity translates directly to a lower purchase price and cheaper replacement parts when the dampers wear out at the 60,000-mile mark.[2]

However, for buyers evaluating luxury or performance vehicles above the $60,000 threshold, the suspension architecture reveals where the manufacturer invested its engineering budget. A premium SUV riding on MacPherson struts will rely heavily on stiff anti-roll bars and electronic stability control to mask its mechanical limitations in corners, resulting in a harsher ride over broken pavement. A vehicle equipped with double wishbones relies on pure mechanical grip, allowing for softer springs and a more compliant ride.[4]

Beyond camber control, the suspension architecture fundamentally alters steering feel and feedback. In a MacPherson strut system, the entire strut assembly must rotate when the driver turns the steering wheel. This adds significant rotational mass and friction to the steering axis, which can numb the feedback transmitted from the road to the driver's hands.

Furthermore, the fixed geometry of the strut makes it difficult to optimize the scrub radius—the distance between the tire's contact patch and the steering axis pivot point. A suboptimal scrub radius exacerbates torque steer in front-wheel-drive cars, pulling the steering wheel aggressively under hard acceleration.[4]

Double wishbone suspensions isolate the steering mechanism from the shock absorber. Because the damper does not rotate with the wheel, the steering knuckle pivots freely on the upper and lower ball joints. This dramatically reduces steering friction and allows engineers to place the virtual steering axis exactly where it needs to be to eliminate torque steer.

The result is a steering wheel that communicates the road surface clearly without being violently yanked by the engine's power delivery. For an owner navigating a tight, unevenly paved city street, this isolation makes the vehicle feel significantly more refined and controllable.[4]

The long-term ownership experience also diverges sharply between the two designs. When a MacPherson strut inevitably wears out and loses its damping ability, the entire structural unit must be removed from the vehicle. Because the strut holds the vehicle's alignment, replacing it requires a specialized spring compressor and a mandatory four-wheel alignment afterward, driving up labor costs.

In a double wishbone system, the shock absorber is a separate, non-structural component. A mechanic can often unbolt and replace the shock without disturbing the control arms or the wheel alignment, making routine suspension maintenance faster and less invasive for the owner.[2][4]

When a driver evaluates their next purchase, looking past the leather seats and into the wheel well provides the clearest indicator of whether a vehicle was engineered for the driver's experience or the manufacturer's profit margin. The MacPherson strut remains an undisputed triumph of packaging efficiency, enabling the spacious, affordable vehicles that dominate modern roads. But physics cannot be bypassed by marketing. For those who prioritize mechanical grip, precise steering, and dynamic stability, the double wishbone remains the definitive standard.[4]
