The 1-Inch Gap and the Draft Gear: How Train Couplers Manage Slack and Prevent Derailment

On August 21, 2021, a Canadian National Railway freight train traveling through British Columbia experienced a violent separation of its cars. The Transportation Safety Board of Canada investigation into incident R21M0027 pointed directly to the mechanical forces hidden between the carriages. The event highlighted a physical reality of moving 14,000 tons of freight: a train cannot function as a single rigid object.[5]

If a locomotive were bolted solidly to a 100-car train, it would never leave the station. The static friction of hundreds of steel wheels resting on steel rails exceeds the pulling capacity of even the most powerful diesel-electric engines. To solve this, railway engineers rely on "slack"—a deliberate mechanical gap built into the coupling system that allows the locomotive to start moving one car at a time.[2][3]

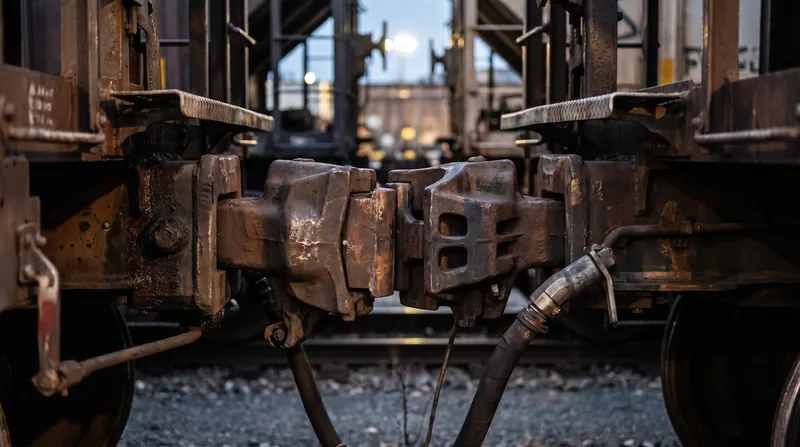

That gap exists within the knuckle coupler, the heavy steel mechanism that links North American railcars. When two cars are stretched apart, the interlocking knuckles pull against each other, but they do not sit flush. There is roughly one inch of free play between them.[3]

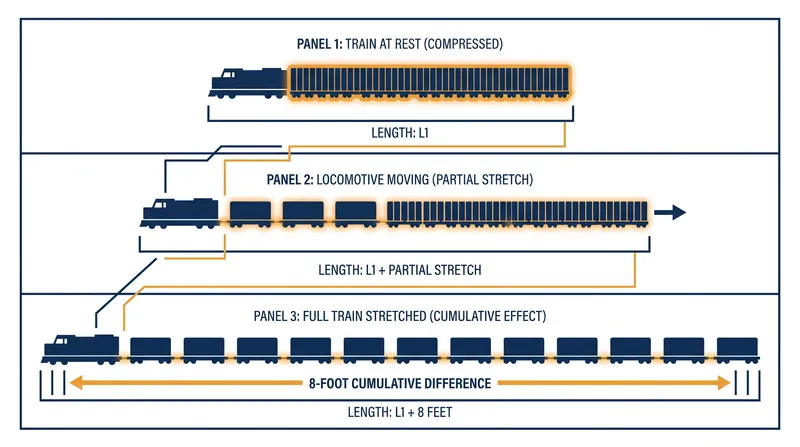

One inch sounds negligible, but across a standard 100-car freight train, it accumulates. When the locomotive begins to pull, it moves forward over eight feet before the final car in the sequence experiences any forward tension. This sequential starting mechanism allows the engine to overcome the static friction of each car individually, turning an impossible load into a manageable series of smaller pulls.[3][6]

However, that same slack creates immense kinetic challenges. When a train crests a hill or applies its brakes, the rear cars continue moving forward at their original speed, crashing into the cars ahead. This phenomenon, known as "run-in," generates massive compressive forces that can easily push a railcar off the tracks if not properly managed.[1][5]

To prevent these forces from crushing the railcars or forcing the wheels over the railhead—a primary cause of derailments—each coupler is attached to a "draft gear." Located inside the center sill of the railcar, the draft gear acts as a heavy-duty shock absorber.[2]

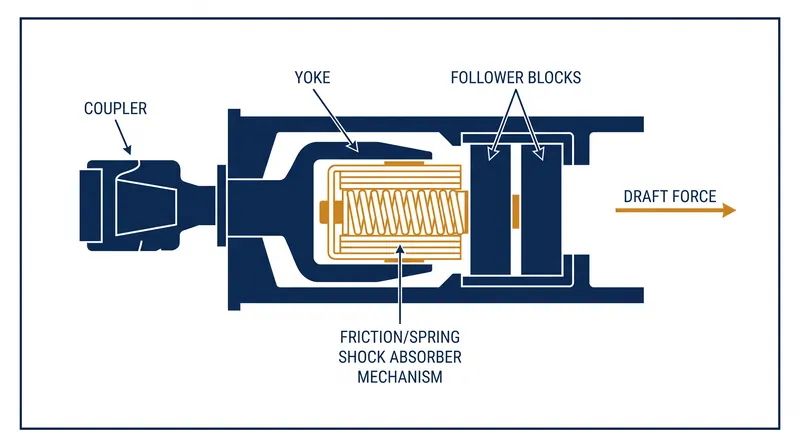

The Army Transportation Reference Manual defines the draft gear system as a combination of a yoke, follower blocks, and a shock-absorbing mechanism. When the coupler is pushed or pulled, the yoke transfers that force into the draft gear, which compresses to absorb the energy before it reaches the rigid frame of the car.[2]

Traditional draft gears rely on heavy steel springs and friction plates. As the gear compresses, the friction plates rub against each other, converting the kinetic energy of the moving train into heat. This mechanical resistance dampens the whip-crack effect of the slack running in or out.[2][3]

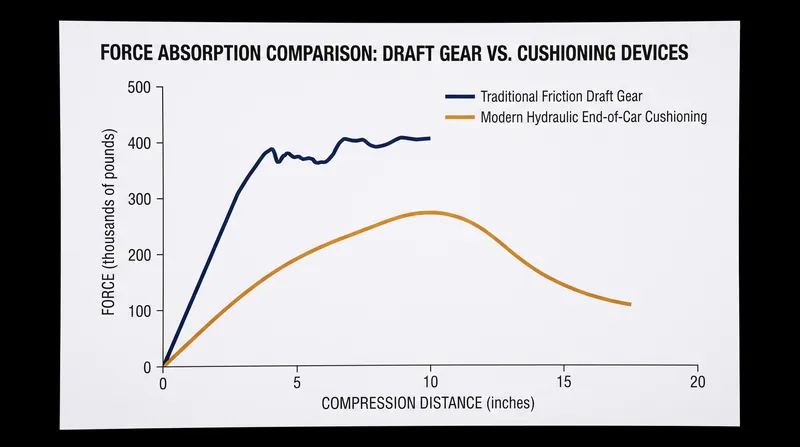

Modern freight operations, which run longer and heavier trains, increasingly require more advanced solutions. The Interface Journal notes that many high-capacity cars now utilize hydraulic end-of-car cushioning devices. These systems use fluid dynamics rather than dry friction to manage the slack, providing a longer travel distance and smoother energy dissipation.[1]

The regulatory baseline for these systems is strictly defined to prevent catastrophic failure. Under 49 CFR § 229.61, the Federal Railroad Administration mandates specific tolerances for the draft system. The law explicitly states that a coupler may not have a "distance between the mating surfaces of the knuckle and the guard arm of more than 5 1/8 inches," ensuring that wear does not allow the slack to become uncontrollable.[4]

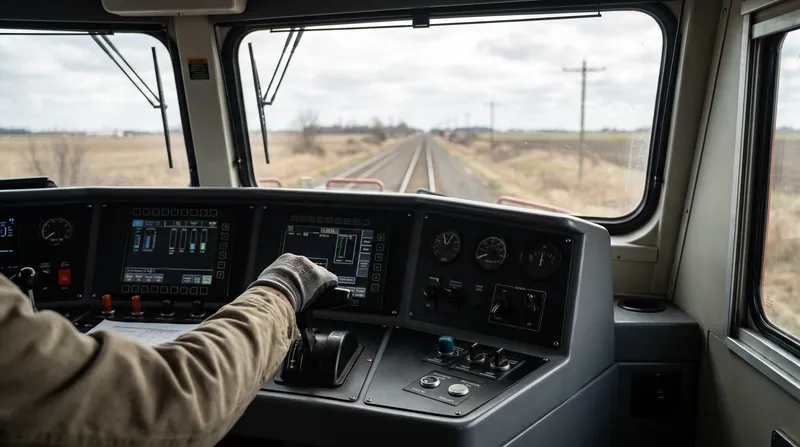

For the locomotive engineer, managing this slack is a primary operational skill. An engineer cannot simply apply the throttle or the brakes; they must anticipate the terrain and use the locomotive's dynamic brakes to keep the train "bunched" (compressed) or "stretched" (pulled taut) to prevent sudden, violent shifts in momentum.[3][6]

When a train starts moving in a rail yard, the characteristic sequence of loud bangs echoing down the line is the sound of the slack running out, car by car. For residents living near freight lines, that noise is a daily reality; for the mechanical engineers, it is the sound of the draft gear doing exactly what it was designed to do.[3][6]

The TSB's 2021 investigation serves as a baseline reminder of what happens when these forces exceed the mechanical limits of the draft gear. When slack action is too severe, the lateral forces can literally lift a wheel flange over the railhead, resulting in a catastrophic derailment that can spill hazardous materials or block vital economic corridors.[5]

As the industry pushes toward precision scheduled railroading and trains stretching over two miles long, the demands on the 1-inch gap and the draft gear will only increase. The physics of moving mass dictate that while the locomotive provides the power, the draft gear provides the survival mechanism.[1][6]
