How the Diesel Engine Acts as a Generator to Power a Locomotive's Traction Motors

At a rail yard in Nebraska on a freezing January morning, a 15,000-ton freight train begins to move. The sound of the 4,000-horsepower diesel engine roaring to life is deafening, yet the massive steel wheels do not lurch or grind. Instead, they turn with a smooth, continuous hum. A person standing beside the tracks would notice the absence of shifting gears or mechanical clunking. That seamless departure is the result of a fundamental engineering choice made in the 1930s: the diesel engine inside the locomotive is not connected to the wheels at all.

For freight operators and transit agencies, the mechanical transmission capable of handling a 4,000-horsepower diesel engine at the torque loads required to move a 15,000-ton train from a standstill simply does not exist. A traditional gearbox would shatter under the immense physical strain. To solve this, engineers turned the locomotive into a mobile power plant. The diesel engine acts as a prime mover, spinning a massive generator or alternator to produce electricity.

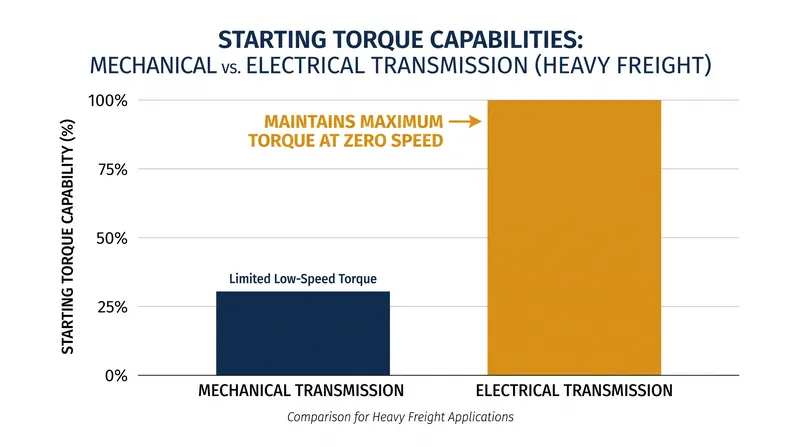

This electrical energy is then routed down to the axles, where individual traction motors convert the current back into rotational force. By eliminating the mechanical link between the engine and the wheels, the diesel-electric architecture functions as an infinitely variable electronic transmission. For the logistics companies moving goods across the continent, this means a single locomotive can apply maximum starting torque at zero miles per hour without stalling or destroying a clutch.

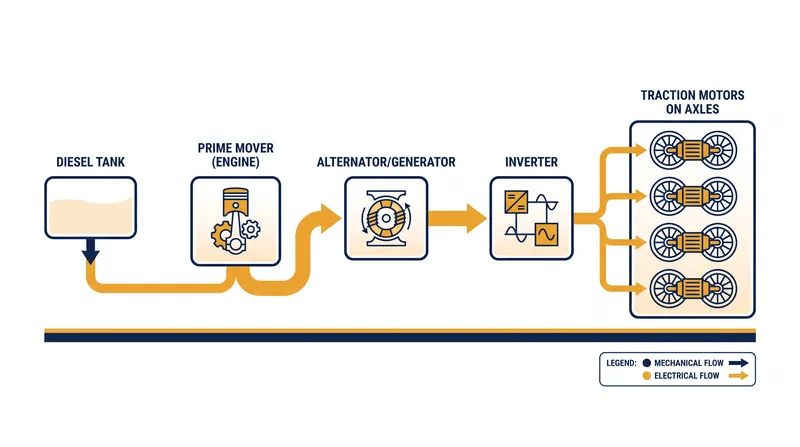

The two-stage conversion process—chemical energy to mechanical, mechanical to electrical, and electrical back to mechanical—might seem inefficient on paper. However, the operational reality dictates otherwise. As PRC Rail Consulting notes, "The modern diesel locomotive is a self contained version of the electric locomotive." It produces about 35 percent of the power of a fully electric unit of similar weight, but because it carries its own generating station, it can operate over any route without requiring billions of dollars in overhead catenary wires.[1]

At the heart of the system is the prime mover, typically a massive 16-cylinder internal combustion engine. As Clayton Locomotives outlines in its technical documentation, the engine's sole responsibility is to convert the chemical energy stored in diesel fuel into mechanical rotation. It operates at a relatively constant, optimized RPM, driving the main generator or alternator rather than responding directly to the engineer's throttle inputs for wheel speed.

In older designs, the prime mover spun a direct current (DC) generator. Today, the industry has shifted. As Start Pac's engineering breakdown explains, "The diesel engine is connected to an electrical generator or alternator, which converts the engine's mechanical energy into electrical energy." Modern heavy-haul locomotives predominantly utilize alternators that generate alternating current (AC). The AC output is more efficient and reliable, producing standard voltages that often range from 600 to 1,500 volts. This high-voltage electricity is then processed through a series of rectifiers and inverters before it reaches the wheels.

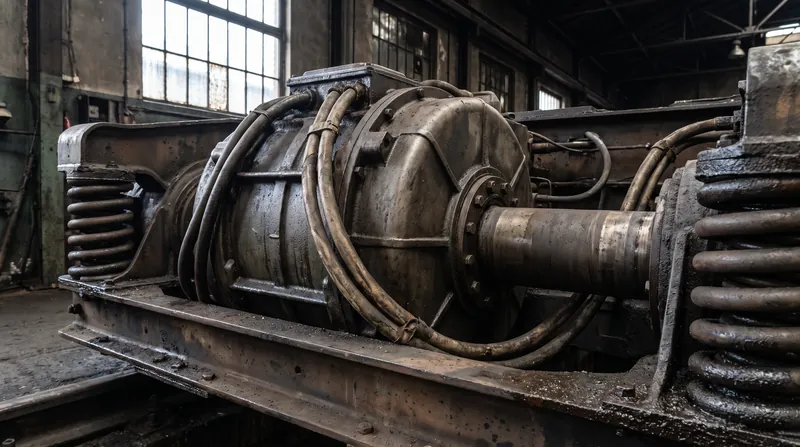

The traction motors themselves are the linchpin of the entire operation. Mounted directly on the axles, these motors receive the processed electricity and provide the actual propulsive force. Most contemporary diesel-electric locomotives employ AC traction motors, which offer superior adhesion and performance compared to their DC predecessors. For a freight operator, this translates to fewer slipping wheels on steep, wet grades and lower maintenance costs over the locomotive's 30-year lifespan.[1]

This electrical architecture also enables dynamic braking, a crucial safety and efficiency feature for heavy trains descending mountain passes. When the engineer applies the dynamic brakes, the traction motors are reconfigured to act as generators. The momentum of the train drives the motors, which generate electricity that is dissipated as heat through massive resistor grids on the locomotive's roof. This prevents the physical air brakes from overheating and failing during long descents.

The flexibility of the diesel-electric platform is now paving the way for hybrid energy storage systems. Research published in the IEEE Transactions on Industry Applications highlights how modern propulsion systems are integrating battery banks to capture and store the energy generated during dynamic braking. Instead of wasting that energy as heat, the batteries can feed it back into the traction motors during acceleration.[2][3]

For transit agencies and industrial operators, this hybrid approach offers immediate financial benefits. By utilizing stored battery power during low-speed yard operations or idling, the diesel engine can be shut down entirely. This reduces fuel consumption, minimizes emissions in urban areas, and extends the maintenance intervals for the prime mover. The fundamental architecture of the diesel-electric locomotive—separating the power source from the wheels—makes this battery integration possible without redesigning the entire drivetrain.

The next phase for fleet operators involves scaling these hybrid systems to mainline freight. While yard switchers are already operating on battery-diesel architectures, replacing the megawatt-hour energy demands of a cross-country route remains constrained by battery density. Until solid-state cells can match the energy density of a 5,000-gallon diesel tank, the internal combustion engine will continue to serve as the most viable onboard generator for the world's heavy rail networks.
