The Mechanics of High-Speed Rail: How Wheel Conicity and Welded Tracks Enable the 200-mph Commute

At 200 mph on the Japanese Shinkansen or the French TGV, a passenger can balance a coin on a tray table while the landscape blurs past the window. That legendary smoothness is not simply the result of a flat surface, but of a continuous, violent physical negotiation happening just inches beneath the floorboards. The modern high-speed commute relies on a brilliant engineering illusion: a vehicle weighing hundreds of tons steering itself through sweeping curves without a steering wheel, riding on steel rails that are permanently stretched like taut rubber bands. Understanding how this works reveals why high-speed rail requires entirely bespoke infrastructure.

The foundation of this mechanical system is the wheelset. Unlike an automobile, where the left and right wheels spin independently on their bearings to negotiate turns, a train's wheels are rigidly fixed to a solid steel axle. The entire assembly, known as a wheelset, rotates as a single, unbreakable unit. This rigid design is incredibly strong, simple to maintain, and capable of bearing massive freight loads, but it introduces an immediate geometric problem: when a vehicle takes a curve, the outer wheel must travel a longer physical distance than the inner wheel. On a car, the differential solves this; on a train, the rigid axle prevents it.[1]

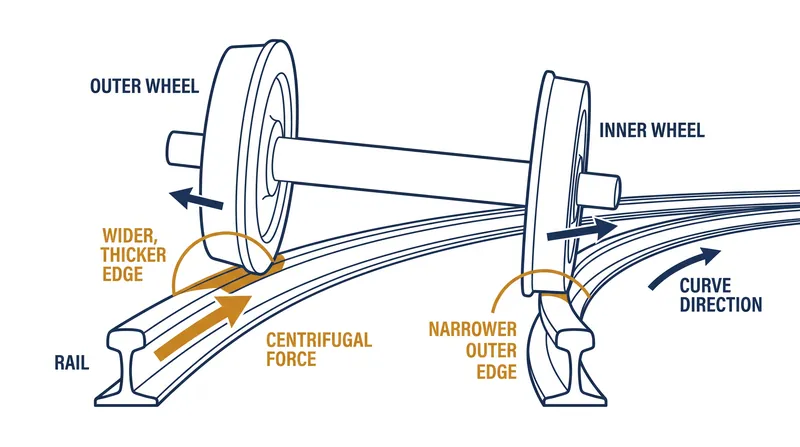

If train wheels were perfectly cylindrical, this rigid axle would force one wheel to drag and slip violently against the steel rail on every single turn, destroying both the wheel flange and the track infrastructure. Instead, railway engineers rely on a geometric principle called wheel conicity. The running surface of a standard train wheel is not flat; it is beveled into a slight cone shape, typically at a ratio of 1-in-20, growing wider and thicker toward the inner flange. This subtle slope is the invisible steering mechanism of the entire global railway network.[1]

When a train approaches a curve, the centrifugal force of the turn pushes the entire wheelset slightly outward against the rails. This lateral shift causes the outer wheel to ride on its wider, thicker base, while the inner wheel shifts to ride on its narrower, thinner edge. Because the outer wheel now has a larger effective circumference at the point of contact, it travels further with each rotation of the axle. The train naturally steers itself around the bend, perfectly matching the radius of the curve without any moving steering components or driver input.

This elegant, self-steering geometry is the reason trains can navigate winding mountain passes and sweeping regional curves with minimal friction. However, the exact mechanism that allows a train to turn becomes its greatest liability on a straight, high-speed corridor. On a perfectly straight track, the conical wheels tend to overcorrect. If the wheelset drifts slightly to the left, the wider diameter of the left wheel pushes it back to the right, which then catches the wider diameter of the right wheel, pushing it back to the left.

This side-to-side weaving is known in railway physics as 'hunting oscillation.' At low speeds, it manifests as a gentle, barely noticeable sway in the passenger cabin. But as a train accelerates past 100 mph, the interaction between the inertial forces of the heavy steel and the adhesion forces of the track causes the oscillation to amplify. Without mechanical intervention, a high-speed train experiencing hunting oscillation would violently slam its flanges against the rails, destroying the track alignment and potentially causing a catastrophic high-speed derailment.[2]

To conquer hunting oscillation, high-speed trains utilize massive, complex undercarriages called bogies. A modern high-speed bogie isolates the passenger cabin from the wheelsets using multiple layers of active and passive suspension. Heavy-duty hydraulic yaw dampers are installed between the bogie frame and the train car, acting as massive shock absorbers that specifically resist the twisting motion of the wheelsets. These dampers lock the wheels into a stable forward path on straightaways, absorbing the kinetic energy of the oscillation, while still allowing the bogie to pivot when it encounters an intentional curve.

But stabilizing the wheels is only half the battle; the track itself must be engineered to handle the immense kinetic energy of a 200-mph vehicle. For over a century, the defining sound of a passenger train was the rhythmic 'clickety-clack' of wheels passing over the expansion gaps between short, 60-foot segments of rail. Those gaps were a necessary evil, designed to prevent the steel tracks from buckling under the summer sun as the metal expanded in the heat, but they imposed a hard physical limit on how fast a train could safely travel.

At high speeds, those expansion gaps are completely intolerable. The constant impact of steel wheels against rail joints at 200 mph would shatter the wheels, degrade the trackbed, and subject passengers to a bone-rattling ride that would make working or resting impossible. The solution is Continuous Welded Rail (CWR). Modern high-speed tracks are welded into seamless ribbons of steel that can stretch for dozens of miles without a single break, providing a glass-smooth, uninterrupted surface for the conical wheels to glide across at maximum velocity.[3][4]

Eliminating the expansion gaps creates a massive thermodynamic problem for track engineers. A mile-long ribbon of steel exposed to a 100-degree summer day wants to naturally expand by several feet. Because it is welded solid from end to end, it cannot grow longer; instead, the thermal energy converts into immense internal compressive stress. If left unchecked, this pressure would cause the track to violently warp sideways and tear itself from the ground, a highly dangerous phenomenon known to railway engineers as a sun kink.

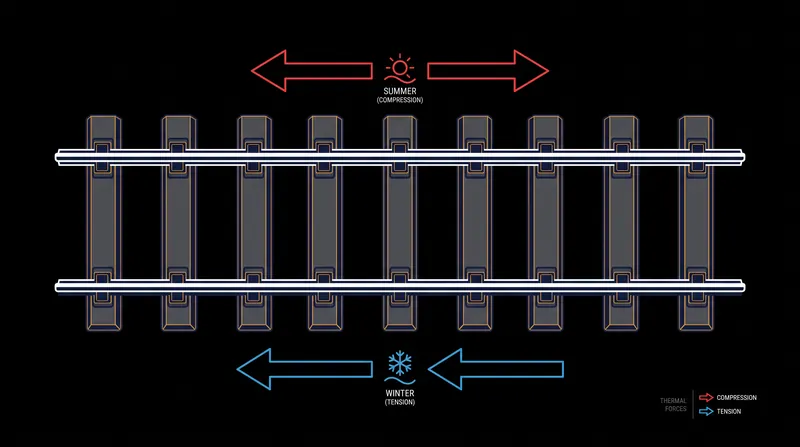

Railway engineers solve this thermal expansion problem by manipulating the steel before it is ever fastened down to the ground. During installation, the continuous welded rail is artificially stretched using massive hydraulic tensors, or heated with specialized equipment, to reach a specific 'Rail Neutral Temperature.' This temperature is carefully calculated based on the region's historical climate data, representing the exact midpoint between the area's coldest winter night and hottest summer day, ensuring the rail is perfectly balanced for the local environment.[3][4]

Once the rail is stretched to this neutral state, it is permanently locked to heavy concrete sleepers using high-tension fasteners. The rail lives its entire operational life under extreme stress. In the winter, it acts like a taut rubber band, pulling inward with hundreds of tons of tensile force. In the summer, it pushes outward with equal compressive force. The heavy concrete sleepers and the deep bed of crushed rock ballast hold the steel rigidly in place, forcing the metal to absorb the stress internally rather than bending.

With the track smoothed and the wheels stabilized, high-speed rail faces one final physics hurdle: the atmosphere. At low speeds, the steel-on-steel interface is a marvel of efficiency. The rolling resistance coefficient of a train wheel is roughly 150 times lower than that of a rubber tire on concrete. A single locomotive can pull thousands of tons of freight with a fraction of the energy required by a fleet of trucks, making rail the most efficient land transport ever devised.

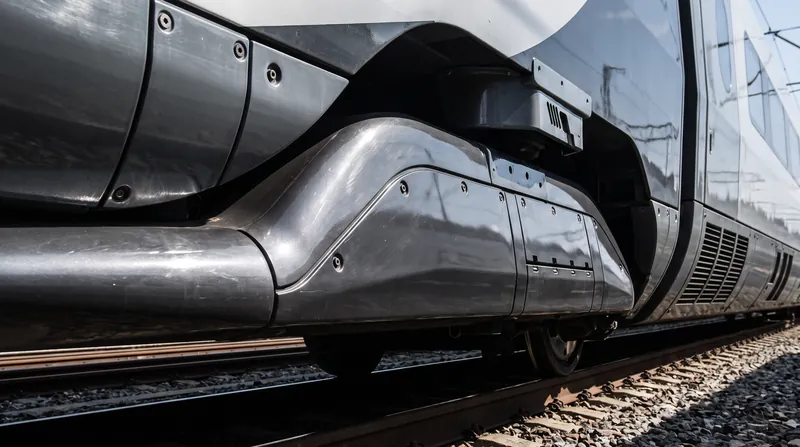

However, as the speedometer climbs past 150 mph, the aerodynamic drag increases exponentially, and the mechanical efficiency of the steel wheels is completely overshadowed by the resistance of the air. The most aerodynamically chaotic part of a train is not the nose, but the undercarriage. The exposed bogies, with their complex arrays of axles, springs, dampers, and brake calipers, act like massive air brakes, churning the air into turbulent vortices beneath the floorboards and fighting the forward momentum of the locomotive.

Exposed bogies can account for up to 40 percent of a high-speed train's total aerodynamic drag. To maintain the energy efficiency that makes rail travel economically viable, modern trains enclose these mechanical systems in sleek, flush-mounted fairings. By covering the bogie cavities and smoothing the underbody airflow, engineers can reduce the aerodynamic drag of the entire train by over 10 percent, saving megawatts of electrical power on every cross-country journey and dramatically reducing the noise pollution experienced by trackside communities.

The modern high-speed commute is ultimately a triumph of invisible engineering. The passengers reading, working, or sleeping in the cabin are completely isolated from a brutal physical environment. They are riding on wheels that are constantly steering themselves through complex geometry, suspended by heavy dampers fighting violent oscillations, rolling over steel ribbons locked in a perpetual state of thermal tension, and slicing through the air in an aerodynamically sealed capsule designed to cheat the wind at every possible opportunity.

As nations continue to expand their high-speed rail networks to decarbonize regional travel, these core mechanical principles remain the absolute foundation of the technology. Whether the trains are powered by overhead catenary wires, third rails, or next-generation battery systems, the fundamental physics of the wheel-rail interface dictates the limits of the system. The 200-mph commute is only possible because engineers have learned to harness, rather than fight, the natural forces of conicity, thermal expansion, and fluid dynamics to create a perfectly balanced transit environment.
