How Automatic Couplers Route Air and Data While Absorbing Megajoules of Train Buff Load

Modern railway couplers must simultaneously connect fragile gigabit data lines and withstand the massive kinetic impact of a 150-tonne train. When routine draft gear capacity is exhausted, these devices systematically destroy themselves to protect the passenger cabin.

By Elena Ivanova

Share this story

Listen

In short

  1. Modern automatic couplers simultaneously route gigabit data, high-voltage power, and pressurized air while acting as the primary shock absorber for the train.
  2. A standard Type 10 coupler can absorb 1.6 megajoules of kinetic energy, allowing a 150-tonne train to safely endure impacts up to 16.6 km/h.
  3. When collision forces exceed the draft gear's capacity, Crash Energy Management systems intentionally sacrifice the coupler to protect the passenger cabin.

When a regional transit authority drafts the technical specifications for a new fleet of passenger trains, the most critical engineering choice happens at the bumper. Procurement directors must select an automatic coupler system that dictates how their vehicles will interact for the next thirty years.[6]

They are buying a mechanism that must simultaneously route fragile fiber-optic data and withstand the kinetic impact of a building in motion. The automatic coupler is the only physical link between two 150-tonne vehicles. It must seamlessly connect high-voltage power, pressurized air, and gigabit networks without human intervention.[5]

At the same time, it serves as the primary shock absorber for the entire trainset. During a routine yard coupling or a sudden emergency brake application, the coupler absorbs massive compressive forces known as buff loads. If the procurement team under-specifies this component, routine shunting impacts will transfer destructive energy directly into the passenger cabin.[3]

To balance these contradictory demands, modern systems like the Type 10 or Scharfenberg couplers rely on a highly engineered sequence of mechanical, pneumatic, and electrical mating. The automated process begins the exact moment two train cars make physical contact.[1][4]

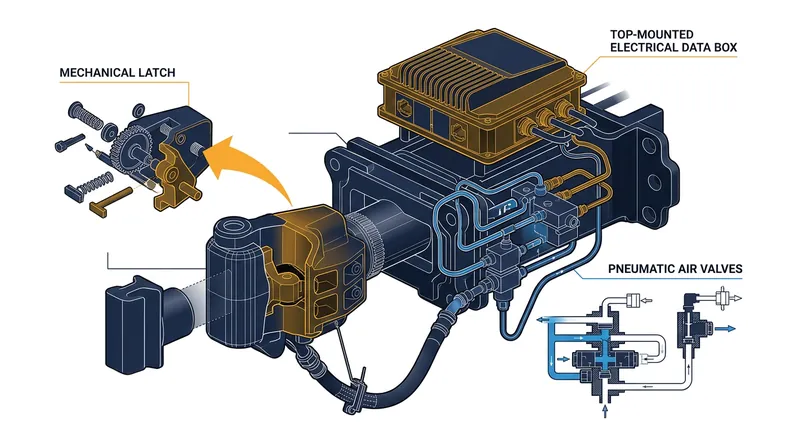

The anatomy of an automatic coupler, detailing the utility connections that mate upon impact.

Guiding the Mechanical Latch

The mechanical connection is the foundation that protects the delicate utility lines. As two trains approach each other, curved metal fittings called gathering horns catch and center the opposing coupler heads. This ensures the units align perfectly, even if the vehicles are meeting on a curved section of track.[4]

Once aligned, the internal locking mechanism engages to secure the connection. In a cone-and-cup design like the Scharfenberg coupler, a rigid link slides into a funnel-shaped receiver. An internal latch pin or rotating disc then drops into place, mechanically locking the two trains together under extreme tension.[4]

This mechanical grip must hold fast against the pulling forces, or draft loads, generated when the locomotive accelerates. Modern regional couplers are rated for draft strengths of 1,000 kilonewtons. That is enough tensile strength to drag a fully loaded passenger train up a steep gradient without separating.[1]

With the mechanical lock secured, the coupler immediately initiates the secondary utility connections. The physical alignment of the heavy steel heads guarantees that the smaller, more fragile pneumatic and electrical interfaces are positioned with millimeter precision.

Routing Air and Gigabit Data

Pneumatic connections are the lifeblood of a railway air brake system. As the coupler heads lock, spring-loaded air valves on the face plates press against each other and open. This instantly links the main air reservoir and the continuous brake pipe across the newly joined vehicles.[4][5]

Synchronizing this air pressure is what allows a driver to apply the brakes uniformly across a dozen carriages. If the pneumatic seals leak, the train's safety systems will detect a pressure drop and automatically trigger an emergency stop. The coupler must maintain this airtight seal while the train flexes and bounces at 160 kilometers per hour.

Directly above or below the air valves sits the electrical box, which houses the power and data connections. On fully automatic types, these boxes slide forward to mate a dense array of fixed and moving pins. This establishes continuity for the train's internal electrical network, powering everything from cabin lighting to door controls.[4]

Modern transit demands have pushed these electrical heads to handle massive data loads. Systems like the D-REX connection route 100-megabit Ethernet, while other designs push up to 10 gigabits of data per second through the coupler. This bandwidth supports high-definition security cameras, passenger Wi-Fi, and real-time diagnostic telemetry across the entire trainset.[1]

Some advanced coupler designs allow the electrical box to retract independently of the mechanical latch. If a transit agency needs to tow a defective train back to the maintenance depot, they can mechanically couple the vehicles without bridging a potentially dangerous electrical fault.

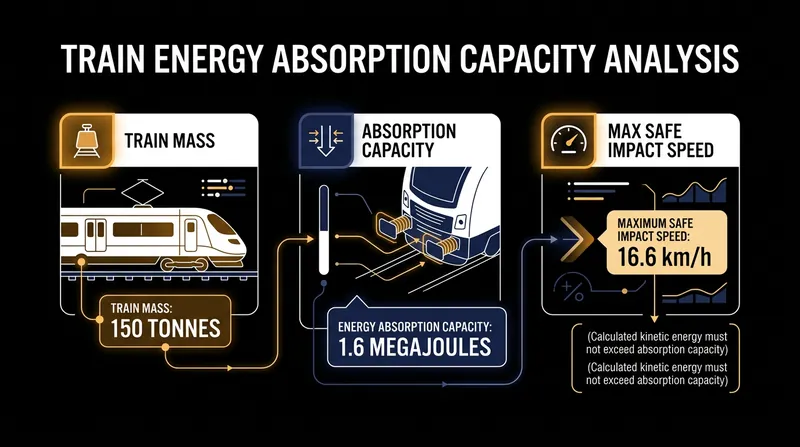

A standard Type 10 draft gear can absorb the kinetic energy of a 150-tonne train coupling at up to 16.6 km/h.

Absorbing the Megajoules

While the data and air lines require precision, the coupler's structural mounting requires brute strength. The forces generated by moving trains are staggering. "Using an example of a typical four-vehicle train travelling at the BSEN15227 specified 36km/h, hitting an obstacle will dissipate its kinetic energy of circa 7.5MJ very rapidly," notes Rail Engineer.[2]

When that train couples with another vehicle, or strikes a buffer stop, that energy must go somewhere. The coupler assembly does not bolt directly to the train's rigid chassis. Instead, it is mounted to a draft gear—a heavy energy-absorbing unit housed inside the center sill of the underframe.[5]

In everyday operation, the draft gear uses rubber cushions and gas-hydraulic dampers to smooth out the ride. These elements compress slightly as the train accelerates and brakes, absorbing the minor shocks that would otherwise jolt the passengers. But their primary job is to manage the violent buff loads of a collision.[1]

A standard Type 10 automatic coupler features a total energy absorption capacity of 1.6 megajoules. By equating this capacity to the kinetic energy of a 150-tonne train, we can determine the structural limits of the hardware. The math reveals that the train can endure a direct impact at 16.6 kilometers per hour before exhausting the draft gear.[1][6]

Below that speed, the coupler absorbs the entire blow, and the train simply bounces back. The transit agency can inspect the coupler, reset the dampers, and return the vehicle to revenue service the same day. But if the impact exceeds 16.6 kilometers per hour, the draft gear bottoms out, and the physics change dramatically.[6]

Crash Energy Management

When the draft gear's capacity is overwhelmed by a high-speed impact, the system transitions into its Crash Energy Management phase. The engineering goal is no longer to save the hardware, but to sacrifice it in a controlled manner to protect the passenger cabin.[3]

The first sacrificial element is usually the pushback coupler mechanism. Special shear screws intentionally snap under the extreme load, allowing the entire coupler head to slide backward into a deformation tube. As this steel tube crushes, it absorbs massive amounts of kinetic energy through permanent structural yielding.[1][3]

If the collision forces continue to travel down the chassis, secondary anti-climbing devices engage at the edges of the car body. These interlocking metal teeth prevent the colliding trains from riding up and telescoping into each other's passenger compartments. The energy is systematically bled away before it reaches the occupied zones.[3]

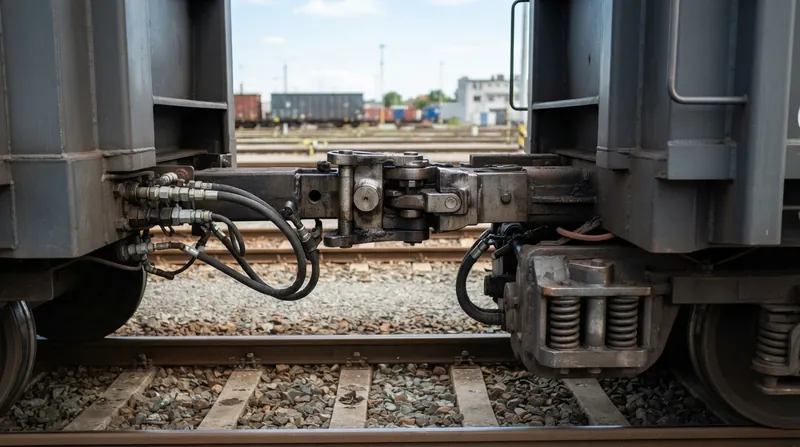

Illustration: The heavy-haul freight sector is transitioning to Digital Automatic Couplers to eliminate manual yard labor.

The Freight Rail Revolution

While passenger transit has relied on automatic couplers for decades, the global freight industry is only now making the transition. Most European freight trains still use manual screw couplers, requiring yard workers to physically lift heavy steel chains and connect air hoses by hand between every single wagon.[5]

To modernize this labor-intensive process, manufacturers are developing the Digital Automatic Coupler. This system brings the integrated mechanical, pneumatic, and digital connections of passenger trains to the heavy-haul freight sector. It promises to drastically reduce the time required to assemble a train in a marshaling yard.

More importantly, the digital coupler enables the "Digital Freight Train," routing continuous power and data to every single wagon. This allows for automated brake testing, real-time cargo monitoring, and electro-pneumatic braking that applies simultaneously across a two-kilometer train.

"Passenger train couplers were transformed into digital interfaces a long time ago – and now Knorr-Bremse is driving efforts to change Europe's freight trains in the same way by introducing a digital automatic center buffer coupler," states the engineering team at Knorr-Bremse. For freight operators, this single component upgrade unlocks a massive leap in network capacity and safety.

How we did this

Method
Derived the maximum structural-safe coupling speed for a standard four-car passenger train by equating its kinetic energy to the maximum energy absorption capacity of a Type 10 automatic coupler.
What we found
A 150-tonne train can endure a coupling impact or buffer strike at up to 16.6 km/h before exhausting the coupler's 1.6 MJ draft gear capacity and transferring destructive force into the passenger cabin structure.
What we worked from
  • Four-vehicle train mass (derived from 7.5 MJ at 36 km/h): 150 metric tonnes — Rail Engineer
  • Type 10 coupler energy absorption limit: 1.6 megajoules — Dellner
Limits of this analysis
Assumes all kinetic energy is absorbed by a single leading coupler without factoring in the secondary crush zones or the elasticity of the opposing train.

Definitions

Buff Load
The compressive force pushed into a train's chassis during braking, deceleration, or coupling impacts.
Draft Load
The tensile pulling force exerted on a coupler and chassis when a locomotive accelerates.
Draft Gear
A heavy shock-absorbing unit housed inside the train's underframe that cushions the coupler's movements.
Crash Energy Management (CEM)
A structural design philosophy that uses controlled deformation zones to absorb collision energy and protect passengers.
Gathering Horns
