Why Trains Can Steer Without a Differential

A train navigates a curve without a differential because its wheels are not cylinders, but cones. As centrifugal force pushes the train outward during a turn, the outer wheel rides up onto its wider base while the inner wheel drops to its narrower edge, allowing the outer wheel to travel further per revolution even though both are locked to the same solid axle.[2]

For a daily commuter or a transit agency managing a maintenance budget, this geometric trick is the difference between a smooth ride and a screeching, metal-shredding halt. If trains used flat cylindrical wheels on a rigid axle, the outer wheel would have to drag across the steel rail head on every curve, destroying both the wheel tread and the track infrastructure within weeks.[1]

In the automotive world, the solution to this geometry problem is the differential—a complex gearbox that allows the outside drive wheels to spin faster than the inside wheels during a turn. But applying a differential to a heavy-haul freight train or a high-speed passenger railcar introduces unacceptable fragility, weight, and maintenance overhead.[3]

Instead, railway engineers rely on the wheelset itself. A standard train wheelset consists of two wheels permanently pressed onto a solid steel axle, meaning they must rotate at the exact same angular velocity regardless of the track geometry beneath them.[1]

The secret lies in the tread profile. Rather than being perfectly flat, the surface of the wheel that contacts the rail is machined with a subtle taper, typically at a ratio of 1:20. This means the wheel's diameter is largest near the inner flange and gradually narrows toward the outside edge.[2]

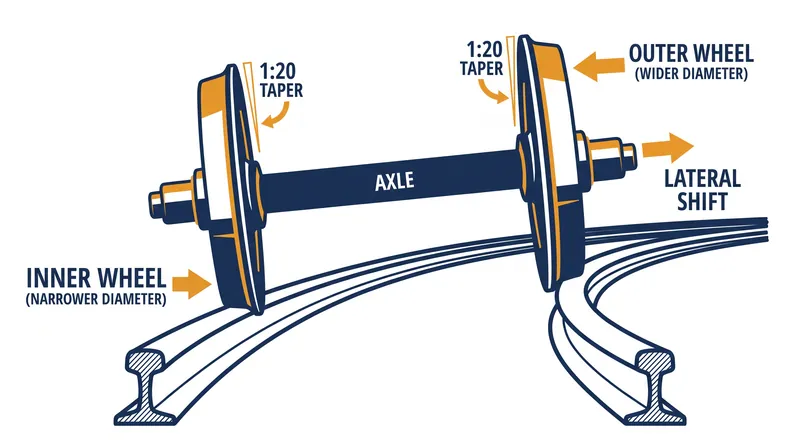

When a train enters a curve, the physics of motion take over. Centrifugal force naturally pushes the entire railcar—and its wheelsets—slightly toward the outside of the turn.[4]

As the wheelset shifts laterally, the outer wheel is forced to ride on the thicker, wider section of its conical profile. Simultaneously, the inner wheel is pulled inward, dropping down to ride on its thinner, narrower section.[2]

Because the outer wheel is now effectively larger in diameter than the inner wheel, it covers a greater linear distance with each rotation. This perfectly matches the longer arc of the outside rail, allowing the rigid axle to negotiate the curve purely through rolling action, without any tread slip.[4]

Most passengers assume that the prominent inner lip of the wheel—the flange—is what forces the train around a corner. In reality, the flange is merely a fail-safe constraint. During normal operation on moderate curves, the conical shape does all the steering, guiding the heavy train through the bend without the metal flanges ever needing to scrape against the rails.[1]

This self-steering mechanism also works on straight track. If a wheelset drifts off-center, the wheel that moves toward the rail rides up on its cone, increasing its effective diameter and steering the axle back toward the centerline.[3]

However, this elegant solution introduces a dynamic trade-off known as hunting oscillation. As the wheelset constantly seeks equilibrium on straight track, it can begin to sway side-to-side, a phenomenon that becomes more pronounced at higher velocities.[3]

At low speeds, this motion is naturally damped by the friction of the contact patch. But as speeds increase, the inertial forces begin to match the adhesion forces. According to engineering analyses, a classical hunting oscillation is a swaying motion of a railway vehicle caused by the coning action on which the directional stability of an adhesion railway depends.[3]

To manage this instability, modern high-speed rail systems use complex suspension damping and carefully optimized wheel profiles. Researchers at MDPI, studying roller rig emulations in 2025 under simulated 5 kN wheel loads, noted that precise measurement of these forces is critical, stating that "such control is essential for emulating various degree curves and the traction differential that occurs at the rail-wheel interface."[5]

For transit agencies, getting this geometry right directly impacts the bottom line. A perfectly profiled wheelset minimizes the micro-slip that causes rail corrugation and wheel wear, extending the lifespan of the infrastructure and keeping maintenance costs predictable.[2]

The conical wheel remains one of the most durable and effective engineering solutions in modern transport. By leveraging basic geometry rather than complex moving parts, the rigid wheelset continues to underpin the global rail network. For the agencies tasked with keeping trains running on time, the math is simple: a well-maintained taper keeps the flanges off the rails, the noise out of the cabin, and the maintenance crews focused on prevention rather than repair.[6]
