Atkinson and Miller Cycles: Altering Engine Valve Timing to Maximize Hybrid Efficiency

When most buyers pull a new hybrid vehicle into their driveway, they assume the fuel savings are entirely a product of the heavy battery pack and the electric motor. The common misconception is that automakers simply took a standard gas engine, bolted an electric motor to it, and called it a day. In reality, the electric motor is only half the equation. The internal combustion engine under the hood of a modern hybrid is fundamentally different from the one in a standard gas-powered car.[4]

To understand why, you have to look at the traditional four-stroke engine, known to engineers as the Otto cycle. In a standard Otto engine, the piston compresses a mixture of air and fuel, a spark plug ignites it, and the resulting explosion pushes the piston down to create power. Crucially, the compression stroke and the expansion stroke are exactly the same physical length.[1]

This symmetry is great for generating predictable, responsive power when you step on the gas pedal to merge onto the highway. However, it is inherently wasteful. When the exhaust valve opens at the bottom of the power stroke, there is still a significant amount of pressure—and therefore unextracted energy—left in the cylinder. That energy is literally blown out the tailpipe as heat and noise, which is a frustrating reality for anyone trying to stretch their fuel budget.[1][2]

Enter the Atkinson cycle. Originally patented by British engineer James Atkinson in 1882, the goal was to extract more work from every drop of fuel by making the expansion stroke longer than the compression stroke. Atkinson achieved this using a highly complex set of mechanical linkages that allowed the piston to travel further down on the power stroke than it came up on the compression stroke.[2]

By allowing the expanding gases to push on the piston for a longer distance, the engine captures energy that would otherwise be wasted. The pressure inside the cylinder drops almost to atmospheric levels before the exhaust valve opens. The result is a massive leap in thermal efficiency—the percentage of energy in the fuel that actually reaches the wheels as forward motion.[1][2]

However, Atkinson's original mechanical linkages were too fragile and complex for mass production. Modern automakers achieve the exact same thermodynamic effect without the complicated hardware by cleverly manipulating the engine's valve timing. This modern interpretation is what powers almost every hybrid on the market today, from the Toyota Prius to the Honda CR-V Hybrid.[3]

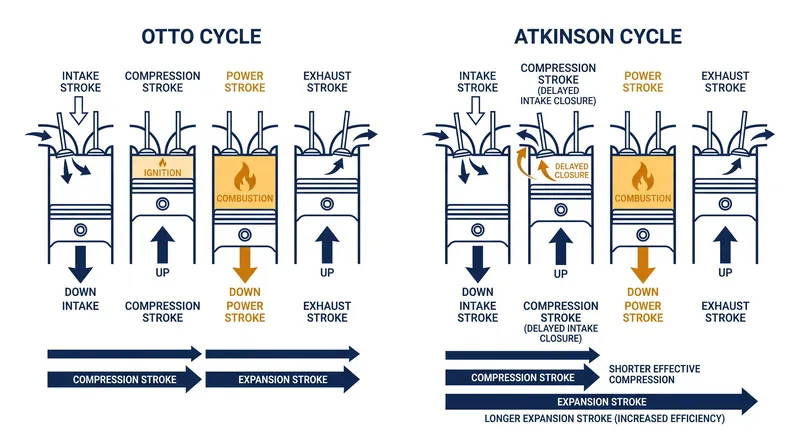

In a modern Atkinson-cycle engine, the intake valve is intentionally left open for a fraction of a second as the piston begins its upward compression stroke. This pushes a small amount of the air-fuel mixture back out into the intake manifold. Because there is less mixture to compress, the engine does less work during the compression phase.[2][3]

When the spark plug fires, the piston still travels its full downward distance. The effective compression ratio is artificially lowered by the open valve, but the expansion ratio remains the full physical length of the cylinder. This achieves Atkinson's dream: an expansion stroke that is effectively longer than the compression stroke, squeezing every last ounce of kinetic energy out of the combustion event.[2][4]

There is, however, a catch that kept this brilliant design out of passenger cars for a century. Because the engine is intentionally rejecting some of its air-fuel mixture, it produces significantly less power—and specifically less low-end torque—than a standard engine of the same size. If you put a pure Atkinson cycle engine in a heavy SUV, it would feel dangerously sluggish pulling away from a stoplight.[1][3]

This is exactly why the Atkinson cycle and the hybrid electric powertrain are a match made in engineering heaven. Electric motors possess a unique characteristic: they deliver their maximum torque instantly, at zero RPM. When you press the accelerator in a hybrid, the electric motor provides the immediate, muscular shove needed to get the car moving, perfectly masking the Atkinson engine's lack of low-end grunt.[3][4]

Once the vehicle is up to speed and cruising, the electric motor dials back, and the hyper-efficient Atkinson engine takes over to maintain momentum. This synergy is why hybrids achieve such astonishing fuel economy, particularly in stop-and-go city driving where the electric motor handles the heavy lifting and the gas engine only operates in its most efficient power band.[1][3]

A close relative to this system is the Miller cycle, patented by Ralph Miller in the 1940s. The Miller cycle uses the exact same delayed valve timing trick to achieve a longer expansion stroke, but it adds a supercharger to force more air into the cylinder, compensating for the air that was pushed out. This restores the lost power while maintaining the efficiency gains, making it popular in non-hybrid applications or performance-oriented hybrids.[2]

For the everyday buyer, understanding this mechanical ballet changes how you view your vehicle. When a hybrid engine drones at a constant RPM while accelerating, it isn't struggling; it is intentionally holding itself at its peak thermal efficiency while the electric motor and continuously variable transmission manage the road speed. It is a fundamentally different approach to driving, prioritizing long-term savings and mechanical longevity over traditional engine dynamics.[4]
