The 15 PSI Cap: How Pressurizing the Cooling System Raises the Boiling Point and Prevents Cavitation

The temperature gauge is climbing toward the red zone, and the driver faces a roadside dilemma. One school of thought insists on pulling over immediately and cracking the radiator cap to vent the built-up pressure before a rubber hose blows. The opposing camp argues that touching the cap is the exact move that will flash-boil the coolant, instantly warping the cylinder head and destroying the engine block.

For the everyday vehicle owner, the radiator cap looks like a simple metal lid designed to keep fluid from splashing out over bumps. In reality, it is a precisely calibrated pressure relief valve that dictates the thermal limits of the entire engine. Without it, modern internal combustion engines would boil their coolant into useless vapor during a standard highway commute.[1]

Before the widespread adoption of pressurized cooling systems in the late 1930s, vehicles were forced to rely on massive radiators and unpressurized water, severely limiting their efficiency and power output. The physics governing modern systems dictate that pressure and boiling point are inextricably linked. At sea level, a standard 50/50 mixture of water and ethylene glycol boils at approximately 223 degrees Fahrenheit. However, the combustion chambers inside an engine operate at temperatures far exceeding this baseline, transferring massive amounts of heat into the surrounding metal water jackets.[1]

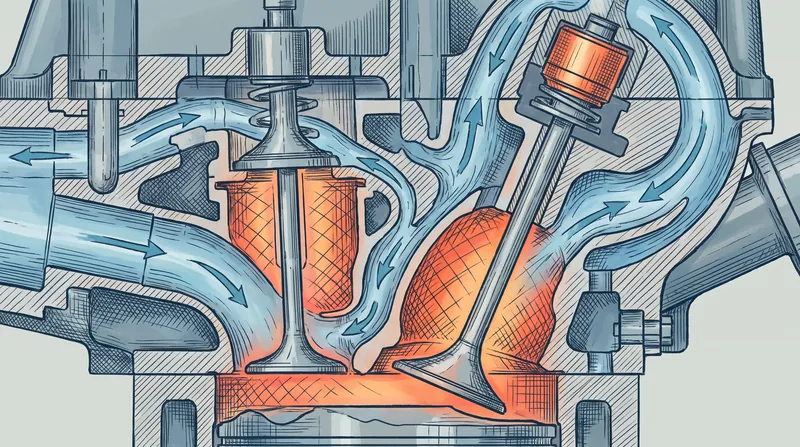

If the coolant were allowed to remain at atmospheric pressure, the liquid touching the hottest parts of the engine—specifically around the exhaust valves—would instantly boil. This localized boiling creates vapor pockets, a phenomenon known as cavitation. Because vapor cannot absorb or transfer heat effectively, these pockets act as insulators, causing the metal to rapidly overheat, warp, or crack.

To prevent this catastrophic failure, automotive engineers seal the system and allow the expanding hot coolant to build pressure. According to the Mobile Air Climate Systems Association, the math is absolute: "For every pound of pressure put on the coolant, the boiling point is raised 3 degrees F."[3]

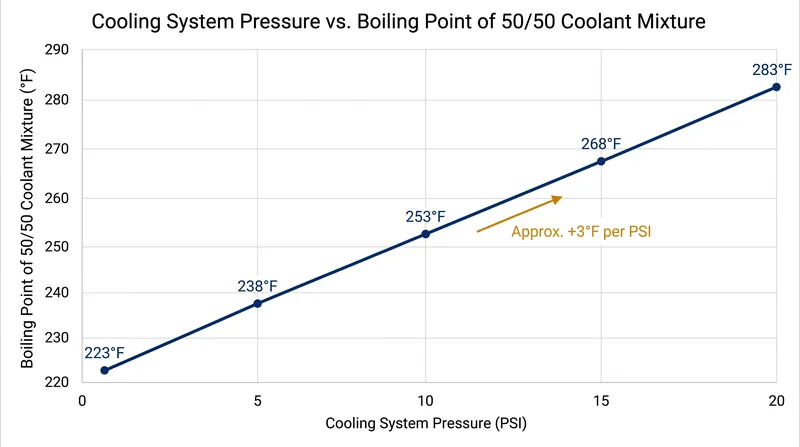

This is where the standard 15 PSI radiator cap comes into play. By holding back 15 pounds of pressure before its internal spring compresses to vent fluid, the cap artificially elevates the boiling point of the 50/50 mixture by 45 degrees. The coolant that would have boiled at 223 degrees can now safely absorb heat up to 268 degrees without turning into vapor.[3]

For a driver towing a trailer up a steep grade, that 45-degree buffer is the only thing preventing a roadside breakdown. The pressure ensures the coolant remains in a liquid state, maintaining constant contact with the hot metal and continuously carrying thermal energy away to the radiator.[2]

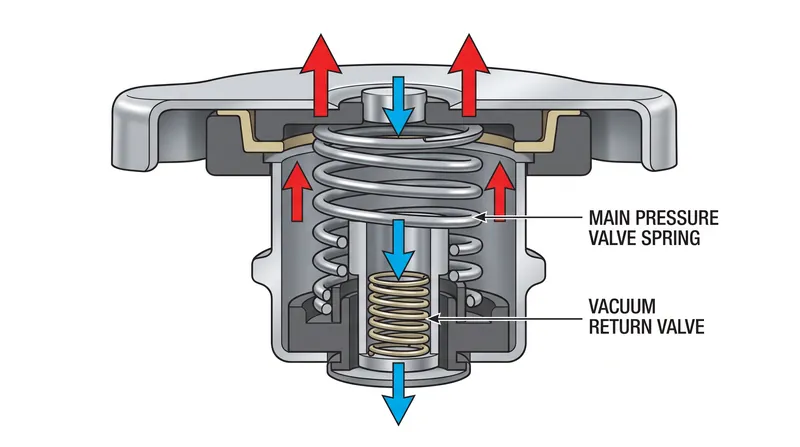

The cap itself achieves this through a dual-valve design. The primary pressure valve consists of a heavy spring that seals against the filler neck. As the engine warms up and the coolant expands, pressure builds until it overcomes the spring's 15 PSI rating. At that exact moment, the valve lifts, allowing a small amount of fluid to escape into the plastic overflow reservoir, safely regulating the system's maximum pressure.[1][4]

But the cap's job is not finished when the engine is turned off. As the vehicle sits in the driveway and the metal cools, the fluid contracts, creating a vacuum inside the engine block. If left unchecked, this vacuum would crush the rubber radiator hoses flat.[1]

To counteract this, a smaller, secondary vacuum return valve in the center of the cap opens under negative pressure. This allows the system to siphon the expelled coolant back out of the overflow reservoir and into the radiator, ensuring the engine is completely full of liquid and ready for the next cold start.[1]

In high-performance and racing applications, the stakes are even higher. Track vehicles often generate heat loads that push the 268-degree threshold. To compensate, builders upgrade to caps rated at 19 to 22 PSI, pushing the boiling point well past 280 degrees. However, this puts immense strain on the water pump seals and heater core, making it a risky modification for a daily-driven commuter car.[4]

This delicate balance of pressure and temperature explains why cracking the cap on an overheating engine is so destructive. The moment the seal is broken, the system pressure instantly drops from 15 PSI back to zero. The boiling point plummets by 45 degrees in a fraction of a second.[3]

Any coolant inside the engine that is currently sitting between 223 and 268 degrees will instantly flash-boil into steam. This violent expansion forces a geyser of scalding liquid out of the radiator neck, severely burning the operator, while simultaneously leaving the engine block dry and exposed to catastrophic heat damage.

Understanding this mechanism shifts the perspective on vehicle maintenance. A $10 radiator cap with a weakened spring will vent pressure too early, lowering the boiling point and causing phantom overheating issues that mimic a blown head gasket or a failing water pump. For the owner facing a rising temperature gauge, the safest and most mechanically sound decision is to leave the cap firmly in place, turn the engine off, and let the laws of thermodynamics slowly bring the pressure back down.[2]
