Asymmetric Half-Shaft Angles Exert Unbalanced Kingpin Moments: Why Transverse Front-Wheel-Drive Cars Pull Under Hard Acceleration

In 1998, engineers publishing in SAE International quantified a mechanical ghost that had haunted front-wheel-drive cars for decades: a sudden, violent tug on the steering wheel under heavy acceleration. They found that the pull had nothing to do with the tires losing grip.[3]

Instead, the culprit was a geometric imbalance hidden deep within the engine bay, where unequal steel shafts meet the front wheels. This phenomenon dictates the buying decisions of anyone shopping for a high-performance front-wheel-drive hatchback or sedan.[1][3]

If a vehicle cannot manage the physics of its own drivetrain, the driver spends their commute fighting the steering wheel just to merge onto a highway. The root of the problem lies in the transverse engine layout, a packaging standard that mounts the engine sideways to maximize cabin space.[1][4]

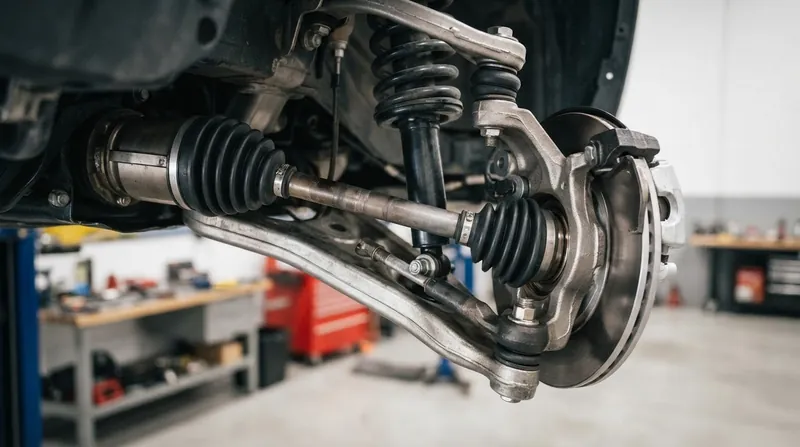

Because the engine and transmission sit side-by-side between the front wheels, the differential cannot sit perfectly in the center of the car. That offset placement forces manufacturers to use two different lengths of steel tubing, called half-shafts, to connect the differential to the front wheels.[4]

The shaft reaching the passenger side might be twice as long as the one on the driver's side. While both shafts deliver the exact same rotational power to the tires, their physical geometry creates a severe mechanical imbalance.[2][4]

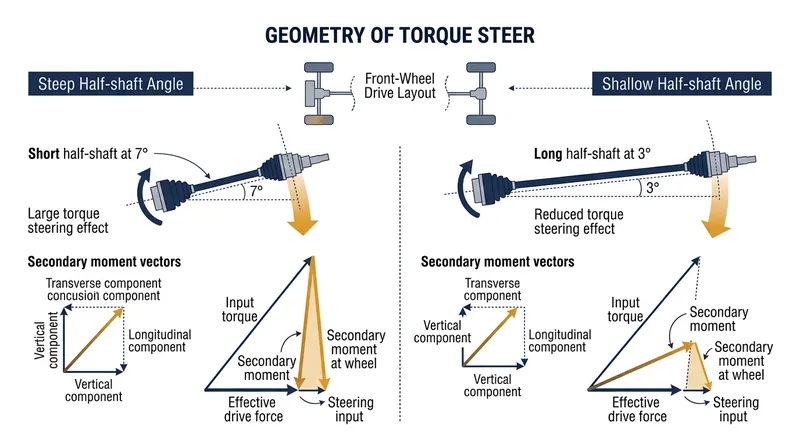

The short shaft has to bridge the vertical gap from the low differential to the high wheel hub over a much shorter horizontal distance. This forces the short shaft to operate at a significantly steeper articulation angle than the long shaft on the opposite side.[2]

A driver's-side shaft might operate at a steep 7-degree angle, while the passenger-side shaft sits at a shallow 3-degree angle. To understand how these unequal shafts steer the car, buyers must first understand the kingpin axis.[1][2]

The Geometry of the Kingpin Axis

The kingpin axis is the invisible vertical line around which the front wheel pivots when the driver turns the steering wheel. Every force that hits the front tires uses the distance to this axis as a lever to try and twist the steering.[2][4]

As rotational power flows through the angled constant-velocity joint, it generates a secondary twisting force against the wheel assembly. Because the short shaft sits at a sharper angle, it exerts a much larger secondary moment against its kingpin axis than the long shaft does on the other side.[2]

These two twisting forces fight each other through the steering rack, and the stronger force from the short shaft inevitably wins. The resulting imbalance yanks the steering wheel out of the driver's hands, pulling the vehicle off its intended path.[2][4]

"Torque steer is the influence of engine torque on the steering, especially in high power front-wheel-drive vehicles," notes the canonical engineering definition. "The effect is manifested either as a tugging sensation in the steering wheel, or a veering of the vehicle from the intended path."[4]

The severity of this pull is multiplied by a measurement called the spindle length, which is the horizontal distance between the center of the tire and the kingpin axis. A longer spindle length acts like a longer wrench handle, giving that secondary twisting force more leverage to overpower the driver's grip.[1][4]

Standard MacPherson strut suspensions, found on millions of budget-friendly commuter cars, inherently suffer from spindle lengths exceeding 50 millimeters. For a daily driver producing 150 horsepower and 180 pound-feet of torque, the twisting forces are too weak to notice.[1]

Amplifying the Pull

When automakers push 300 horsepower through that same basic suspension, the 50-millimeter leverage becomes violent. Road conditions can also mask or magnify the geometric imbalance, as driving on a crowned road shifts more vehicle weight onto the passenger-side tire.[1][2]

That uneven weight distribution changes the effective leverage at the contact patch, creating a phantom pull that stacks on top of the mechanical torque steer. For a buyer test-driving a used performance hatchback, a hard acceleration run on a flat highway might feel perfectly straight.[2]

However, applying the exact same throttle input on a sloped backroad can pull the car aggressively into the next lane. Tire selection plays a surprisingly large role in managing these forces, as a soft sidewall will deform under heavy acceleration.[1][4]

That deformation shifts the center of the contact patch and effectively lengthens the scrub radius in real time. Performance vehicles rely on stiff sidewalls to keep the geometry stable when the driver demands full power from the drivetrain.[4]

Upgrading to a wider wheel with a different offset can completely ruin a carefully tuned front suspension by pushing the wheel further outboard. Owners looking to modify their cars often induce severe torque steer simply by installing wheels that compromise the kingpin axis.[1][4]

Engineering the Fix

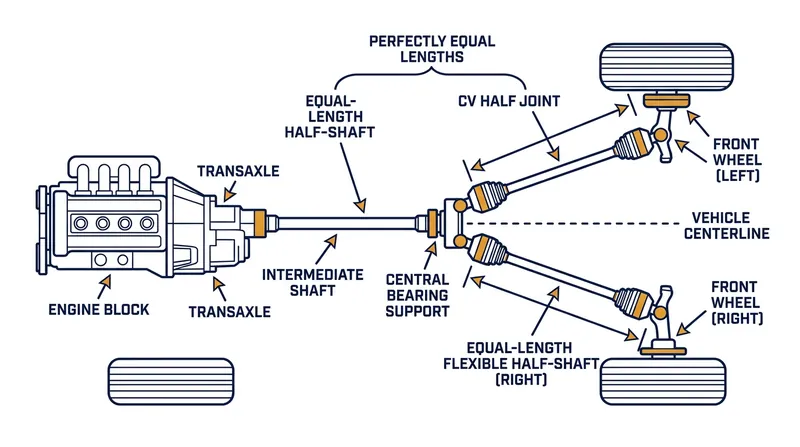

Automakers have developed two primary mechanical solutions to cure torque steer, and knowing which one a car uses is crucial for prospective owners. The simplest fix is the intermediate shaft, which bolts a rigid steel extension to the back of the engine block.[4]

By moving the inner pivot point to the exact centerline of the chassis, the two flexible half-shafts that reach the wheels can be made identical in length. With equal lengths, both shafts operate at the exact same articulation angle.[4]

The secondary twisting forces on the kingpin axes become perfectly balanced, canceling each other out before they ever reach the steering wheel. However, high-performance models require a more aggressive intervention at the wheel hub itself.[1][4]

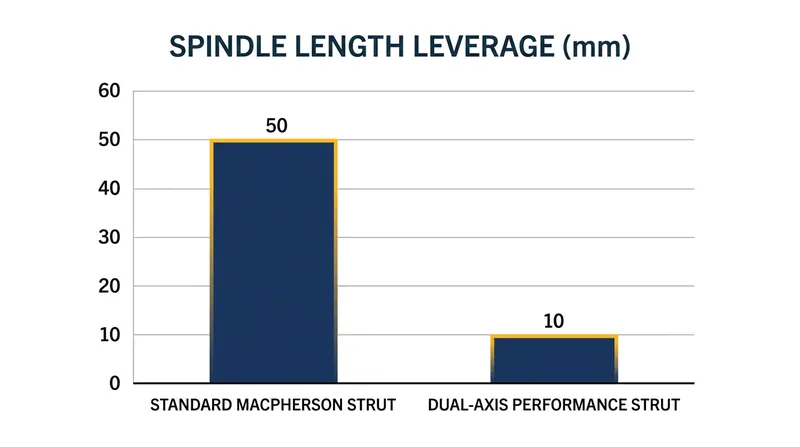

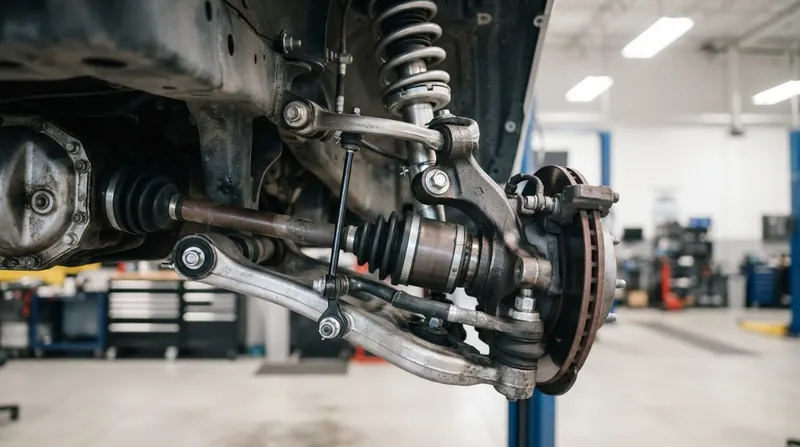

Automakers have engineered dual-axis front suspensions that separate the steering pivot from the main shock absorber. This complex arrangement pushes the kingpin axis deep inside the barrel of the wheel, shrinking the spindle length and the scrub radius to almost zero.[1]

Even if the half-shafts exert unbalanced forces, they no longer have a lever arm to twist against. The driver can apply 300 horsepower to the front wheels without feeling a single tug in the steering column.[1]

As electric vehicles begin to dominate the market, torque steer remains a critical engineering hurdle. Electric motors deliver their maximum twisting force instantly, hitting the half-shafts with a sudden shock of power that internal combustion engines cannot match.[1]

If the axle geometry is unbalanced, an electric powertrain will expose it immediately. A vehicle that pulls under acceleration reveals where a manufacturer decided to save money on suspension geometry, leaving the driver to wrestle with the physics of unequal steel shafts.[1]
