The Trade-Off Between High-Frequency and Low-Frequency Damping: How Shock Absorber Valving Dictates Ride and Handling

When a driver configures a new vehicle or purchases aftermarket suspension, they are making a concrete decision about physics. The moment they select an adaptive damper package or specify a coilover spring rate, they dictate how their vehicle will manage the fundamental conflict between ride comfort and handling stability. This choice governs every subsequent mile, determining whether the car glides over broken pavement or communicates every pebble directly to the steering wheel.[7]

At the heart of this decision is the shock absorber, a hydraulic device tasked with managing two entirely different frequencies of motion. The automotive engineering industry divides these motions into high-frequency and low-frequency damping, a distinction that dictates how internal valving is designed and calibrated for specific road conditions.[7]

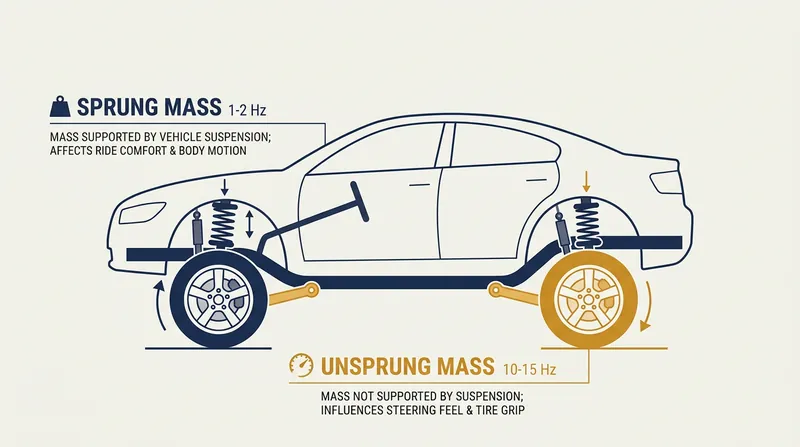

To understand the trade-off, engineers separate the vehicle into two distinct masses. The "sprung mass" includes everything supported by the suspension springs: the chassis, engine, body, and passengers. This mass moves slowly, typically oscillating at a natural frequency of 1 to 2 Hertz as the vehicle pitches during braking or rolls during cornering.[1][7]

Conversely, the "unsprung mass" consists of the components not supported by the springs: the wheels, tires, brakes, and solid axles. When a tire strikes a pothole, an expansion joint, or a curb, this unsprung mass moves violently and rapidly, oscillating at much higher frequencies, typically between 10 and 15 Hertz.[1][7]

"The damper must control both the sprung and unsprung masses," notes Jim Kasprzak in a technical guide for Kaz Technologies. This dual mandate creates a mechanical paradox. Controlling the heavy, slow-moving chassis requires stiff damping to prevent body roll, while controlling the light, fast-moving wheels requires soft damping to absorb impacts without transferring harshness to the cabin.[1]

The solution lies in shaft velocity—the speed at which the shock absorber's internal piston moves through its oil-filled cylinder. Low-frequency chassis movements generate low shaft velocities, typically between 0 and 2 inches per second. High-frequency wheel impacts generate high shaft velocities, often exceeding 2 to 10 inches per second.[2][3]

According to a 2026 technical bulletin from Intrax Suspension Technology, "Low speed damping controls the chassis movements... High speed damping controls the unsprung weight." By tuning the shock absorber to react differently at these two specific velocity thresholds, engineers can effectively decouple handling performance from ride quality.[2]

This decoupling is achieved through sophisticated internal valving. Inside a standard 46-millimeter shock absorber tube, a piston pushes through hydraulic fluid pressurized by nitrogen gas at up to 300 psi. "The kinetic energy of the suspension movement is converted into thermal energy," explains a 2026 engineering overview by Firgelli, noting that the fluid can reach temperatures exceeding 100 degrees Celsius during aggressive driving.[6]

For low-speed damping (0 to 2 inches per second), fluid flows through small, fixed bleed holes in the piston. Because the fluid velocity is low, these small orifices create significant hydraulic resistance, providing the firm damping force necessary to hold the chassis flat during braking, acceleration, and cornering.[3][7]

However, if a tire hits a sharp bump, the shaft velocity spikes instantly. The fluid cannot flow through the small bleed holes fast enough, which would cause the shock to hydraulically lock and transfer a violent jolt to the passengers. To prevent this, high-speed damping relies on a secondary mechanism: deflective shim stacks.[3][7]

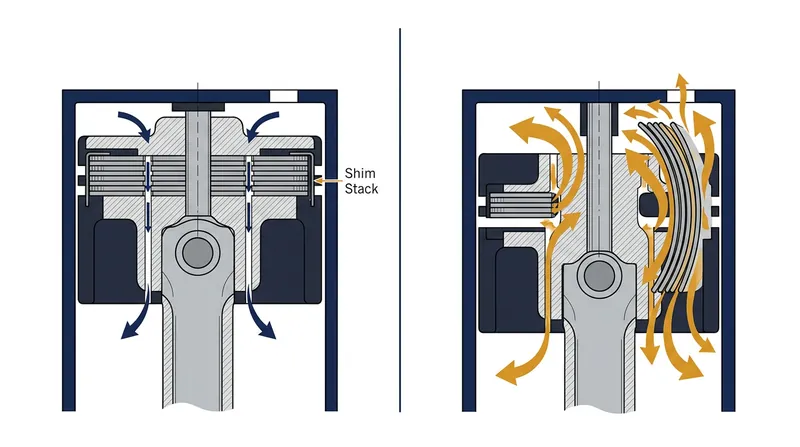

These shims are thin, flexible metal discs covering larger bypass ports in the piston. When fluid pressure reaches a critical threshold—usually around 2 inches per second of shaft velocity—the shims bend open, allowing a massive volume of fluid to bypass the bleed holes. This "blow-off" effect instantly softens the damper, absorbing the high-frequency impact.[3][7]

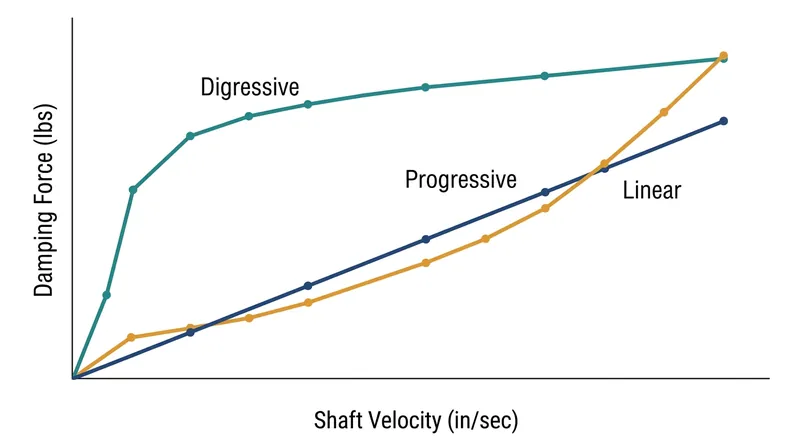

The specific arrangement and thickness of these shims dictate the shock's overall damping curve. A 2022 technical analysis by Penske Racing Shocks highlights the dominance of "digressive" valving in modern applications. "Digressive valving provides a lot of low-speed control for driver feel and chassis platform, but blows off at high shaft speeds to absorb bumps," the manufacturer states.[3]

Digressive curves are highly sought after because they offer the best of both worlds: a stiff, responsive chassis at low speeds and a compliant, forgiving ride at high speeds. In contrast, linear valving increases resistance proportionally with speed, which can lead to excessive harshness over rough terrain, while progressive valving becomes exponentially stiffer, often used in off-road racing to prevent bottoming out.[3][7]

Academic research continues to refine this balance. A study by Chris Urbaniak at the University of Waterloo explored integrating hydraulic mounts directly into shock absorbers. The research demonstrated that such integrations can further isolate high-frequency vibrations, pushing the boundaries of passenger comfort without sacrificing the low-frequency stability required for safe handling.[4]

For the aftermarket consumer, understanding this valving is critical before making a purchase. Maximum Motorsports, a prominent suspension tuner, emphasizes that "Dampers control the rate of weight transfer." A driver who installs aggressively stiff linear dampers may gain track performance but will suffer on public roads, as the high-speed damping fails to blow off over expansion joints.[5]

The next time a vehicle owner adjusts a coilover dial or selects "Sport Mode" on an adaptive suspension, they are manipulating these exact fluid dynamics. The deciding party must weigh their local road conditions against their handling ambitions, as every click of the dial shifts the physical threshold where chassis control ends and impact absorption begins.[7]
