Decoding the SAE J300 Standard: How Oil Viscosity Numbers Dictate Engine Wear and Fuel Economy

Inside a climate-controlled testing cell at the Society of Automotive Engineers headquarters in May 2024, engineers finalized the latest revision to a document that dictates the survival of every internal combustion engine on the road: the J300 viscosity classification. The standard, which governs the numbers printed on every bottle of motor oil, establishes the exact physical limits a fluid must meet to protect metal components moving at 3,000 revolutions per minute. "The SAE J300 standard defines the limits for a classification of engine lubricating oils in rheological terms only," the official SAE International documentation states, stripping away marketing claims to focus entirely on how the fluid behaves under temperature and pressure [1].[1]

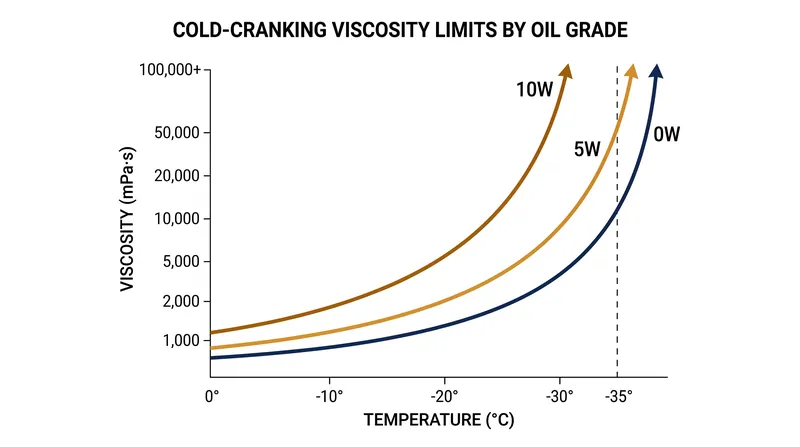

The stakes for a vehicle owner standing in an auto parts aisle are entirely physical. At startup, oil sits in the pan; it must be pumped upward to the valvetrain within seconds to prevent catastrophic wear. The first number on the bottle, followed by a 'W' for winter, quantifies this cold-start capability. According to the May 2024 J300 data, a 0W oil must maintain a cranking viscosity below 6,200 millipascal-seconds (mPa·s) at −35 degrees Celsius [1]. This ensures the oil pump can physically move the fluid through narrow galleries before the camshaft bearings run dry.[1]

Moving from a 10W to a 0W formulation drastically reduces the parasitic drag on the starter motor and oil pump during a freezing morning commute, cutting the time it takes for oil to reach the top of the engine from several seconds down to fractions of a second. The Society of Tribologists and Lubrication Engineers notes that the primary function of the 'W' designation is to certify this exact pumpability during cold starts, the period responsible for the vast majority of lifetime valvetrain wear [2].[2]

But the second number—the operating viscosity—dictates what happens once the coolant temperature gauge reaches the middle of the dial. Measured at 100 degrees Celsius, this figure represents the fluid's resistance to flow when the engine is fully warm. A 20-weight oil must maintain a kinematic viscosity between 5.6 and 9.3 centistokes (cSt), while a thicker 40-weight oil holds between 12.5 and 16.3 cSt [1][6]. This kinematic measurement ensures the oil maintains enough body to seal the piston rings and maintain oil pressure at operating temperature.[1]

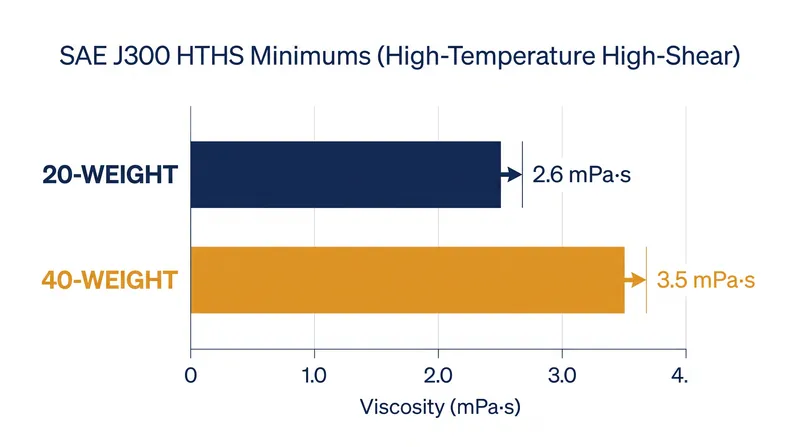

The critical metric for engine survival under load, however, is High-Temperature High-Shear (HTHS) viscosity, measured at 150 degrees Celsius. This simulates the extreme conditions inside the main bearings and along the cylinder walls. The SAE J300 standard mandates a minimum HTHS of 2.6 mPa·s for a 20-weight oil, but requires at least 3.5 mPa·s for a 40-weight oil [1][4]. That 0.9 mPa·s difference represents the physical thickness of the fluid film separating metal surfaces under immense mechanical stress.[1]

Automakers are currently pushing for thinner oils to meet stringent corporate average fuel economy (CAFE) mandates. "The push for lower viscosity grades is driven entirely by the need to improve fuel economy and reduce greenhouse gas emissions," reports Lubes'N'Greases in their coverage of the ongoing SAE classification debates [5]. Thinner oil requires less energy to pump, directly translating to a measurable 1 to 2 percent improvement in fuel efficiency over a 100,000-mile vehicle lifespan.[4]

To survive on these ultra-thin films, modern engines are machined with bearing clearances as tight as 0.0008 inches. If an owner pours a thick 15W-40 into a 2026 engine designed for 0W-16, the viscous fluid cannot flow fast enough through those microscopic gaps, leading to localized overheating and oil starvation [3][7]. Conversely, running a 0W-16 in an older engine designed for 5W-30 will result in the oil film collapsing under load, allowing metal-to-metal contact that destroys the crankshaft journals.[3][5]

The choice of viscosity grade is no longer a matter of brand preference or climate adaptation, but a strict engineering requirement tied to the engine's internal architecture. The trade-off between maximizing fuel economy with a 0W-20 and maximizing high-temperature film strength with a 5W-40 defines the modern automotive maintenance landscape, forcing owners to balance the immediate cost of fuel against the long-term cost of mechanical wear at the parts counter.
