Sacrificial Metal: How Crush Cans and Load Paths Dictate Vehicle Survival and Repair Costs

In December 2022, Honda engineers made an unusual decision for an industry that typically polishes its products to a mirror shine: they placed a totalled SUV directly on the auto show floor. The mangled, deformed front end was not a display of failure, but a deliberate effort to highlight the latest advances in crash-safety engineering. By exposing the bare, twisted metal, the automaker provided a rare public look at the sacrificial structures that dictate occupant survival. For the average buyer, this twisted architecture represents the unseen boundary between walking away from a highway collision and catastrophic injury.[2]

For the average car owner evaluating a new crossover in a dealership lot, a vehicle's front end is defined entirely by its plastic fascia, grille design, and headlight styling. But beneath that cosmetic shell lies a highly engineered network of sacrificial metal designed to destroy itself in a fraction of a second. This hidden framework relies on specific load paths—structural corridors engineered to route the immense force of an impact away from the passenger cabin and into materials designed to fold like an accordion.

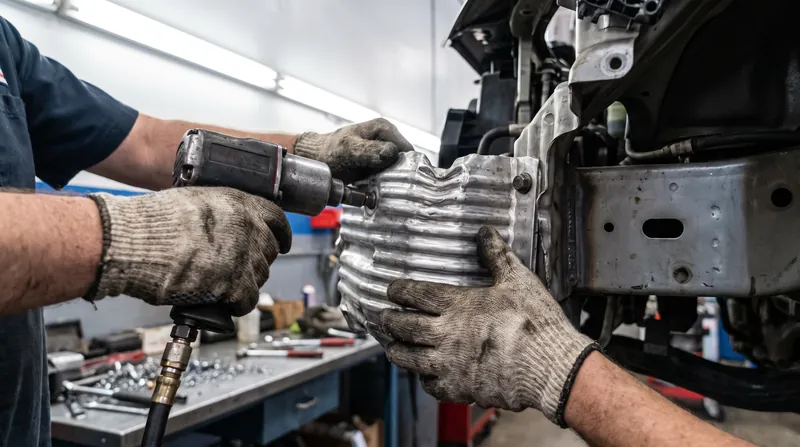

The financial stakes of this architecture are massive for the local owner. When a driver misjudges a braking distance at 15 mph in a grocery store parking lot, the kinetic energy must go somewhere. If the vehicle relies on easily replaceable, bolt-on crush cans, the owner faces a straightforward repair bill of around $1,200. If the energy bypasses those sacrificial cans and permanently bends the primary frame rails, the insurance adjuster will likely declare the entire vehicle a total structural loss, forcing the owner back into the car market.[3]

The physics of collision protection dictate that kinetic energy increases with the square of velocity, meaning a 35-mph impact carries exponentially more destructive force than a 15-mph tap. Managing that energy requires a multi-tiered approach. The first line of defense is the transverse bumper beam, which distributes the initial impact force across the width of the front end. Directly behind this beam sit the crush cans—short, hollow tubes that serve as the primary energy-absorbing structures, tasked with taking the brunt of a direct, low-speed hit before the main chassis is compromised.[1][6]

Material selection for these crush cans is a fierce engineering battleground. As Light Metal Age Magazine reported in September 2021, "Aluminum extrusions prove superior in bumper systems" due to their highly predictable folding patterns. Because aluminum can be extruded into complex, multi-chambered geometric profiles, it absorbs up to 1.5 times more kinetic energy per kilogram than traditional high-strength steel when it collapses. This efficiency allows automakers to shave critical pounds off the front axle while maintaining strict safety margins.[3]

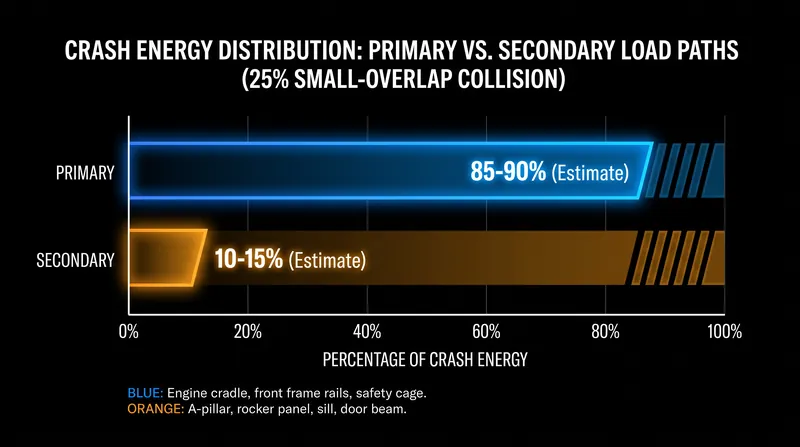

However, the real-world driving environment rarely provides a perfectly centered, flat-barrier impact. The introduction of the rigorous small-overlap crash test—where only 25 percent of the vehicle's front width strikes a rigid barrier at 40 mph—forced a complete rethinking of these traditional load paths. In a small-overlap scenario, the impact entirely misses the primary aluminum crush cans, rendering the most efficient energy-absorbing components of the vehicle completely useless and forcing the chassis to rely on alternative structural reinforcements.[4]

When the primary rails are bypassed, the crash energy strikes the outer edges of the suspension, the wheel well, and the firewall directly in front of the driver's feet. To solve this severe vulnerability, engineers developed secondary load paths. A comprehensive evaluation by the National Highway Traffic Safety Administration (NHTSA) analyzed the effectiveness of these secondary energy-absorbing structures on pickup trucks and SUVs, noting that routing force through the upper fenders and lower subframes is critical to preventing the front wheel from intruding into the passenger footwell.[1][4]

This multi-path approach fundamentally complicates the repair calculus for the owner. While a secondary load path successfully saves the occupant's life by deflecting the impact energy around the cabin, it also means that a glancing blow damages multiple structural zones simultaneously. A collision that might have been absorbed by a single $300 crush can in a full-frontal impact instead twists the upper fender rail, the suspension mounting points, and the lower subframe, instantly escalating the repair costs into the tens of thousands of dollars.[5][6]

Researchers at Kettering University have extensively modeled this phenomenon, focusing on computational considerations for crush energy estimation in frontal collisions involving underride and lateral offset. Their data demonstrates that when a taller, heavier SUV overrides the bumper of a lower sedan, the carefully designed crush cans of the sedan are completely bypassed. The energy is instead transferred directly into the sedan's weaker upper structures, highlighting a critical flaw in standardized bumper heights across the modern vehicle fleet.[5]

Consequently, modern chassis design must account for compatibility between vehicles of vastly different heights, weights, and architectures. The NHTSA has issued multiple regulatory interpretations, including the detailed Interpretation ID 17343-2.pja, regarding how structural integrity standards and safety exemptions apply to varying vehicle classifications. These regulations attempt to ensure that a 5,000-pound electric SUV and a 2,800-pound compact hatchback can interact in a collision without the heavier vehicle completely obliterating the lighter one's load paths.[7]

For the buyer evaluating a new crossover, the presence of advanced, modular crash energy management systems directly influences long-term ownership costs. Insurance actuaries price monthly premiums based on historical repair data. Vehicles that successfully isolate low-speed damage to bolt-on aluminum crush cans consistently cost less to insure than vehicles that require extensive frame-straightening after a minor impact. The engineering choices made deep inside the chassis echo directly in the owner's monthly budget.[3]

The trade-off between lightweight energy absorption and post-collision repairability remains the central tension in automotive structural engineering today. High-strength steel offers immense, unyielding rigidity for the passenger safety cell, ensuring the doors can still open after a severe highway crash. Meanwhile, extruded aluminum provides the necessary, sacrificial crumple zones at the extremities, keeping the deceleration forces exerted on the human body within survivable limits by extending the duration of the crash event by crucial milliseconds.[6]

The next time a prospective owner walks a dealer lot, the true value of the vehicle is not found in the leather stitching, the panoramic sunroof, or the size of the infotainment screen. It is located in the unseen, sacrificial metal that stands ready to fold, tear, and absorb the worst of the road. Understanding this hidden architecture transforms how a buyer evaluates safety, knowing that the best engineering is the kind designed to be destroyed so the occupants don't have to be.[2]
