Delaying Intake Valve Closure Over-Expands Combustion Gases to Achieve 40-Percent Hybrid Efficiency

The driver presses the accelerator expecting an immediate surge of torque, the visceral response of a traditional engine. But the engine control unit has a different priority: extracting the absolute maximum kinetic energy from every microscopic drop of fuel, even if it means breathing backward.

This tension between instant power and thermodynamic perfection defines the modern hybrid vehicle. To achieve the coveted 40-percent thermal efficiency milestone, automotive engineers have resurrected a 19th-century mechanical concept called the Atkinson cycle, adapting it for the digital age.[1]

It relies on a counterintuitive mechanical trick: delaying the closure of the intake valve so long that the engine actually spits part of its air back out into the manifold. This intentional leak fundamentally alters how the engine breathes.[3]

By doing so, the engine deliberately cripples its own low-end torque. In a vacuum, this mechanical compromise would create a sluggish, unresponsive car that struggles to accelerate from a standstill when the traffic light turns green.

But paired with an electric motor, which delivers maximum torque at zero revolutions per minute, this thermodynamic compromise becomes the foundation of the most efficient powertrains on the road. The electric motor fills the exact gap the engine creates.

The Thermodynamic Ceiling

A conventional four-stroke gasoline engine operates on the Otto cycle, where the compression stroke and the expansion stroke are geometrically identical. If the piston travels four inches up to compress the fuel, it travels four inches down when the spark plug fires.

This symmetry is mechanically simple but thermodynamically wasteful. When the exhaust valve opens at the bottom of the power stroke, the combustion gases are still under immense pressure and heat, which is violently expelled out the tailpipe as wasted energy.

"For example, a typical gasoline automobile engine operates at around 25% efficiency," notes Wikipedia's engineering reference. The remaining 75 percent of the fuel's energy is lost to internal friction, pumping losses, and wasted exhaust heat.[2]

Engineers knew that if they could lengthen the power stroke, they could harness that residual pressure to push the piston further. But physically lengthening only one stroke in a crankshaft-driven engine requires impossibly complex mechanical linkages.

In 1882, James Atkinson built exactly that: an engine with a multi-link crankshaft that allowed a short compression stroke and a massive expansion stroke. It was brilliant in theory, but far too fragile and complex for mass production.[1]

Breathing Backward

Modern automakers achieve Atkinson's thermodynamic asymmetry without his fragile linkages. Instead of changing the physical stroke of the piston, they manipulate the engine's breathing using variable valve timing to simulate the exact same effect.[3]

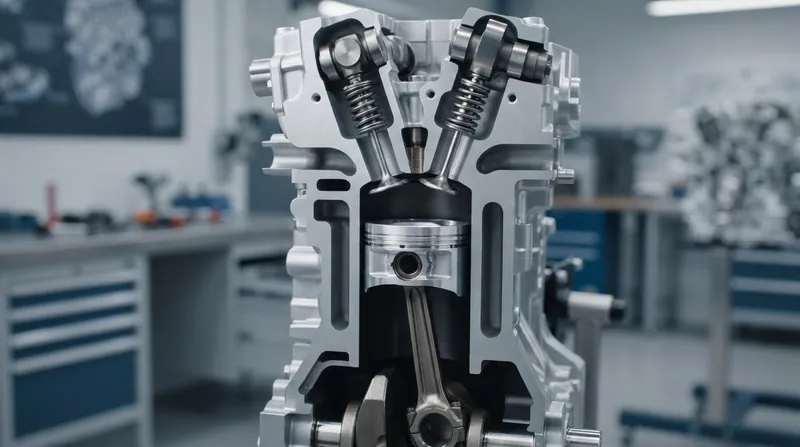

In a modern Atkinson-cycle engine, the intake valve remains open long after the piston has reached the bottom of its intake stroke. As the piston begins moving upward to compress the air-fuel mixture, the valve stays stubbornly open.

For the first fraction of the upward stroke, the engine is not compressing the mixture at all. Instead, it is actively pushing a portion of the intake charge back out of the cylinder and into the intake manifold.

Only after this delay does the intake valve finally snap shut, sealing the cylinder so true compression can begin. Because the cylinder is only partially full, the effective compression ratio is drastically reduced compared to its physical dimensions.

However, when the spark plug fires, the expanding gases still push the piston all the way down its full physical stroke. The expansion ratio now vastly exceeds the effective compression ratio, allowing the engine to extract significantly more work from a smaller fuel charge.

The Cost of Efficiency

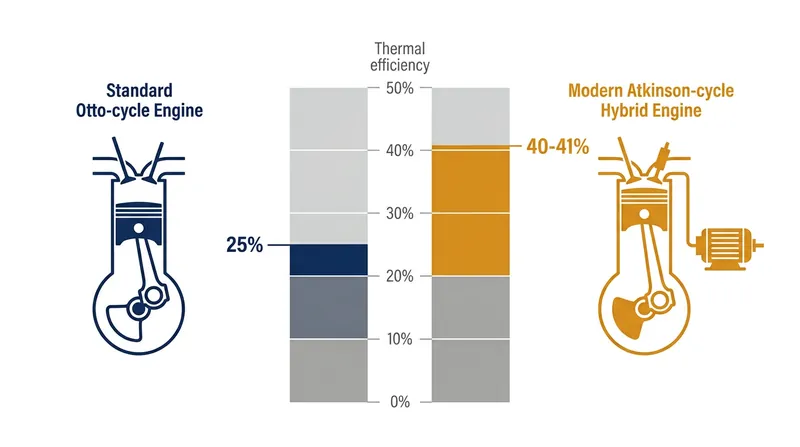

This over-expansion is the secret to modern fuel economy. By wringing every last joule of kinetic energy out of the combustion gases, engines utilizing this cycle can achieve a staggering 40 to 41 percent brake thermal efficiency.

But this efficiency comes with a severe mechanical penalty. Because the engine is constantly regurgitating part of its intake charge, it operates as though it has a much smaller displacement than its physical size suggests.

A 2.5-liter Atkinson-cycle engine might only trap and burn the air-fuel volume of a 1.8-liter engine. Consequently, it produces significantly less power, and its low-end torque is notoriously weak compared to a standard engine.

"What happens with the Atkinson cycle is we're trading off power density at peak power production, and we're sacrificing it to extract better fuel efficiency across the normal driving range of the engine," explains Auto Expert.

If installed in a traditional car, the driver would have to rev the engine aggressively just to keep up with traffic. The vehicle would feel lethargic, and the constant high-rpm operation would completely erase the intended fuel savings.

The Perfect Powertrain Marriage

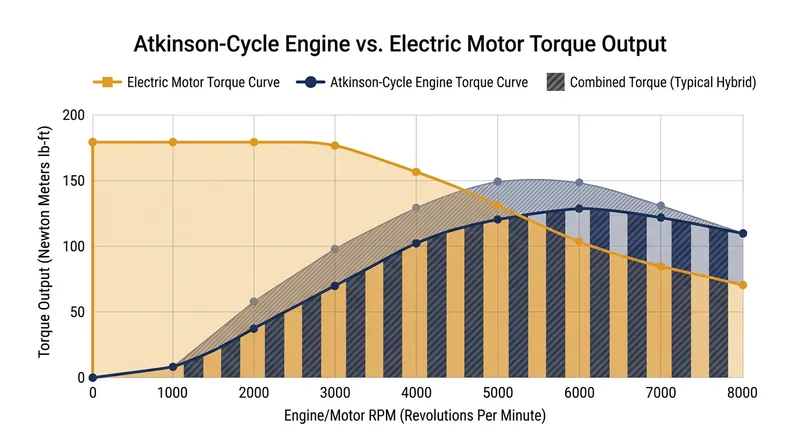

This is where the hybrid powertrain intervenes. The electric motor is not merely an efficiency booster; it is a mandatory structural patch that fills the massive torque crater left behind by the Atkinson cycle.

Electric motors possess a mechanical characteristic that perfectly complements the Atkinson cycle: they generate their maximum rotational force at zero revolutions per minute. This provides immediate, silent thrust from a complete standstill without waiting for engine revs.

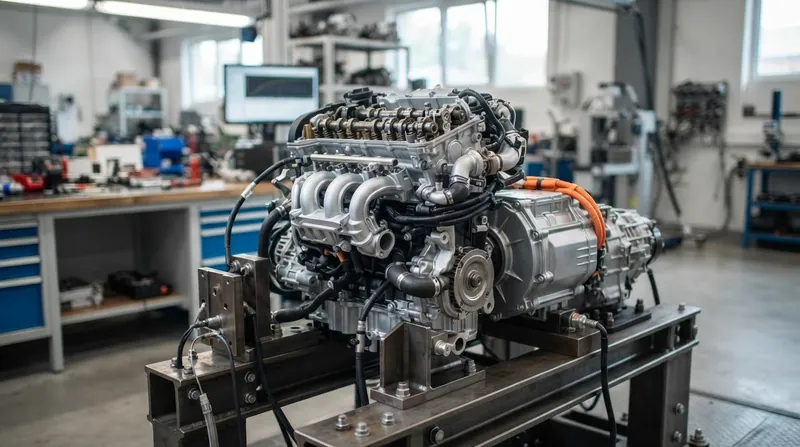

When a driver presses the accelerator in a modern hybrid, the electric motor provides the instant torque needed to launch the heavy vehicle off the line. The gasoline engine remains off or idles quietly in the background.

While the electric motor handles the heavy lifting of acceleration, the gasoline engine is allowed to operate in its narrow, highly efficient Atkinson-cycle sweet spot. It remains completely unburdened by the need to produce low-end torque.

As cruising speeds are reached, the gasoline engine takes over, utilizing its 40-percent thermal efficiency to maintain momentum. It sips fuel at a rate that rivals light-duty diesels, maximizing the energy extracted from every drop.

This symbiotic relationship explains why nearly every modern hybrid utilizes delayed intake valve closure. The electric motor and the Atkinson cycle are two halves of a single, highly optimized propulsion strategy that redefines automotive efficiency.
