The Slip Angle and the Cornering Force: How the Difference Between Front and Rear Tire Angles Dictates Understeer and Oversteer

A driver entering a corner has exactly two inputs available to change the vehicle's trajectory: the angle of the steering wheel and the speed at which they approach the apex. When they turn the wheel, they expect the 3,500-pound machine to follow the exact arc they just commanded. But the vehicle's actual path is rarely a perfect match for the direction the front wheels are pointed. The difference between the driver's request and the car's reality is dictated entirely by the slip angles generated at the four tire contact patches, a dynamic that governs every aspect of cornering grip.[1]

To understand how a car handles, a driver must first understand that tires do not roll perfectly straight when subjected to cornering forces. As the vehicle turns, lateral acceleration pushes the mass of the car toward the outside of the curve. The elastic rubber of the tire deforms under this load, twisting slightly against the pavement. The angle between the direction the wheel is physically pointing and the direction the tire's contact patch is actually traveling is known as the slip angle, and it is the fundamental metric of vehicle dynamics.[4]

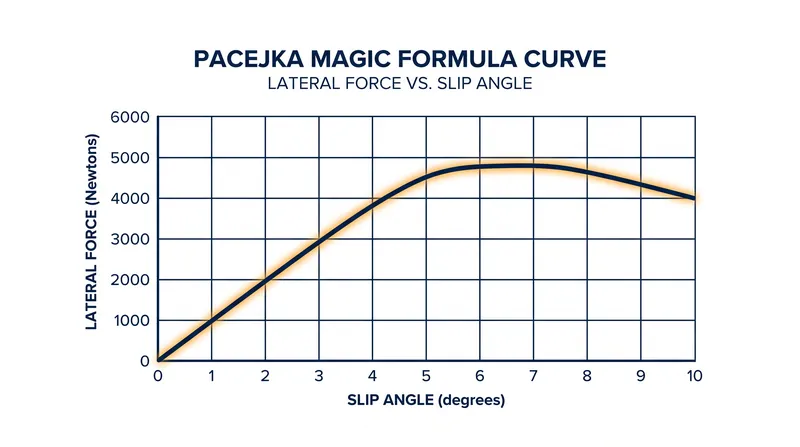

This deformation is not a loss of traction; it is the physical mechanism by which traction is generated. According to the Pacejka Magic Formula, a foundational mathematical model used in vehicle dynamics since the late 20th century, a tire produces lateral cornering force only when it operates at a non-zero slip angle. As the slip angle increases from 0.0 to roughly 4.5 or 5.0 degrees, the cornering force rises linearly, then plateaus at the limit of adhesion, and finally drops off as the tire begins to slide across the asphalt.[3][4]

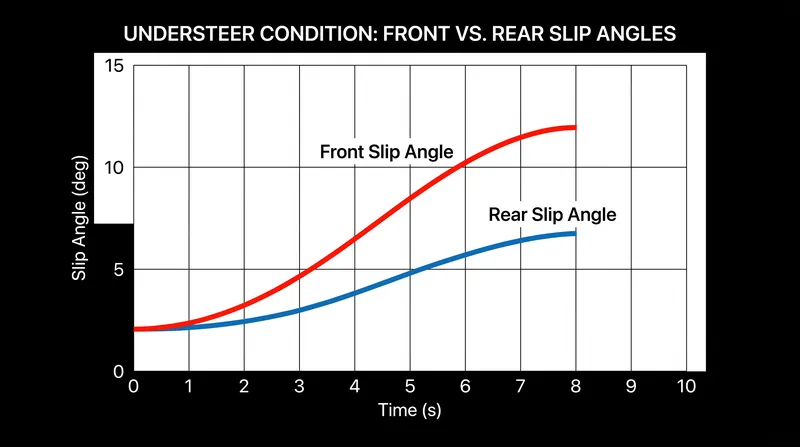

The handling balance of a vehicle—whether it understeers, oversteers, or remains neutral—is defined by the difference between the slip angles of the front tires and the rear tires. The Society of Automotive Engineers (SAE) defines these characteristics based on sub-limit behavior, meaning how the car responds before any tire loses grip completely. By analyzing the ratio of front to rear slip angles, engineers can predict exactly how a chassis will behave when subjected to lateral loads during a standard cornering maneuver.[1]

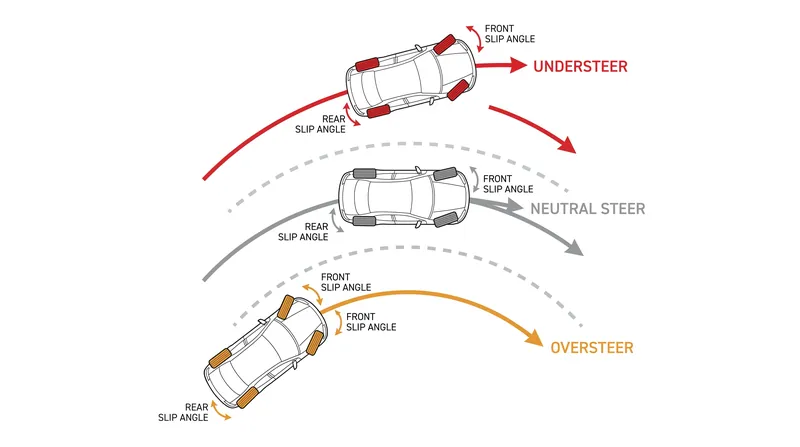

When a driver turns the steering wheel, they are setting the slip angle for the front tires. As Paradigm Shift Racing notes in its breakdown of the 2024 SAE standards, "Understeer is when the front tires need more slip angle than the rear and so more steering wheel angle would be needed and oversteer is the opposite where less would be needed." In practical terms, the front of the car is pushing wider than the steered path. To maintain a 200-foot radius, the driver must turn the steering wheel further than the geometric ideal.[2]

Understeer is the default handling characteristic engineered into nearly 99 percent of production passenger vehicles on the market today. Manufacturers design cars this way because the natural human reaction to a car running wide is to lift off the throttle and apply the brakes. This transfers weight to the front axle, increasing the front tires' vertical load and reducing their slip angle, which safely tucks the nose back into the corner without requiring any advanced car control skills from the driver.[1][2]

Conversely, if the rear tires operate at a larger slip angle than the front tires, the vehicle exhibits oversteer. In this scenario, the rear of the car is rotating outward faster than the front, causing the vehicle to turn more sharply than the driver's steering input commands. To prevent the car from spinning, the driver must unwind the steering wheel—or steer in the opposite direction of the corner—to reduce the front slip angle and balance the lateral forces acting on the chassis.[1]

Oversteer is inherently unstable. As the vehicle speed increases, the rear slip angle grows exponentially faster than the front. If left uncorrected, the rear tires will exceed their peak cornering force, as defined by the Pacejka curves, and lose adhesion entirely. Because correcting oversteer requires counter-intuitive steering inputs and precise throttle control, automakers actively tune suspension geometries, spring rates, and anti-roll bars to avoid it in consumer vehicles, reserving looser rear ends for dedicated sports cars. This ensures that the average driver is never forced to catch a sliding rear axle during a routine highway merge.[1][2][3]

A vehicle achieves neutral steer when the front and rear slip angles are perfectly matched. In a constant-radius turn, a neutral-steering car will require no additional steering input as speed increases; the chassis simply drifts outward evenly across all four wheels. While this sounds ideal on paper, true neutral steer is highly sensitive to weight transfer and road conditions, making it difficult to maintain in real-world driving environments where a sudden 0.5 g braking event can instantly alter the balance and pitch the car into oversteer.[2]

The transition from linear sub-limit behavior to terminal understeer or oversteer occurs when one axle reaches the peak of its slip-angle curve before the other. If the front tires saturate first, the driver can turn the steering wheel to full lock, but the car will continue plowing straight ahead. The front tires have exceeded their maximum slip angle, and adding more steering input only increases the sliding friction without generating any additional lateral force to pull the car through the turn.[3]

If the rear tires saturate first, the vehicle enters terminal oversteer. The rear contact patches lose their ability to resist lateral forces, and the mass of the vehicle acts as a pendulum, swinging the tail around the front axle. This is the physical mechanism behind a spin out, often occurring when a vehicle exceeds 1.0 g or 1.2 g of lateral acceleration and the rear tires simply run out of grip, completely breaking traction with the road surface. Once this threshold is crossed, electronic stability control systems must intervene to brake individual wheels and restore order.[1][4]

For the driver evaluating a vehicle's handling, the key takeaway is that slip angles are highly dynamic. They change constantly based on weight distribution, suspension geometry, tire pressure, and throttle inputs. A car that understeers safely and predictably at 40 miles per hour can be provoked into sudden oversteer at 60 miles per hour if the driver abruptly lifts off the throttle mid-corner, rapidly transferring weight off the rear tires and spiking their slip angle beyond the limit of adhesion.[1][2][4]

The difference between the front and rear slip angles dictates the vehicle's trajectory in every cornering scenario. By understanding that steering is not just about pointing the wheels, but actively managing the deformation of the rubber at the contact patch, a driver can anticipate how a car will behave at the absolute limit of its adhesion. The steering wheel is merely a request submitted by the driver; the slip angles generated where the rubber meets the road determine what the car actually does.[4][5]
