Dual-Mass Flywheels Absorb Engine Vibration via Secondary Springs at the Cost of Clutch Wear

An internal combustion engine must deliver power to the transmission without shattering the gearbox, a condition that holds true only if the violent torsional spikes from each cylinder firing are absorbed before they leave the crankshaft. For decades, a heavy, solid iron disc was enough to smooth out those pulses. Today, modern high-torque engines generate vibrations so severe that a single piece of metal can no longer contain them.[5]

To prevent modern transmissions from tearing themselves apart, engineers split the traditional flywheel in two. As detailed in a 2018 technical explainer by PistonHeads, the resulting dual-mass flywheel places a complex network of heavy-duty springs between the engine and the gearbox. This mechanism acts as a mechanical sponge, soaking up the harshness of low-speed, high-torque power delivery.[2][4]

The trade-off for this refined driving experience is a steep increase in maintenance costs for the vehicle owner. While the secondary inertia springs successfully isolate the cabin from noise and vibration, they also trap friction heat within the assembly. That trapped heat accelerates wear on the clutch face, turning a once-simple repair into a costly, unavoidable replacement.[6]

The Anatomy of Torsional Damping

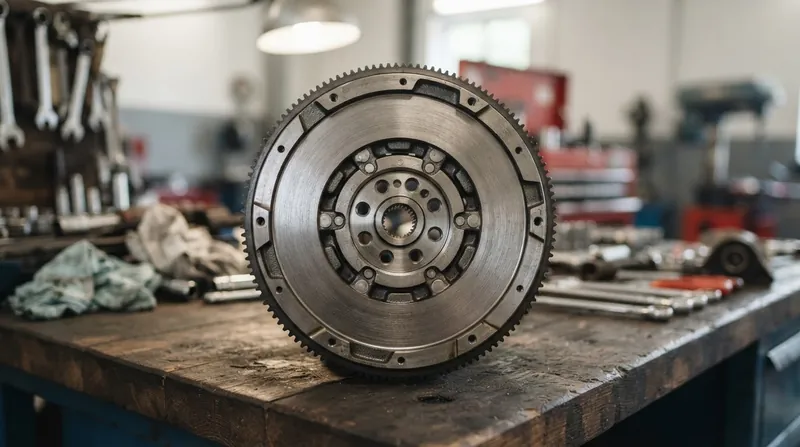

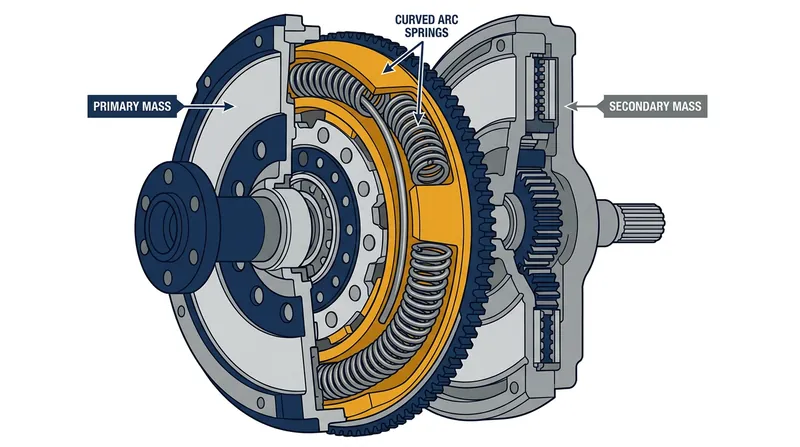

A dual-mass flywheel consists of a primary mass bolted directly to the engine's crankshaft and a secondary mass attached to the transmission. Unlike a solid disc, these two halves can rotate slightly independently of one another. This independent movement is the key to modern driveline refinement.[5]

Between these two heavy steel plates sits a series of long, curved arc springs packed in grease. A 2019 study published by SAE International on the nonlinear torsional characteristics of these springs demonstrated how they manage extreme force. When a cylinder fires, the crankshaft violently jerks forward, slamming that rotational energy into the primary mass.[1][5]

Those springs absorb the peak of the torque spike, storing the kinetic energy for a fraction of a second. As the engine approaches the gap between cylinder firings, the springs release that stored energy into the secondary mass. The transmission receives a smooth, continuous flow of power rather than a series of destructive hammer blows.[1][5]

This damping mechanism is particularly crucial for modern diesel engines and downsized, turbocharged three-cylinder motors. These powerplants generate massive amounts of torque at very low revolutions, creating low-frequency vibrations that traditional clutch discs simply cannot handle. Without the dual-mass system, the resulting gearbox rattle would be deafening.[5]

The Cost of Trapped Heat

The sophisticated isolation provided by the arc springs introduces a severe thermal penalty for the vehicle owner. A conventional single-mass flywheel acts as a massive heat sink, pulling high temperatures away from the clutch friction disc during gear changes. The split design of the dual-mass unit disrupts this thermal pathway.[6]

Because the secondary mass is physically decoupled from the primary mass by the spring channels, heat cannot easily escape into the engine block. The friction generated every time the driver slips the clutch remains trapped in the secondary plate. Over time, this localized heat bakes the internal grease and weakens the arc springs.[4][6]

As the internal springs lose their temper and the grease degrades, the two halves of the flywheel begin to rock against each other. Drivers typically first notice this degradation as a distinct rattling noise when idling in neutral. Left unaddressed, the excessive play can eventually cause the springs to shatter, sending metal fragments through the bell housing.[3][4]

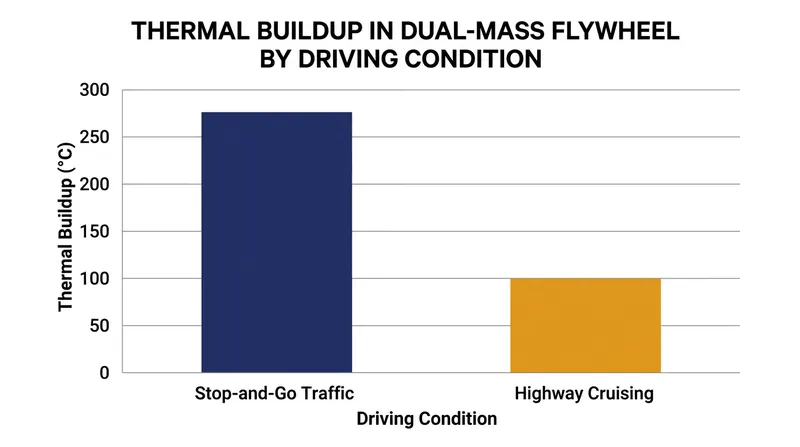

Stop-and-go city traffic accelerates this thermal breakdown faster than any other driving condition. Every time the vehicle creeps forward in first gear, the driver slips the clutch, generating a fresh wave of friction heat. Because the vehicle is barely moving, there is no ambient airflow through the bell housing to cool the heavy steel plates.[6]

Highway cruising, by contrast, places almost no thermal stress on the assembly. Once the clutch is fully engaged in top gear, the primary and secondary masses lock together, rotating as a single unit. The arc springs only compress slightly to absorb the steady-state vibrations, allowing the internal grease to cool and maintain its viscosity.[6]

For the person paying the repair bill, this thermal degradation means the flywheel must be replaced simultaneously with the clutch. While a traditional solid flywheel can simply be resurfaced on a lathe for a few dollars, a scored or worn dual-mass unit is entirely unserviceable. The entire complex assembly goes into the scrap bin.[2][3]

Diagnosing Driveline Failure

Identifying a failing dual-mass flywheel before it destroys the transmission requires paying close attention to low-speed vibrations. A healthy unit should provide seamless engagement when pulling away from a stop, with no shuddering through the clutch pedal. When the internal springs begin to collapse, that smooth engagement disappears.[3][4]

Mechanics test for failure by measuring the free-play and side-rock between the two masses. If the secondary mass can rotate more than a few degrees without spring resistance, the internal dampers are compromised.[4][5]

"A dual mass flywheel should have a lifespan of over 100,000 miles in most vehicles," notes the RAC in their 2026 technical breakdown. They caution that this longevity depends heavily on "driving style, quality of the components, level of maintenance, and the current standard of the parts."[3]

Towing heavy loads or frequently laboring the engine in a high gear places immense stress on the arc springs. When a driver commands full throttle at low engine speeds, the torque pulses are at their most violent. The springs fully compress, bottoming out against their stops and transferring the shock directly to the gearbox casing.[4][6]

Upgrading a vehicle's engine software to produce more power also guarantees a premature driveline failure. Dual-mass flywheels are precisely tuned for the factory torque output of the specific engine they are bolted to. Pushing an extra fifty pound-feet of torque through the system overwhelms the spring rates, causing immediate and permanent damage.[6]

The Single-Mass Conversion Dilemma

Faced with replacement bills that routinely exceed two thousand dollars, many owners look to aftermarket single-mass conversion kits. These kits replace the complex dual-mass unit with a solid steel disc and a traditional sprung-hub clutch. The conversion permanently eliminates the risk of spring failure and restores the ability to resurface the flywheel.[2]

However, deleting the secondary inertia springs removes the critical vibration barrier between the engine and the cabin. Owners who install a solid flywheel immediately notice a sharp increase in gear chatter, particularly when idling with the air conditioning engaged. The vehicle's refined character is permanently altered, replaced by a raw, mechanical harshness.[2][5]

More concerning than the noise is the long-term risk to the transmission internals. Without the arc springs to absorb the engine's torsional spikes, the gearbox input shaft bears the full brunt of every combustion event. Over tens of thousands of miles, this constant hammering can fatigue the gear teeth and shatter the synchronizer rings.[4][6]

High-performance and track-focused drivers often accept this trade-off willingly. A solid flywheel is significantly lighter than a dual-mass unit, which reduces the rotating mass attached to the crankshaft. This weight reduction allows the engine to rev much faster, providing the instantaneous throttle response required for precise rev-matching during aggressive downshifts.[2]

Yet for the average commuter, the math rarely works out in favor of the conversion. The money saved on the initial parts kit is quickly forgotten when the dashboard vibrates at every stoplight and the transmission requires a premature rebuild. The factory engineering, despite its inherent wear limits, remains the only way to preserve the vehicle's original comfort.[6]

The decision to retain or bypass the dual-mass system ultimately dictates the lifespan of the vehicle's transmission. Drivers demanding whisper-quiet cabins and smooth low-rpm acceleration must accept the replacement cost as a routine maintenance tax. The arc springs will continue to absorb the violence of combustion, right up until the moment the internal grease bakes dry and the next clutch bill comes due.[6]
