The Physics of the Cylinder: Why Bore-to-Stroke Ratios Dictate Engine Torque

The absolute limit on any internal combustion engine is how fast its pistons can travel up and down before tearing themselves apart. This binding constraint—mean piston speed—dictates whether a manufacturer builds an engine to haul a marine freighter or to power a track-day sports car. Currently, metallurgical limits cap that speed at roughly 25 meters per second for most commercial applications.

To stay below that destructive threshold while meeting a buyer's performance needs, engineers manipulate the physical dimensions of the cylinder. The relationship between the cylinder's width and the distance the piston travels is known as the bore-to-stroke ratio. That single mathematical fraction determines where an engine will generate its peak torque.[3]

As the automotive industry shifts toward electric motors—with European manufacturers leaning on heritage to compete with Chinese EV tech—internal combustion engineers are maximizing the efficiency of remaining gas platforms. Whether cramming a massive 511-cubic-inch V8 into a Ford Ranger or refining the 5.0-liter V8 in the 2026 Ford F-150, the fundamental physics of the cylinder dictate performance.[4][5][7]

For a consumer comparing tow vehicles or marine powerplants, this ratio is the hidden blueprint of how the vehicle will behave. It dictates whether a heavy cabin cruiser will effortlessly climb onto plane at low speeds, or whether a performance boat will require screaming high revolutions to maintain its momentum.

The Leverage of the Crankshaft

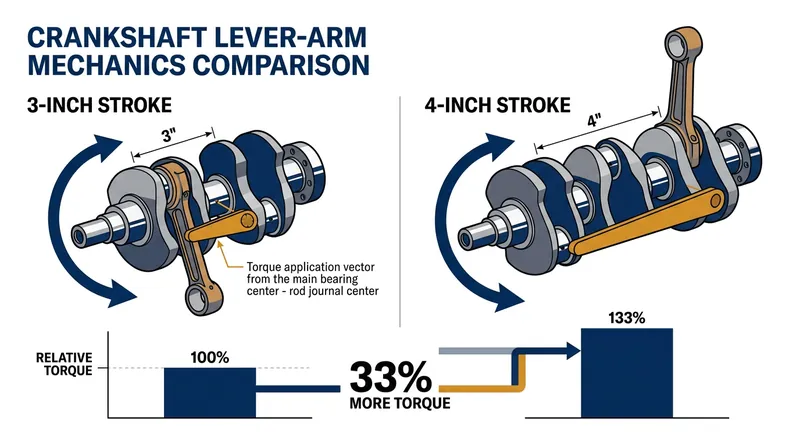

When a piston pushes down during the combustion cycle, it turns the crankshaft via a connecting rod. The distance from the center of the crankshaft to the rod journal is exactly half of the engine's total stroke. A longer stroke physically extends this lever arm, multiplying the rotational force applied to the crank.

This mechanical advantage explains why long-stroke, or "under-square," engines feel so powerful at low speeds. A four-inch stroke produces roughly 33 percent more torque per unit of cylinder pressure than a three-inch stroke, regardless of how wide the cylinder is. For a truck owner pulling a heavy trailer, that leverage is what gets the load moving from a dead stop.[3]

However, that extended travel distance introduces a severe penalty at the top of the rev range. Because the piston must cover more ground during each revolution, a long stroke dramatically increases the piston's velocity at any given RPM.

If a long-stroke engine attempts to spin at 8,000 revolutions per minute, the pistons will accelerate and decelerate so violently that the connecting rods will stretch and snap. To keep the engine intact, manufacturers must strictly govern the maximum rotational speed of under-square designs.

The Piston Speed Formula

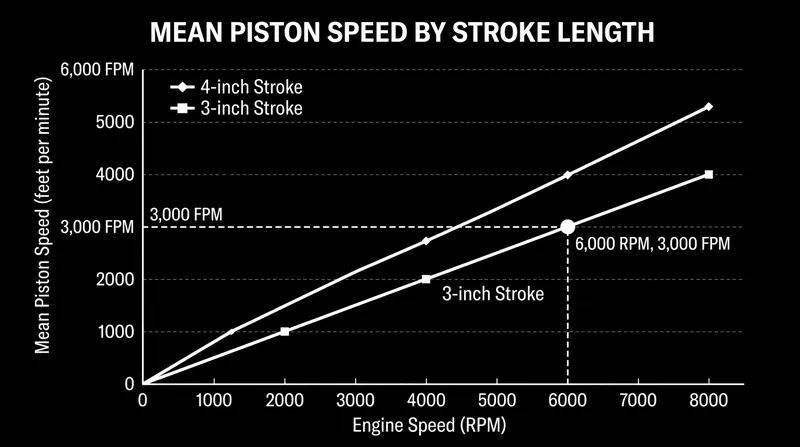

Mean piston speed is calculated by multiplying twice the stroke length by the engine's RPM, then dividing by 12 to find feet per minute. This formula represents the hard physical boundary of engine design. To achieve high rotational speeds without destroying the internal components, engineers must shorten the stroke.[1]

Shortening the stroke requires widening the cylinder bore to maintain the same overall engine displacement. This creates an "over-square" engine, where the bore diameter is larger than the stroke length. Because the piston travels a shorter distance, the engine can safely rev much higher before hitting the metallurgical speed limit.[3]

"Piston speed generally refers to the average or mean speed of the piston as it moves up and down in the cylinder bore during each crankshaft revolution," explains an engineering analysis from Muscle Car DIY. "For example, a 3-inch stroke running at 6,000 RPM produces a mean piston speed of 3,000 feet per minute, which is well within safe operating limits."[2]

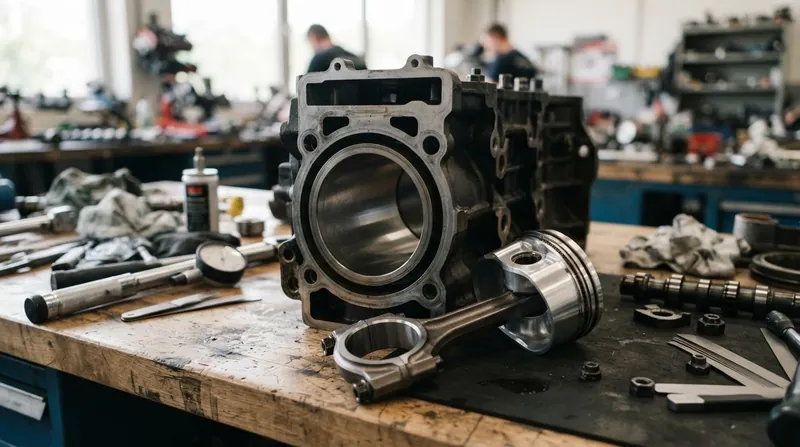

For a buyer outfitting a lightweight offshore racing hull, this high-RPM capability is exactly what is required. Over-square engines build their power progressively, relying on rapid rotational speeds to generate peak horsepower rather than relying on the low-end grunt of a longer lever arm.

Thermal Efficiency and Heat Loss

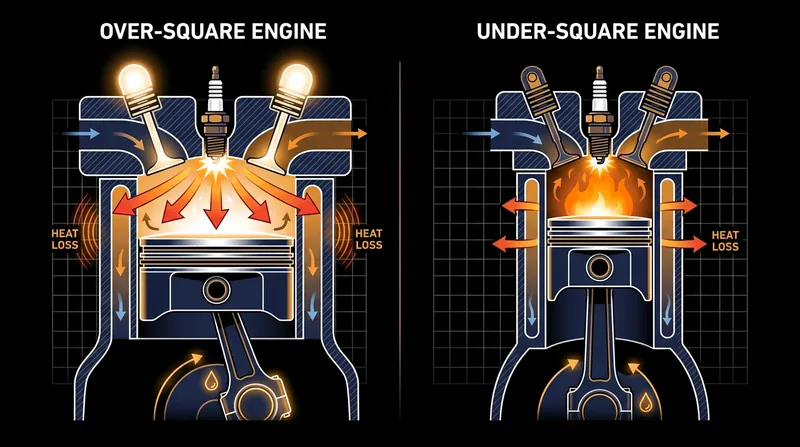

While over-square engines dominate high-speed performance, they suffer a distinct disadvantage in thermodynamic efficiency. Widening the bore creates a broad, shallow combustion chamber. This geometry increases the surface area of the cylinder head and piston crown relative to the volume of the chamber.[3]

A larger surface area allows more combustion heat to escape into the engine block and cooling system. Because heat is the actual energy pushing the piston down, losing it to the cylinder walls reduces the total mechanical work extracted from each drop of fuel. For an owner calculating seasonal fuel costs, this thermal loss translates directly to higher fuel bills.[3]

Conversely, an under-square, long-stroke engine features a narrow, deep combustion chamber. This compact shape minimizes the surface-to-volume ratio, trapping more heat inside the expanding gases. The retained thermal energy pushes against the piston with greater sustained pressure throughout the longer stroke.

"Due to the increased piston and head surface area, the heat loss increases as the bore/stroke ratio is increased," notes the canonical engineering definition of the stroke ratio. "Thus an excessively high ratio can lead to a decreased thermal efficiency compared to other engine geometries."[3]

Valve Area and Breathing

Beyond thermal dynamics, the bore diameter dictates how much air an engine can ingest. A wider bore provides more physical real estate in the cylinder head for larger intake and exhaust valves. This increased valve area is critical for high-RPM operation, where the engine has only milliseconds to fill and empty the cylinder.[3]

Long-stroke engines, with their narrow bores, are physically constrained to smaller valves. This restricts airflow at high speeds, causing the engine to "choke" and lose power as RPM climbs. Consequently, under-square engines are intentionally tuned to produce their peak torque early in the rev range, matching their breathing capacity.[3]

Marine and Heavy-Duty Applications

In the commercial marine sector, where vessels require massive, sustained pushing power, the long-stroke architecture is universally dominant. Large cargo ships utilize extreme under-square two-stroke diesel engines, with stroke lengths sometimes exceeding 2.5 meters. These massive powerplants operate at a deliberate 80 to 120 RPM.

At these low rotational speeds, the extreme stroke provides unmatched mechanical leverage to turn massive propellers directly, without the parasitic losses of a reduction gearbox. The deep combustion chambers also maximize thermal efficiency, allowing these engines to extract the maximum possible energy from heavy fuel oil during long ocean crossings.

In the recreational boating market, the choice often comes down to traditional big-block iron versus modern over-square aluminum V8s. A traditional 454-cubic-inch big block relies on its long stroke to heave a heavy wakeboard boat out of the water, providing instant low-end authority.

Meanwhile, a modern over-square marine engine might displace the same volume but achieves its power through efficiency and high RPMs. It weighs hundreds of pounds less, which dramatically improves a performance boat's center of gravity, but it requires the driver to push the throttle further to find the power band.

Ultimately, the choice between over-square and long-stroke geometry is a zero-sum compromise. Physics dictates that an engine cannot simultaneously feature the massive crank leverage of a long stroke and the high-RPM safety of a short stroke. Buyers must look at their specific application and decide whether their daily driving demands low-end torque or high-speed horsepower.[6]
