Zinc Anodes Fail in Freshwater: Why Impressed Current and Magnesium Prevent Stray-Current Hull Corrosion

Saltwater boaters rely on zinc anodes to sacrifice themselves, a system that works perfectly because ocean water is highly conductive. But when a vessel moves to a freshwater lake, that exact same zinc block becomes a liability, failing to protect the hull and outdrive from rapid deterioration.[2]

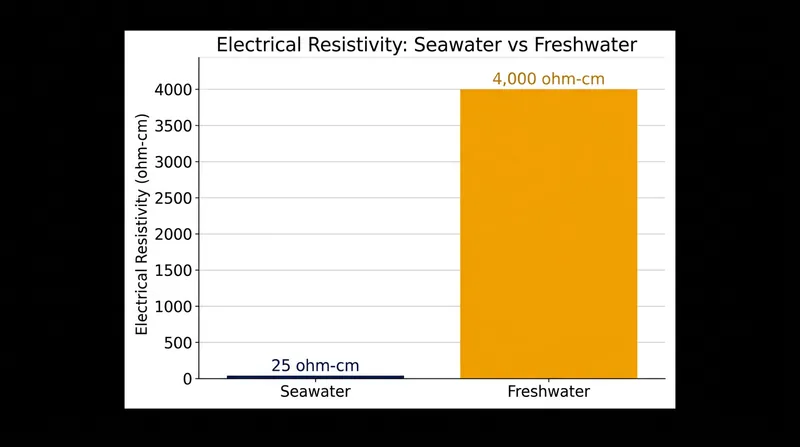

The difference lies entirely in electrical resistance. Freshwater lacks the dissolved ions that make seawater an excellent conductor, meaning the galvanic current struggles to flow between the metals. Without that current, the protective mechanism completely stalls.[1]

For a buyer staring at a pitted aluminum outdrive on a used pontoon, this invisible shift in water chemistry dictates their next maintenance decision. Leaving zinc on a freshwater boat is functionally identical to having no protection at all.

"When zinc sits in freshwater, it doesn't just stop working; it actively seals itself off," explains a BoatUS marine surveyor. This crusting phenomenon leaves the actual boat parts vulnerable to stray currents, while the anode looks perfectly fine.

The Threat of Stray Currents

Stray-current corrosion occurs when an external electrical source, usually a faulty shore-power connection or frayed internal wiring, leaks direct current into the water. The boat's underwater metals become the path of least resistance back to the source.

Unlike natural galvanic corrosion, which takes months to show damage, stray currents can destroy a propeller or outdrive in a matter of days. The voltage involved is driven by a battery or grid, not just dissimilar metals.

"A half-amp leak from a bilge pump wire can eat through an aluminum sterndrive housing over a single weekend," notes an ABYC electrical technician. The metal literally dissolves into the water as electrons are violently stripped away.

In a marina environment, the problem often originates from a neighboring vessel. A boat with perfect wiring can still suffer catastrophic damage if the slip next door is leaking current into the shared water.

Why Zinc Crusts Over

To stop this electrical theft, boaters use sacrificial anodes—metals designed to give up their electrons more easily than the hull. Zinc has been the maritime standard for over a century due to its reliable performance in the ocean.[2]

However, zinc requires a highly conductive electrolyte to shed its ions. In freshwater, the electrical resistance is too high, and the zinc reacts with dissolved oxygen to form a hard, insulating layer of zinc hydroxide.[1][2]

Once this crust forms, the zinc is completely passivated. It looks perfectly intact during a haul-out, tricking the owner into thinking the boat is protected, while the aluminum outdrive nearby is quietly dissolving into the lake.

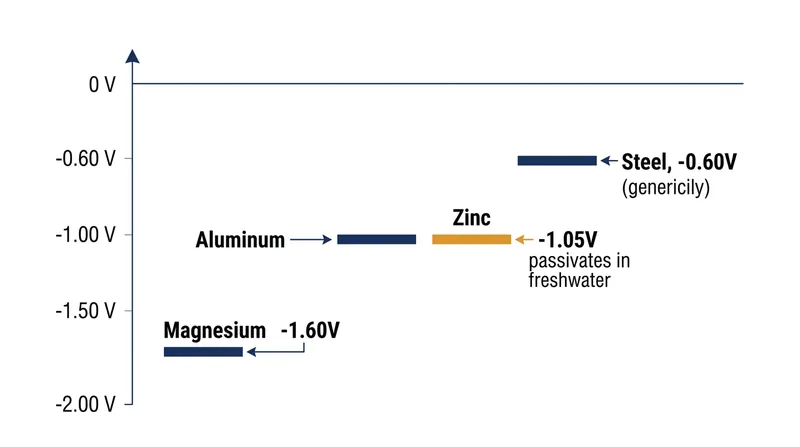

Magnesium solves this problem through sheer electrical force. Sitting at -1.60 volts on the galvanic scale, magnesium has a much higher driving potential than zinc's -1.05 volts, allowing it to overcome the water's resistance.[1][2]

This extra half-volt is enough to push current through resistive freshwater, ensuring the anode continues to sacrifice itself. For a lake boater, swapping zinc for magnesium is the single most critical step in seasonal maintenance.[2]

Pumping Electrons With Power

For larger vessels or those facing severe stray-current threats, passive metal blocks are sometimes not enough. This is where Impressed Current Cathodic Protection systems replace traditional sacrificial anodes entirely, offering a powered defense mechanism.

Instead of relying on a naturally reactive metal, an ICCP system uses the boat's own 12-volt battery to actively pump electrons into the water. It monitors the hull's electrical potential and adjusts the output in real time.[3]

The system distributes this protective current through inert anodes, typically made of titanium coated with mixed metal oxides. Because these anodes do not dissolve, they never need to be replaced during routine seasonal maintenance.[3]

"An ICCP system acts like an electrical shield, constantly measuring the water's resistance and pushing back against any stray voltage," according to a marine corrosion engineer. It provides dynamic protection that passive metals simply cannot match.

The Aluminum Compromise

The choice between magnesium and zinc becomes complicated for boaters who navigate estuaries or move between rivers and the ocean. Magnesium burns away far too quickly in saltwater, often disappearing in a matter of weeks.[2]

For these mixed-water environments, aluminum alloy anodes serve as the ideal middle ground. Aluminum operates at a voltage that keeps it active in freshwater without dissolving instantly when the boat reaches the sea.[1][2]

Modern aluminum anodes are not pure aluminum; they are alloyed with indium to prevent the passivation crust that plagues zinc. This makes them highly versatile for coastal boaters who frequently travel upriver into lower salinity zones.[2]

Matching the protection system to the specific body of water is a non-negotiable requirement for vessel longevity. A buyer evaluating a used boat must check what metal is bolted to the transom before making an offer.

Measuring Hull Potential

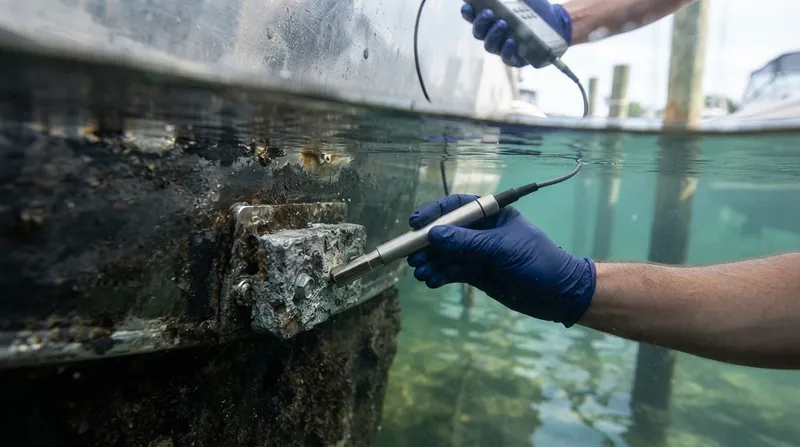

Owners do not have to guess whether their protection system is working. A silver/silver-chloride reference electrode, dropped over the side and connected to a multimeter, reveals the exact electrical state of the hull in real time.[1]

By measuring the millivolt difference between the reference probe and the boat's bonding system, a technician can see if the metals are adequately protected. A reading of -900 millivolts generally indicates a safe aluminum hull.

If the reading drops closer to -600 millivolts, the anodes are either passivated or completely depleted. For a buyer looking at a used pontoon, this simple electrical test is far more revealing than a visual inspection of the paint.

Understanding these invisible currents shifts boat maintenance from reactive repairs to proactive defense. Equipping a vessel with the correct magnesium or ICCP system ensures the water remains a medium for travel, rather than a solvent for the outdrive.[3]
