High-Voltage Isolation Relays Require a 12-Volt Circuit to Close Safely, Immobilizing Electric Vehicles When the Auxiliary Battery Dies

A driver standing in a freezing driveway on a Tuesday morning presses the unlock button on their key fob, only to find their electric vehicle completely unresponsive. The smartphone app confirms the main battery still holds an 80 percent charge, yet the doors remain locked and the dashboard is dark.

When the flatbed tow truck arrives, the owner confronts the central paradox of modern electric vehicle architecture. The vehicle's 80-kilowatt-hour lithium-ion traction battery is entirely dependent on a conventional 12-volt lead-acid battery sitting quietly under the hood.[4]

This small auxiliary battery, relying on the same basic chemistry used in automotive applications for over a century, acts as the ultimate gatekeeper. If it dies, the vehicle is completely immobilized, regardless of how much driving range remains in the primary pack.

The mechanical reason for this dependency centers on a critical safety component known as a high-voltage isolation relay, or contactor. These heavy-duty electromechanical switches physically connect and disconnect the high-voltage battery from the rest of the vehicle.[1]

The High-Voltage Gatekeeper

When an electric vehicle is parked and powered down, these contactors automatically spring open. This physical break isolates the 400-volt or 800-volt traction battery, ensuring the high-voltage cables running through the chassis are dead and safe for mechanics or first responders.[1][6]

To drive the car, or even to initiate a charging session, those contactors must be forced closed. Closing the heavy metal contacts requires a magnetic field, which is generated by sending current through a low-voltage coil.[6]

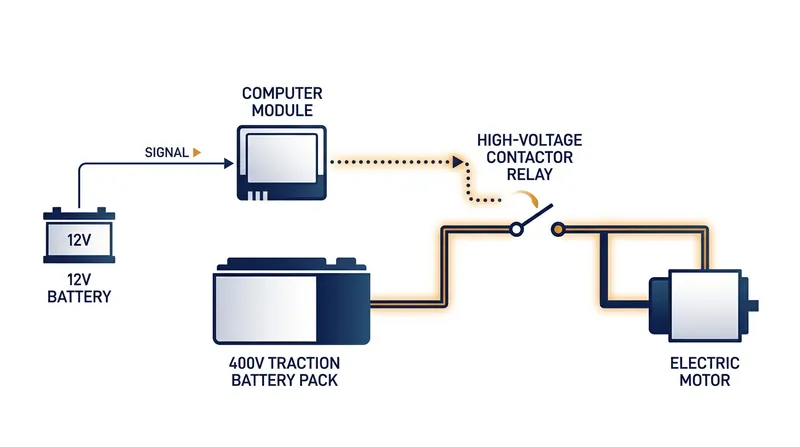

That coil is powered exclusively by the 12-volt accessory battery. "The 12V battery boots the vehicle's computer system, which then closes high-voltage contactors to energize the main battery system," according to a 2026 technical bulletin from Battery Tender.[3]

If the 12-volt battery lacks the necessary voltage to power the vehicle's computers and energize that coil, the contactors remain open. The high-voltage battery stays permanently disconnected, rendering the vehicle a heavy, inert brick.[3]

The Energy Disparity

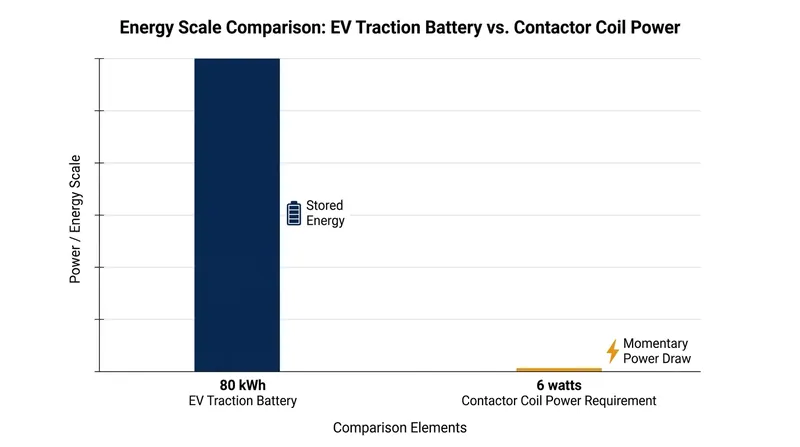

The mathematics of this relationship highlight an extreme engineering disparity. A typical traction battery holds tens of thousands of watt-hours of energy, enough to power an average home for several days.[4]

In stark contrast, the contactor coil requires roughly six watts of power for just a fraction of a second to snap shut. The energy required to unlock the system is microscopic compared to the reservoir it guards.[7]

Yet safety regulations dictate that the high-voltage system cannot power its own activation circuit. The massive energy reserve is entirely useless without that tiny, external 12-volt electrical input to bridge the gap.[1][6]

This architecture creates a strict single point of failure. A dead 12-volt battery means the vehicle's primary control modules cannot boot up, the safety checks cannot run, and the contactors cannot physically close.[3]

Why Not Eliminate the 12-Volt Battery?

Engineers could theoretically design a circuit that steps down voltage directly from the main battery to wake the car. However, doing so would require keeping a portion of the high-voltage system permanently energized while parked.[5]

That approach violates fundamental automotive safety protocols. In the event of a severe collision, the 12-volt system is designed to instantly cut power to the contactors, isolating the high-voltage battery to prevent catastrophic fires or electrocution.[2][5]

Furthermore, the entire global automotive supply chain is built around 12-volt components. Everything from power window motors and airbag sensors to infotainment screens and heated seats operates on this standard low-voltage architecture.[4]

Redesigning every cabin accessory to run on 400 volts would be prohibitively expensive and highly dangerous. It would require routing lethal high-voltage wiring directly into the passenger compartment, a risk no manufacturer is willing to take.[4][5]

The Hidden Drain on Auxiliary Power

Electric vehicles place unique and persistent stresses on their 12-volt batteries. Unlike a traditional combustion engine vehicle, an electric car has no alternator spinning constantly to keep the auxiliary battery charged while driving.[4]

Instead, electric vehicles use a DC-DC converter to step down power from the traction battery to top up the 12-volt system. However, this converter typically only operates when the car is fully awake or actively plugged into a charger.[3][4]

When parked, the vehicle's computers, cellular telematics, and security systems continue to draw a parasitic load. This constant background drain can pull 50 to 150 milliamps, slowly but steadily depleting the 12-volt battery over time.[3]

If the vehicle is left unplugged and asleep for several weeks, this parasitic draw can completely drain the auxiliary battery. The owner returns to find themselves locked out of a car that still possesses hundreds of miles of driving range.[3]

The Jump-Start Solution

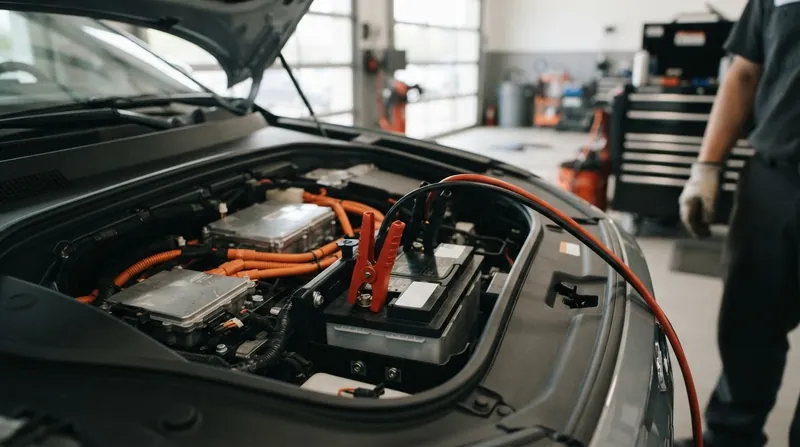

When the 12-volt battery does fail, the immediate solution is surprisingly traditional. The electric vehicle must be jump-started using standard jumper cables or a portable lithium jump pack, exactly like a combustion engine car.[2]

Applying 12 volts to the designated terminals under the hood provides just enough power to boot the computers and energize the contactor coils. Once those relays snap closed with a distinct metallic clunk, the high-voltage battery comes online.[6]

Immediately after the contactors close, the vehicle's DC-DC converter activates. It begins stepping down the 400-volt traction power to roughly 14 volts, taking over the electrical load and recharging the depleted lead-acid battery.[4]

However, this recovery process only works if the 12-volt battery is merely discharged, not internally damaged. If the battery has a dead cell and cannot hold a charge, the contactors will open again as soon as the jump pack is removed.[2]

Practical Steps for Owners

For the average buyer, this engineering reality translates to a specific, unavoidable maintenance schedule. The 12-volt lead-acid battery in an electric vehicle typically needs to be replaced every three to four years, just like in a gas car.[4]

"In the transition to electrification, the high-capacity battery packs are commonly discussed," notes a technical report from Midtronics. Yet the critical role of the 12-volt system is frequently overlooked by new owners until it fails.[2]

Recognizing the early symptoms of a failing auxiliary battery can prevent a frustrating driveway lockout. Warning signs often include sluggish smartphone app connectivity, dim cabin lights, or random dashboard error messages.[3]

While some manufacturers are beginning to shift toward 12-volt lithium-ion auxiliary batteries to improve long-term durability, the fundamental architecture remains unchanged. The small battery will always hold the keys to the big one.[3]
