How a VGT's Variable Vanes Eliminate Turbo Lag and Broaden the Torque Curve

A Variable Geometry Turbocharger (VGT) eliminates turbo lag by using a ring of movable vanes to squeeze low-RPM exhaust gas into a high-speed jet, spooling the compressor instantly. As engine speed climbs, those same vanes pivot open to let massive volumes of exhaust flow freely, giving a boat or truck owner the off-the-line punch of a small turbo and the highway passing power of a large one without replacing any hardware.[1][6]

For anyone buying a modern diesel truck or repowering a marine vessel, the turbocharger dictates how the machine actually feels to operate. Historically, buyers faced a rigid physics problem: a small turbocharger spools up quickly at low engine speeds but chokes exhaust flow at high RPM, while a large turbocharger breathes freely at the top end but suffers from agonizing throttle delays off the line.[4]

The VGT breaks that compromise. By dynamically altering the aspect ratio of the turbine housing, the system effectively changes the size of the turbocharger on the fly. According to engineering breakdowns from x-engineer.org, this adaptability allows the engine to maintain optimal boost pressure across a vastly wider operating range.[1]

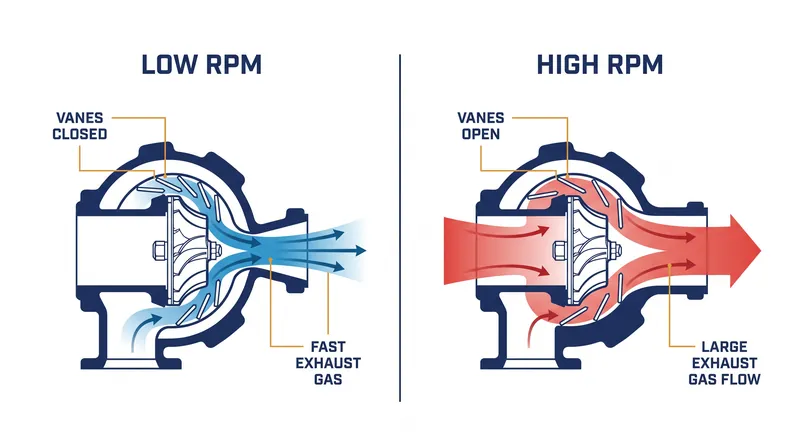

The mechanism relies on a series of aerodynamic vanes positioned around the turbine wheel. At low engine speeds—when exhaust gas volume is minimal—an electronic or pneumatic actuator pivots these vanes into a nearly closed position. This narrows the passage, forcing the limited exhaust gas to accelerate through the tight gaps.[1][5]

This acceleration leverages the Venturi effect. The high-velocity gas strikes the turbine blades with enough force to spool the compressor wheel immediately, generating usable boost at just 1,200 to 1,500 RPM. For a boat captain navigating a tight marina or a truck owner pulling a 10,000-pound trailer from a dead stop, this translates to instant, usable torque.[1][6]

As the engine accelerates and exhaust volume multiplies, keeping the vanes closed would create massive backpressure, effectively choking the engine. To prevent this, the engine control unit commands the actuator to gradually open the vanes.[3][5]

In their fully open position, the vanes allow maximum exhaust flow to bypass the restriction, mimicking the high-flow characteristics of a large-frame turbocharger. The Drive highlighted this precise mechanical ballet in 2022, pointing readers to a visual demonstration to "learn how variable geometry turbos work with this 6-second video."[2]

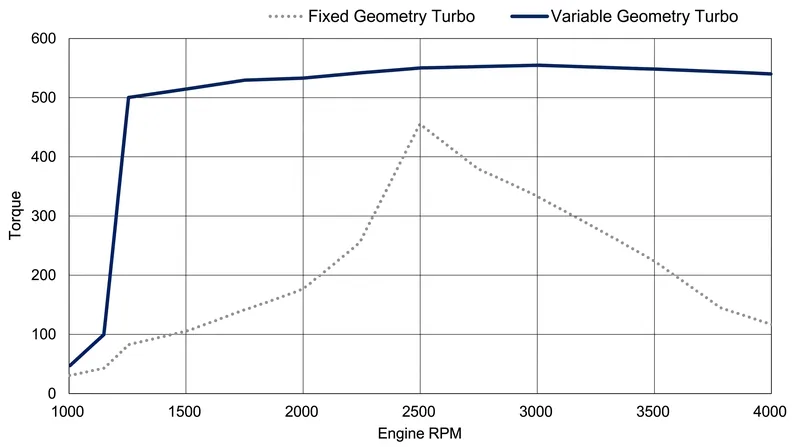

This dynamic adjustment fundamentally reshapes the vehicle's torque curve. Instead of a sharp peak that arrives late in the rev range, a VGT produces a broad, flat plateau of power. Protomotive, a performance tuning specialist, notes that this dual-nature capability makes VGTs highly desirable, though they require sophisticated tuning to balance the transition between the spooling and flowing phases.[4]

However, this mechanical complexity introduces specific vulnerabilities that owners must manage. The turbine housing is an incredibly hostile environment, subjected to extreme heat and continuous bombardment by exhaust particulates.[3]

Over time, soot and carbon can accumulate on the delicate vane mechanisms. Delphi emphasizes in its technical guidance that this carbon buildup is the primary cause of VGT failure, as it can cause the vanes to stick in one position. If the vanes stick closed, the engine suffers from extreme backpressure and overboosting at high RPM; if they stick open, the vehicle reverts to severe turbo lag.[3]

For heavy-duty applications, the stakes are even higher. ATL Diesel points out that in commercial trucking and marine environments, VGTs are subjected to thousands of hours of continuous load. Regular maintenance, including using high-quality synthetic oils and avoiding prolonged idling, is critical to keeping the actuator and vanes moving freely.[5]

Interestingly, while VGTs have dominated the diesel market for two decades, they remain rare in gasoline engines. Gasoline exhaust temperatures can exceed 1,800 degrees Fahrenheit—significantly hotter than diesel exhaust—which tends to warp or melt the movable vanes.[4][6]

Porsche remains one of the few manufacturers to successfully deploy VGTs in gasoline cars, utilizing aerospace-grade materials developed in partnership with BorgWarner to survive the thermal stress. For most consumer applications, however, the technology remains the defining feature of the modern diesel experience.[4]

The decision to maintain or upgrade a VGT-equipped engine requires acknowledging this mechanical reality. The system delivers unmatched drivability and efficiency, but demands strict adherence to oil change intervals and thermal management to protect its intricate internal geometry.[3][5]
