Water Wedge Pressure: How Speed, Tread Depth, and Tire Pressure Dictate the Onset of Hydroplaning

A fiberglass speedboat accelerating across a lake eventually climbs on top of its own bow wave, transitioning from pushing through the water to skimming over it. This hydrodynamic lift is exactly what marine engineers want—it slashes drag and unlocks high-speed cruising. But when a 4,000-pound passenger vehicle performs the exact same physical feat on a rain-soaked interstate, the result is catastrophic. The difference is that a boat steers with a submerged rudder, while a car relies entirely on the friction between four palm-sized patches of rubber and the asphalt.[7]

For the everyday commuter or the fleet operator managing maintenance costs, hydroplaning is often treated as an unpredictable act of nature. In reality, it is a strict mathematical threshold dictated by three variables a driver controls: vehicle speed, tire pressure, and tread depth. When the fluid pressure of standing water exceeds the downward force of the tire, a wedge of water physically lifts the rubber off the road.[7]

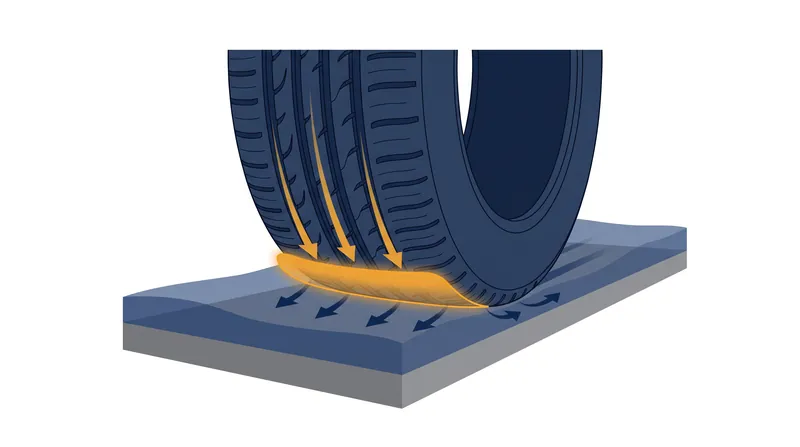

The mechanics of this separation are rooted in fluid dynamics. According to research published by the American Society of Mechanical Engineers, when a tire rolls through standing water, the tread blocks must squeeze the fluid into the tire's longitudinal grooves and expel it out the sides. If the volume of water exceeds the void capacity of those grooves, a hydrodynamic wedge forms at the leading edge of the contact patch.[1]

At lower speeds, this wedge only slightly reduces the contact area—a state known as partial hydroplaning. But as speed increases, the water wedge drives deeper under the tire. Testing by the Transportation Research Board demonstrates that total hydroplaning occurs when the upward fluid pressure entirely overcomes the vehicle's vertical load, reducing the friction coefficient to near zero and eliminating the driver's ability to steer or brake.[5]

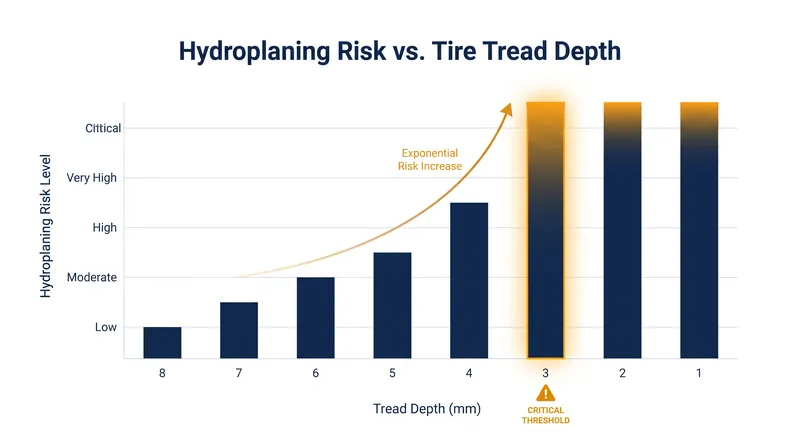

The most critical defense against this water wedge is tread depth, which acts as the tire's physical drainage system. New passenger tires typically begin with 10/32 to 11/32 of an inch of tread. As the rubber wears down, the physical volume available to channel water shrinks. A 2025 study in MDPI utilizing intelligent tire sensors found that tires with 7 millimeters of tread experienced shallow hydroplaning, where risk scaled linearly with speed. Conversely, tires worn down to 3 millimeters entered deep hydroplaning, where the water wedge caused the risk to multiply exponentially.[2]

Despite the physics, millions of vehicles operate past the safe threshold. During the 2026 National Tire Safety Week, nationwide inspection data compiled by Anyline revealed that 15% of tires on U.S. roads measured below 3/32 of an inch. As the company noted in its July report, "worn tires are among the most preventable causes of road accidents in the United States, yet tread depth degrades gradually and rarely announces itself." At this depth, wet braking distances increase dramatically, and the tire's ability to resist a water wedge is severely compromised. For a driver deciding whether to stretch a set of tires through one more season, that 15% figure represents a tangible daily risk.[3]

Beyond tread depth, tire inflation plays a surprisingly dominant role in hydroplaning onset. When a tire is underinflated, the center of the tread deflects inward, creating a concave shape. This hollow center traps water rather than expelling it, allowing a thick water wedge to build up instantly. Commercial trucking safety guidelines from Blue Ink Tech emphasize that even a fully loaded semi-truck can hydroplane if its tires are underinflated, as the altered contact patch fails to pierce the water film.[4]

The final variable is speed, which dictates the intake flow rate of the water. Tire Discounters notes that depending on water depth and tire condition, hydroplaning can initiate at speeds as low as 35 mph. The faster the vehicle travels, the less time the tread has to evacuate the water. If a driver hits a 0.1-inch pool of water at 65 mph, the tire must displace gallons of water per second—a physical impossibility for a worn tire.[6]

While the physics of the water wedge are well understood in straight-line braking, cornering dynamics introduce significant uncertainty. Current intelligent tire testing primarily measures longitudinal slip, leaving a gap in real-time data for how lateral forces alter the water wedge during a curve. Additionally, the exact impact of varying asphalt macrotextures—how porous the actual road surface is—remains difficult to standardize across different municipalities.[2][7]

For the vehicle owner, the physics of hydroplaning dictate a clear maintenance mandate. Relying on the legal minimum tread depth of 2/32 of an inch leaves virtually no safety margin in heavy rain. Replacing tires at 4/32 of an inch, maintaining the manufacturer's recommended tire pressure, and reducing speed during downpours are the only proven methods to keep the rubber on the road and the water wedge at bay.[3][6]
