The Compression Ratio and the Gamma Term: How the Otto Cycle Defines the Maximum Theoretical Efficiency of a Gasoline Engine

At the exact moment a piston reaches top dead center, before the spark plug even fires, the maximum possible efficiency of a gasoline engine has already been mathematically capped. This boundary is defined by the Otto cycle, the thermodynamic model that has governed spark-ignition engines since Nicolaus Otto built the first practical four-stroke engine in 1876. The critical variable is not the size of the explosion, but the state of the air-fuel mixture right before it ignites. By squeezing the intake charge into the smallest possible volume, the engine dictates how much mechanical work can be extracted during the subsequent expansion stroke.[1][5]

The mathematical ceiling for this efficiency relies on two specific parameters: the compression ratio and the specific heat ratio, commonly known as the gamma term. The compression ratio is simply the physical geometry of the cylinder—the total volume when the piston is at the bottom of its stroke divided by the clearance volume when it reaches the top. A modern commuter car might run a 10:1 ratio, meaning the mixture is compressed to one-tenth its original size before ignition.[3]

The gamma term, however, is a fundamental property of the gas itself. It represents the ratio of specific heat at constant pressure to specific heat at constant volume. For pure ambient air, this value is approximately 1.4. In a real engine, the presence of vaporized fuel and exhaust gases lowers this slightly to around 1.3. The Otto cycle efficiency formula—one minus the inverse of the compression ratio raised to the power of gamma minus one—shows that both a higher compression ratio and a higher gamma term will increase the theoretical efficiency limit.[3][5]

"It is a very useful conclusion because it is desirable to achieve a high compression ratio to extract more mechanical energy from a given mass of the air-fuel mixture," notes the engineering reference Nuclear Power. When the mixture is squeezed tighter, the subsequent combustion temperature and pressure spike higher. This allows the expanding gases to push down on the piston with greater force over a longer effective distance, converting more thermal energy into rotational force at the crankshaft.[3]

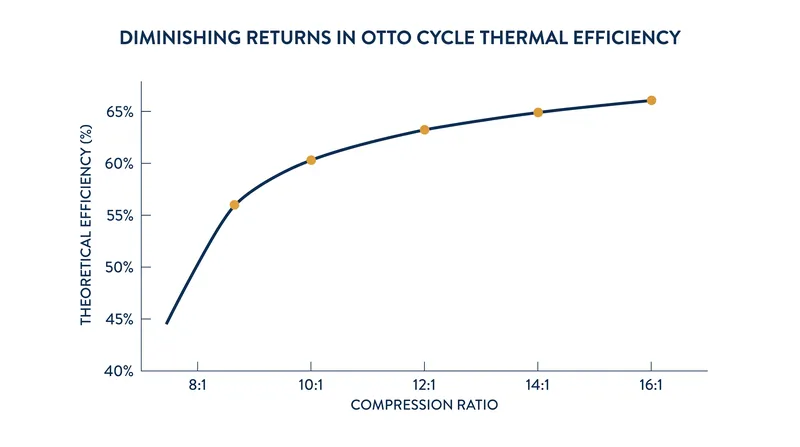

But physics enforces a strict law of diminishing returns on this geometry. Moving from a low compression ratio of 8:1 to 10:1 yields a significant jump in theoretical efficiency. However, pushing from 10:1 to 14:1—a massive engineering challenge requiring stronger internals and precise thermal management—only nets a marginal theoretical gain. The curve flattens out, meaning automakers spend exponentially more research and development capital for progressively smaller efficiency improvements.[6][7]

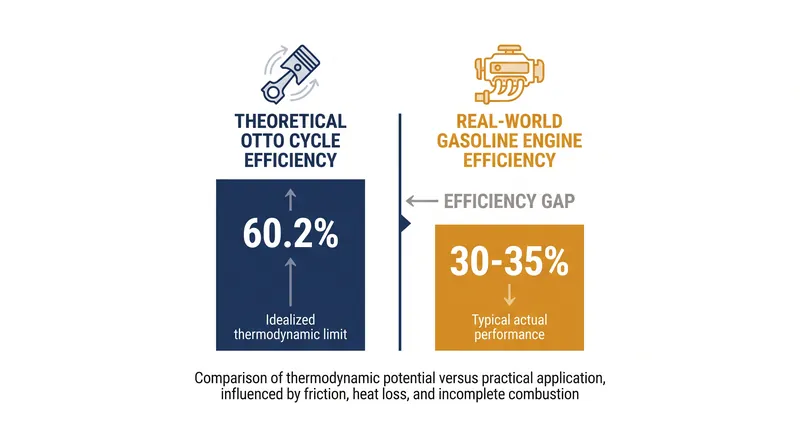

Furthermore, the theoretical Otto cycle assumes an ideal world: no friction against the cylinder walls, no heat lost to the engine block, and instantaneous combustion. In reality, a gasoline engine operating at a 10:1 compression ratio with a gamma of 1.4 has a theoretical maximum efficiency of 60.2 percent. Real-world thermal efficiencies for passenger cars in 2026 hover between 30 and 35 percent. More than half the energy is lost to the radiator, the exhaust pipe, and the mechanical drag of the rotating assembly.[2][3]

The absolute limiting factor for raising the compression ratio in a gasoline engine is engine knock, or pre-ignition. If the mixture is compressed too tightly, the sheer heat of compression causes the fuel to ignite before the spark plug fires. This uncontrolled detonation creates massive cylinder pressure spikes that can destroy a piston in seconds. To prevent this, high-compression engines require higher-octane fuel, which is chemically formulated to resist auto-ignition under extreme pressure.[1][4]

This thermal limitation is exactly why the Diesel cycle, which compresses only pure air and injects fuel later, can safely run compression ratios of 16:1 to 23:1 without knocking. While the Otto cycle is theoretically more efficient than the Diesel cycle at the exact same compression ratio, diesel engines achieve higher real-world efficiency—often 40 to 45 percent—simply because they can operate at much higher compression ratios without destroying themselves.[2][5]

As automakers squeeze the final drops of efficiency out of internal combustion engines, the Otto cycle remains the immovable mathematical ceiling. For a car buyer in 2026 comparing engine specs, a higher compression ratio signals an engine designed to extract maximum range from every gallon of gas—but often at the cost of requiring premium, high-octane fuel to prevent knock. Variable compression engines and advanced sensors are simply modern attempts to ride as close to that theoretical limit as possible. The geometry of the cylinder dictates the rules, and the consumer ultimately pays for the balance between efficiency and fuel costs.[6]
