How Heat Pump Architecture Recovers 20% of Electric Vehicle Range in Freezing Temperatures

At 20 degrees Fahrenheit, a traditional automotive cabin heater draws roughly 3,000 to 4,000 watts of continuous power just to keep the driver from shivering. In a combustion vehicle, that energy is scavenged for free from the engine's waste heat. In an electric vehicle relying on a legacy Positive Temperature Coefficient (PTC) resistive heater, every one of those watts is pulled directly from the high-voltage battery, cannibalizing the energy meant to turn the wheels.[6]

The consequence of that direct draw was quantified starkly in a benchmark study by the American Automobile Association (AAA). Testing EVs on a dynamometer in a 20-degree climate chamber, AAA found that cold weather combined with HVAC use slashed driving range by 39%. For a driver commuting from a suburb into a winter-battered city, a vehicle rated for 250 miles suddenly offered just 152 miles, fundamentally altering the math of their daily transit.[5]

Greg Brannon, AAA's director of automotive engineering, noted the behavioral shift required, stating that "as long as drivers understand that there are limitations when operating electric vehicles in more extreme climates, they are less likely to be caught off guard by an unexpected drop in driving range." But while driver education is necessary, automakers recognized that a 39% penalty was a structural barrier to mass adoption in northern climates.[5]

The engineering solution was not to pack more lithium-ion cells into the floorboard, but to change how the cabin is warmed. By integrating reversible heat pumps—a technology long used in residential HVAC systems—manufacturers found a way to heat the cabin without generating heat from scratch. Instead of passing current through a resistor, a heat pump compresses a refrigerant to absorb ambient thermal energy from outside the car, even in freezing temperatures, and moves it inside.[3]

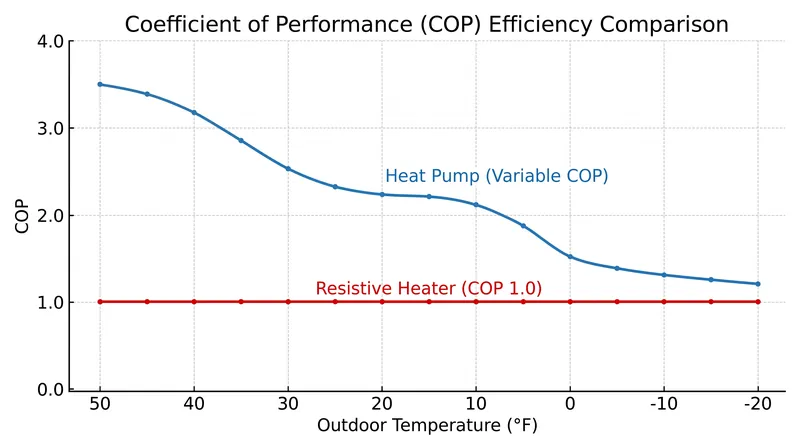

The efficiency gains are absolute. Where a PTC heater operates at a maximum efficiency of 100%—turning one kilowatt of electricity into one kilowatt of heat—a modern automotive heat pump can achieve a Coefficient of Performance (COP) of 3.0 or higher. It uses one kilowatt of electricity to move three kilowatts of thermal energy, cutting the HVAC system's battery drain by up to two-thirds.[6]

That mechanical advantage translates directly to the dashboard display. Telemetry data gathered by Recurrent, which analyzed thousands of connected vehicles across the United States, reveals a vastly different winter reality than the legacy AAA baseline. The firm's research shows that the average modern EV now retains 80% of its rated range in freezing conditions.[1][4]

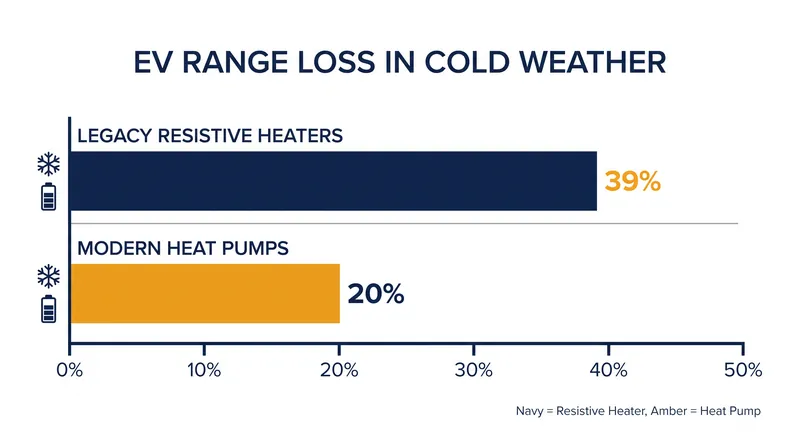

This 20% real-world degradation represents a halving of the historical cold-weather penalty. For the prospective buyer cross-shopping a crossover in a snowy market, the presence of a heat pump is no longer a luxury line item; it is the definitive hardware that dictates whether a vehicle can comfortably complete a round-trip winter commute without a mid-day charging stop.[4]

The transition is accelerating across the industry. While early adopters like Nissan integrated basic heat pumps into the Leaf over a decade ago, the systems have now become highly sophisticated thermal management hubs. Modern architectures, such as those analyzed by the National Renewable Energy Laboratory (NREL) in 2024, can scavenge waste heat not just from the outside air, but from the vehicle's own battery pack and electric motors.[2][3]

By routing coolant loops through the drivetrain, these advanced systems capture the thermal byproduct of acceleration and fast-charging, redirecting it into the cabin. This closed-loop thermal scavenging means that once the vehicle is moving, the energy required to maintain a 70-degree cabin temperature drops to a fraction of a kilowatt.[2]

Yet, the technology is not a universal panacea. At extreme temperatures—typically below -10 degrees Fahrenheit—the ambient air contains so little thermal energy that a heat pump's efficiency plummets. In these deep-freeze scenarios, the system must rely on a backup resistive heater to bridge the gap, temporarily returning the vehicle to the higher power draw of legacy architectures.[6]

Despite this limitation, the widespread adoption of heat pumps marks a maturation of electric vehicle engineering. The focus has shifted from simply building larger batteries to maximizing the yield of the energy already on board. For the everyday owner, it means the dashboard range estimate in January is finally beginning to resemble the one they see in June.[7]
