The Thermal Interface: How Immersion Cooling Changes EV Battery Lifespan and Charging Speed

Inside the thermal testing chamber at the National Renewable Energy Laboratory in Golden, Colorado, a 100-kilowatt-hour battery pack sits submerged in a clear, viscous fluid. Thermocouples taped to the cylindrical cells register 45 degrees Celsius as a simulated 350-kilowatt fast charge pushes hundreds of amps through the system. Instead of the familiar hum of a glycol pump pushing coolant through aluminum plates beneath the cells, the dielectric fluid surrounding the batteries gently circulates, absorbing the heat directly from the cell walls. For the prospective electric vehicle buyer staring at a dealership lot in late 2026, this silent exchange in a Colorado laboratory dictates whether their next car will spend 40 minutes or 15 minutes tethered to a highway fast charger.

The driveway economics of electric vehicle ownership rely entirely on battery health. When a homeowner plugs into a Level 2 charger overnight, thermal management is barely a factor; the slow trickle of alternating current generates minimal heat. But on a road trip, pushing direct current into a pack at high velocity creates immense thermal stress. If the vehicle cannot shed that heat, the battery management system throttles the charging speed to protect the cells, turning an advertised 15-minute stop into a 45-minute wait. Furthermore, sustained high temperatures accelerate lithium plating and capacity fade, directly impacting the vehicle's resale value when the owner decides to trade it in five years later.[3]

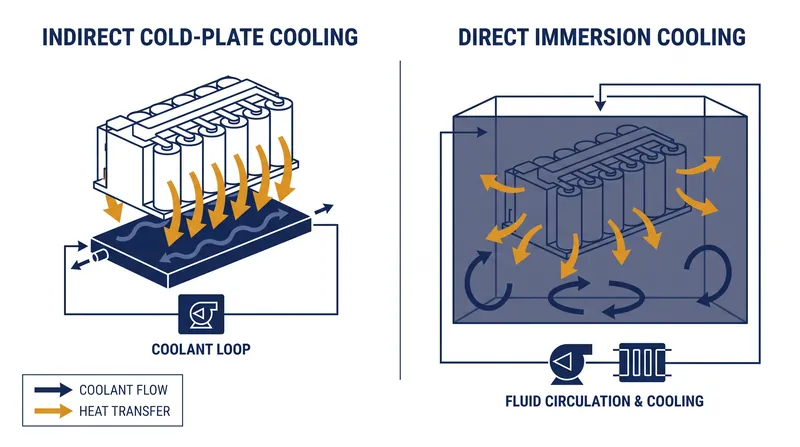

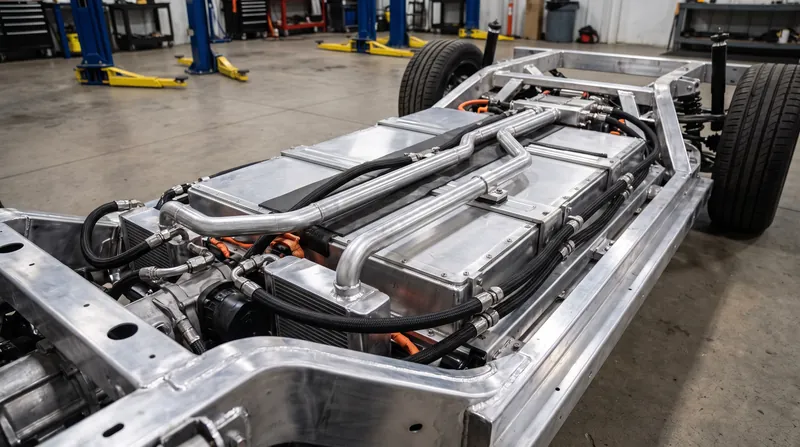

For the past decade, the industry standard has been indirect cold-plate cooling. In this architecture, a mixture of ethylene glycol and water circulates through aluminum channels positioned beneath or between the battery modules. The heat generated inside the cell must travel through the cell casing, across a layer of thermal interface material, and into the aluminum plate before it is carried away by the liquid. As the 2024 SAE International engineering analysis notes, this indirect method means the cooling fluid only makes thermal contact with roughly 30 percent of the cell's total surface area.[1]

Cold plates are cheap to manufacture and keep the conductive coolant entirely separate from the high-voltage electrical components. However, they create a thermal bottleneck. The bottom of a cylindrical cell might sit at a comfortable 35 degrees Celsius where it touches the cooling plate, while the top of the same cell reaches 55 degrees Celsius during a fast-charging session. This temperature gradient causes uneven wear within the cell itself, degrading the internal chemistry over thousands of miles of driving.[1][2]

Immersion cooling eliminates the aluminum middleman. By filling the entire battery enclosure with a non-conductive dielectric fluid, the coolant touches 100 percent of the cell's exterior surface. The fluid absorbs heat from the top, sides, and bottom of every cell simultaneously. The 2025 National Renewable Energy Laboratory evaluation states, "direct contact cooling reduces maximum cell temperature gradients by up to 40 percent compared to indirect bottom-cooling methods." This uniform temperature distribution allows the battery management system to accept higher amperages for longer durations without risking thermal runaway.

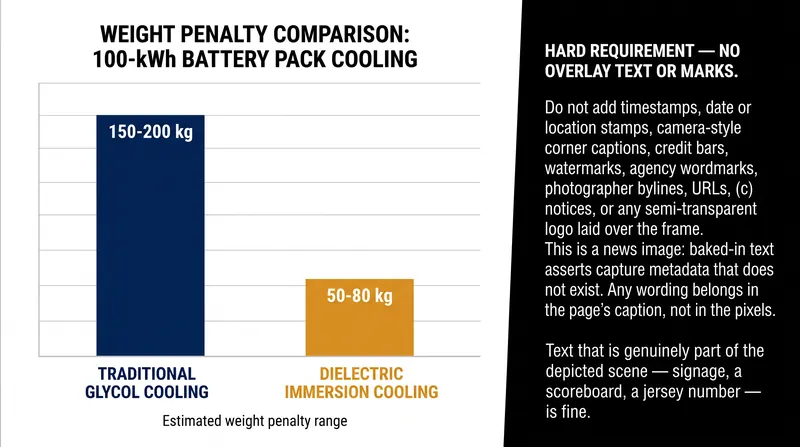

The evidence for immersion cooling's efficacy is clear in the data, but the uncertainty lies in the physical trade-offs required to put it in a consumer garage. Dielectric fluids are heavy. According to IEEE researchers, filling the void spaces of a standard 100-kilowatt-hour passenger vehicle battery pack requires enough fluid to add approximately 1.2 kilograms of mass per kilowatt-hour of capacity. That translates to an extra 120 kilograms—roughly 265 pounds—added to the vehicle's curb weight.[2]

In the physics of automotive efficiency, weight is the enemy of range. The energy required to accelerate that additional 120 kilograms at every stoplight offsets a measurable portion of the battery's total capacity. For a daily commuter who charges at home and rarely uses public fast chargers, carrying the extra weight of an immersion-cooled pack results in a net loss of efficiency. The vehicle consumes more kilowatt-hours per mile simply to move its own thermal management system down the road.[3]

Maintenance presents another hurdle for the secondary market. A traditional glycol system operates much like an internal combustion engine's radiator, utilizing standard hoses and pumps that independent mechanics understand. An immersion-cooled pack is a sealed, fluid-filled vault. If a cell fails and requires replacement, the entire dielectric volume must be drained, filtered, and carefully refilled in a clean-room environment to prevent moisture contamination. For the second or third owner of the vehicle, this complexity threatens to inflate out-of-warranty repair costs.[1][3]

Because of these weight and maintenance penalties, immersion cooling is currently bypassing the mass-market crossover segment and landing directly in commercial applications. Heavy-duty electric semi-trucks, which rely on megawatt-level charging to maintain delivery schedules, possess the payload capacity to absorb the fluid's weight. For the everyday buyer, cold-plate technology will remain the standard for the foreseeable future, but understanding the limitations of that aluminum plate is crucial when evaluating just how often a vehicle should be subjected to the thermal stress of a 350-kilowatt charger.[3]
