Entering Tunnels Above 250 km/h Compresses Air Into Shockwaves: Why High-Speed Trains Use Slender Noses

Engineers designing high-speed rail face a physical constraint that dictates the entire geometry of the train. When a train enters a tunnel at 320 km/h, the air ahead of it cannot simply move out of the way, forcing a radical aerodynamic response.[3]

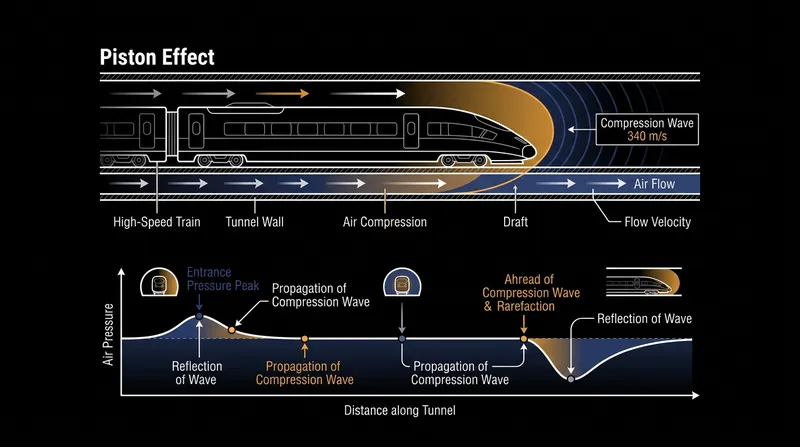

The tunnel walls restrict the lateral escape of air, forcing the train to act like a mechanical piston in a cylinder. This phenomenon, known as the piston effect, fundamentally changes how air behaves in a confined space compared to the open atmosphere.[3]

In open air, a train pushes the atmosphere aside, creating a flowing slipstream. Inside a tunnel, the blockage ratio—the cross-sectional area of the train compared to the tunnel—means the displaced air has nowhere to go but directly forward along the tracks.[3]

Instead of flowing smoothly around the train, the air is violently compressed. This sudden compression generates an initial pressure wave that propagates down the tunnel at the speed of sound, traveling at roughly 340 meters per second ahead of the train.

The Anatomy of a Tunnel Boom

Because the compression wave travels at Mach 1, it easily outpaces the train itself, racing ahead through the confined space of the tunnel. As it travels, the wave can actually steepen and intensify, gathering acoustic energy as it moves toward the exit.

This steepening effect is particularly pronounced in modern slab-track tunnels. Unlike older ballasted tracks, which feature loose stones that absorb some acoustic energy, smooth concrete slabs reflect the wave, allowing the pressure gradient to sharpen significantly over long distances.

When this high-pressure wave reaches the tunnel exit, it suddenly expands into the open atmosphere. This rapid expansion radiates a micro-pressure wave, which nearby residents experience as a loud, explosive sonic boom that can echo for kilometers across the surrounding landscape.[3]

The magnitude of this tunnel boom is not a linear problem. The strength of the micro-pressure wave is proportional to the cube of the train's speed, meaning even a small increase in velocity creates a massive, exponential increase in acoustic energy.[3]

In extreme cases, these shockwaves can exceed 140 decibels, rattling windows, disturbing wildlife, and even causing structural damage to the tunnel portals. For operators, mitigating this noise is a strict regulatory requirement, not merely an optional comfort feature for the surrounding communities.[4]

The Passenger Experience

The piston effect does not just threaten trackside communities; it directly impacts the people riding inside the train. As the compression wave bounces back and forth between the tunnel portals, it creates severe pressure fluctuations that penetrate the passenger cabin.

These sudden pressure changes can cause significant aural discomfort for passengers. The pressure imbalance between the inner and outer ear exerts a physical force on the eardrum, forcing passengers to swallow or yawn to manually equalize the pressure in their heads.

"This is why you have to yawn or swallow to equalize the pressure across your eardrum," explains engineering firm ENGYS. "The 'pop' you hear is your eardrum returning to its original position as the pressure stabilizes inside the moving cabin."

To protect passengers, modern high-speed trains are built with hermetically sealed cabins. Active pressure control systems constantly monitor the external environment and adjust the internal cabin pressure to smooth out the sudden aerodynamic spikes caused by high-speed tunnel entry.

Why Noses Got So Long

To prevent explosive portal booms, engineers cannot simply slow the trains down and compromise the schedule. Instead, they must fundamentally alter how the air is initially compressed when the train enters the tunnel, changing the shape of the wave itself.[1]

The critical metric is the pressure gradient, measured in kilopascals per second. A blunt train nose creates a sudden, steep pressure gradient, which translates directly into a louder sonic boom at the exit as the compressed air violently escapes the tunnel.[4]

By elongating the nose of the train, engineers spread the aerodynamic displacement over a longer distance and a longer period of time. This gradual compression flattens the initial pressure wave, significantly reducing the peak gradient before it can steepen into a shockwave.[1][4]

This is why modern high-speed trains feature such distinctive, slender profiles. The elongated nose acts as an aerodynamic buffer, gently pushing the air aside rather than slamming into it like a flat wall, preserving the acoustic integrity of the surrounding environment.[1]

Japanese engineers famously looked to nature for the solution. The kingfisher bird dives into water with barely a splash, thanks to a long, tapered beak that gradually displaces the fluid—a principle directly applied to the aerodynamic design of the Shinkansen.[4]

The Geometric Cost of Speed

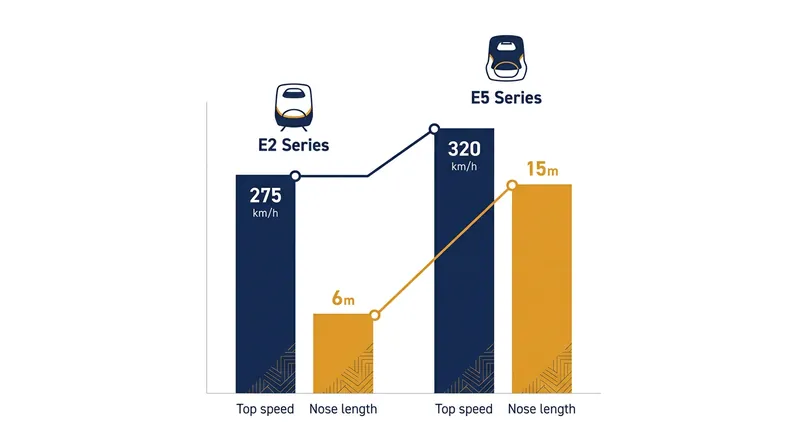

The evolution of Japan's Shinkansen network perfectly illustrates this geometric penalty. The E2 Series, which operated at a top speed of 275 km/h, required a nose length of just 6 meters to successfully meet the country's strict acoustic emission regulations.[1][5]

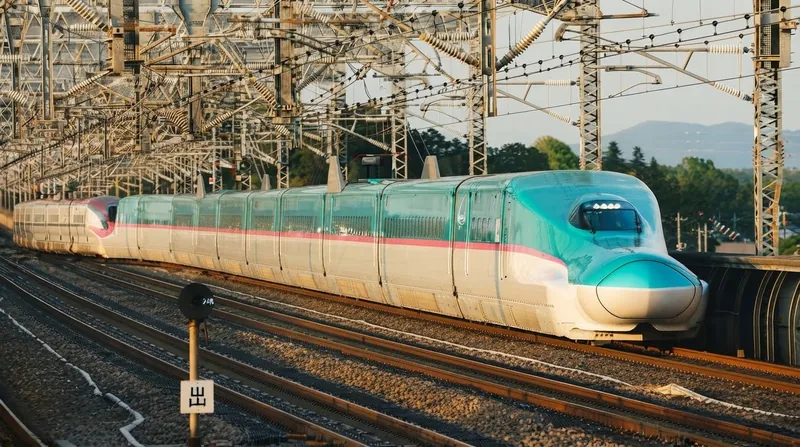

When engineers designed the E5 Series to run at 320 km/h, the cubic-law amplification of the micro-pressure wave forced a radical redesign. To achieve that 16.3 percent increase in speed, the nose had to be extended to a massive 15 meters.[1][5]

This 150 percent increase in aerodynamic displacement volume proves that acoustic constraints dictate modern train geometry. The long nose is not primarily designed to reduce aerodynamic drag in open air; it exists almost entirely to silence the tunnel boom at high speeds.[1][5]

"The shape of the front car has evolved gradually to combat this phenomenon, and the striking 'Long Nose' design of the E5 Series is the result of many experiments in limiting the boom," notes Web Japan in its technical review.[1]

Infrastructure and Active Mitigation

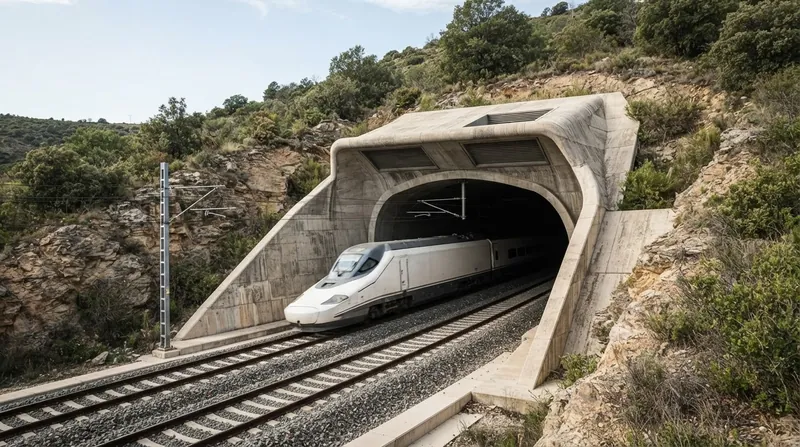

While train geometry is the primary defense against micro-pressure waves, infrastructure also plays a crucial role. Many high-speed rail networks install flared tunnel entrance hoods to further dissipate the initial compression wave before it can travel down the concrete shaft.

These hoods act like a reverse megaphone, gradually transitioning the train from open air into the confined tunnel environment. Britain's HS2 project uses tapered hoods to limit pressure gradients to between 8 and 15 kilopascals per second, ensuring acoustic compliance.[4]

Keeping the gradient well below the 40 kilopascals per second threshold ensures that passengers do not experience painful ear popping and that trackside communities are not subjected to explosive noise as the trains pass through their local neighborhoods.[4]

As rail networks push toward 600 km/h maglev operations, the piston effect becomes even more severe. Engineers are now testing inner arch lattice-shell structures and porous media coatings to absorb the acoustic energy before it ever reaches the tunnel exit.[2][4]

These advanced tunnel coatings increase the acoustic friction, transforming the sharp micro-pressure wave into a longer, gentler pulse. By combining elongated train noses with smart infrastructure, engineers can keep pushing the boundaries of speed without shattering the silence of the surrounding communities.[2]
