How Fail-Safe Track Circuits Use Energized Relays to Prevent Railway Disasters

By turning the steel rails into active electrical conductors, fail-safe track circuits use a train's own mass to short-circuit a relay and trigger a stop signal. This 150-year-old closed-loop design ensures that any broken rail, severed wire, or power loss automatically halts traffic before a catastrophic derailment can occur.

By Tao Yang

In short

  • Track circuits use the steel rails as active electrical conductors to continuously power a relay, which holds the wayside signal at green.
  • When a train's steel wheels enter the section, they short-circuit the current away from the relay, causing it to drop and turn the signal red.
  • Because the system requires an unbroken electrical loop, a snapped rail or severed wire automatically starves the relay, safely halting trains before they reach the defect.

A broken wire should stop a train, but stopping a train for every minor electrical glitch paralyzes an entire transit network. Railway engineers face an impossible mandate: build a system that moves thousands of tons of steel at high speeds without interruption, yet instantly halts everything if a single component fails.[5]

The tension between operational efficiency and absolute safety defines modern rail transport. Commuters demand trains that run on time, while regulators demand systems that never fail dangerously. The solution to this engineering paradox is not a complex modern computer, but a 150-year-old electrical loop that uses the train's own mass against it.[5]

This mechanism is known as the fail-safe track circuit. Invented by William Robinson in 1872, it remains the foundational technology keeping passenger and freight trains from colliding. By turning the steel rails themselves into active electrical conductors, the system continuously monitors both the presence of a train and the physical integrity of the track.[2]

The Closed-Loop Principle

To understand how a track circuit protects a train, one must look at the electrical state of an empty railway line. A low-voltage direct current power source is connected to the rails at one end of a designated track section, known as a block. At the opposite end of this block sits an electromagnetic relay.[2][5]

The current flows down one rail, passes through the relay coil, and returns via the opposite rail to complete the circuit. As long as this current flows uninterrupted, the relay remains electrically energized. This energized state magnetically holds a set of contacts closed, which in turn commands the wayside signal to display a green, clear aspect.[2][5]

This closed-loop architecture is the essence of fail-safe engineering. The system requires continuous, active electrical effort just to permit a train to move. If the energy stops flowing for any reason, gravity or a mechanical spring pulls the relay contacts apart, instantly dropping the signal to its most restrictive red aspect.[5]

The 0.06-Ohm Short Circuit

When a locomotive weighing 200 tons enters the block, it dramatically alters the electrical landscape. The train's solid steel wheels and thick steel axles bridge the gap between the two running rails. This creates a new electrical path that is significantly easier for the current to traverse than the distant relay coil.[2]

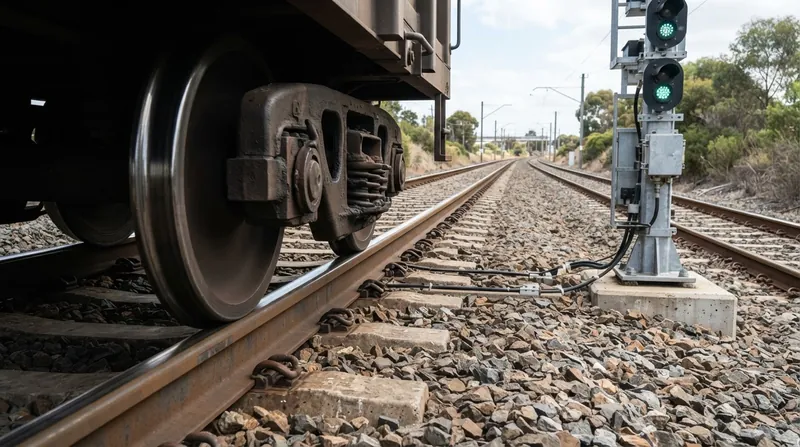

Illustration: A train's steel wheels and axles create a massive short circuit, starving the relay of current and turning the signal red.

In electrical engineering terms, the train acts as a massive short circuit, or "shunt." The current immediately takes this path of least resistance, flowing through the train's axles and bypassing the relay entirely. Starved of its necessary electrical current, the relay de-energizes and drops its contacts.[5]

The Federal Railroad Administration strictly regulates this shunting mechanism to ensure absolute reliability. Under 49 CFR 236.56, the agency mandates that the track relay must drop to its restrictive state when a shunt of just 0.06 ohms of resistance is placed across the rails. This microscopic resistance threshold guarantees that even a lightweight railcar will trigger the system.[1]

"Track circuits operate on a fail-safe principle," notes a 2024 technical briefing from RSP Rail, a British signaling consultancy. "Any electrical short-circuit between the rails, whether caused by a train or not, or any disconnection within the circuit, will cause the track circuit to 'fail' and inform the signalling system that the track is occupied."

Detecting Broken Rails and Severed Wires

The true genius of Robinson's 1872 invention lies not in detecting trains, but in detecting what cannot be seen. Because the rails themselves carry the vital current, any physical break in the steel immediately interrupts the circuit. A rail that snaps under the stress of a harsh winter freeze will stop the current just as effectively as a switched-off battery.[2][5]

When the rail breaks, the relay at the end of the block loses its power and drops away. The approaching train encounters a red signal long before it reaches the dangerous fracture. This continuous physical monitoring prevents catastrophic derailments that would otherwise occur if a train hit a severed track at 60 miles per hour.[2]

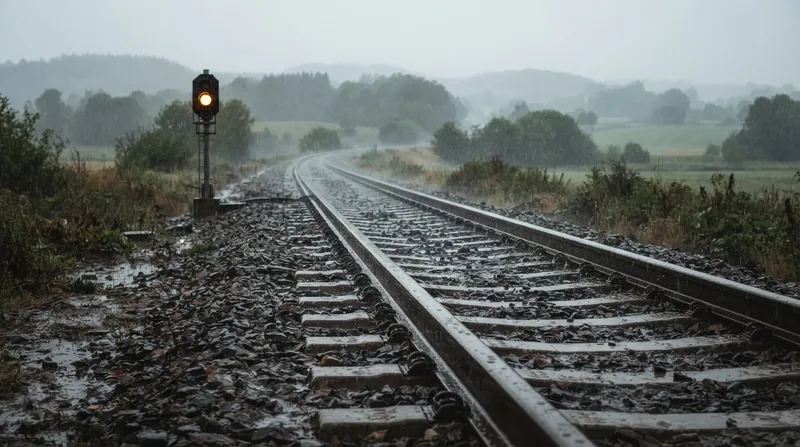

Illustration: Heavy rain and mud can lower ballast resistance, causing the track current to leak into the ground and trigger a safe but disruptive stop signal.

The same protection applies to the signaling infrastructure itself. If a copper wire connecting the battery to the rail is severed by vandals, or if the power grid fails entirely, the relay de-energizes. The system does not need a backup power supply to warn the engineer; the lack of power is itself the warning.[5]

The Ballast Resistance Battle

Maintaining this delicate electrical balance in an outdoor environment presents a constant battle for railway maintenance crews. The two steel rails must remain electrically isolated from each other when no train is present. The crushed rock roadbed, known as ballast, and the wooden or concrete ties serve as the primary insulators.[3][5]

However, environmental factors constantly threaten this insulation. Heavy rain, accumulated mud, or spilled metallic dust can create conductive paths through the wet ballast. This allows the track current to leak from one rail to the other before it ever reaches the relay, mimicking the short-circuit effect of a train.[3]

Military and industrial track maintenance standards, such as the Department of Defense's UFC 4-860-03, require a minimum ballast resistance of 2.0 ohms per 1,000 feet of track. If the resistance falls below this threshold, the circuit becomes unstable. The current bleeds into the earth, the relay drops, and the signal turns red despite the track being completely empty.[3]

This dynamic reveals the precise mathematical margin of safety engineered into the network. By comparing the federal 0.06-ohm maximum axle shunt against the 2.0-ohm minimum ballast resistance, it becomes clear that the system relies on a 33-to-1 resistance differential. The train must provide a path at least 33 times more conductive than the wet ground.[1][3][5]

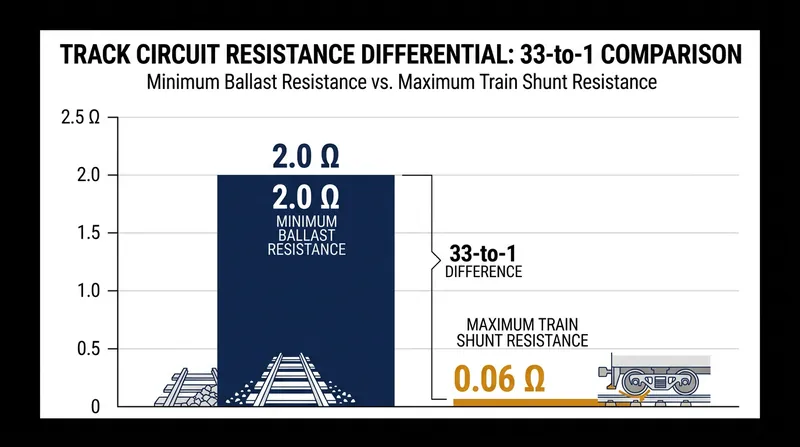

The fail-safe margin relies on the train providing a significantly easier electrical path than the surrounding ground.

When severe weather narrows this 33-to-1 ratio, the track circuit inherently defaults to a stop signal. This phenomenon, known as a "false occupied" or "right-side failure," frustrates commuters by delaying trains. Yet, it proves the fail-safe mandate is working: the system prioritizes network paralysis over the catastrophic risk of a false clear signal.[5]

Modern Alternatives and Limitations

As railway networks push for higher capacities and speeds, some transit agencies are supplementing or replacing traditional track circuits with axle counters. These digital systems use trackside sensors to physically count the number of wheels entering and exiting a block. If the numbers match, the block is declared clear.[4]

Axle counters offer significant operational advantages in harsh environments. Because they do not rely on the rails to conduct electricity, they are completely immune to flooded ballast, heavy rust, or poor wheel shunting. A 2025 review by the International Union of Railways noted that axle counters drastically reduce the false-occupied delays that plague traditional circuits.[4]

However, axle counters introduce a critical safety trade-off. "Axle counters cannot detect broken rails at all," the RSP Rail analysis explicitly warns. Because they only monitor the entry and exit points of a block, a rail could shatter in the middle of the section and the axle counter would still report the track as safe for the next train.

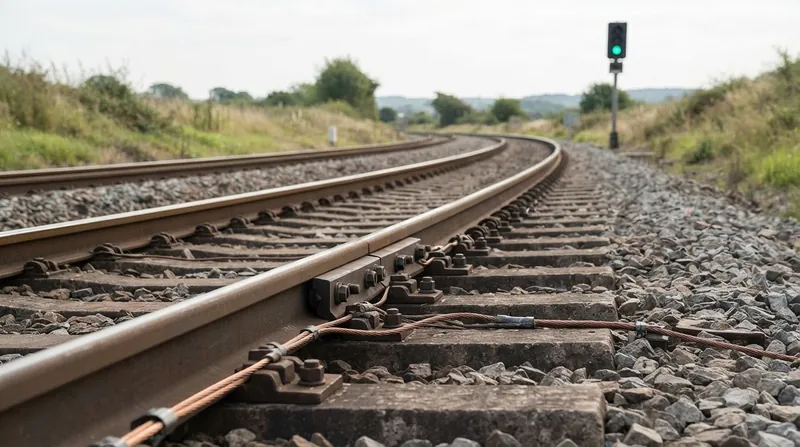

Illustration: Axle counters are immune to poor ballast conditions, but unlike track circuits, they cannot detect a broken rail.

For this reason, the 150-year-old track circuit remains the gold standard for mainline railway safety across the globe. Siemens Mobility and other major signaling manufacturers continue to produce advanced audio-frequency track circuits that overlay digital codes onto the rails, combining modern data transmission with the undeniable physical proof of an intact steel rail.

The fail-safe track circuit endures because it aligns the laws of physics with the mandate for human safety. It does not ask a computer algorithm to decide if the track is intact; it forces the track to prove its own physical integrity every single second. Until a digital system can definitively detect a microscopic fracture in a steel rail from miles away, the energized relay will remain the final word on whether a train is cleared to proceed.[5]

How we did this

Method
Normalizing the Federal Railroad Administration's maximum allowable axle shunt resistance against the military and AREMA minimum ballast resistance standards to compute the operational safety margin of a standard DC track circuit.
What we found
A standard track circuit relies on a minimum 33-to-1 resistance differential between the ground and the train. When environmental flooding or degraded ballast narrows this ratio, the system inherently starves the relay of current and triggers a 'false occupied' stop signal, prioritizing network paralysis over a potential false clear.
What we worked from
Limits of this analysis
This ratio applies to traditional steady-energy DC track circuits and does not account for audio-frequency overlay circuits or axle-counter systems that do not rely on rail resistance.

Key terms

Block
A defined section of railway track governed by a signal, which only one train may occupy at a time.
Relay
An electromagnetic switch that uses a low-power electrical current to mechanically open or close a set of contacts.
Shunt
A highly conductive electrical path—such as a train's steel axle—that allows current to bypass a component with higher resistance.
Ballast
The crushed rock roadbed packed beneath and around railway ties to provide structural stability and electrical drainage.
Fail-Safe
An engineering design principle ensuring that any component failure, power loss, or wire break automatically results in the safest possible state.
Right-Side Failure
A system malfunction that causes a safe but restrictive outcome, such as a red signal appearing when the track is actually empty.

Frequently asked

Can a rusty rail prevent the track circuit from detecting a train?

Yes. Heavy rust acts as an electrical insulator. If a train rarely uses a branch line, the rust can prevent the wheels from making a clean 0.06-ohm electrical connection, potentially leaving the relay energized and displaying a false clear signal.

How does the system handle electrified railways where the rails carry traction power?

Engineers use impedance bonds and specialized alternating current (AC) track circuits. These systems are tuned to specific audio frequencies, allowing the signaling relays to ignore the massive direct current (DC) used to power the locomotive.

What happens if lightning strikes the rails?

Track circuits are equipped with heavy-duty surge protectors and spark gaps. While a massive strike might destroy the relay or blow a fuse, this physical damage breaks the circuit, ensuring the system still fails to a safe, red-signal state.

Do track circuits work on wooden and concrete ties equally well?

Concrete ties naturally conduct more electricity than dry wood, which lowers the overall ballast resistance. Railways using concrete ties must install specialized insulating pads between the steel rail and the concrete to prevent the track current from leaking into the ground.
