The Anisotropy of Carbon Fiber: How Fiber Orientation Dictates Strength and Stiffness in Different Directions

Carbon fiber is hailed across the automotive industry as a miracle material—stronger than steel and significantly lighter than aluminum. But that sterling reputation comes with a massive, binding constraint: direction. If the mechanical load perfectly aligns with the orientation of the fibers, the material holds firm against staggering forces. If the load strikes across those fibers, however, the legendary strength vanishes, and the failure threshold drops to that of the brittle plastic resin holding the microscopic threads together.

This profound directional dependence is known in materials science as anisotropy. For the buyer of a $250,000 luxury supercar or a high-end electric vehicle, this abstract physics concept is not just an engineering footnote. It dictates everything from the car's cornering stiffness on a track day to its staggering insurance premiums. Understanding how and why carbon fiber fails is the key to understanding the modern luxury vehicle architecture.

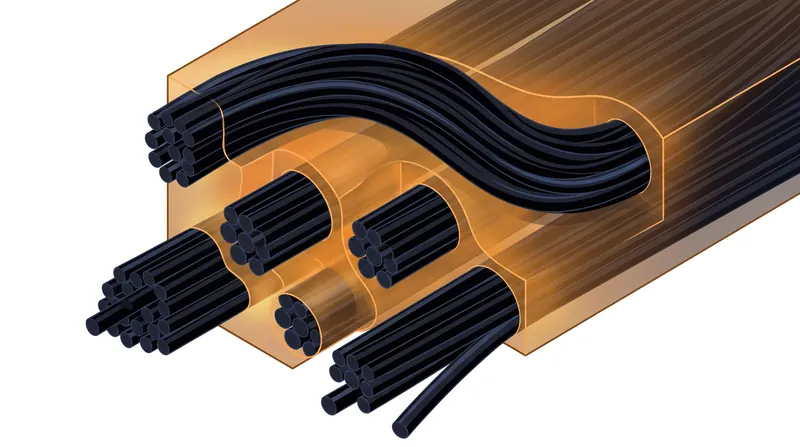

To grasp the mechanics of anisotropy, one must look closely at the material's microstructure. A carbon fiber reinforced polymer (CFRP) is not a single, uniform material; it is a composite system. Microscopic threads of pure carbon, each measuring roughly 5 to 10 micrometers in diameter, are bundled by the thousands into tows. These tows are then woven into sheets and encased in a plastic resin matrix, typically an industrial epoxy or an advanced thermoplastic.

The carbon threads themselves possess immense tensile strength, but they are entirely flexible, much like a highly engineered rope. The epoxy matrix is what holds them rigid and dictates the shape of the final part, but the resin is comparatively weak. Therefore, the composite system only operates efficiently when the mechanical load pulls directly on the tensioned carbon threads, allowing the fibers to bear the brunt of the force.

"Unlike metallic materials, CFRP composites exhibit pronounced anisotropy of mechanical properties and complex failure mechanisms governed by the interaction between fibres, matrix, and the interfacial region," researchers noted in a July 2026 comprehensive review published in the journal Polymers. The study highlighted that the bond between the fiber and the resin is often the weakest link in the entire structural chain.[1]

The mathematical disparity between the two directions is staggering. When a pulling force is applied at a perfect 0-degree angle—parallel to the orientation of the fibers—a unidirectional carbon fiber panel can withstand tensile loads exceeding 1,500 megapascals (MPa). To put that figure into perspective, that is nearly three times the yield strength of the standard high-strength steel used in conventional automotive manufacturing.[1]

However, if that exact same carbon fiber panel is struck at a 90-degree angle—perpendicular to the orientation of the fibers—the carbon threads are entirely unable to share the load. The mechanical stress falls entirely on the epoxy matrix binding them together. In this transverse direction, the tensile strength of the panel plummets to roughly 50 MPa, failing under a fraction of the force that the longitudinal axis could easily absorb.[1]

That dynamic represents a staggering 30-to-1 structural penalty simply based on the angle of the impact. "Anisotropic means a material with different strength and stiffness in different directions through the material," explains composite manufacturer DragonPlate in its engineering documentation. "Carbon fiber laminates made with the fibers all oriented in one direction are extremely anisotropic," meaning their application must be strictly limited to environments where the direction of the load is entirely predictable.[3]

For luxury automakers like McLaren, which recently confirmed a massive investment in U.K. production for its first SUV, or Porsche, which utilizes advanced carbon elements in the upcoming 2027 Cayenne Electric, this anisotropy presents a profound and expensive engineering puzzle. A vehicle in motion is subjected to chaotic, multidirectional forces that rarely align perfectly with a single geometric axis.

A traditional steel chassis is isotropic. Whether a steel structural beam is struck from the front, the side, or the top, its crystalline yield strength remains constant. Automotive engineers can stamp a steel part, weld it into a frame, and trust it to handle multidirectional crash loads predictably, knowing the metal will deform and absorb energy uniformly regardless of the impact vector.

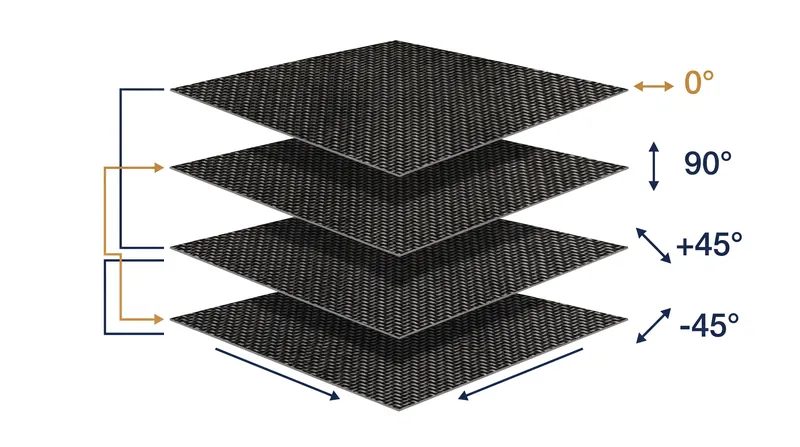

Carbon fiber requires a completely different and highly meticulous approach. To prevent a catastrophic structural failure from an off-axis impact, engineers cannot rely on a single layer of material. They must stack multiple layers of carbon fiber cloth on top of one another at different intersecting angles—typically orienting the plies at 0 degrees, 90 degrees, +45 degrees, and -45 degrees to cover all potential load paths.

This complex stacking method creates what the composites industry calls a "quasi-isotropic" laminate. By ensuring that at least 12.5 percent of the carbon fibers point in every primary direction, the resulting panel successfully mimics the uniform, multidirectional strength of a metal part, ensuring the vehicle can survive a complex crash test without shattering.[3]

But this engineering workaround introduces a severe new constraint: excess weight. Every off-axis layer added to a chassis to handle potential side loads is essentially dead weight when the car is simply accelerating forward. The more isotropic a carbon fiber part becomes, the thicker and heavier the laminate must be, steadily eroding the very weight advantage that justified the material's immense manufacturing cost in the first place.

The stakes of anisotropy are raised even higher as automakers attempt to move carbon fiber out of the chassis and directly into the engine bay. Powertrain components face extreme heat, high-frequency vibration, and rotational torque simultaneously, creating a multidirectional stress environment that constantly tests the thermal and mechanical limits of the polymer matrix holding the fibers together.[1]

"Composites... are strongly directional in their properties and break down through several coupled processes in the microstructure at the same time," notes a 2026 editorial analysis by Addcomposite, reviewing the viability of CFRP under the hood. The analysis points out that a single-mechanism failure model is entirely inadequate for predicting how these materials will behave over a 15-year vehicle lifespan.

This directional complexity is exactly why 3D-printed carbon fiber is currently struggling to match the structural performance of traditional compression molding. In additive manufacturing, the printer nozzle physically aligns the short carbon fibers along the specific path of the print head, inadvertently creating severe structural weaknesses across the transverse axis of the printed part.[6]

"The mechanical responses of 3D printed parts strongly depend upon the orientations of the filaments," concluded an August 2021 study published in the Journal of Manufacturing Science and Engineering. "Parts with the infill oriented along the length of the specimens showed the most favorable mechanical responses such as Young's modulus, maximum strength, and toughness," while off-axis performance remained notably inferior.[6]

For the luxury car owner, the reality of anisotropy fundamentally changes the financial equation of vehicle ownership. If a traditional steel door or quarter panel takes a lateral impact in a parking lot, a skilled body shop can often pull the dent or weld a patch, because the metal's crystalline structure remains uniform and repairable.

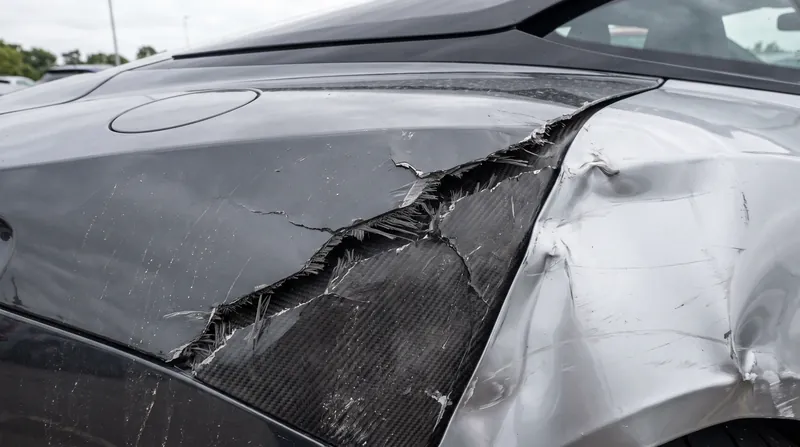

If a carbon fiber tub takes a lateral impact that shears across the fiber matrix, the structural integrity of that specific directional weave is permanently compromised. The microscopic carbon fibers cannot be re-woven, and the shattered epoxy cannot be welded back together. The entire structural tub often requires a complete factory replacement, turning what looks to the naked eye like a minor fender-bender into a $50,000 total-loss insurance claim.

The ongoing transition to carbon-intensive luxury vehicles requires buyers to understand that they are no longer purchasing a car made of uniform, forgiving metal. They are buying a precisely woven industrial textile, suspended in a chemical resin, where every ounce of the vehicle's legendary strength depends entirely on which way the microscopic threads are pointing.
