Pneumatic Stiffness Scales With Inflation Pressure: Why Air Suspensions Preserve a Constant Ride Frequency

Drop 1,000 pounds of luggage, passengers, and fuel into a modern luxury SUV, and the vehicle's physical reality fundamentally changes. The chassis is suddenly burdened with a massive increase in sprung mass. In a vehicle equipped with traditional steel coil springs, this added weight does more than just cause the rear bumper to sag toward the pavement.[1]

It actively degrades the vehicle's ride quality. The suspension becomes sluggish, the chassis wallows over highway dips, and the precise handling the manufacturer engineered into the car vanishes.

This degradation happens because of a strict mathematical relationship that governs how vehicles absorb impacts. But in a vehicle equipped with an air suspension, such as a 2026 Porsche Cayenne or a Range Rover, that 1,000-pound payload effectively disappears.

The Physics of Ride Frequency

The vehicle rides exactly the same fully loaded as it does with only the driver inside. This is not merely a byproduct of the suspension leveling the ride height; it is the result of pneumatic stiffness scaling perfectly with inflation pressure.[2]

To understand why weight ruins a steel-sprung car's ride, you have to look at the formula for natural frequency. "A ride frequency is the undamped natural frequency of the body in ride," explains OptimumG. It is measured in Hertz, or cycles per second.

"Road cars 1.0 to 1.5 Hz, fast road 1.5 to 2.0, race without aero 2.0 to 2.5, downforce cars 3.0 and up," notes High Performance Academy. This 1.0 to 1.5 Hz frequency closely mimics the natural cadence of a human walking, which is why it feels comfortable to the brain.

The natural frequency is determined by dividing the spring's stiffness by the sprung mass it supports, and taking the square root of that ratio.

"Sprung mass... is the portion of the vehicle's total mass that is supported by the suspension," according to Wikipedia.[1]

How Air Springs Solve the Mass Problem

In a traditional suspension, the steel coil has a fixed stiffness. That spring rate is permanently baked into the metal when it is manufactured.

When you load the vehicle with cargo, the mass in the denominator of the equation increases, but the stiffness in the numerator stays exactly the same. Because the denominator grows while the numerator is fixed, the overall ratio shrinks, and the ride frequency drops.

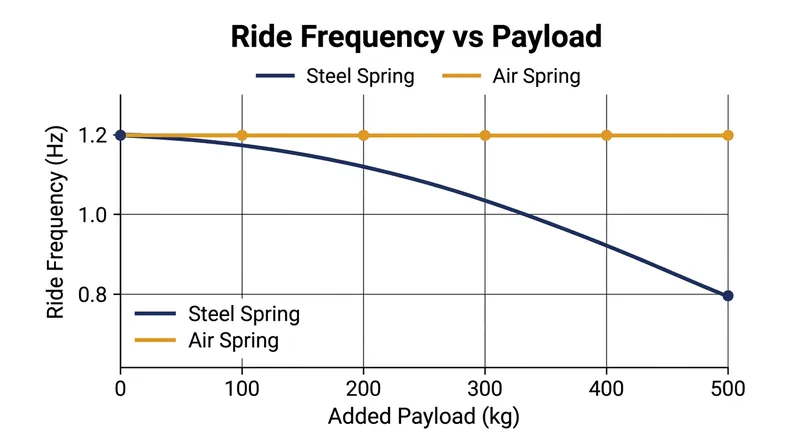

A luxury car tuned to a perfect 1.2 Hz might drop to 0.8 Hz when fully loaded. At that lower frequency, the suspension oscillates too slowly, creating a boat-like, nauseating ride that struggles to control the body's momentum over crests.

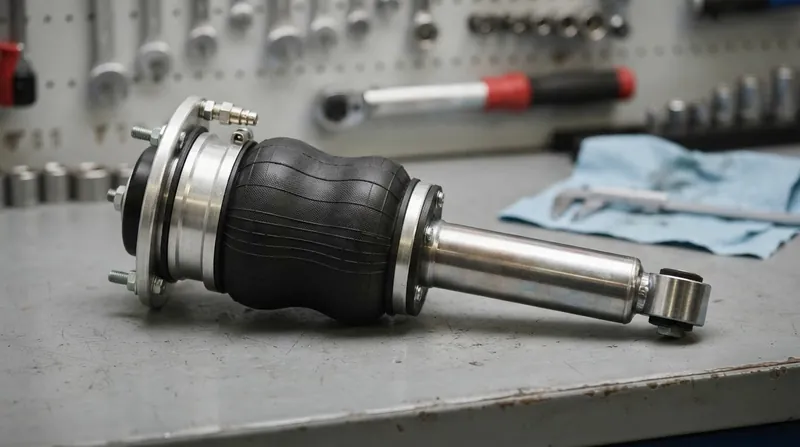

An air suspension replaces the steel coil with a flexible, reinforced rubber bladder filled with compressed air. When that same 1,000-pound payload is added to the vehicle, the extra mass compresses the air spring, causing the vehicle's ride height to drop.

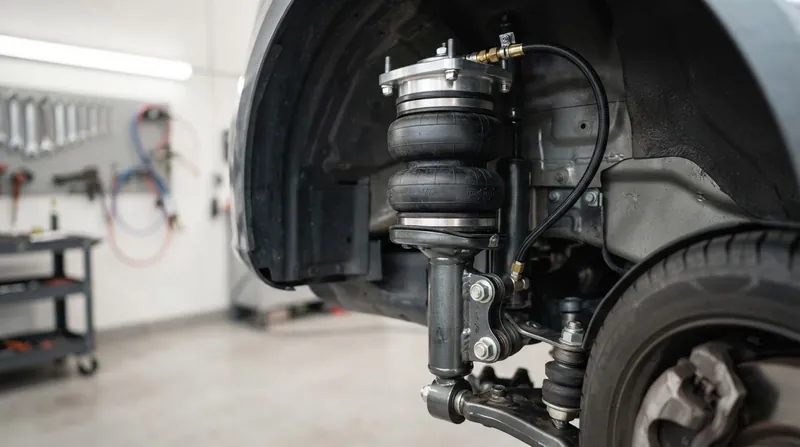

Ride height sensors detect this sag and signal the onboard air compressor to intervene. The compressor pumps more air into the bladder until the vehicle rises back to its target ride height.

Preserving the Mathematical Ratio

By forcing more air into the same physical volume, the system substantially increases the internal inflation pressure. This is where the physics of gases provides an elegant solution to the payload problem.[2]

According to Boyle's Law and the principles of fluid dynamics, the stiffness of a volume of gas is directly proportional to its absolute pressure.[2]

If the payload increases the sprung mass by 30 percent, the compressor must increase the air spring's internal pressure by exactly 30 percent to lift that mass back to the original height.

Because the pressure increases by 30 percent, the pneumatic stiffness of the air spring also increases by 30 percent.[2]

Adaptive Damping and Effective Area

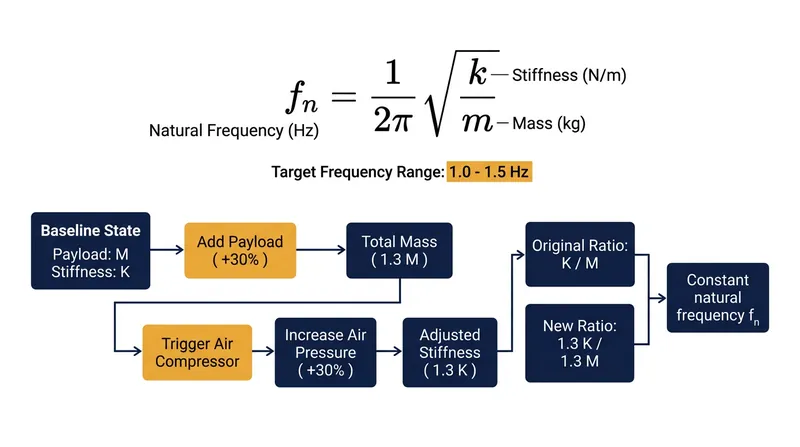

Look back at the natural frequency equation. If the sprung mass increases by 30 percent, and the spring stiffness simultaneously increases by 30 percent, the ratio between the two numbers remains perfectly constant.

The square root of that ratio does not change. Therefore, the ride frequency remains locked at its engineered target of 1.2 Hz, regardless of how much weight is sitting in the cabin or the trunk.

This proportional scaling is the defining advantage of an air suspension. It is the reason commercial semi-trucks, which might weigh 35,000 pounds empty and 80,000 pounds fully loaded, rely entirely on air springs.[2]

If a truck used steel springs stiff enough to support a fully loaded trailer, the ride frequency when empty would be so high that the suspension would effectively be solid, shattering the driver's spine over every pothole. Air springs allow the truck to ride comfortably at both extremes.[2]

Adiabatic Compression and Dynamic Stiffness

However, preserving the spring's natural frequency is only half the battle. The shock absorbers, or dampers, must also manage this increased stiffness.

If the spring rate increases by 30 percent but the damping force remains the same, the suspension becomes underdamped, leading to excessive bouncing after an impact.

This is why modern air suspensions are almost universally paired with adaptive dampers. As the vehicle's electronic control unit detects the increased air pressure and payload, it simultaneously commands the adaptive dampers to restrict their hydraulic fluid flow, increasing the damping force to match the stiffer air spring.

The physical construction of the air spring also plays a critical role in its dynamic behavior. Most automotive air springs use a rolling lobe design, where the rubber diaphragm rolls down over a central metal or plastic piston as the suspension compresses.[2]

By tapering or flaring the shape of this central piston, engineers can manipulate the effective area of the spring dynamically. If the piston flares outward at the bottom, the effective area increases as the suspension compresses, causing the spring rate to ramp up exponentially to prevent the chassis from striking the bump stops during a severe impact.[2]

While the static relationship between pressure and payload perfectly preserves the ride frequency, the dynamic behavior of an air spring over a bump introduces another layer of complexity.[2]

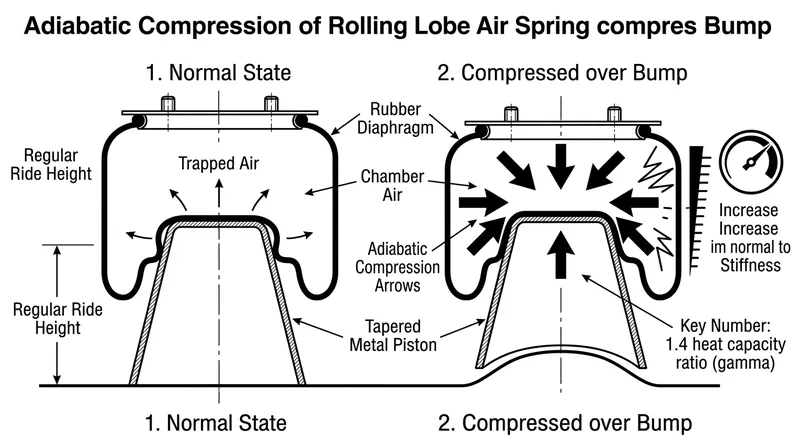

When a vehicle hits a pothole at 60 mph, the air inside the bladder compresses in a fraction of a second. This rapid compression does not allow heat to escape, making it an adiabatic process.[2]

During adiabatic compression, the air acts as an ideal gas with a heat capacity ratio of roughly 1.4. This rapid heating causes the pressure—and therefore the stiffness—to spike momentarily, acting as a natural bump stop that prevents the suspension from bottoming out.[2]

Ultimately, an air suspension is not just a mechanism for raising a vehicle over off-road obstacles or lowering it for aerodynamic efficiency on the highway.

It is a dynamic mathematical equalizer, constantly adjusting its own physical properties to ensure that the burden of weight never compromises the engineering of comfort.[2]
