Solenoid Valves Vary Multi-Chamber Air Spring Volume to Modulate Dynamic Stiffness Without Altering Ride Height

The driver of a modern luxury sedan approaches a sweeping on-ramp and flicks the drive-mode dial from Comfort to Sport Plus. In that instant, the vehicle’s suspension control unit has to make a critical decision. It cannot wait for an air compressor to pump new air into the struts to stiffen the ride.[5]

Adding air to a traditional pneumatic strut would raise the car’s center of gravity exactly when it needs to be low for cornering stability. Instead, the control unit fires a set of electronic solenoid valves hidden inside the air springs. These valves snap shut in milliseconds, physically blocking off sections of the air chamber.[6]

By trapping the existing air in a smaller space, the suspension instantly becomes stiffer and more responsive. It achieves this dramatic transformation without altering the vehicle's ride height by a single millimeter. This mechanism, known as a multi-chamber air spring, solves one of the oldest compromises in automotive engineering.[6]

For decades, engineers had to choose between a soft, wallowy ride for highway cruising or a stiff, punishing setup for cornering performance. Today, the ability to manipulate air volume on the fly allows a single vehicle to deliver both experiences convincingly, shifting its mechanical personality on demand.[3]

The Physics of Pneumatic Stiffness

To understand how solenoid valves achieve this, it helps to look at the basic physics of an air spring. In a standard single-chamber air suspension, the vehicle's weight is supported by a flexible rubber bellows filled with pressurized air. When the wheel hits a bump, the bellows compresses, squeezing the air inside and creating resistance.[1]

The stiffness of that resistance—known as the spring rate—is directly tied to the volume of the air chamber. A large volume of air compresses relatively easily, providing a soft, forgiving ride that absorbs potholes and expansion joints. A small volume of air ramps up in pressure much faster when compressed, creating a stiff ride.[2]

In a traditional system, the only way to change the stiffness is to pump more air into the chamber or let air out. However, adding air increases the pressure and forces the suspension to extend, raising the car's ride height. This creates a paradox for performance driving, where a low stance is crucial.[6]

Multi-chamber air springs break this paradox by dividing the total air volume into separate compartments. Since Porsche first introduced the three-chamber system on the 2017 Panamera, the design has become the gold standard. A typical strut might contain a total volume of 2.5 liters, divided into a 1.2-liter main chamber and two auxiliary chambers.[6]

These chambers are connected by internal passages controlled by solenoid valves. When the vehicle is in its most comfortable setting, all the valves are open. The air flows freely between the main and auxiliary chambers, utilizing the maximum possible volume to deliver a plush, yielding ride over broken pavement.[2]

Millisecond Adjustments

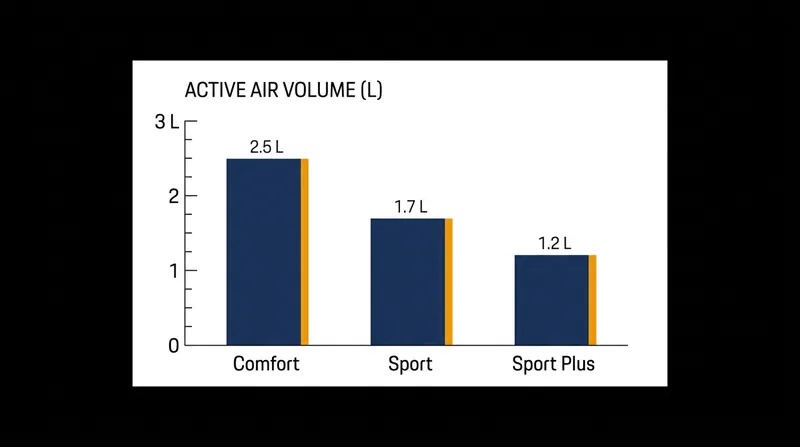

When the driver demands more performance, the suspension control unit sends an electrical current to the solenoid valves. To engage a moderately sporty mode, the system might close the valve to the smallest auxiliary chamber. This slightly reduces the total active air volume, noticeably firming up the ride without engaging the compressor.[6]

For maximum track-level stiffness, the system closes the valves to both auxiliary chambers, isolating the air entirely within the main chamber. Because the total mass of air inside the strut hasn't changed—it has simply been partitioned—the ride height remains exactly where it was when the car was in comfort mode.[6]

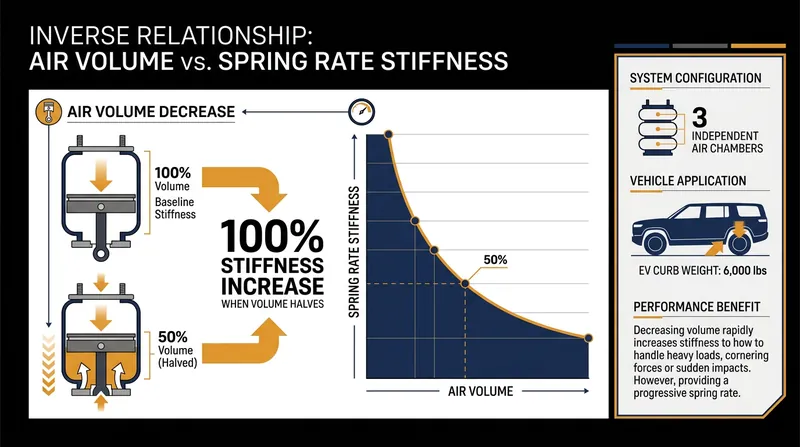

The mathematical impact of this volume reduction is profound. If closing the auxiliary chambers halves the active air volume available for compression, the spring rate effectively doubles. This 100 percent increase in stiffness happens in the time it takes a solenoid to click shut, bracing the car for a corner instantly.[6]

This rapid adaptability is not just for aggressive driving; it also enhances safety during emergency maneuvers. If the vehicle's sensors detect a sudden swerve or an impending collision, the control unit can instantly lock out the auxiliary chambers to stabilize the chassis, minimize body roll, and maximize tire grip.[3]

The technology has even found its way into high-end mountain bike forks, where riders demand similar dual-personality performance. "The extra third chamber... controls the mid-to-end stroke progression," explains the technical review of the EXT Era V2 fork, noting that manipulating these volumes means "the air spring acts like a low-volume air spring in the first part of the travel, but a high-volume air spring in the second part."[2]

Electric Vehicles and the Weight Penalty

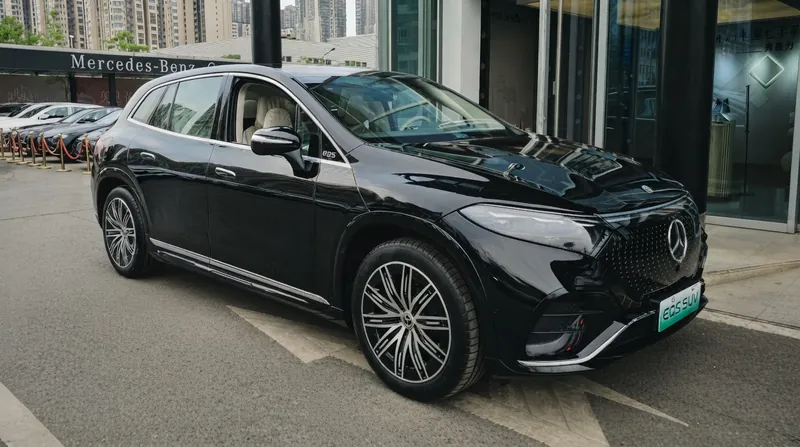

The transition to electric mobility has made dynamic spring rates more than just a luxury feature; they are now an engineering necessity. A modern electric SUV can easily weigh over 6,000 pounds, placing immense static loads on the suspension components before the vehicle even begins to move down the road.[4]

If an automaker uses traditional steel coil springs stiff enough to support that massive battery weight during a high-speed corner, the resulting ride quality on broken city pavement would be intolerably harsh. The suspension would simply lack the compliance needed to absorb sharp impacts, punishing the occupants.[4]

Conversely, if the steel springs are soft enough to provide a luxury ride, the heavy vehicle will suffer from severe body roll and brake dive. Multi-chamber air suspension solves this by allowing the vehicle to operate with a soft, high-volume spring rate for straight-line cruising, instantly switching to a high-stiffness rate when lateral G-forces build.[5]

This dynamic load management also extends the life of the tires and improves overall efficiency. By keeping the heavy chassis perfectly level and controlling weight transfer, the suspension ensures the tires maintain an optimal contact patch, reducing rolling resistance and preserving the electric vehicle's highway range.[4]

The Cost of Complexity

While the performance benefits are undeniable, multi-chamber air springs introduce significant complexity to a vehicle's chassis. The system relies on a network of precision-machined solenoid valves, high-pressure O-rings, and continuous data feeds from ride-height and accelerometer sensors. Every component must function flawlessly to maintain the illusion of a seamless ride.[1]

As these vehicles age, the rubber bellows and internal seals face constant heat cycling and mechanical stress. A failure in a single solenoid valve or a micro-crack in the air sleeve can compromise the entire strut, often requiring a complete and expensive replacement rather than a simple repair.[6]

Furthermore, the software calibrating these valves must be perfectly tuned. If the transition between volumes is too abrupt, the driver will feel a jarring shift in the car's balance mid-corner. Automakers spend thousands of hours refining the algorithms to ensure the solenoid actuations remain imperceptible from the cabin.[5]

Despite these engineering hurdles, the demand for uncompromised luxury and performance ensures the technology will only proliferate. Bugatti CEO Mate Rimac recently delivered a "well-articulated tirade against the horrors of today's European cars," urging a return to genuine mechanical refinement rather than relying on digital gimmicks to convey value.[3]

Ultimately, the multi-chamber air spring represents a triumph of packaging over physics. As reviewers of the Porsche Taycan have noted, while some brands rely on artificial tricks to create character, "the best ones don’t need them." By using solenoid valves to manipulate volume, engineers have given drivers the power to rewrite their vehicle's mechanical limits at the push of a button.[5][6]
