The Mechanics of Active Suspension: How 48-Volt and 400-Volt Systems Erase the Road

You are test-driving a six-figure luxury SUV. Up ahead, a jagged pothole threatens to spill your coffee and jolt the cabin. You brace for the impact, but it never arrives. The vehicle does not merely absorb the blow; it actively pushes the wheel down into the crater and instantly retracts it, keeping the chassis perfectly level. For the modern luxury car buyer, the era of choosing between a soft, floaty ride and stiff, sporty handling is effectively over.[3]

For decades, automotive suspension was a reactive compromise. Steel springs held the vehicle's weight, and hydraulic dampers—commonly known as shock absorbers—slowed down the bouncing. Because these systems were entirely passive, they could only react to the road after the tire had already struck an obstacle. Today, software-defined, drive-by-wire active suspensions are rewriting chassis engineering, replacing mechanical linkages with high-speed electro-hydraulic pumps that anticipate the road before the car even reaches it.

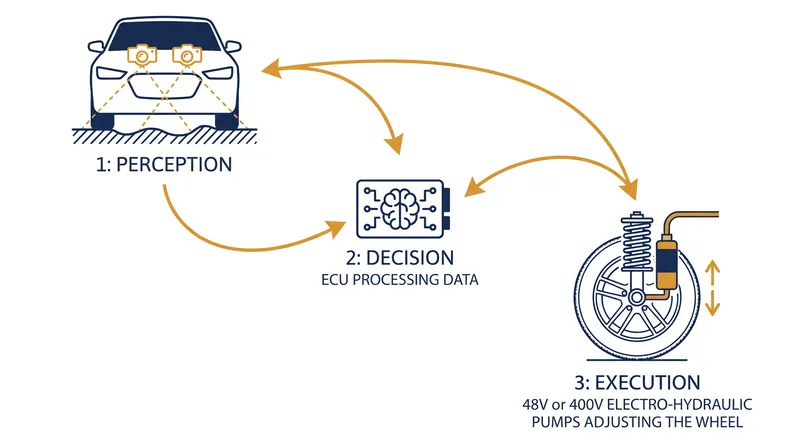

The mechanism begins with perception. Advanced systems, such as Mercedes-Benz's E-Active Body Control, utilize stereo cameras mounted behind the windshield to continuously scan the road surface up to 15 meters ahead. The vehicle's electronic control unit (ECU) processes this visual topographical data alongside real-time wheel acceleration metrics. Within milliseconds, the ECU calculates the exact counter-force required at each individual corner of the vehicle to negate the upcoming bump.

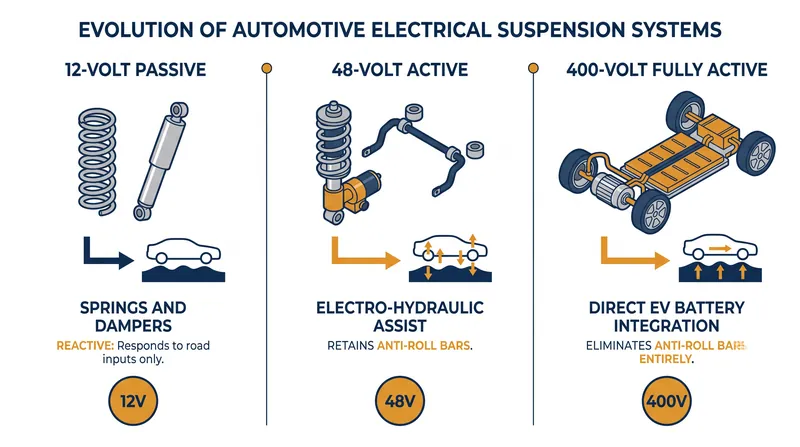

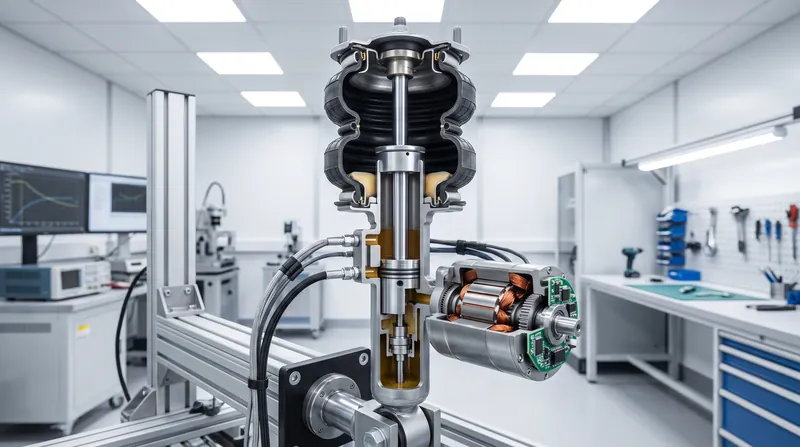

Executing those calculations requires a massive leap in automotive electrical architecture. A traditional 12-volt car battery simply cannot deliver the instantaneous wattage required to physically lift a 5,000-pound vehicle against gravity in a fraction of a second. The introduction of 48-volt auxiliary electrical systems provided four times the power capacity, allowing automakers to install dedicated electro-hydraulic pumps at each wheel hub without melting the vehicle's wiring harness.[1]

This 48-volt architecture enables feats of physics that passive systems cannot replicate. When cornering, the system actively pumps hydraulic fluid to stiffen the outside wheels, completely eliminating body roll. Mercedes-Benz even engineered a "Free Driving Assist" mode for its luxury SUVs; if the vehicle becomes stuck in deep sand or snow, the 48-volt suspension rapidly bounces the entire vehicle up and down, packing the sand beneath the tires to rock itself free.[1]

However, the true paradigm shift is arriving with the integration of high-voltage electric vehicle (EV) and plug-in hybrid traction batteries. Systems like Porsche's Active Ride bypass the 48-volt middle ground entirely, tapping directly into a 400-volt or 800-volt power supply. This provides such overwhelming, instantaneous electrical force that chassis engineers have been able to achieve a long-sought goal: the complete elimination of traditional mechanical anti-roll bars.[2]

An anti-roll bar is a thick metal tube that physically links the left and right wheels to keep the car flat in corners. The inherent flaw is that a bump struck by the left tire transfers harshness directly to the right tire. By removing the bar entirely, the left and right wheels become truly independent. The 400-volt motor-pump units act so quickly they can over-compensate for momentum, actively leaning the car into a corner like a motorcycle, or pitching the nose upward during hard braking to prevent the cabin from diving.[2]

The uncertainty for the consumer lies entirely in long-term ownership and maintenance. These active systems introduce immense complexity into the wheel well: stereo cameras, high-pressure hydraulic lines, individual motor-pump units, and dedicated ECUs exposed to the elements. When a traditional passive shock absorber fails, replacing it costs a few hundred dollars. When an electro-hydraulic active corner fails outside of the factory warranty, the repair bill can easily run into the thousands.[3]

For the first owner leasing a flagship sedan or SUV, active suspension is a revelation that erases road fatigue and defies the laws of motion. But for the second or third owner navigating the used market, it represents a significant maintenance liability. The technology has successfully decoupled ride comfort from handling, but in doing so, it has permanently coupled chassis dynamics to high-voltage software.[3]
