How Next-Generation Active Suspension is Redefining Luxury Cars

The holy grail of automotive engineering has always been the perfect ride—a vehicle that glides over broken pavement like a luxury limousine but corners with the razor-sharp precision of a track-tuned sports car. For over a century, achieving both simultaneously has been a physical impossibility.[5]

The historical compromise is rooted in basic physics. Soft springs and dampers absorb impacts beautifully, but they allow the car's body to roll heavily in corners and dive under braking. Stiff springs keep the car flat and responsive, but they transmit every pebble and pothole directly into the cabin, punishing the occupants.[2][5]

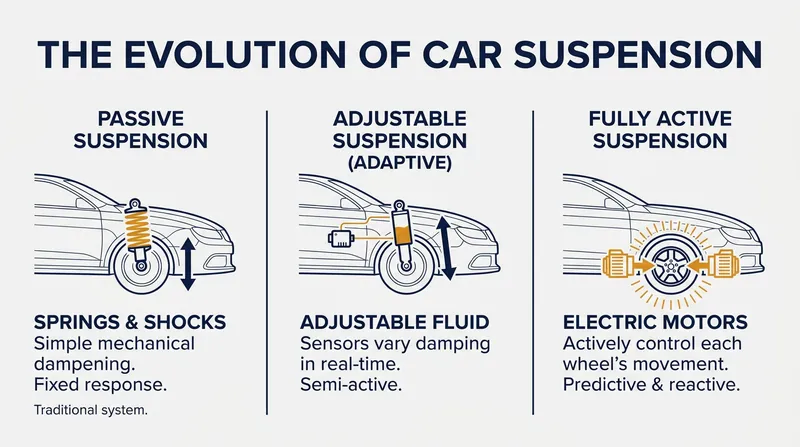

Over the past two decades, automakers have applied increasingly complex band-aids to this problem. They introduced adaptive dampers that can change the stiffness of their hydraulic fluid on the fly. They added air springs to adjust ride height. They even developed active anti-roll bars that electronically stiffen during cornering. Yet, all these systems remain fundamentally reactive—they can only resist the forces applied to the car by the road.[2]

Now, a paradigm shift is occurring at the highest echelons of the automotive market. Engineers are deploying fully active suspension systems that do not merely react to bumps, but actively push and pull the wheels using high-powered electric motors and hydraulic pumps. This technology effectively rewrites the rules of vehicle dynamics, severing the traditional link between ride comfort and handling.[5]

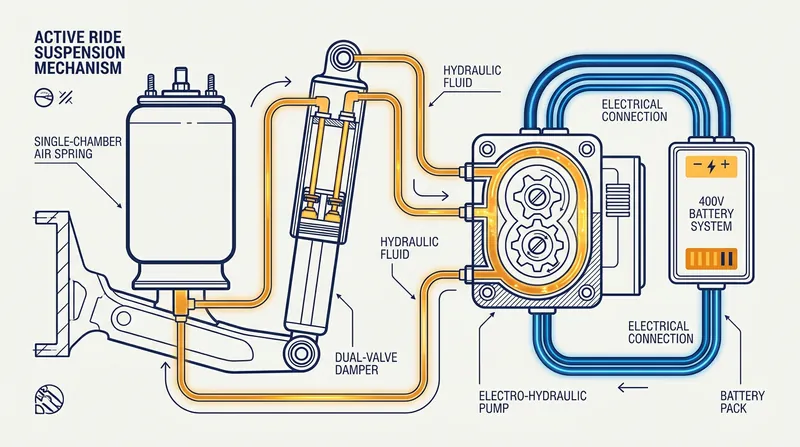

Porsche's recently introduced Active Ride system, available on the Panamera and Taycan, exemplifies this breakthrough. Instead of relying solely on passive resistance, the system pairs a single-chamber air spring with a dual-valve damper connected to an electrically driven hydraulic pump.[1]

Powered by the vehicle's 400-volt high-voltage battery, these hydraulic pumps can force fluid into the damper at immense pressure. This allows the system to actively extend the wheel down into a pothole before the chassis has a chance to drop, or pull the wheel up over a speed bump before the impact jolts the cabin.[1][2]

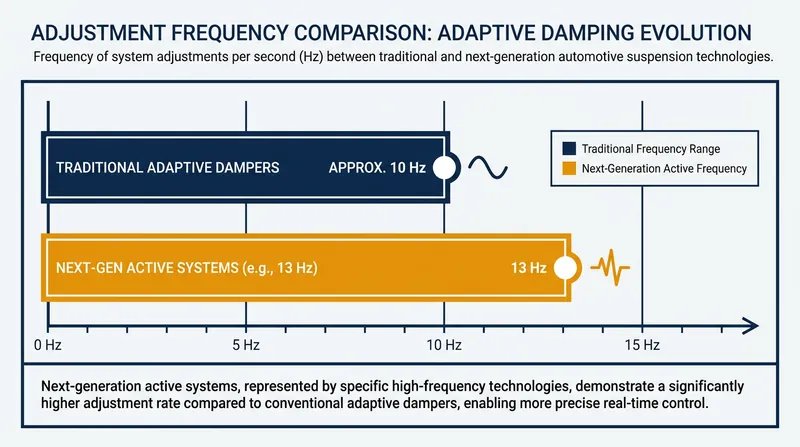

The speed of this system is staggering. Porsche's Active Ride operates at 13 hertz, meaning it can adjust the force applied to each individual wheel up to 13 times per second. This lightning-fast response allows the car's computer to keep the body perfectly level, isolating the occupants from the violence of the road surface below.[1][2]

Because the system can generate its own force, it unlocks entirely new dynamic behaviors. The car can be programmed to overcompensate for physics—leaning into corners like a motorcycle to reduce lateral forces on passengers, or actively raising the front end during panic braking to eliminate nose dive. When a door is opened, the car can instantly hike its suspension up by two inches to make getting in and out easier.[1]

Ferrari has taken a different, but equally revolutionary, approach with its Purosangue SUV, utilizing a system developed by Canadian engineering firm Multimatic. Known as the TrueActive Spool Valve (TASV) damper, this system eschews hydraulic pumps in favor of direct mechanical force.[4]

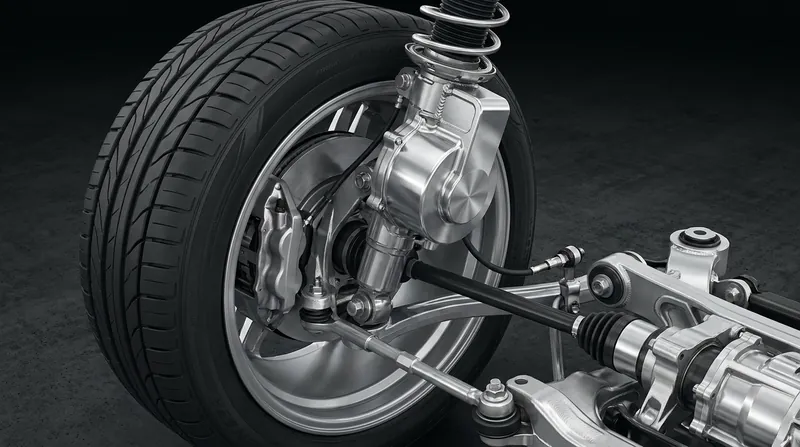

Inside each TASV damper is a liquid-cooled, 48-volt brushless electric motor. This motor drives a bespoke twin-lead ball screw that physically moves the damper shaft. It is capable of exerting enough force to move the entire two-ton vehicle body, actively controlling pitch, roll, and vertical heave without waiting for the suspension to compress naturally.[3][4]

The most significant architectural triumph of both the Porsche and Ferrari systems is the complete elimination of the anti-roll bar. Traditional anti-roll bars connect the left and right wheels to keep the car flat in corners, but this mechanical link means a bump hit by the left wheel is inevitably felt on the right side, causing an uncomfortable side-to-side 'head toss' for passengers. By using active dampers to hold the car flat, the wheels are finally decoupled, allowing them to operate entirely independently.[2][3]

There are, however, trade-offs to this engineering magic. These systems are heavy, complex, and require immense amounts of electrical power. Porsche actually downgraded the Panamera's air springs from a dual-chamber to a single-chamber design specifically to offset the weight of the new hydraulic pumps. Furthermore, the energy required to constantly push and pull the wheels must be drawn from the battery, making the technology highly dependent on the broader shift toward vehicle electrification.[2][5]

For driving purists, there is also the question of feel. Test drivers have described the sensation of cornering with zero body roll as 'cheating physics,' but some argue it creates an uncanny valley effect. By perfectly isolating the cabin and eliminating natural body lean, the driver loses crucial mechanical feedback about the limits of the tires' grip.[4][5]

Despite these critiques, the trajectory is clear. Fully active suspension represents the most significant leap in chassis technology since the invention of the pneumatic tire. As 48-volt electrical architectures become standard and the cost of electric motors falls, this technology will inevitably trickle down from six-figure supercars and luxury sedans to mainstream family vehicles.[5]

When that happens, the century-old compromise will finally be dead. Drivers will no longer have to choose between a dynamic, engaging commute and a serene, comfortable road trip. The car will simply read the road, do the math, and deliver perfection.[5]
