How Rear-Axle Steering Shrinks the Turning Radius of Long-Wheelbase Luxury Sedans

The binding constraint of luxury vehicle design is fundamentally a matter of geometry. To make a 17-foot-long, 5,000-pound sedan maneuverable in a dense city, the physical wheelbase must be shortened—a condition that is physically impossible once the aluminum and steel chassis is stamped on the assembly line. Yet, that constraint currently holds no power over modern flagship vehicles. Engineers have successfully bypassed the rigid physical dimensions of the car by manipulating the effective wheelbase using active rear-axle steering, fundamentally altering how large vehicles interact with urban infrastructure.[6]

Modern vehicles are expanding in virtually every dimension. Electric vehicle battery packs require longer wheelbases to accommodate sufficient energy storage, and luxury buyers demand increasingly expansive rear cabins with reclining seats and legroom. A long wheelbase inherently produces a wide turning circle, turning multi-story parking garages and narrow urban streets into an exercise in patience and spatial anxiety. Adding more front steering assist makes the steering wheel lighter to turn, but it does not change the geometric arc the car must follow to clear a concrete pillar.[4]

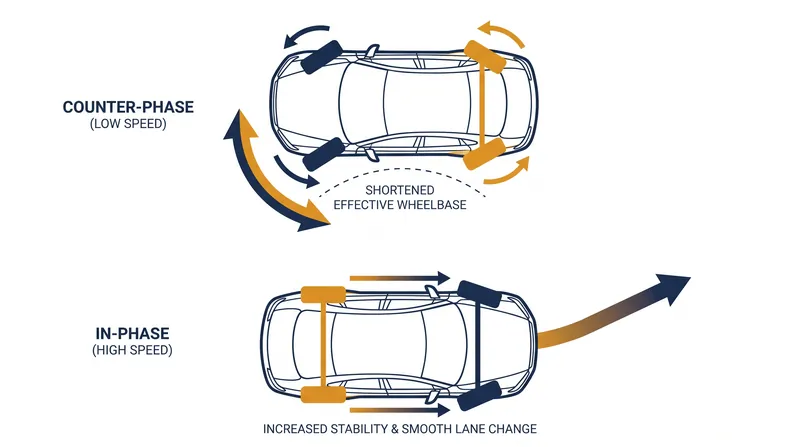

Rear-wheel steering solves this physical limitation by turning the rear wheels in the opposite direction to the front wheels—a mechanism known as counter-phase steering—at low speeds. According to automotive engineering analyses from Dowway Vehicle, this counter-steering artificially shortens the vehicle's effective wheelbase by pivoting the rear of the car outward. The car pivots more tightly around its center axis, allowing it to navigate tight spaces without altering the front steering geometry or requiring a smaller chassis that would compromise interior volume.[4]

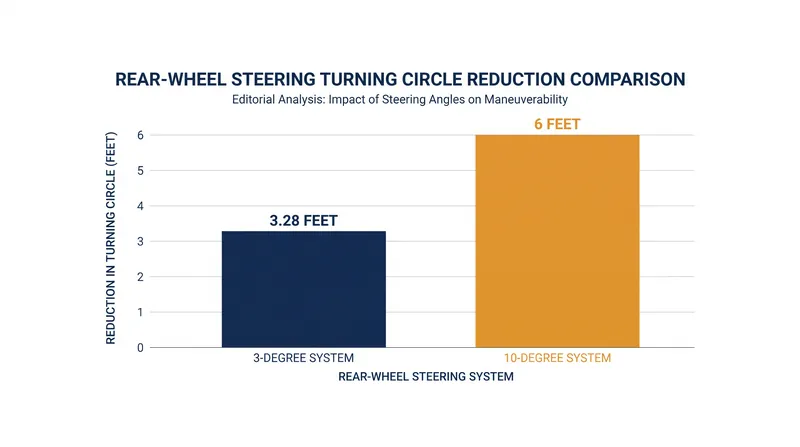

The geometric results are substantial even at seemingly minor steering angles. A 3-degree rear steering angle on a heavy SUV like the BMW X5 removes 3.28 feet from its turning circle, according to a 2026 technical review by RoadEthos. Mercedes-Benz pushes this geometry significantly further on the S-Class and EQS sedans, utilizing a highly advanced 10-degree rear steering system. This aggressive angle cuts the turning circle of a long-wheelbase S-Class by 6 full feet, bringing it under 36 feet—roughly the same turning radius as a compact Mercedes A-Class hatchback.[1]

Above a specific speed threshold—typically calibrated around 37 mph (60 km/h)—the system reverses its logic entirely. The rear wheels begin turning in the same direction as the front wheels, a state known as in-phase steering. This artificially lengthens the effective wheelbase of the vehicle. J.D. Power notes that this tandem response stabilizes the vehicle during high-speed lane changes on the highway, minimizing yaw rate and significantly reducing the risk of oversteer when navigating sweeping curves or executing emergency avoidance maneuvers.[2]

For luxury sedans, this high-speed stability translates directly to enhanced passenger comfort. Steering the rear wheels in phase reduces the lateral forces felt in the rear cabin, where executives or VIPs are often seated and working. "The vehicle changes lanes with less yaw, corners more flatly and feels more planted, particularly for rear passengers who otherwise feel the most movement," notes RoadEthos in its evaluation of the technology's impact on ride quality. By keeping the chassis parallel to the lane markings, the system eliminates the pendulum effect typical of long vehicles.[1][6]

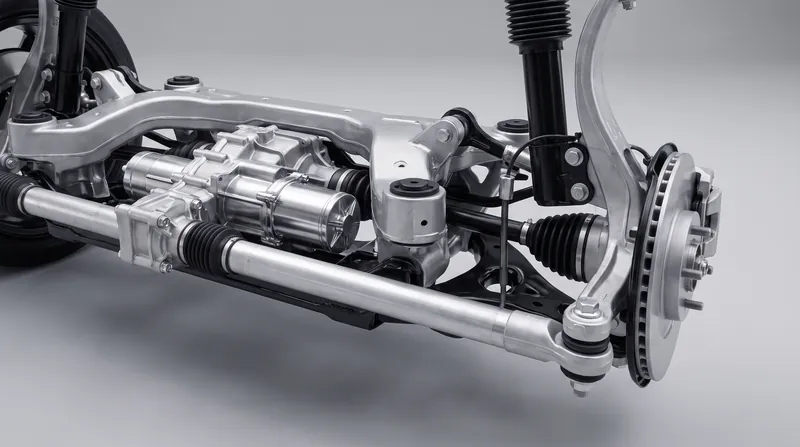

The execution of this geometry relies on highly precise electro-mechanical hardware integrated into the chassis. Bosch Mobility outlines that modern systems use a dedicated electronic control unit (ECU) connected to the vehicle's high-speed CAN bus. The ECU reads the front steering angle, vehicle speed, and yaw rate in real time, then commands an electric motor or hydraulic cylinder mounted on the rear axle to extend or retract a track rod, adjusting the rear wheel angle in milliseconds to match the driver's intent.[3]

Implementing these active systems requires significant packaging space underneath the trunk and imposes strict limits on wheel and tire choices. For instance, the maximum 10-degree variant on the Mercedes S-Class restricts the rear wheel size to 20 inches and limits the tire width to a 255/40 profile. This specific sizing ensures the tires have enough physical clearance inside the wheel well to achieve the extreme steering angle without rubbing against the suspension components, the inner fender liner, or the chassis itself during full lock.[1]

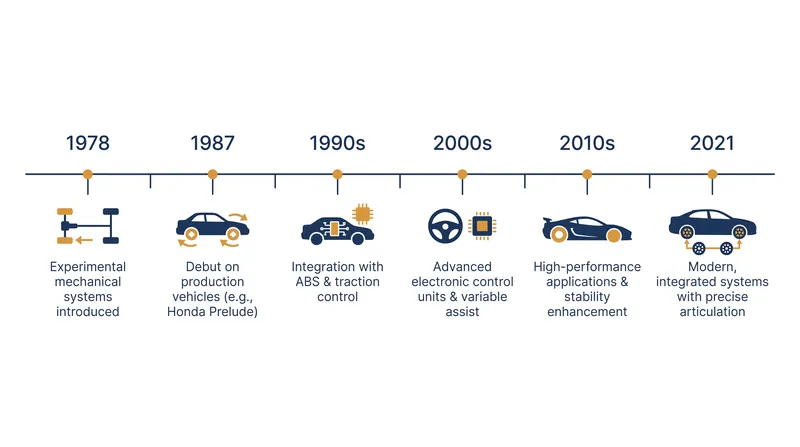

While the technology feels distinctly futuristic, it has deep engineering roots stretching back decades. Porsche experimented with passive rear steering in the 1978 928, and Nissan introduced the first active electronic system on the 1985 R31 Skyline, according to CarBuzz. However, those early mechanical systems were often dismissed as complex fads that offered only marginal benefits for smaller, lighter sports cars that already possessed relatively short wheelbases and nimble handling characteristics. It took the massive weight and footprint of modern luxury vehicles to make the technology truly indispensable.[5]

Today, the shift toward heavy, long-wheelbase electric vehicles has transformed rear-wheel steering from a niche novelty into a mandatory engineering tool for the luxury segment. As automakers transition to centralized Vehicle Motion Control (VMC) systems, rear-axle steering is being networked directly with active roll stabilization and regenerative braking to manage the immense kinetic energy of a modern EV. The physical footprint of a flagship sedan will continue to grow to accommodate larger battery packs, but the software dictating its rear wheels ensures it will never actually drive like one.[4][6]
