How Suspension Accelerometers Exploit Structural Delay to Cancel Road Noise Before It Forms

Automotive audio engineers have long claimed that sealing a luxury vehicle with hundreds of pounds of acoustic glass and dense foam is the only reliable way to block tire roar. But physical acoustic data from modern chassis testing proves that passive insulation is effectively useless against the low-frequency vibrations generated by rough pavement.[2][3]

Instead of blocking the noise, the solution is to destroy the acoustic wave before it fully forms. By mounting high-fidelity accelerometers directly to the suspension components, active road noise cancellation systems exploit the slight delay it takes for a physical vibration to travel through the car's metal frame.[1]

This structural propagation delay gives digital signal processors a critical head start. It allows the vehicle's audio system to calculate and broadcast an inverted sound wave just milliseconds before the actual road noise radiates into the cabin, erasing the drone at the driver's ear.

The Microphone Lag Problem

Traditional active noise cancellation, familiar to anyone who owns premium headphones, relies on microphones placed inside the listening environment. These sensors listen for ambient noise, and a processor generates an opposite wave to cancel it out.

In a vehicle, this reactive approach works perfectly for predictable, rhythmic sounds like engine drone. Because an internal combustion engine fires in a steady, mathematical pattern, the processor can easily anticipate the next acoustic peak and neutralize it.

Road noise, however, is entirely chaotic. A tire striking an expansion joint or rolling over coarse asphalt produces a random, broadband acoustic signature that changes every millisecond.[2]

By the time an interior microphone detects the sound of a pothole impact, the acoustic wave has already reached the driver's ear. The processor cannot generate the anti-noise fast enough to catch a random event that is already happening in the air.[1][3]

Exploiting the Nine-Millisecond Window

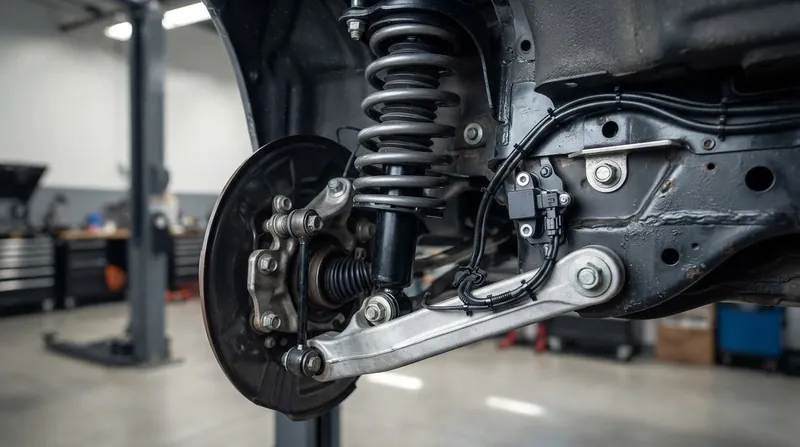

To defeat unpredictable road impacts, engineers had to move the sensors outside the cabin. Modern active road noise cancellation systems place accelerometers on the unsprung mass of the vehicle, typically on the lower control arms or the steering knuckles.[1][2]

When a tire strikes a rough patch, the accelerometer registers the vertical acceleration instantly. The physical vibration then begins its journey: traveling up the control arm, pushing through the dense rubber of the subframe bushings, vibrating the steel chassis, and finally turning the floorpan into a giant speaker diaphragm.[2]

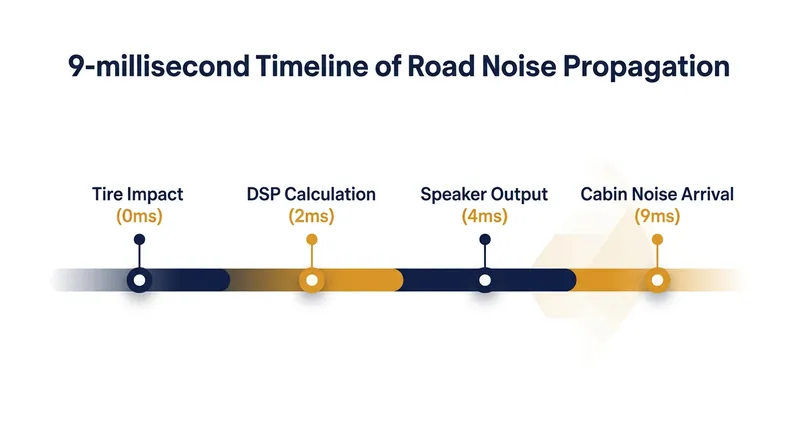

According to technical specifications from Hyundai Motor Group’s development team, this mechanical journey from the tire contact patch to the cabin air takes approximately 0.009 seconds, or nine milliseconds. That brief window dictates the entire engineering challenge.[1]

That nine-millisecond structural delay is the operational window for the system. While the physical vibration is still fighting its way through the suspension bushings, the accelerometer's electronic signal races to the digital signal processor at the speed of light.[1][3]

The Digital Race Against Physics

Once the processor receives the vibration data, it must calculate the exact acoustic wave that the floorpan is about to radiate. It then instructs the cabin speakers and subwoofers to fire an inverted version of that specific wave.

Harman International’s HALOsonic architecture completes this entire calculation and speaker output sequence in just two milliseconds. This leaves a comfortable seven-millisecond margin before the physical noise actually arrives in the cabin.

When the floorpan finally vibrates and pushes the air, the speakers are already pushing the exact opposite wave. The high-pressure zone of the road noise meets the low-pressure zone of the speaker output, and the two waves annihilate each other in mid-air.[2]

"RANC can reduce in-cabin noise by 3dB, which is half the noise level as compared to without it," states Kang-duck Ih, Research Fellow at Hyundai Motor Group's NVH Research Lab. "We will continue to take the leading position in NVH technology to deliver the highest level of quietness."[1]

What This Means for the EV Buyer

For the luxury car buyer, this invisible acoustic warfare fundamentally changes the vehicle's design. Historically, the only way to quiet a cabin was to pack the doors and floor with heavy mastic pads, thick carpets, and double-glazed glass.[3]

That passive weight is the enemy of electric vehicle range. A battery-powered luxury SUV cannot afford to carry 200 pounds of dead acoustic weight just to muffle the tires, especially when the absence of a combustion engine makes road noise the loudest thing in the cabin.[3]

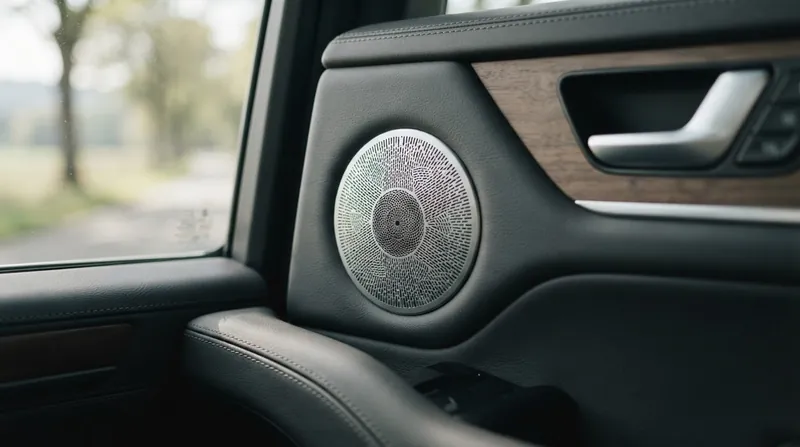

By replacing heavy rubber mats with a few grams of silicon accelerometers and utilizing the speakers already installed in the doors, automakers can strip weight out of the chassis. The buyer gets a quieter highway ride and a longer driving range from the same battery pack.[1]

Bose Automotive engineers note that their QuietComfort Road Noise Control system allows manufacturers to reduce traditional sound-damping materials by up to 30 percent without sacrificing interior refinement. The software effectively replaces the physical mass.

The Limits of Acoustic Erasure

Despite the mathematical elegance of active cancellation, the technology cannot replace all physical insulation. The system is strictly limited to low-frequency, structure-borne vibrations that travel through the suspension, typically between 20 and 500 hertz.[2]

High-frequency sounds, such as wind whistling around the side mirrors or the splash of water in the wheel wells, are airborne. They bypass the suspension entirely and penetrate the glass, meaning they must still be managed with acoustic laminates and aerodynamic design.[2]

Furthermore, the system relies on the predictable transmission speed of the vehicle's physical components. If a suspension bushing degrades over 80,000 miles, or if extreme winter temperatures harden the rubber, the vibration will travel at a different speed.[3]

When the structural delay changes, the processor's timing is thrown off. If the anti-noise arrives even one millisecond too early or too late, it fails to cancel the road noise and can actually amplify the drone, creating a localized pressure boom in the cabin.[1][2]

To prevent this, the system uses interior microphones as a closed-loop feedback mechanism. These microphones constantly grade the processor's homework, listening to the final acoustic result and telling the algorithm to adjust its timing if the cancellation starts to drift.

The silent luxury cabin is no longer a product of brute-force insulation. It is a continuous, millisecond-by-millisecond computational illusion, relying entirely on the fact that data travels faster than steel can vibrate.[3]
